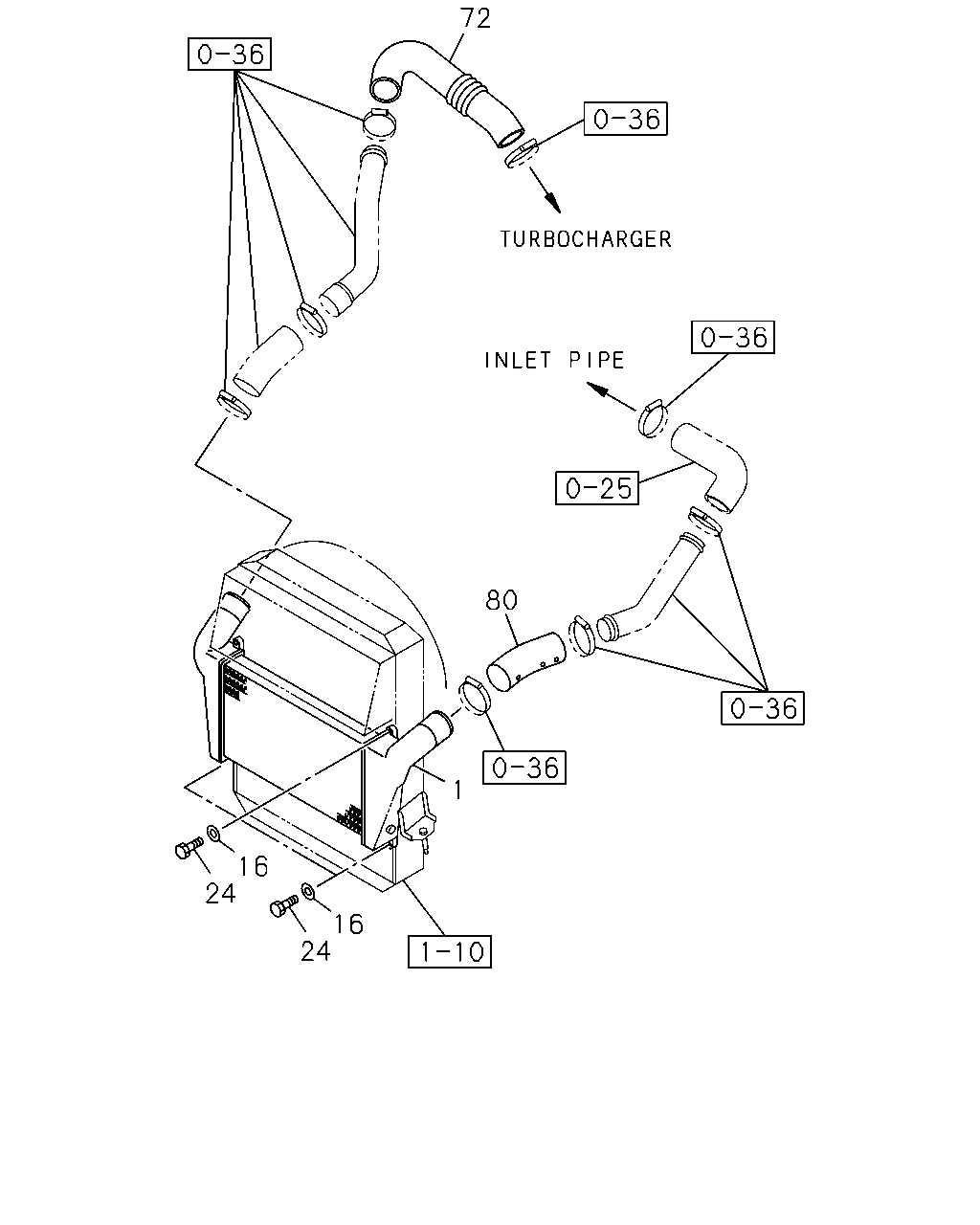

1-35 — CHARGE AIR COOLER (#43085) — 11 parça

72 80 1 16 24 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COOLER; CHARGE AIR 4HK1-TCS ENG<RJS>	8-97333-362-1	01	1	0510-	●	●
1	COOLER; CHARGE AIR 4HE1-TCS ENG<RDS>	8-97218-394-4	01	1	0508-	●	●
16	WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG<RJS> ID=8.4 THA	9-09160-508-0	04	1	0510-	●	●
24	BOLT; COOLER TO RAD 4HE1-TCS ENG<RDS> M8X25 FLANGE	0-28080-825-0	04	1	0508-0509	●	●
24	BOLT; COOLER TO RAD 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X25 FLANGE	0-28080-825-0	04	1	0510-	●	●
72	HOSE; CONN,INL PIPE TO DUCT 4HE1-TCS ENG<RDS>	8-97203-993-2	01	1	0508-0509	●	●
72	HOSE; CONN,INL PIPE TO DUCT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97203-993-2	01	1	0510-	●	●
80	HOSE; CONN,CHARGE AIR COOLER TO DUCT 4HK1-TCS ENG<RJS>	8-98011-904-2	01	1	0510-0608	●	●
80	HOSE; CONN,CHARGE AIR COOLER TO DUCT 4HK1-TCS ENG<RJS>	8-98053-760-0	01	1	0609-	●	●
80	HOSE; CONN,CHARGE AIR COOLER TO DUCT 4HE1-TCS ENG<RDS>	8-97233-792-1	01	1	0508-	●	●
80	HOSE; CONN,CHARGE AIR COOLER TO DUCT 4HK1-TCS ENG<RJS>	8-98011-904-1	01	1	0510-	●	●
