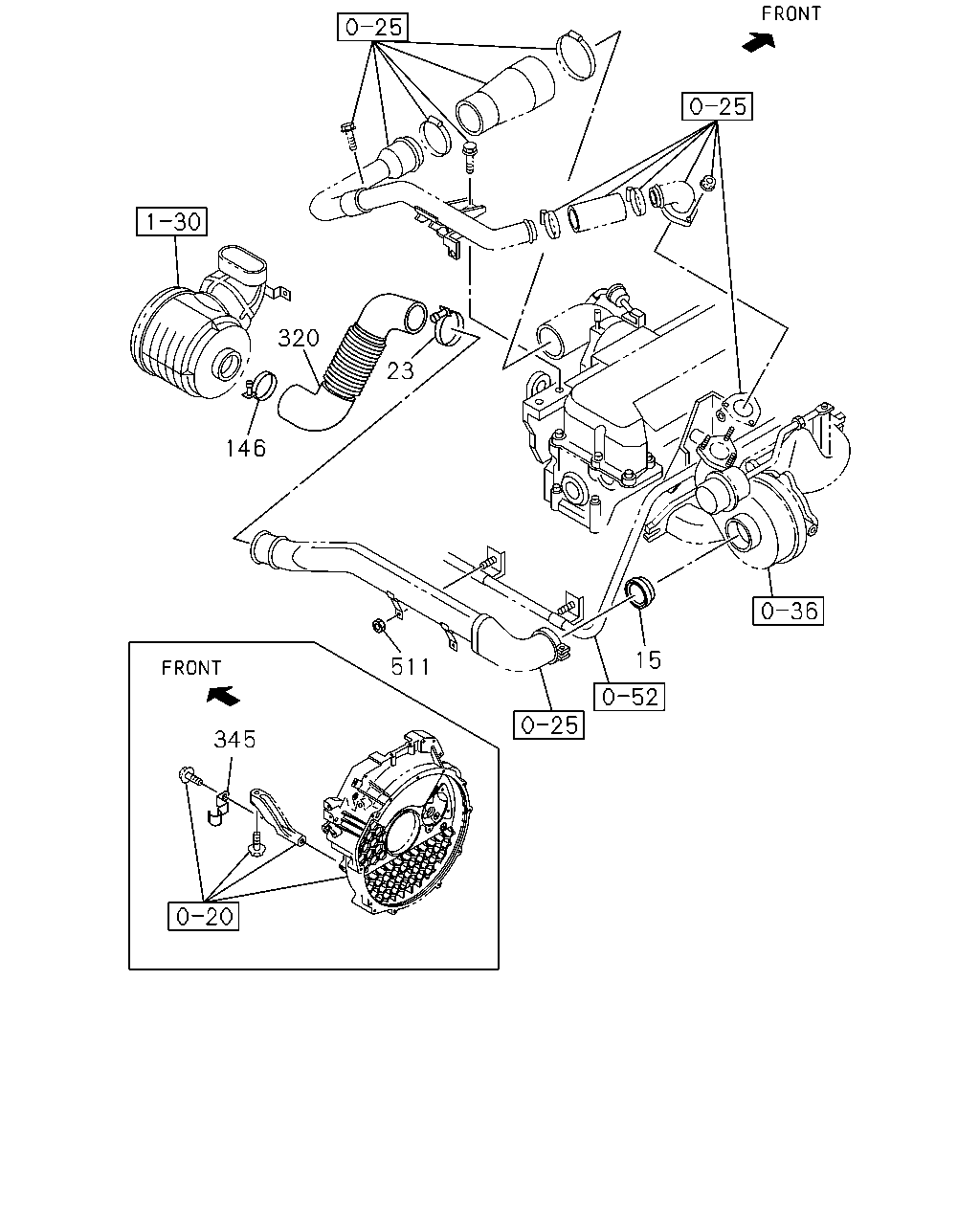

1-31 — AIR DUCT (#43084) — 88 parça

320 23 146 15 511 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	INSULATOR 4HG1-T ENG<RDP>	8-94454-802-0	01	1	0508-	●	●
23	CLIP; HOSE 4HG1-T ENG<RDP> ID=87	8-97087-432-0	01	1	0508-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG<RDP> ID=117	9-09915-075-1	01	1	0508-	●	●
146	CLIP; HOSE,ACL 4HE1-TCS ENG<RDS> ID=112	9-09915-074-1	01	1	0508-0509	●		●
146	CLIP; HOSE,ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=112	9-09915-074-1	01	1	0510-	●		●
320	HOSE; CONN,ACL 4HG1-T ENG<RDP>	8-97223-572-1	01	1	0508-	●	●
320	HOSE; CONN,ACL 4HE1-TCS ENG<RDS>	8-97209-707-0	01	1	0508-	●		●
320	HOSE; CONN,ACL 4HK1-TCS ENG<RJS>	8-98000-873-1	01	1	0510-	●		●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-98020-040-0	01	1	0508-0509	●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>	8-98020-040-0	01	1	0508-0509		●
345	CLIP; PCV HOSE 4HE1-TCS ENG<RDS>	8-98020-040-0	01	1	0508-0509			●
345	CLIP; PCV HOSE	8-98020-040-0	01	1	0510-	●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>	8-98020-040-0	01	1	0510-		●
345	CLIP; PCV HOSE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98020-040-0	01	1	0510-			●
511	NUT; PIPE 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-	●	●

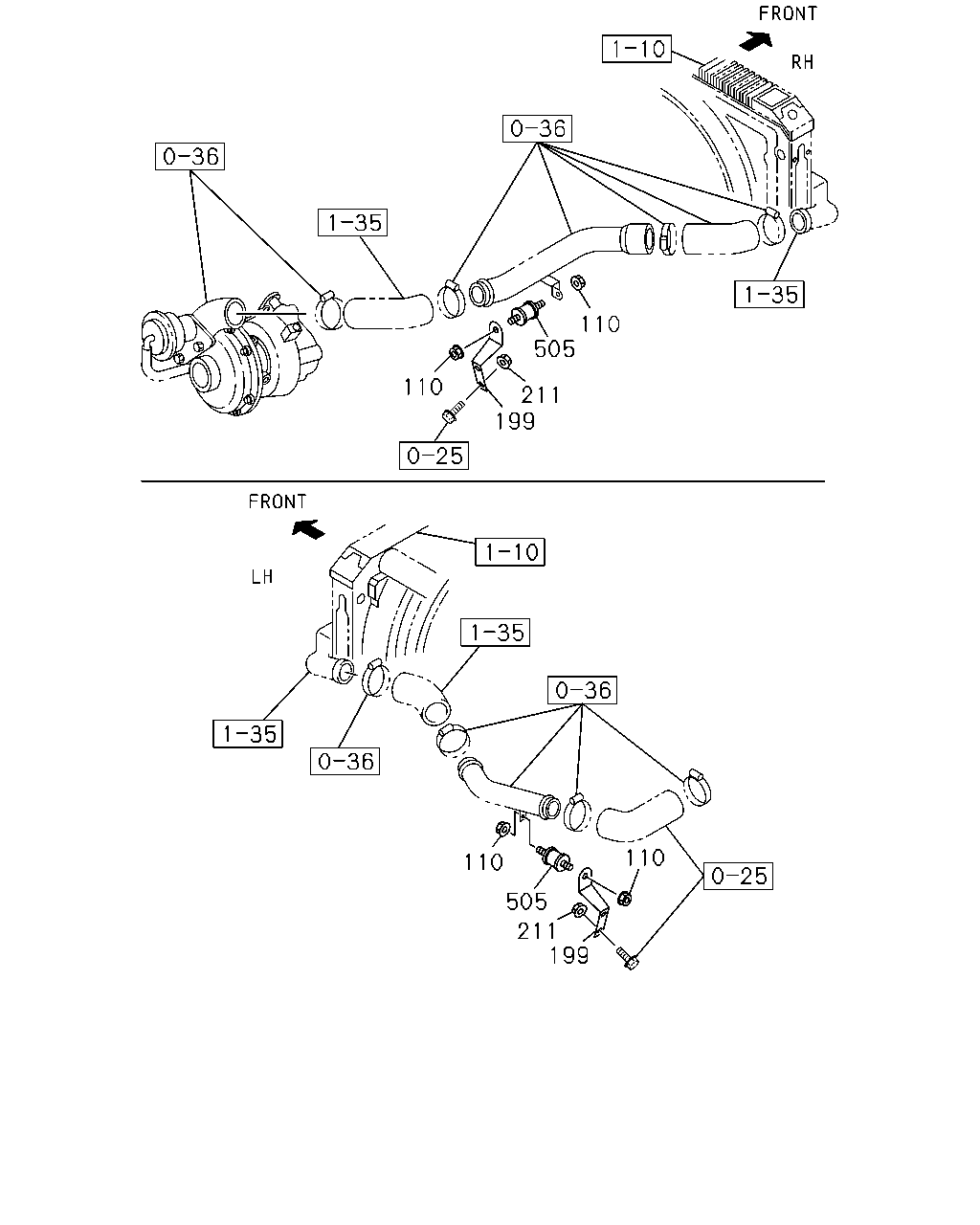

110 505 110 211 199 110 110 505 211 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
110	NUT; RUBBER MTG 4HE1-TCS ENG<RDS> M8 FLANGE	0-91150-108-0	04	1	0508-0509	●	●
110	NUT; RUBBER MTG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8 FLANGE	0-91150-108-0	04	1	0510-	●	●
199	BRACKET; PIPE 4HK1-TCS ENG<RJS>	8-98011-752-1	01	1	0510-	●	●
199	BRACKET; PIPE 4HK1-TCS ENG<RJS>	8-98011-753-1	01	1	0510-	●	●
199	BRACKET; PIPE 4HE1-TCS ENG<RDS>	8-97189-603-1	01	1	0508-	●	●
199	BRACKET; PIPE 4HE1-TCS ENG<RDS>	8-97189-604-0	01	1	0508-	●	●
211	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE	8-97046-127-0	02	1	0510-0610	●	●
211	NUT; BRKT 4HK1-TCS ENG<RJS> M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●	●
505	RUBBER; MTG 4HE1-TCS ENG<RDS>	8-94158-155-1	02	1	0508-0509	●	●
505	RUBBER; MTG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-94158-155-1	02	1	0510-	●	●

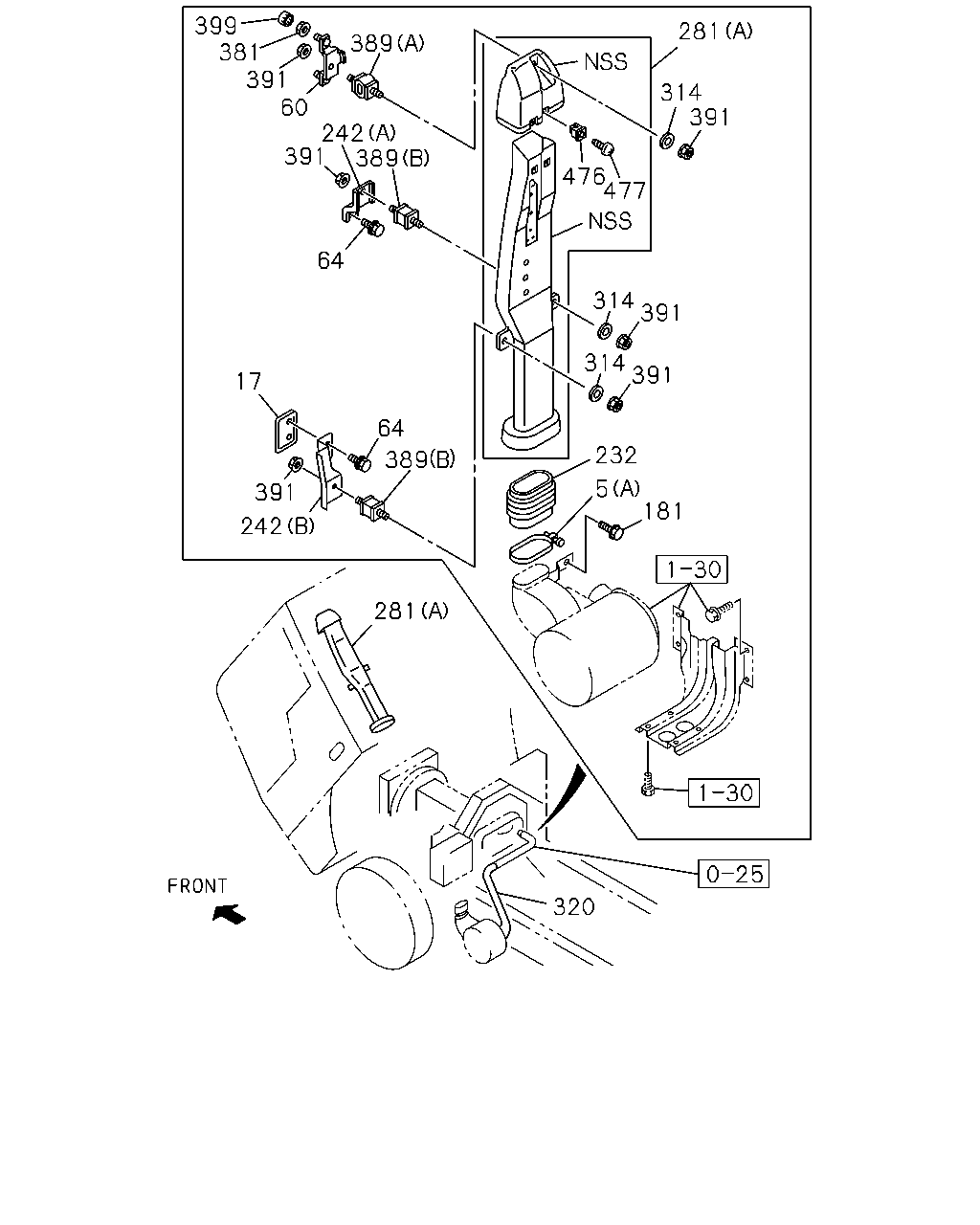

399 381 391 60 281 389 314 391 242 391 389 476 477 64 314 391 314 391 17 64 232 389 5 181 391 242 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4HG1-T ENG<RDP> (A) D=101.6	9-09915-502-1	01	1	0508-	●	●
5	CLIP; AIR DUCT 4HE1-TCS ENG<RDS> (B) ID=68-85	1-09707-202-0	01	1	0508-0509	●		●
5	CLIP; AIR DUCT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=68-85	1-09707-202-0	01	1	0510-0810	●		●
5	CLIP; AIR DUCT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=65-85	8-98133-350-0	01	1	0811-	●		●
17	GASKET; AIR DUCT 4HG1-T ENG<RDP>	8-97853-699-2	01	1	0508-	●	●
60	BRACKET; AIR DUCT,UPR 4HG1-T ENG<RDP> THA	8-97916-585-0	01	1	0508-	●	●
64	BOLT; BRKT,AIR DUCT 4HG1-T ENG<RDP> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
181	BOLT; AIR DUCT TO RAD 4HG1-T ENG<RDP> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
181	BOLT; AIR DUCT TO RAD 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
232	HOSE; CONN 4HG1-T ENG<RDP>	8-97109-423-0	01	1	0508-0802	●	●
232	HOSE; CONN 4HG1-T ENG<RDP>	8-98115-594-0	01	1	0803-	●	●
242	BRACKET; AIR DUCT 4HG1-T ENG<RDP> (B) THA	8-97916-575-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4HG1-T ENG<RDP> (A) THA	8-97916-582-0	01	1	0508-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG<RDP> (A)	8-97125-174-2	01	1	0508-	●	●
281	DUCT; AIR,VERTICAL INT 4HE1-TCS ENG<RDS> (B)	8-97180-995-0	01	1	0508-0509	●		●
281	DUCT; AIR,VERTICAL INT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97180-995-0	01	1	0510-	●		●
314	WASHER; PL,AIR INT DUCT 4HG1-T ENG<RDP> ID=10.2 T=3.2	8-94279-642-0	03	1	0508-1204	●	●
314	WASHER; PL,AIR INT DUCT 4HG1-T ENG<RDP> ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
320	HOSE; CONN,ACL 4HG1-T ENG<RDP>	8-97223-572-1	01	1	0508-	●	●
320	HOSE; CONN,ACL 4HE1-TCS ENG<RDS>	8-97209-707-0	01	1	0508-	●		●
320	HOSE; CONN,ACL 4HK1-TCS ENG<RJS>	8-98000-873-1	01	1	0510-	●		●
381	NUT; BRKT,AIR DUCT 4HG1-T ENG<RDP> M6 FLANGE	1-09984-018-0	02	1	0508-	●	●
381	NUT; BRKT,AIR DUCT 4HK1-TCS ENG<RJS>	8-98020-040-0	01	1	0510-	●		●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG<RDP> (A)	8-97080-149-0	01	1	0508-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG<RDP> (B)	8-97081-886-0	02	1	0508-	●	●
391	NUT; SUPPORT RUBBER,UPR 4HG1-T ENG<RDP> M8 FLANGE	8-94279-517-0	06	1	0508-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4HG1-T ENG<RDP> M8 W/LK WASHER THA	8-97581-234-0	06	1	0911-	●	●
399	CAP; BRKT,AIR DUCT 4HG1-T ENG<RDP>	8-94273-605-0	02	1	0508-	●	●
476	GROMMET; SCREW,COVER 4HG1-T ENG<RDP>	1-09983-081-0	04	1	0508-	●	●
477	SCREW; COVER 4HG1-T ENG<RDP> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0508-0604	●	●
477	SCREW; COVER 4HG1-T ENG<RDP> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-	●	●

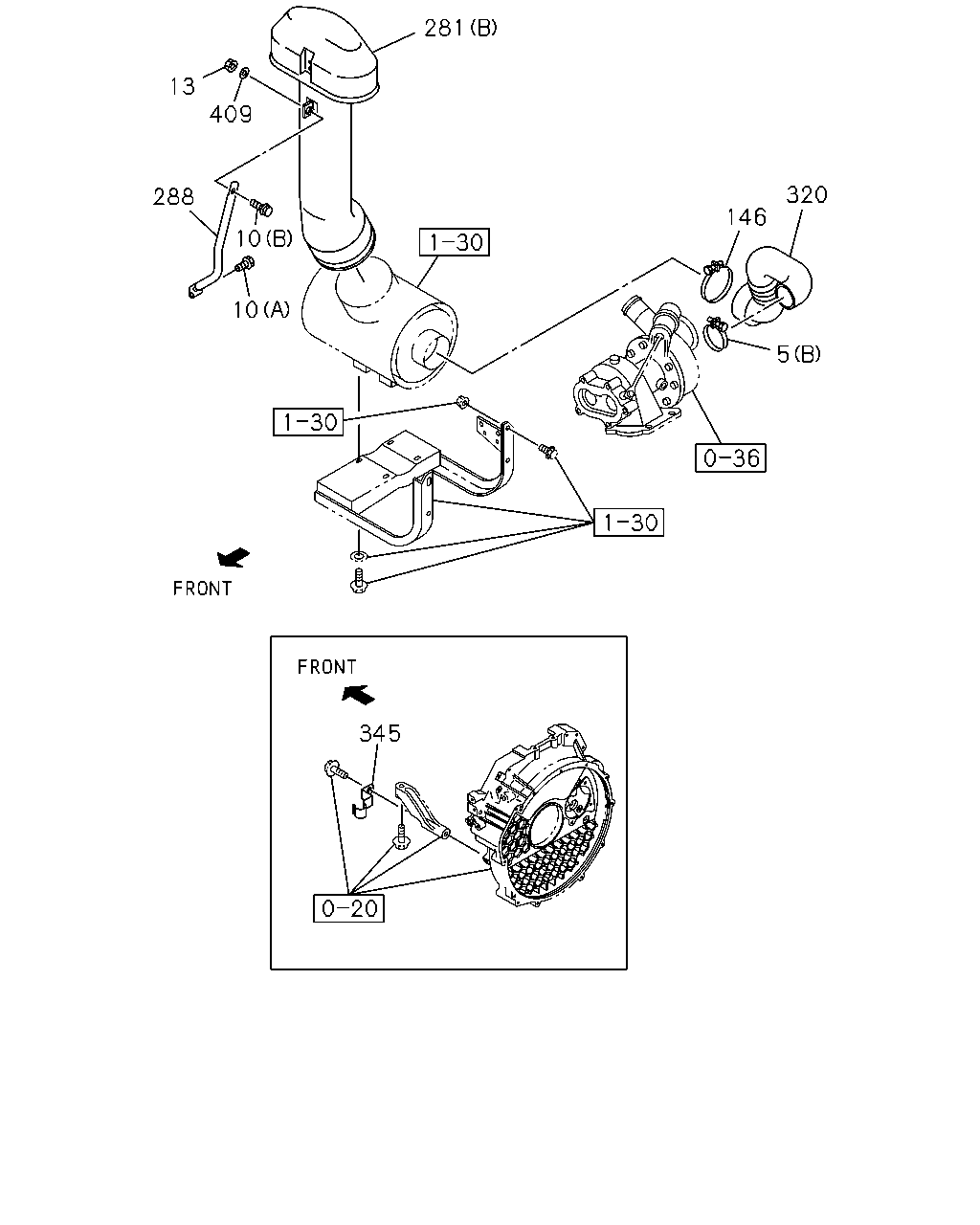

281 13 409 320 288 146 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4HG1-T ENG<RDP> (A) D=101.6	9-09915-502-1	01	1	0508-	●	●
5	CLIP; AIR DUCT 4HE1-TCS ENG<RDS> (B) ID=68-85	1-09707-202-0	01	1	0508-0509	●		●
5	CLIP; AIR DUCT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=68-85	1-09707-202-0	01	1	0510-0810	●		●
5	CLIP; AIR DUCT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=65-85	8-98133-350-0	01	1	0811-	●		●
10	BOLT; BRKT FIX 4HE1-TCS ENG<RDS> (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0509	●		●
10	BOLT; BRKT FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M8X25 FLANGE	0-28680-825-0	02	1	0510-0611	●		●
10	BOLT; BRKT FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●		●
10	BOLT; BRKT FIX 4HE1-TCS ENG<RDS> (B) M8X35 FLANGE	0-28680-835-0	01	1	0508-0509	●		●
10	BOLT; BRKT FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) M8X35 FLANGE	0-28680-835-0	01	1	0510-0611	●		●
10	BOLT; BRKT FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) M8X35 FLANGE THA	0-28650-835-0	01	1	0612-	●		●
13	NUT; BRKT FIX 4HE1-TCS ENG<RDS> M8 FLANGE	0-91150-108-0	01	1	0508-0509	●		●
13	NUT; BRKT FIX 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8 FLANGE	0-91150-108-0	01	1	0510-	●		●
146	CLIP; HOSE,ACL 4HG1-T ENG<RDP> ID=117	9-09915-075-1	01	1	0508-	●	●
146	CLIP; HOSE,ACL 4HE1-TCS ENG<RDS> ID=112	9-09915-074-1	01	1	0508-0509	●		●
146	CLIP; HOSE,ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=112	9-09915-074-1	01	1	0510-	●		●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG<RDP> (A)	8-97125-174-2	01	1	0508-	●	●
281	DUCT; AIR,VERTICAL INT 4HE1-TCS ENG<RDS> (B)	8-97180-995-0	01	1	0508-0509	●		●
281	DUCT; AIR,VERTICAL INT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97180-995-0	01	1	0510-	●		●
288	BRACKET; DUCT 4HE1-TCS ENG<RDS>	8-97183-041-2	01	1	0508-0509	●		●
288	BRACKET; DUCT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97183-041-2	01	1	0510-	●		●
320	HOSE; CONN,ACL 4HG1-T ENG<RDP>	8-97223-572-1	01	1	0508-	●	●
320	HOSE; CONN,ACL 4HE1-TCS ENG<RDS>	8-97209-707-0	01	1	0508-	●		●
320	HOSE; CONN,ACL 4HK1-TCS ENG<RJS>	8-98000-873-1	01	1	0510-	●		●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-98020-040-0	01	1	0508-0509	●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>	8-98020-040-0	01	1	0508-0509		●
345	CLIP; PCV HOSE 4HE1-TCS ENG<RDS>	8-98020-040-0	01	1	0508-0509			●
345	CLIP; PCV HOSE	8-98020-040-0	01	1	0510-	●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>	8-98020-040-0	01	1	0510-		●
345	CLIP; PCV HOSE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98020-040-0	01	1	0510-			●
409	WASHER; PL,BRKT 4HE1-TCS ENG<RDS> ID=8.4 OD=22	9-09160-708-0	01	1	0508-0509	●		●
409	WASHER; PL,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=8.4 OD=22	9-09160-708-0	01	1	0510-0605	●		●
409	WASHER; PL,BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●		●
