◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

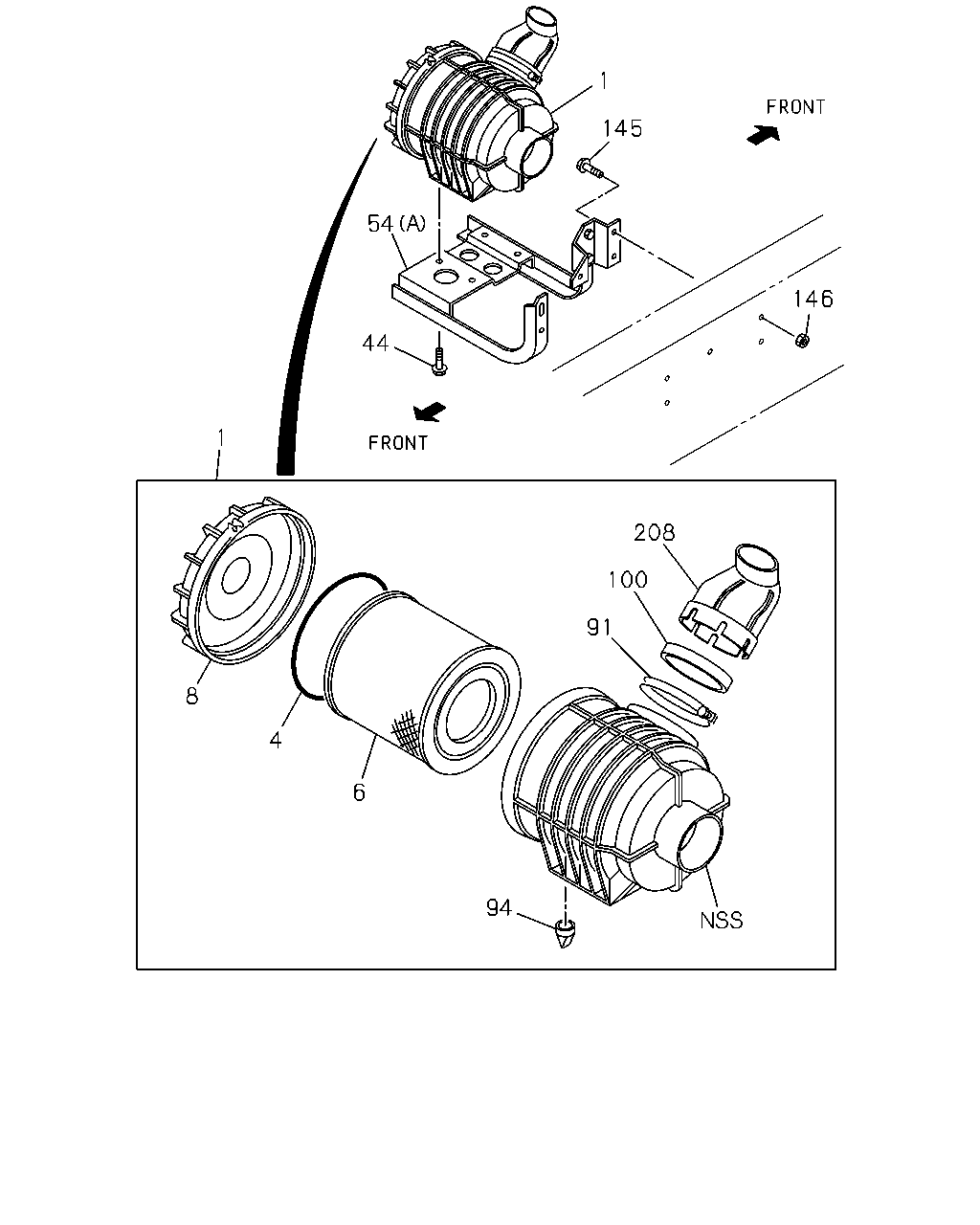

1-30 — AIR CLEANER (#43083) — 131 parça

1 2 3 6 99 100 94 146 1 145 54 50 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR 4HG1-T ENG<RDP>	8-97228-084-2	01	1	0508-	●	●
1	CLEANER ASM; AIR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-97308-653-1	01	1	0508-0509	●		●
1	CLEANER ASM; AIR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-97308-653-1	01	1	0510-	●		●
1	CLEANER ASM; AIR 4HK1-TCS ENG<RJS>	8-97308-653-1	01	1	0510-	●		●
2	NUT; WING,ELEMENT 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94447-989-0	01	1	0508-0509	●		●
2	NUT; WING,ELEMENT 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94447-989-0	01	1	0510-	●		●
2	NUT; WING,ELEMENT 4HK1-TCS ENG<RJS>	8-94447-989-0	01	1	0510-	●		●
3	WASHER; SEAL,WING NUT 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94447-990-0	01	1	0508-0509	●		●
3	WASHER; SEAL,WING NUT 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94447-990-0	01	1	0510-	●		●
3	WASHER; SEAL,WING NUT 4HK1-TCS ENG<RJS>	8-94447-990-0	01	1	0510-	●		●
6	FILTER; ACL 4HG1-T ENG<RDP> THA	8-97062-294-0	01	1	0508-	●	●
6	FILTER; ACL 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-250-0	01	1	0508-0509	●		●
6	FILTER; ACL 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-250-0	01	1	0510-0708	●		●
6	FILTER; ACL 4HK1-TCS ENG<RJS>	8-94430-250-0	01	1	0510-0708	●		●
6	FILTER; ACL 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-98091-394-0	01	1	0709-	●		●
6	FILTER; ACL 4HK1-TCS ENG<RJS>	8-98091-394-0	01	1	0709-	●		●
6	FILTER; ACL 4HG1-T ENG<RDP> BEST VALUE PARTS THA	5-87610-020-0	01	1	0508-	●	●
50	WASHER; PL,ACL 4HE1-TCS ENG<RDS> ID=10.5 OD=22	9-09164-610-0	04	1	0508-0509	●		●
50	WASHER; PL,ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=10.5 OD=22	9-09164-610-0	04	1	0510-0605	●		●
50	WASHER; PL,ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=10.5 OD=22	0-91614-610-0	04	1	0606-	●		●
54	BRACKET; ACL 4HE1-TCS ENG<RDS> (B)	8-98012-793-0	01	1	0508-0509	●		●
54	BRACKET; ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-98012-793-0	01	1	0510-	●		●
54	BRACKET; ACL 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-710-0	01	1	0508-	●
54	BRACKET; ACL 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-040-2	01	1	0508-	●
54	BRACKET; ACL 4HG1-T ENG<RDP> (A)	8-97042-040-2	01	1	0508-		●
94	VALVE; VACUATOR 4HG1-T ENG<RDP> THA	8-97093-694-0	01	1	0508-	●	●
94	VALVE; VACUATOR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	1-14219-075-0	01	1	0508-0509	●		●
94	VALVE; VACUATOR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	1-14219-075-0	01	1	0510-	●		●
94	VALVE; VACUATOR 4HK1-TCS ENG<RJS>	1-14219-075-0	01	1	0510-	●		●
99	CAP; NIPPLE 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94448-008-0	01	1	0508-0509	●		●
99	CAP; NIPPLE 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94448-008-0	01	1	0510-	●		●
99	CAP; NIPPLE 4HK1-TCS ENG<RJS>	8-94448-008-0	01	1	0510-	●		●
100	ADAPTER; ELBOW 4HG1-T ENG<RDP>	8-97093-075-0	01	1	0508-	●	●
100	ADAPTER; ELBOW 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-259-0	01	1	0508-0509	●		●
100	ADAPTER; ELBOW 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-259-0	01	1	0510-	●		●
100	ADAPTER; ELBOW 4HK1-TCS ENG<RJS>	8-94430-259-0	01	1	0510-	●		●
130	BOLT; BRKT TO ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X16 FLANGE	0-28080-816-0	04	1	0510-0512	●		●
130	BOLT; BRKT TO ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X16 FLANGE THA	0-28050-816-0	04	1	0601-	●		●
130	BOLT; BRKT TO ACL 4HE1-TCS ENG<RDS> M8X16 FLANGE	0-28080-816-0	04	1	0508-0509	●		●
130	BOLT; BRKT TO ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X16 FLANGE	0-28080-816-0	04	1	0510-0611	●		●
130	BOLT; BRKT TO ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8X16 FLANGE THA	0-28050-816-0	04	1	0612-	●		●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	05	1	0508-0611	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	05	1	0612-	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509	●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509		●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509			●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611	●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611		●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611			●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-	●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-		●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-			●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	01	1	0512-0602	●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	03	1	0508-0602	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	03	1	0603-	●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	04	1	0508-0509	●		●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0508-0509	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	04	1	0508-0509		●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	04	1	0510-0511	●		●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0510-0511	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	04	1	0510-0511		●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0512-0602	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	04	1	0512-0602		●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	04	1	0512-0602			●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	04	1	0603-	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	04	1	0603-		●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	04	1	0603-			●

1 145 54 146 44 1 208 100 91 8 4 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR 4HG1-T ENG<RDP>	8-97228-084-2	01	1	0508-	●	●
1	CLEANER ASM; AIR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-97308-653-1	01	1	0508-0509	●		●
1	CLEANER ASM; AIR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-97308-653-1	01	1	0510-	●		●
1	CLEANER ASM; AIR 4HK1-TCS ENG<RJS>	8-97308-653-1	01	1	0510-	●		●
4	GASKET; COVER TO BODY 4HG1-T ENG<RDP>	8-97228-092-0	01	1	0508-	●	●
6	FILTER; ACL 4HG1-T ENG<RDP> THA	8-97062-294-0	01	1	0508-	●	●
6	FILTER; ACL 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-250-0	01	1	0508-0509	●		●
6	FILTER; ACL 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-250-0	01	1	0510-0708	●		●
6	FILTER; ACL 4HK1-TCS ENG<RJS>	8-94430-250-0	01	1	0510-0708	●		●
6	FILTER; ACL 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-98091-394-0	01	1	0709-	●		●
6	FILTER; ACL 4HK1-TCS ENG<RJS>	8-98091-394-0	01	1	0709-	●		●
6	FILTER; ACL 4HG1-T ENG<RDP> BEST VALUE PARTS THA	5-87610-020-0	01	1	0508-	●	●
8	COVER ASM; ACL 4HG1-T ENG<RDP>	8-97228-090-0	01	1	0508-	●	●
44	BOLT; ACL 4HG1-T ENG<RDP> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0508-0701	●	●
44	BOLT; ACL 4HG1-T ENG<RDP> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0702-	●	●
54	BRACKET; ACL 4HE1-TCS ENG<RDS> (B)	8-98012-793-0	01	1	0508-0509	●		●
54	BRACKET; ACL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-98012-793-0	01	1	0510-	●		●
54	BRACKET; ACL 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-710-0	01	1	0508-	●
54	BRACKET; ACL 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-040-2	01	1	0508-	●
54	BRACKET; ACL 4HG1-T ENG<RDP> (A)	8-97042-040-2	01	1	0508-		●
91	CLAMP 4HG1-T ENG<RDP>	8-97093-695-1	01	1	0508-	●	●
94	VALVE; VACUATOR 4HG1-T ENG<RDP> THA	8-97093-694-0	01	1	0508-	●	●
94	VALVE; VACUATOR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	1-14219-075-0	01	1	0508-0509	●		●
94	VALVE; VACUATOR 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	1-14219-075-0	01	1	0510-	●		●
94	VALVE; VACUATOR 4HK1-TCS ENG<RJS>	1-14219-075-0	01	1	0510-	●		●
100	ADAPTER; ELBOW 4HG1-T ENG<RDP>	8-97093-075-0	01	1	0508-	●	●
100	ADAPTER; ELBOW 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-259-0	01	1	0508-0509	●		●
100	ADAPTER; ELBOW 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-94430-259-0	01	1	0510-	●		●
100	ADAPTER; ELBOW 4HK1-TCS ENG<RJS>	8-94430-259-0	01	1	0510-	●		●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	05	1	0508-0611	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	05	1	0612-	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509	●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509		●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS> M10X35 FLANGE	0-28681-035-0	04	1	0508-0509			●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611	●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611		●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE	0-28681-035-0	04	1	0510-0611			●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-	●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-		●
145	BOLT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-			●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	01	1	0512-0602	●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	03	1	0508-0602	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	03	1	0603-	●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	04	1	0508-0509	●		●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0508-0509	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	04	1	0508-0509		●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	04	1	0510-0511	●		●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0510-0511	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	04	1	0510-0511		●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0512-0602	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	04	1	0512-0602		●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	04	1	0512-0602			●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	04	1	0603-	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	04	1	0603-		●
146	NUT; BRKT TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	04	1	0603-			●
208	DUCT; ACL 4HG1-T ENG<RDP>	8-97230-869-0	01	1	0508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
