Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#43082) — 25 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
◀

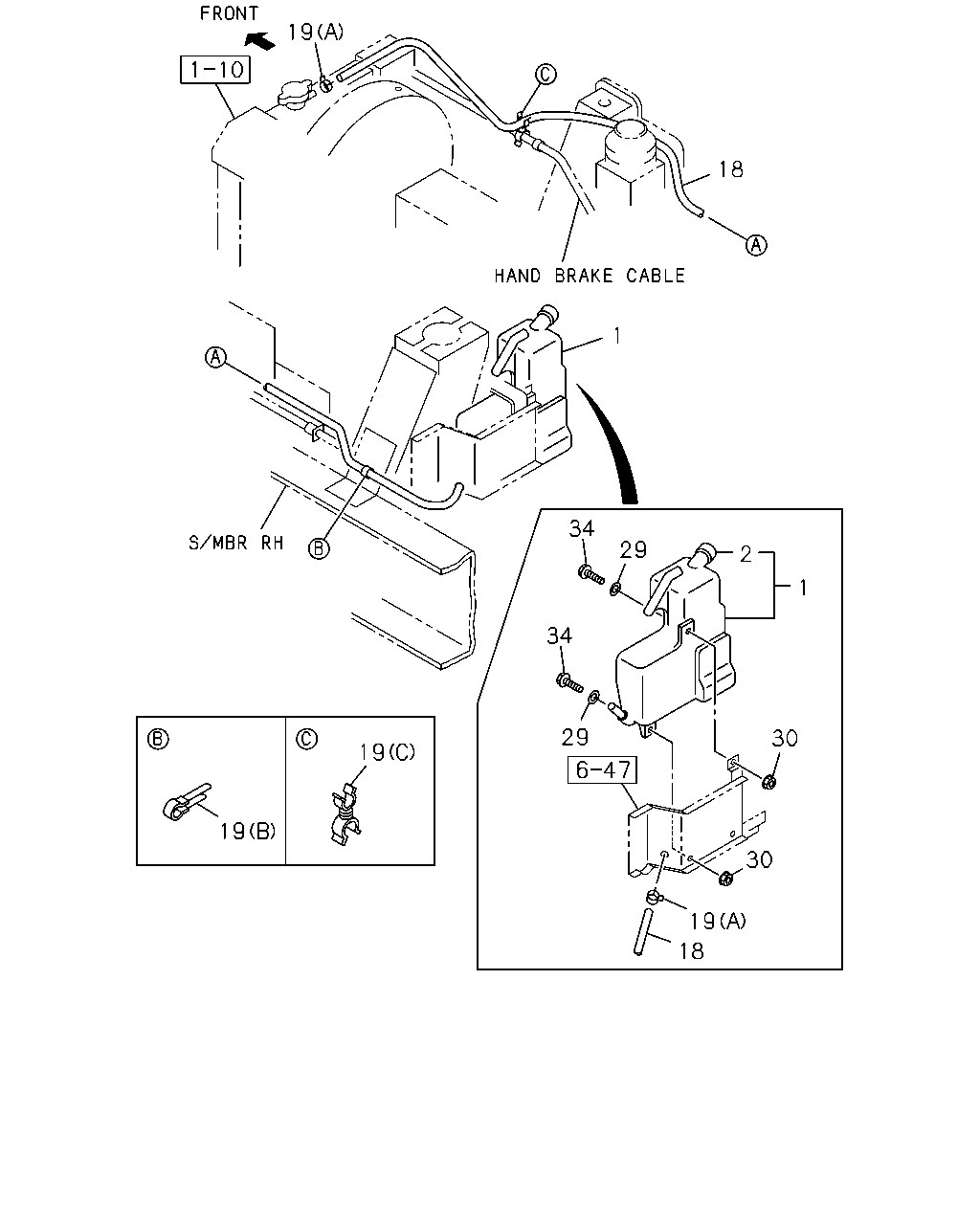

[111A] (NO.1) (18 parça)
[111A] (NO.2) (7 parça)
▶
19
18
1
34
29
2
1
34
29
30
19
19
30
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; SURGE,RAD
8-97210-844-0
01
1
0508-1010
●
●
●
1
TANK; SURGE,RAD
8-98178-177-0
01
1
1011-
●
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0508-1010
●
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1011-
●
●
●
18
HOSE; RAD TO SURGE TANK
4HG1-T ENG<RDP> L=1455
8-97148-535-2
01
1
0508-
●
●
18
HOSE; RAD TO SURGE TANK
4HE1-TCS ENG<RDS> L=1450
8-97218-446-1
01
1
0508-
●
●
18
HOSE; RAD TO SURGE TANK
4HK1-TCS ENG<RJS> L=1520
8-97376-968-1
01
1
0510-
●
●
19
CLIP; HOSE,SURGE TANK
4HK1-TCS ENG<RJS> (B) ID=14 L=47
5-09700-319-0
02
1
0510-
●
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) ID=14 L=47
5-09700-319-0
01
1
0508-
●
●
●
19
CLIP; HOSE,SURGE TANK
(A) ID=12
8-94238-610-0
02
1
0508-0911
●
●
●
19
CLIP; HOSE,SURGE TANK
(A) ID=12
8-98150-358-0
02
1
0912-
●
●
●
19
CLIP; HOSE,SURGE TANK
(C) ID=10 & 11
8-94438-996-0
01
1
0508-
●
●
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
9-09160-706-0
03
1
0508-0605
●
●
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
0-91610-706-0
03
1
0606-
●
●
●
30
NUT
M6 FLANGE
0-91150-106-0
03
1
0508-0605
●
●
●
30
NUT
M6 FLANGE THA
0-91180-106-0
03
1
0606-
●
●
●
34
BOLT; RESERVE TANK
M6X20 FLANGE
0-28680-620-0
03
1
0508-0512
●
●
●
34
BOLT; RESERVE TANK
M6X20 FLANGE THA
0-28650-620-0
03
1
0601-
●
●
●
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
55
HOSE; WATER,RAD OUTLET
4HG1-T ENG<RDP> THA
8-97921-709-0
01
1
0508-
●
●
55
HOSE; WATER,RAD OUTLET
4HE1-TCS ENG<RDS> THA
8-97920-886-0
01
1
0508-
●
●
55
HOSE; WATER,RAD OUTLET
4HK1-TCS ENG<RJS> THA
8-97922-913-1
01
1
0510-
●
●
56
CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0508-
●
●
●
128
HOSE; WATER,RAD INL
4HG1-T ENG<RDP> THA
8-97921-708-0
01
1
0508-
●
●
128
HOSE; WATER,RAD INL
4HE1-TCS ENG<RDS> THA
8-97920-885-0
01
1
0508-
●
●
128
HOSE; WATER,RAD INL
4HK1-TCS ENG<RJS> THA
8-97922-912-0
01
1
0510-
●
●
