1-01 — ACCELERATOR PEDAL AND CONTROL (#43080) — 108 parça

54 99 54 100 101 99 108 101 104 391 729 218 110 54 99 54 114 99 108 729 101 101 104 100 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT 4HG1-T ENG<RDP> (B) L=293	8-97115-730-0	01	1	0508-	●	●
54	CABLE; ENG CONT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0508-	●
54	CABLE; ENG CONT 4HG1-T ENG<RDP> (A) L=2898	8-97167-702-1	01	1	0508-		●
54	CABLE; ENG CONT 4HE1-TCS ENG<RDS> (B) L=384	8-97168-299-1	01	1	0508-	●		●
54	CABLE; ENG CONT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0508-	●
54	CABLE; ENG CONT 4HE1-TCS ENG<RDS> (A) L=3078	8-97148-584-3	01	1	0508-			●
99	BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG<RDP> (B)	8-97118-729-0	01	1	0508-	●	●
99	BRACKET ASM; ENG CONT,INL MANIF 4HE1-TCS ENG<RDS> (A)	8-97167-871-3	01	1	0508-	●		●
100	SHAFT ASM; ENG CONT 4HG1-T ENG<RDP> (B)	8-97118-737-0	01	1	0508-	●	●
100	SHAFT ASM; ENG CONT 4HE1-TCS ENG<RDS> (A)	8-97167-870-2	01	1	0508-	●		●
101	WASHER; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-94142-117-0	02	1	0508-	●	●	●
104	NUT; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8 FLANGE	0-91150-108-0	01	1	0508-0602	●	●	●
104	NUT; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●	●
108	BUSHING; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97120-004-0	01	1	0508-	●	●	●
110	BOLT; BRKT TO HANGER 4HG1-T ENG<RDP> M8X16 FLANGE	0-28080-816-0	03	1	0508-0611	●	●
110	BOLT; BRKT TO HANGER 4HG1-T ENG<RDP> M8X16 FLANGE THA	0-28050-816-0	03	1	0612-	●	●
110	BOLT; BRKT TO HANGER 4HE1-TCS ENG<RDS> M8X16 FLANGE	0-28080-816-0	02	1	0508-0611	●		●
110	BOLT; BRKT TO HANGER 4HE1-TCS ENG<RDS> M8X16 FLANGE THA	0-28050-816-0	02	1	0612-	●		●
114	CLIP; HARNESS CONNECTOR 4HE1-TCS ENG<RDS> ID=7-10 THA	8-94472-578-0	01	1	0508-	●		●
218	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
333	GROMMET; HOLE,CABLE 4HK1-TCS ENG<RJS> OD=24.5 T=7.5	8-97224-683-0	01	1	0510-	●		●
391	BRACKET; ENG CONT 4HG1-T ENG<RDP> (A)	8-97172-882-0	01	1	0508-	●	●
391	BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0508-	●	●	●
729	COLLAR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97118-760-0	01	1	0508-	●	●	●

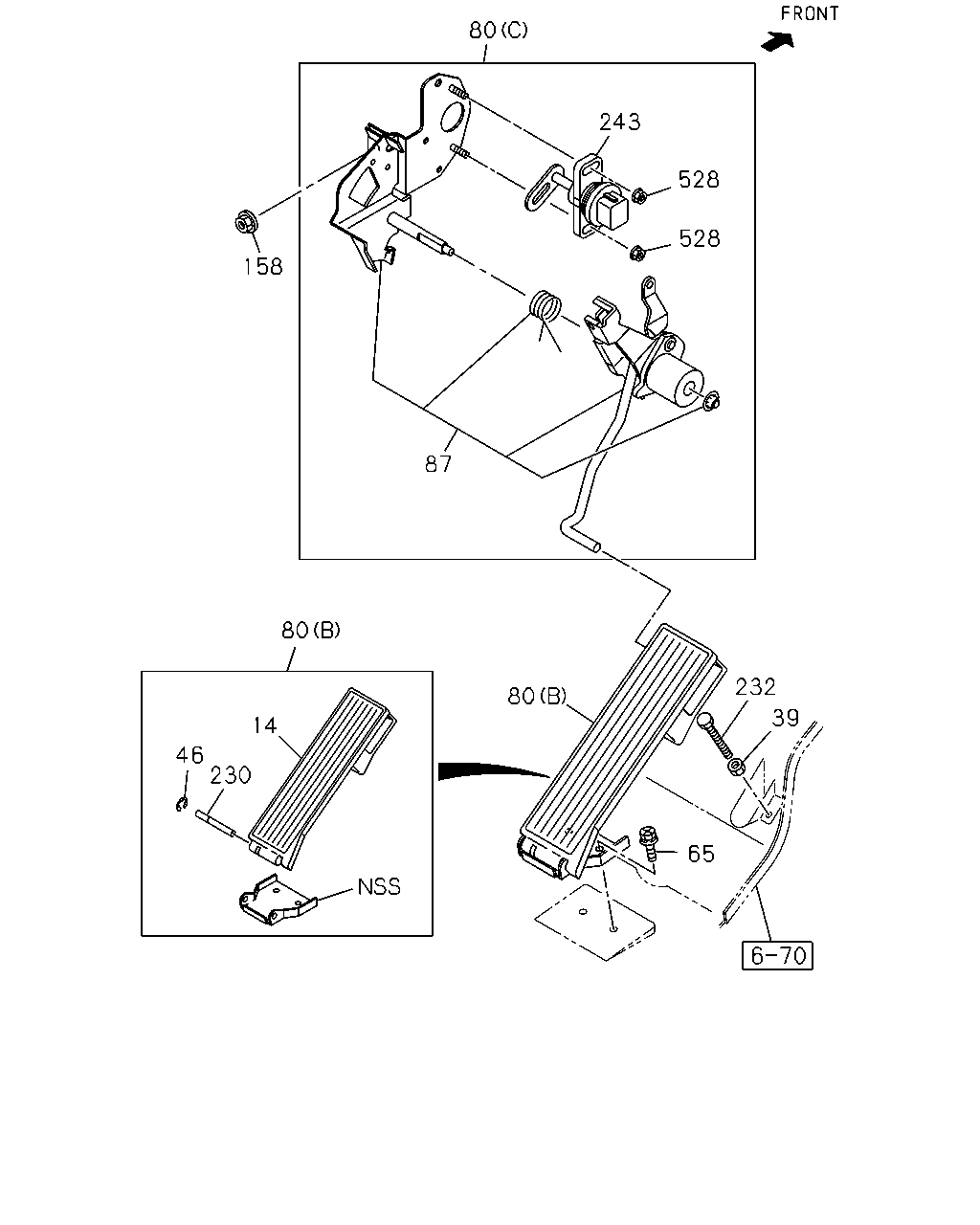

80 243 528 528 158 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0508-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0508-	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0508-0604	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0508-	●	●	●
80	LINK ASM; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-97853-057-9	01	1	0508-	●	●	●
80	LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0508-	●	●	●
80	LINK ASM; ENG CONT 4HK1-TCS ENG<RJS> (C)	8-97997-556-8	01	1	0510-	●		●
87	LINK; ENG CONT 4HK1-TCS ENG<RJS>	8-97581-415-6	01	1	0911-	●		●
87	LINK; ENG CONT 4HK1-TCS ENG<RJS>	8-97581-415-5	01	1	0510-0910	●		●
87	LINK; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97853-204-1	01	1	0508-	●	●	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0508-	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0508-	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0508-	●	●	●
243	SENSOR; ACCEL 4HK1-TCS ENG<RJS>	8-97602-416-0	01	1	0510-0910	●		●
243	SENSOR; ACCEL 4HK1-TCS ENG<RJS>	8-98131-263-0	01	1	1206-	●		●
333	GROMMET; HOLE,CABLE 4HK1-TCS ENG<RJS> OD=24.5 T=7.5	8-97224-683-0	01	1	0510-	●		●
528	NUT; ACCEL SENSOR 4HK1-TCS ENG<RJS> M5	8-94169-022-0	02	1	0510-0910	●		●
528	NUT; ACCEL SENSOR 4HK1-TCS ENG<RJS> M5	8-94169-022-0	02	1	0911-	●		●

389 316 389 662 54 60 320 389 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT 4HG1-T ENG<RDP> (B) L=293	8-97115-730-0	01	1	0508-	●	●
54	CABLE; ENG CONT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0508-	●
54	CABLE; ENG CONT 4HG1-T ENG<RDP> (A) L=2898	8-97167-702-1	01	1	0508-		●
54	CABLE; ENG CONT 4HE1-TCS ENG<RDS> (B) L=384	8-97168-299-1	01	1	0508-	●		●
54	CABLE; ENG CONT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0508-	●
54	CABLE; ENG CONT 4HE1-TCS ENG<RDS> (A) L=3078	8-97148-584-3	01	1	0508-			●
60	BOLT; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0508-0512	●
60	BOLT; CABLE 4HG1-T ENG<RDP> M8X25 FLANGE	0-28480-825-0	01	1	0508-0512		●
60	BOLT; CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28450-825-0	01	1	0601-	●
60	BOLT; CABLE 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28450-825-0	01	1	0601-		●
60	BOLT; CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X20 FLANGE	0-28680-820-0	02	1	0508-0611	●	●	●
60	BOLT; CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●	●	●
60	BOLT; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●
60	BOLT; CABLE 4HE1-TCS ENG<RDS> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611			●
60	BOLT; CABLE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●
60	BOLT; CABLE 4HE1-TCS ENG<RDS> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-			●
316	CLIP; LAMP BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=9 THA	5-09707-027-0	01	1	0508-	●	●	●
320	CLIP; FRAME 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ>	8-94178-110-0	01	1	0508-	●
320	CLIP; FRAME 4HE1-TCS ENG<RDS>	8-94178-110-0	01	1	0508-			●
333	GROMMET; HOLE,CABLE 4HK1-TCS ENG<RJS> OD=24.5 T=7.5	8-97224-683-0	01	1	0510-	●		●
389	NUT; ACCEL CONT CABLE FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0508-0805	●
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0508-0805	●
389	NUT; ACCEL CONT CABLE FIX 4HG1-T ENG<RDP> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0508-0805		●
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG<RDS> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0508-0805			●
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG<RDS> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0508-0805			●
389	NUT; ACCEL CONT CABLE FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) M8 W/LK WASHER THA	8-97581-234-0	01	1	0806-	●
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M8 W/LK WASHER THA	8-97581-234-0	01	1	0806-	●
389	NUT; ACCEL CONT CABLE FIX 4HG1-T ENG<RDP> (B) M8 W/LK WASHER THA	8-97581-234-0	01	1	0806-		●
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG<RDS> (B) M8 W/LK WASHER THA	8-97581-234-0	01	1	0806-			●
389	NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG<RDS> (B) M8 W/LK WASHER THA	8-97581-234-0	01	1	0806-			●
389	NUT; ACCEL CONT CABLE FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M6 FLANGE	0-91150-106-0	01	1	0508-0605	●	●	●
389	NUT; ACCEL CONT CABLE FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-	●	●	●
662	CLIP; ACCEL CONT CABLE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> ID=6 & 6	1-09709-217-0	01	1	0508-	●
662	CLIP; ACCEL CONT CABLE 4HG1-T ENG<RDP> ID=6 & 6	1-09709-217-0	01	1	0508-		●

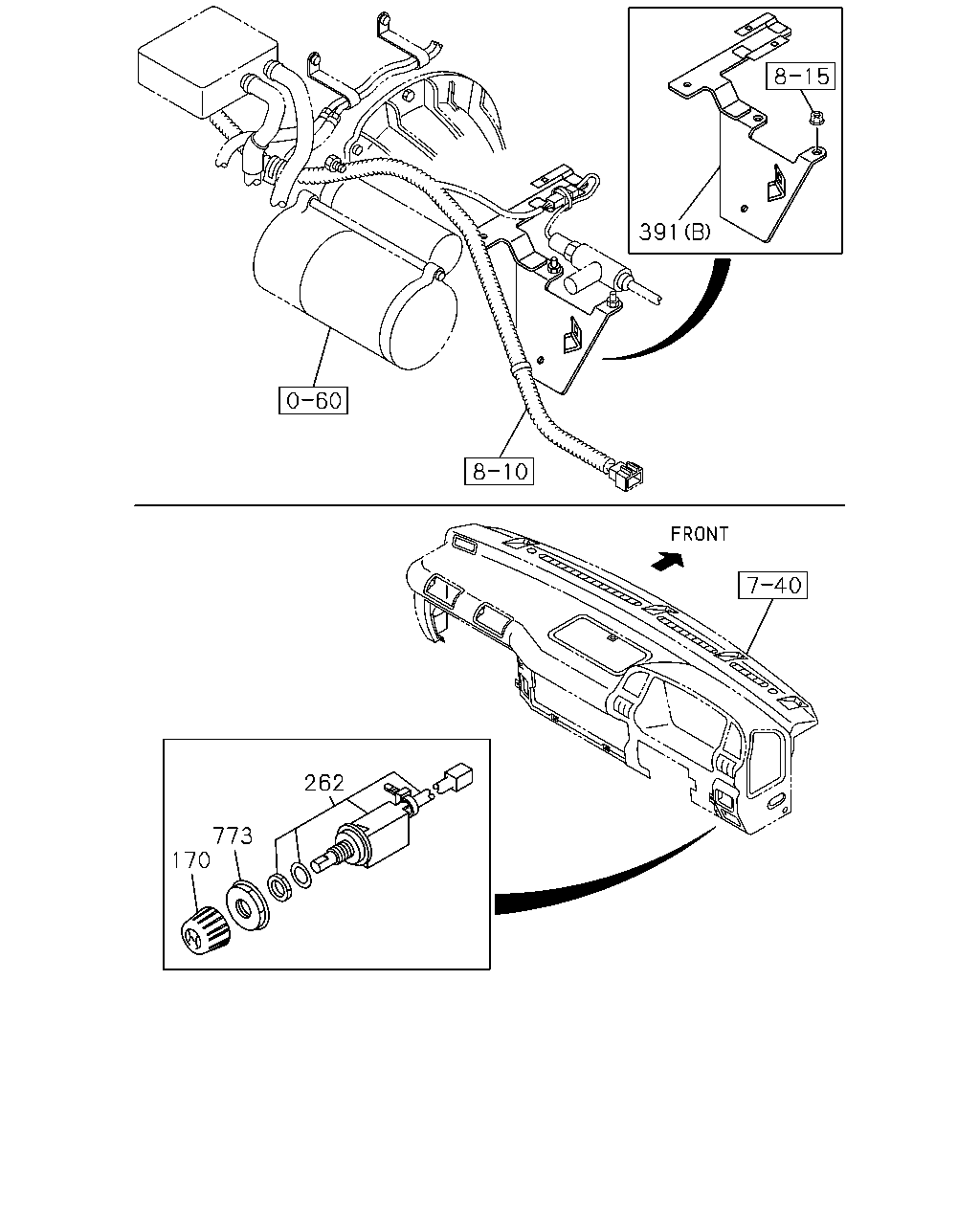

391 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
170	KNOB 4HK1-TCS ENG<RJS>	8-97310-165-0	01	1	0510-	●		●
262	SWITCH; ACCEL,IDLE 4HK1-TCS ENG<RJS>	8-97215-119-1	01	1	0510-	●		●
333	GROMMET; HOLE,CABLE 4HK1-TCS ENG<RJS> OD=24.5 T=7.5	8-97224-683-0	01	1	0510-	●		●
391	BRACKET; ENG CONT 4HG1-T ENG<RDP> (A)	8-97172-882-0	01	1	0508-	●	●
391	BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0508-	●	●	●
773	HOLDER; ACCEL PEDAL 4HK1-TCS ENG<RJS>	8-97352-127-0	01	1	0510-	●		●

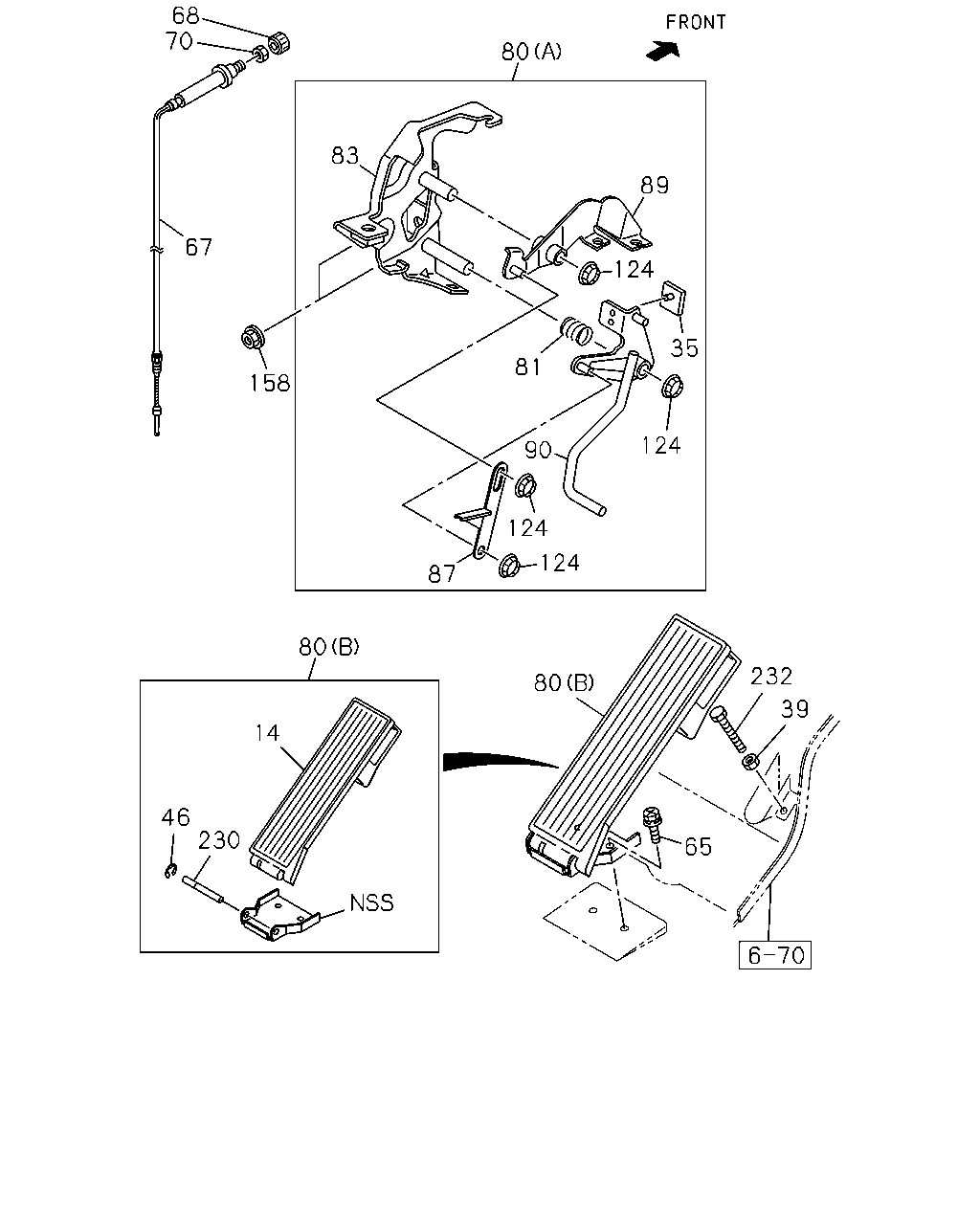

68 70 80 83 89 67 124 35 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0508-	●	●	●
35	STOPPER; ACCEL PEDAL 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97302-305-0	01	1	0508-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0508-	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0508-0604	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0508-	●	●	●
67	CABLE ASM; IDLE CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> L=439	8-97853-058-1	01	1	0508-	●	●	●
68	KNOB; IDLE CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97853-765-1	01	1	0508-	●	●	●
70	NUT; CONT CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M18	8-97853-233-0	01	1	0508-	●	●	●
80	LINK ASM; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-97853-057-9	01	1	0508-	●	●	●
80	LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0508-	●	●	●
80	LINK ASM; ENG CONT 4HK1-TCS ENG<RJS> (C)	8-97997-556-8	01	1	0510-	●		●
81	SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97853-205-1	01	1	0508-	●	●	●
83	BRACKET; CONT LINK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97853-201-4	01	1	0508-	●	●	●
87	LINK; ENG CONT 4HK1-TCS ENG<RJS>	8-97581-415-6	01	1	0911-	●		●
87	LINK; ENG CONT 4HK1-TCS ENG<RJS>	8-97581-415-5	01	1	0510-0910	●		●
87	LINK; ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97853-204-1	01	1	0508-	●	●	●
89	LEVER; RELAY 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97868-042-0	01	1	0508-	●	●	●
90	LEVER; RELAY,ENG CONT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97868-039-0	01	1	0508-	●	●	●
124	NUT; LEVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=4.9 PUSH NUT	8-94279-042-0	02	1	0508-	●	●	●
124	NUT; LEVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=9.9 PUSH NUT	8-97012-098-0	02	1	0508-	●	●	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0508-	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0508-	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0508-	●	●	●
333	GROMMET; HOLE,CABLE 4HK1-TCS ENG<RJS> OD=24.5 T=7.5	8-97224-683-0	01	1	0510-	●		●
