1-56B — EXHAUST BRAKE SYSTEM (#4308) — 98 parça
çizim 6695
92 93
BalonParca AdiParca NoAdetTipApplied Date A B C D
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9609- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 9603-9904 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 9907- ● ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9904 ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M6X50 FLANGE 		0-28080-650-0 01 1 9905- ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 		9-09110-408-0 02 1 9603-9606 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9907- ● ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M8 		9-09110-508-0 02 1 9603-9606 ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M6 FLANGE 		0-91150-106-0 01 1 9905- ●

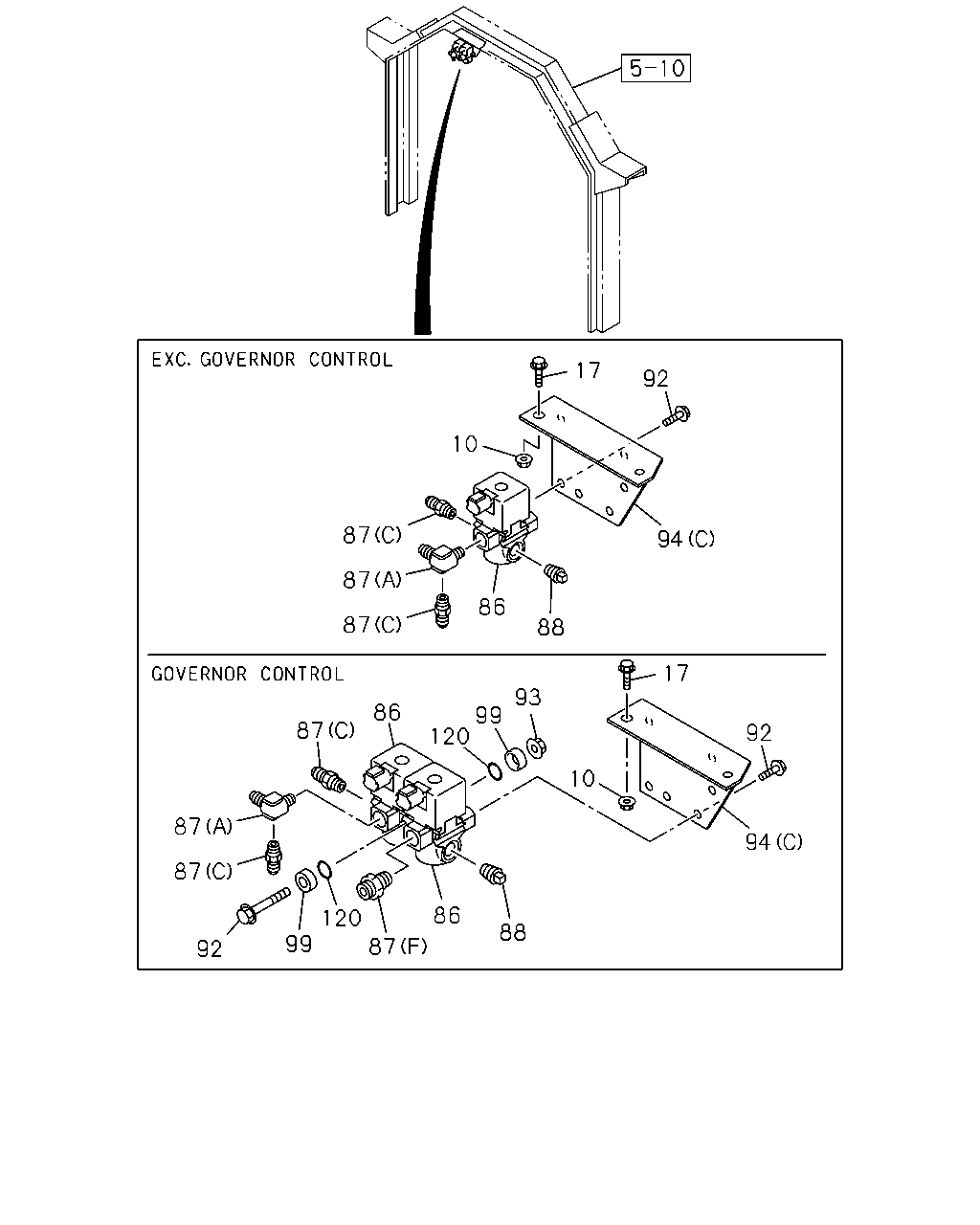

çizim 43329
17 92 10 87 94 87 86 87 88 17 93 86 99 120 87 92 10 87 94 87 86 120 88 99 87 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 NUT; BRKT,EXH BRAKE
M8 		9-09110-508-0 03 1 9603-9606 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9707-9904 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 02 1 9905-0103 ● ● ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 01 1 0104- ● ● ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91150-210-0 01 1 0104- ● ● ● ●
17 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0104- ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0103 ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0104- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-2 01 1 9603-9706 ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-3 01 1 9707-9904 ● ●
86 VALVE; MAG,EXH BRK
EXC. GOVERNOR CONTROL<W69> 		1-82563-871-2 01 1 9905- ● ● ● ●
86 VALVE; MAG,EXH BRK
GOVERNOR CONTROL<W69> 		1-82563-871-2 02 1 9905- ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9706 ● ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9904 ● ●
87 CONNECTOR
(C) M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ● ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9706 ● ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9707-9904 ● ●
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9905- ● ●
87 CONNECTOR
(A) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 9603- ● ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9603-9702 ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9703-9904 ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (F) M20 & PT1/4 		9-09902-386-0 01 1 9905- ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 9603-9904 ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 9905- ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9609- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 9603-9904 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 9907- ● ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9904 ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M6X50 FLANGE 		0-28080-650-0 01 1 9905- ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 		9-09110-408-0 02 1 9603-9606 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9907- ● ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M8 		9-09110-508-0 02 1 9603-9606 ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M6 FLANGE 		0-91150-106-0 01 1 9905- ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-82569-153-0 01 1 9603-9904 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(C) 		1-82569-277-2 01 1 9905- ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
GOVERNOR CONTROL<W69> (B) 		1-82569-233-0 01 1 9603-9904 ●
99 WASHER; MAG VLV
GOVERNOR CONTROL<W69> 		1-82569-266-0 02 1 9905- ●
120 GASKET; MAG VLV
GOVERNOR CONTROL<W69> ID=16.8 		9-09565-117-0 01 1 9905- ●

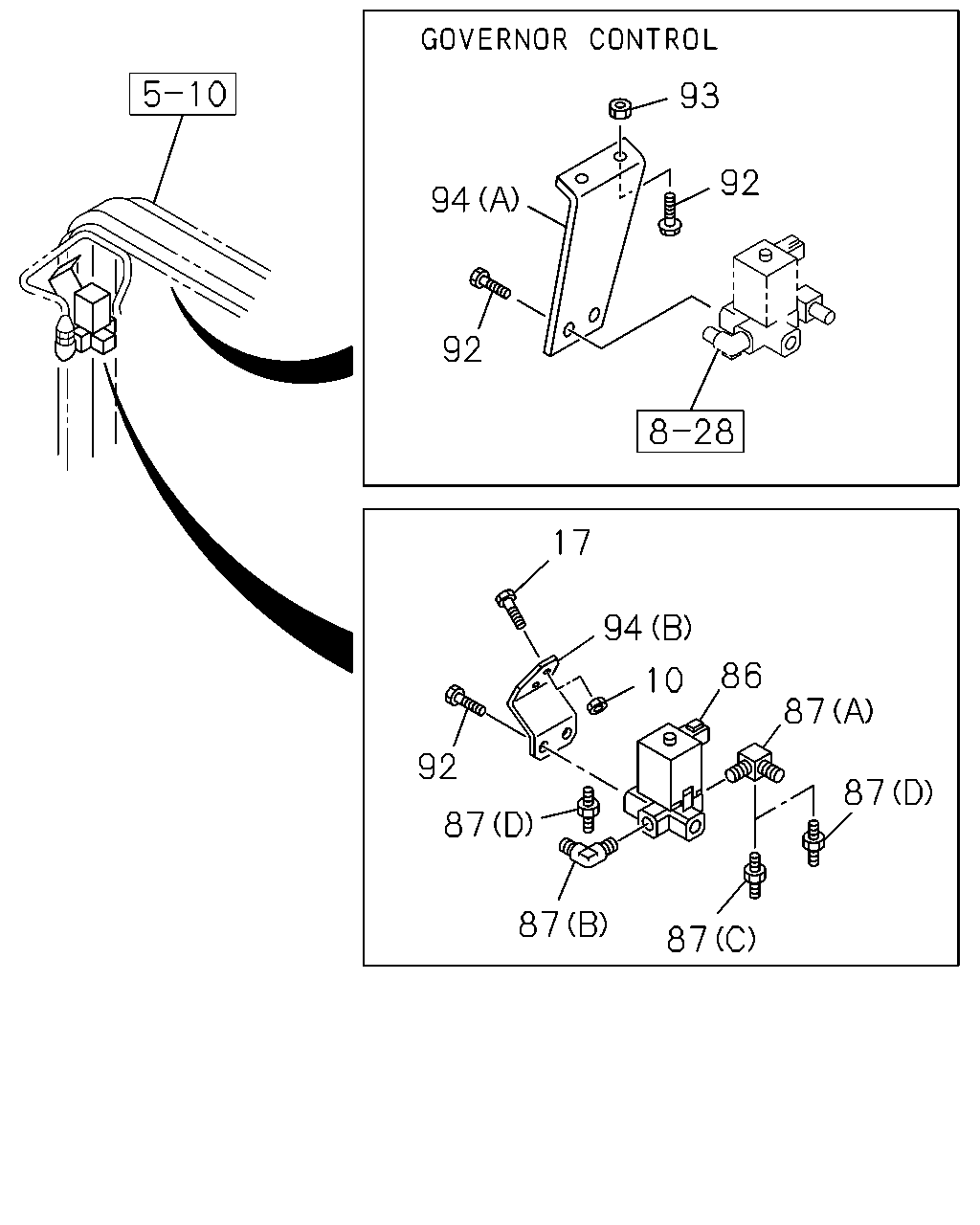

çizim 43554
93 92 94 92 17 94 86 10 87 92 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 NUT; BRKT,EXH BRAKE
M8 		9-09110-508-0 03 1 9603-9606 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9707-9904 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 02 1 9905-0103 ● ● ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 01 1 0104- ● ● ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91150-210-0 01 1 0104- ● ● ● ●
17 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0104- ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0103 ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0104- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-2 01 1 9603-9706 ● ●
86 VALVE; MAG,EXH BRK 1-82563-598-3 01 1 9707-9904 ● ●
86 VALVE; MAG,EXH BRK
EXC. GOVERNOR CONTROL<W69> 		1-82563-871-2 01 1 9905- ● ● ● ●
86 VALVE; MAG,EXH BRK
GOVERNOR CONTROL<W69> 		1-82563-871-2 02 1 9905- ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9706 ● ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9904 ● ●
87 CONNECTOR
(C) M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ● ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9706 ● ●
87 CONNECTOR
EXC. GOVERNOR CONTROL<W69> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9707-9904 ● ●
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9905- ● ●
87 CONNECTOR
(A) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 9603- ● ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9603-9702 ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9703-9904 ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (F) M20 & PT1/4 		9-09902-386-0 01 1 9905- ●
87 CONNECTOR
GOVERNOR CONTROL<W69> (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 9603-9904 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9609- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 9603-9904 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 9907- ● ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9904 ●
92 BOLT; MAG VLV
GOVERNOR CONTROL<W69> M6X50 FLANGE 		0-28080-650-0 01 1 9905- ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 		9-09110-408-0 02 1 9603-9606 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 9907- ● ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M8 		9-09110-508-0 02 1 9603-9606 ●
93 NUT; MAG VLV
GOVERNOR CONTROL<W69> M6 FLANGE 		0-91150-106-0 01 1 9905- ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-82569-153-0 01 1 9603-9904 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(C) 		1-82569-277-2 01 1 9905- ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
GOVERNOR CONTROL<W69> (B) 		1-82569-233-0 01 1 9603-9904 ●
