0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#43078) — 12 parça

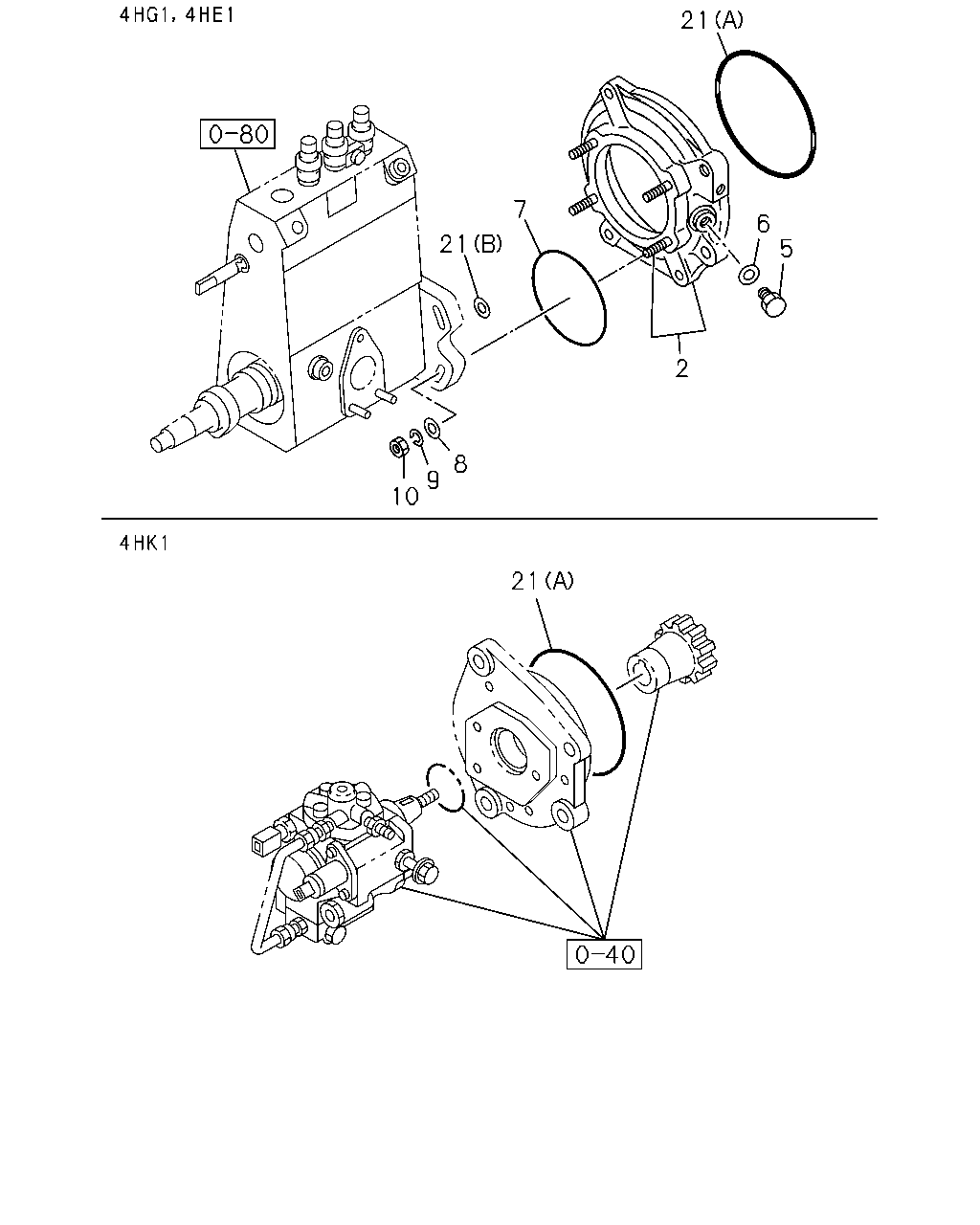

çizim 119257
21 7 6 5 21 2 8 9 10 21
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 0508- ●
2 BRACKET; HSG & TIMER,INJ PUMP 8-97188-880-1 01 1 0508- ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 0508- ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 0508- ● ●
7 GASKET; HSG BRKT,ENG SIDE 8-97188-881-0 01 1 0508- ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 0508- ● ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-610-0 04 1 0508- ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-510-0 04 1 0508- ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 0508- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 0508-0509 ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 0510- ● ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 0508- ● ●
