Sayfa 0-81 - Isuzu EPC

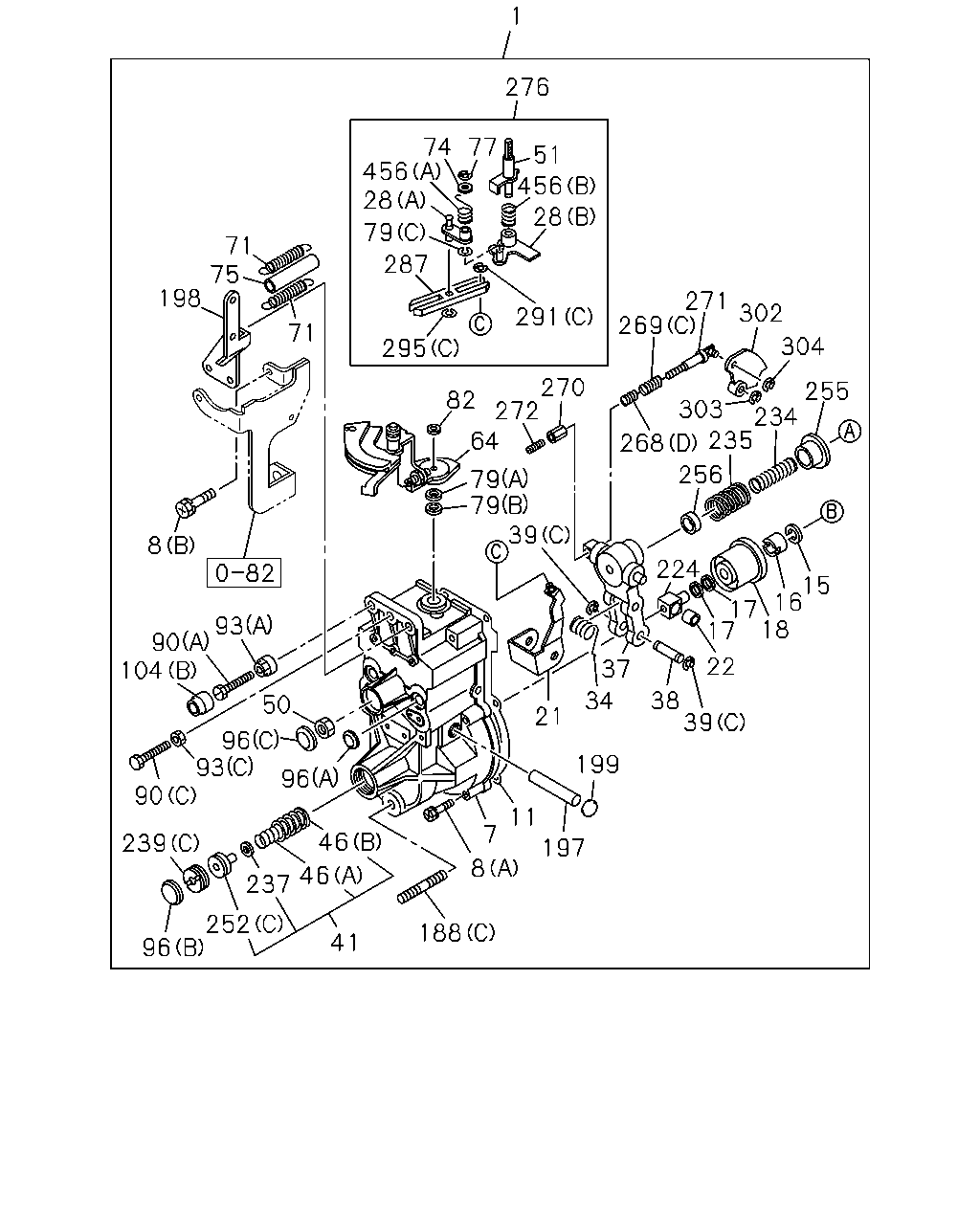

0-81 — GOVERNOR; INJECTION PUMP (#43074) — 641 parça

1 276 74 456 28 77 51 456 28 79 71 75 198 287 271 269 302 291 71 304 295 270 272 64 255 234 235 82 303 268 256 79 79 39 8 224 15 16 17 17 18 93 90 104 22 37 38 39 34 50 21 96 93 90 199 96 11 7 46 39 197 8 46 237 252 96 188 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-185-1	8-97215-869-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5	8-97142-962-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97212-185-1	8-97329-808-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97212-185-1	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5	5-15729-033-0	05	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5	1-15779-107-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 8-97212-185-1	8-97201-137-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 8-97212-185-1	8-97201-081-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5	8-97223-398-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5	8-94368-298-1	01	1	-
22	COLLAR; LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-157-0	02	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5	1-15725-485-0	01	1	-
28	LEVER; SUPPORTING,GOV (C) ASM PART: B = 8-97212-185-1	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: B = 8-97212-185-1	1-15723-549-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 8-97212-185-1	8-97201-080-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-370-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: B = 8-97212-185-1	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: B = 8-97212-185-1	1-09588-170-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: B = 8-97212-185-1	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: A = 8-97178-485-5	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5	8-97085-009-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97212-185-1	8-97201-132-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-97212-185-1	1-15723-481-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5	8-97115-983-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-97212-185-1	8-97201-075-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-876-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97212-185-1	1-15779-528-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 8-97212-185-1	5-86647-319-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	8-97026-934-1	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-97026-929-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-076-0	02	1	-
74	WASHER; LEVER SPR ASM PART: B = 8-97212-185-1	1-15779-232-0	01	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97178-485-5	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-963-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-141-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: B = 8-97212-185-1	5-15729-023-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: B = 8-97212-185-1	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-232-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: B = 8-97212-185-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: B = 8-97212-185-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: B = 8-97212-185-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: B = 8-97212-185-1	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-97212-185-1	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-97212-185-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 8-97212-185-1	8-97201-134-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: B = 8-97212-185-1	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5	8-94171-148-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: B = 8-97212-185-1	8-94171-148-0	03	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: B = 8-97212-185-1	8-97085-022-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
188	STUD; COVER (C) ASM PART: A = 8-97178-485-5	1-15729-790-0	01	1	-
188	STUD; COVER (A) ASM PART: B = 8-97212-185-1	8-97201-140-0	01	1	-
188	STUD; COVER (B) ASM PART: B = 8-97212-185-1	8-97212-775-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 8-97178-485-5	5-15725-008-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97178-485-5	8-97085-014-0	01	1	-
198	BRACKET; COVER ASM PART: B = 8-97212-185-1	8-97201-138-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97178-485-5	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: B = 8-97212-185-1	1-15779-334-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15723-500-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15723-517-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-456-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: B = 8-97212-185-1	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: B = 8-97212-185-1	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: B = 8-97212-185-1	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-97212-185-1	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: B = 8-97212-185-1	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	8-94472-271-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-97212-185-1	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-97212-185-1	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: B = 8-97212-185-1	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-97212-185-1	9-81325-553-0	AR	1	-
252	SCREW; GUIDE (C) ASM PART: A = 8-97178-485-5	1-15779-003-1	01	1	-
252	SCREW; GUIDE (A) ASM PART: B = 8-97212-185-1	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: B = 8-97212-185-1	8-97201-122-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: B = 8-97212-185-1	1-15779-241-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-97178-485-5	1-15779-214-0	01	1	-
256	SEAT; GOV SPRING ASM PART: B = 8-97212-185-1	1-15779-242-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (C) ASM PART: B = 8-97212-185-1	1-15723-445-0	02	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: B = 8-97212-185-1	1-15723-446-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (D) ASM PART: A = 8-97178-485-5	5-15723-056-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: B = 8-97212-185-1	8-97201-074-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (A) ASM PART: B = 8-97212-185-1	1-15723-459-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (C) ASM PART: A = 8-97178-485-5	5-15723-070-1	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-073-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: B = 8-97212-185-1	1-15779-272-0	02	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 8-97212-185-1	1-15779-235-1	02	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: B = 8-97212-185-1	1-15779-289-0	02	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	1-15725-534-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: B = 8-97212-185-1	1-15725-901-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97178-485-5	1-15725-542-0	01	1	-
287	LEVER; GOV ASM PART: B = 8-97212-185-1	1-15725-781-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV (A) ASM PART: B = 8-97212-185-1	1-15779-196-0	09	1	-
291	RING; SNAP,CONT SHAFT,GOV (B) ASM PART: B = 8-97212-185-1	8-94244-599-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV (C) ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
295	RING; SNAP (A) ASM PART: B = 8-97212-185-1	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: B = 8-97212-185-1	5-15729-023-0	01	1	-
295	RING; SNAP (C) ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97178-485-5	8-97214-458-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 8-97212-185-1	8-97367-806-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-09185-404-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (C) ASM PART: B = 8-97212-185-1	1-15723-551-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97178-485-5	8-94413-728-0	01	1	-

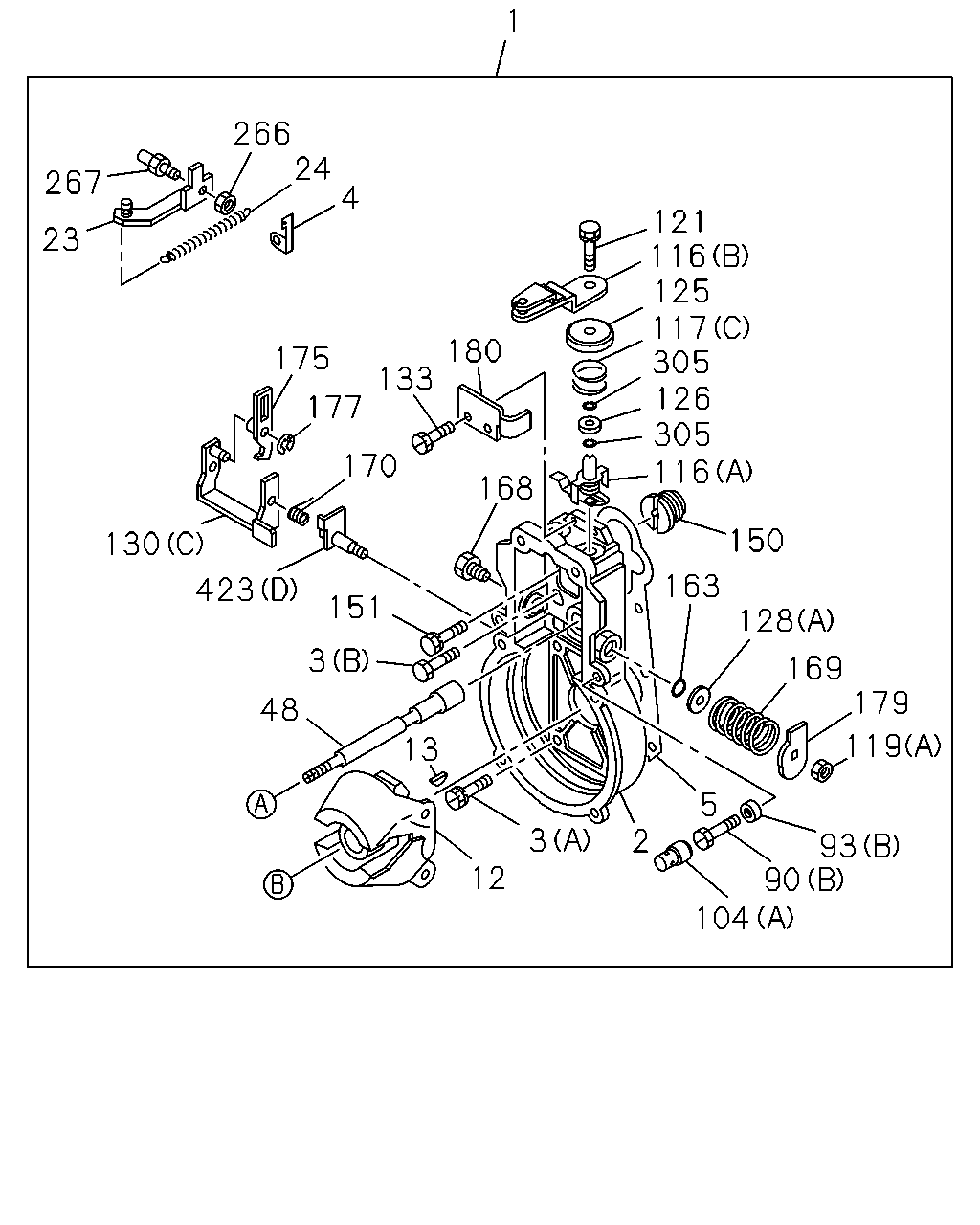

1 266 24 4 267 121 116 125 117 305 126 305 116 23 180 175 133 77 170 168 150 130 163 423 151 128 3 169 179 48 119 13 5 3 2 93 90 104 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-185-1	8-97215-869-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 8-97212-185-1	8-97201-060-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (C) ASM PART: B = 8-97212-185-1	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 8-97212-185-1	1-15779-524-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5	1-15779-106-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 8-97212-185-1	8-97201-136-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5	5-15722-017-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 8-97212-185-1	8-97202-344-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: B = 8-97212-185-1	9-81325-030-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 8-97212-185-1	1-15725-900-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5	1-15725-928-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	5-15723-035-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15779-240-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-146-1	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: B = 8-97212-185-1	5-15729-023-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5	9-88410-201-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: B = 8-97212-185-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: B = 8-97212-185-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: B = 8-97212-185-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: B = 8-97212-185-1	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-97212-185-1	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-97212-185-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 8-97212-185-1	8-97201-134-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: B = 8-97212-185-1	8-97085-022-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5	8-97121-632-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: B = 8-97212-185-1	8-97201-064-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-068-0	01	1	-
116	LEVER; ENG STOP,GOV (C) ASM PART: B = 8-97212-185-1	8-97201-069-0	01	1	-
117	SPRING; STOP LEVER,GOV (C) ASM PART: A = 8-97178-485-5	8-94336-925-0	01	1	-
117	SPRING; STOP LEVER,GOV (A) ASM PART: B = 8-97212-185-1	8-97201-072-0	01	1	-
117	SPRING; STOP LEVER,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-078-1	01	1	-
119	NUT; ENG STOP LEVER,GOV (B) ASM PART: B = 8-97212-185-1	1-15729-006-0	02	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: B = 8-97212-185-1	1-15729-236-0	02	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: A = 8-97178-485-5	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X12 W/LK WASHER ASM PART: A = 8-97178-485-5	9-01910-612-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97178-485-5	8-94171-168-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.30 ASM PART: B = 8-97212-185-1	1-15749-097-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: B = 8-97212-185-1	1-15749-099-0	01	1	-
128	SHIM; CONT SHAFT,GOV (D), T=0.50 ASM PART: B = 8-97212-185-1	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (D), T=0.20 ASM PART: B = 8-97212-185-1	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (E) ASM PART: B = 8-97212-185-1	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (F) ASM PART: B = 8-97212-185-1	8-97201-152-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (C) ASM PART: A = 8-97178-485-5	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: B = 8-97212-185-1	1-15725-895-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-063-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-97178-485-5	1-15729-834-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97178-485-5	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5	1-15629-859-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: B = 8-97212-185-1	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5	1-15729-796-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: B = 8-97212-185-1	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: B = 8-97212-185-1	1-15723-548-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15725-893-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97176-488-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5	8-94171-132-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: B = 8-97212-185-1	8-97212-766-0	01	1	-
180	PLATE; GOV COVER ASM PART: B = 8-97212-185-1	1-15779-532-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-97178-485-5	8-97121-643-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 8-97178-485-5	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 8-97212-185-1	1-15749-747-0	01	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 8-97178-485-5	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 8-97178-485-5	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 8-97178-485-5	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 8-97178-485-5	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.80 ASM PART: A = 8-97178-485-5	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: A = 8-97178-485-5	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (D) ASM PART: A = 8-97178-485-5	1-15729-820-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: B = 8-97212-185-1	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: B = 8-97212-185-1	8-97201-070-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: B = 8-97212-185-1	8-97201-151-1	01	1	-

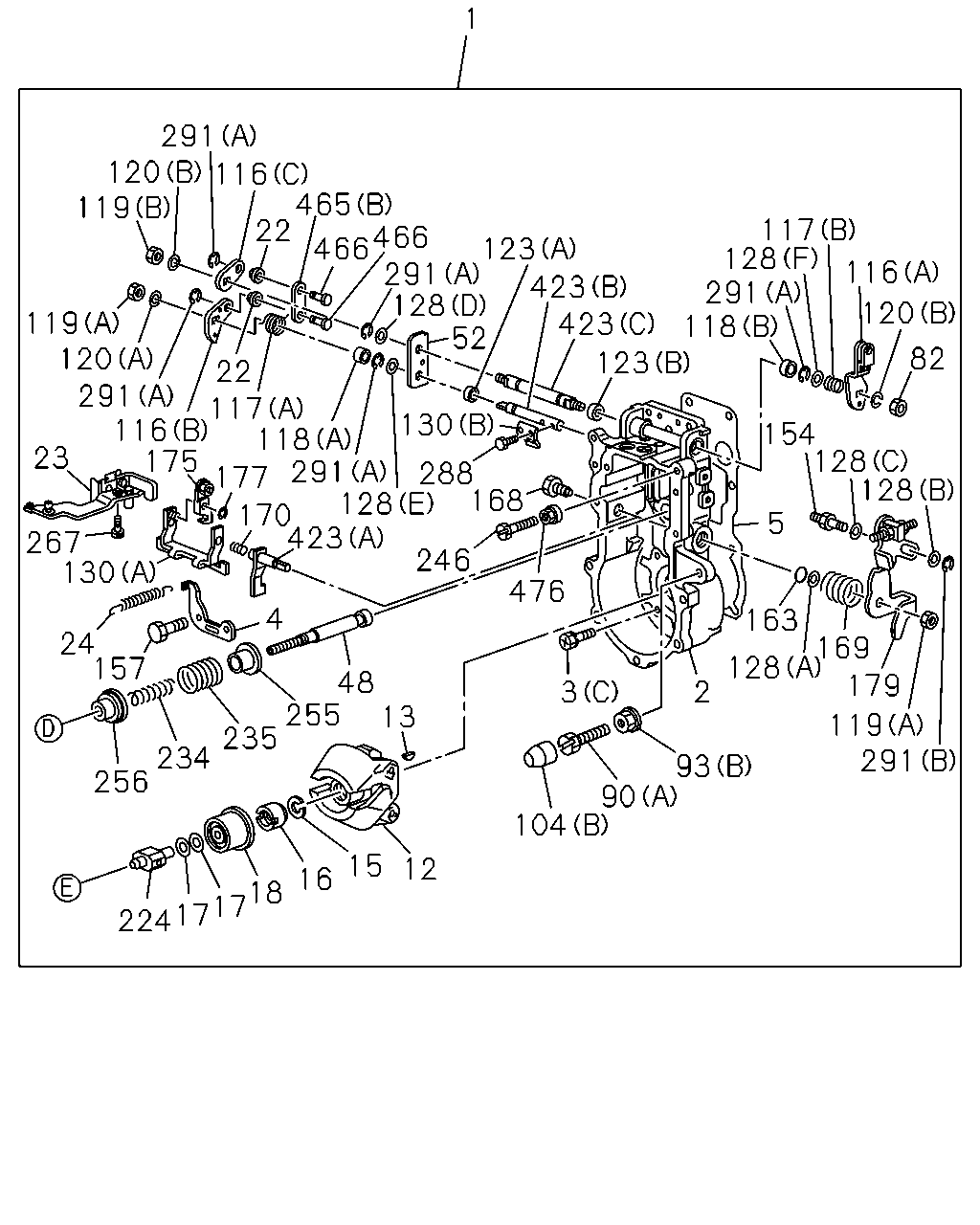

1 291 120 119 116 465 22 466 466 123 291 128 52 130 117 128 291 118 123 116 423 423 120 119 120 22 291 117 116 118 175 128 168 170 423 82 154 128 128 23 177 5 267 130 246 476 4 163 24 157 169 128 48 255 13 235 234 256 179 2 3 119 291 93 90 104 15 12 16 18 17 17 224 291 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-185-1	8-97215-869-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 8-97212-185-1	8-97201-060-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (C) ASM PART: B = 8-97212-185-1	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 8-97212-185-1	1-15779-524-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5	1-15779-106-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 8-97212-185-1	8-97201-136-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5	5-15722-017-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 8-97212-185-1	8-97202-344-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: B = 8-97212-185-1	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-372-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5	8-94368-298-1	01	1	-
22	COLLAR; LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-157-0	02	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 8-97212-185-1	1-15725-900-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5	1-15725-928-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	5-15723-035-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15779-240-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-146-1	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: B = 8-97212-185-1	8-97201-071-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: B = 8-97212-185-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: B = 8-97212-185-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: B = 8-97212-185-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: B = 8-97212-185-1	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-97212-185-1	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-97212-185-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 8-97212-185-1	8-97201-134-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: B = 8-97212-185-1	8-97085-022-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5	8-97121-632-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: B = 8-97212-185-1	8-97201-064-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-068-0	01	1	-
116	LEVER; ENG STOP,GOV (C) ASM PART: B = 8-97212-185-1	8-97201-069-0	01	1	-
117	SPRING; STOP LEVER,GOV (C) ASM PART: A = 8-97178-485-5	8-94336-925-0	01	1	-
117	SPRING; STOP LEVER,GOV (A) ASM PART: B = 8-97212-185-1	8-97201-072-0	01	1	-
117	SPRING; STOP LEVER,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-078-1	01	1	-
118	COLLAR; CONT SHAFT,GOV (A) ASM PART: B = 8-97212-185-1	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-155-1	01	1	-
119	NUT; ENG STOP LEVER,GOV (B) ASM PART: B = 8-97212-185-1	1-15729-006-0	02	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: B = 8-97212-185-1	1-15729-236-0	02	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: A = 8-97178-485-5	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: B = 8-97212-185-1	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (B), ID=6.1 ASM PART: B = 8-97212-185-1	9-09150-506-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 8-97212-185-1	1-15779-282-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: B = 8-97212-185-1	5-15619-024-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.30 ASM PART: B = 8-97212-185-1	1-15749-097-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: B = 8-97212-185-1	1-15749-099-0	01	1	-
128	SHIM; CONT SHAFT,GOV (D), T=0.50 ASM PART: B = 8-97212-185-1	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (D), T=0.20 ASM PART: B = 8-97212-185-1	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (E) ASM PART: B = 8-97212-185-1	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (F) ASM PART: B = 8-97212-185-1	8-97201-152-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (C) ASM PART: A = 8-97178-485-5	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: B = 8-97212-185-1	1-15725-895-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-063-0	01	1	-
154	BOLT; GOV HSG ASM PART: B = 8-97212-185-1	8-97201-147-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: B = 8-97212-185-1	1-15779-226-0	02	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5	1-15629-859-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: B = 8-97212-185-1	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5	1-15729-796-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: B = 8-97212-185-1	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: B = 8-97212-185-1	1-15723-548-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15725-893-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97176-488-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: B = 8-97212-185-1	8-94324-735-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5	8-94171-132-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: B = 8-97212-185-1	8-97212-766-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: B = 8-97212-185-1	1-15779-334-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15723-500-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-97212-185-1	1-15723-517-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-456-0	01	1	-
246	BOLT; GOV M6X42 ASM PART: B = 8-97212-185-1	1-15779-104-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: B = 8-97212-185-1	1-15779-241-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-97178-485-5	1-15779-214-0	01	1	-
256	SEAT; GOV SPRING ASM PART: B = 8-97212-185-1	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 8-97212-185-1	1-15749-747-0	01	1	-
288	BOLT; LEVER ASM PART: B = 8-97212-185-1	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV (A) ASM PART: B = 8-97212-185-1	1-15779-196-0	09	1	-
291	RING; SNAP,CONT SHAFT,GOV (B) ASM PART: B = 8-97212-185-1	8-94244-599-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV (C) ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (D) ASM PART: A = 8-97178-485-5	1-15729-820-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: B = 8-97212-185-1	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: B = 8-97212-185-1	8-97201-070-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: B = 8-97212-185-1	8-97201-151-1	01	1	-
465	LINK; GOVERNOR (A) ASM PART: B = 8-97212-185-1	8-97201-146-0	01	1	-
465	LINK; GOVERNOR (B) ASM PART: B = 8-97212-185-1	8-97201-154-0	01	1	-
466	PIN; LINK ASM PART: B = 8-97212-185-1	8-97201-156-0	02	1	-
476	NUT; HSG,GOVERNOR ASM PART: B = 8-97212-185-1	8-97201-153-0	01	1	-

77 74 51 456 79 28 287 295 276 1 227 64 93 90 104 363 45 90 82 357 75 71 71 284 93 286 296 440 198 188 211 79 21 303 302 304 167 180 189 301 7 34 252 250 411 37 96 66 211 50 96 96 38 295 39 363 45 411 96 411 160 161 11 225 257 257 257 465 411 239 8 46 46 237 252 269 268 268 257 467 217 41 436 155 436 435 188 96 257 233 271 39 225 9 3 270 221 212 437 413 413 159 429 429 99 272 225 271 269 268 37 99 438 218 215 270 209 239 218 211 352 159 158 9 272 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-185-1	8-97215-869-1	01	1	-
3	BOLT; GOV HSG,INJ PUMP (C) ASM PART: B = 8-97212-185-1	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5	5-15729-071-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5	8-97142-962-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97212-185-1	8-97329-808-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97212-185-1	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5	5-15729-033-0	05	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 8-97212-185-1	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5	1-15779-107-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 8-97212-185-1	8-97201-137-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 8-97212-185-1	8-97201-081-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5	8-97223-398-0	01	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5	1-15725-485-0	01	1	-
28	LEVER; SUPPORTING,GOV (C) ASM PART: B = 8-97212-185-1	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: B = 8-97212-185-1	1-15723-549-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 8-97212-185-1	8-97201-080-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-370-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: B = 8-97212-185-1	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: B = 8-97212-185-1	1-09588-170-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: B = 8-97212-185-1	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: A = 8-97178-485-5	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5	8-97085-009-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97212-185-1	8-97201-132-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP (A) ASM PART: B = 8-97212-185-1	1-15725-819-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP (B) ASM PART: B = 8-97212-185-1	8-97201-150-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-97212-185-1	1-15723-481-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5	8-97115-983-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-97212-185-1	8-97201-075-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-876-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97212-185-1	1-15779-528-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 8-97212-185-1	5-86647-319-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	8-97026-934-1	01	1	-
66	SHAFT; LEVER ASM PART: B = 8-97212-185-1	1-15779-234-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-97026-929-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-076-0	02	1	-
74	WASHER; LEVER SPR ASM PART: B = 8-97212-185-1	1-15779-232-0	01	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97178-485-5	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-963-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-141-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: B = 8-97212-185-1	5-15729-023-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: B = 8-97212-185-1	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-232-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: B = 8-97212-185-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: B = 8-97212-185-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: B = 8-97212-185-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: B = 8-97212-185-1	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-97212-185-1	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-97212-185-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 8-97212-185-1	8-97201-134-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: B = 8-97212-185-1	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: B = 8-97212-185-1	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5	8-94171-148-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: B = 8-97212-185-1	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: B = 8-97212-185-1	8-97201-082-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: B = 8-97212-185-1	8-97085-022-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
155	JOINT; HOSE,HSG ASM PART: B = 8-97212-185-1	8-94171-178-0	01	1	-
158	COVER; GOV HSG ASM PART: B = 8-97212-185-1	8-97206-947-0	01	1	-
159	BOLT; COVER (A) ASM PART: B = 8-97212-185-1	1-15779-202-0	02	1	-
159	BOLT; COVER (B), M6X20 ASM PART: B = 8-97212-185-1	9-81325-187-0	01	1	-
160	GASKET; PLUG TO HSG ID=12.2 ASM PART: B = 8-97212-185-1	9-09571-412-0	01	1	-
161	PLUG; HSG ASM PART: B = 8-97212-185-1	8-97037-288-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: B = 8-97212-185-1	5-15729-071-0	02	1	-
180	PLATE; GOV COVER ASM PART: B = 8-97212-185-1	1-15779-532-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-97178-485-5	8-97121-643-0	01	1	-
188	STUD; COVER (C) ASM PART: A = 8-97178-485-5	1-15729-790-0	01	1	-
188	STUD; COVER (A) ASM PART: B = 8-97212-185-1	8-97201-140-0	01	1	-
188	STUD; COVER (B) ASM PART: B = 8-97212-185-1	8-97212-775-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: B = 8-97212-185-1	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: B = 8-97212-185-1	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: B = 8-97212-185-1	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: B = 8-97212-185-1	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: B = 8-97212-185-1	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: B = 8-97212-185-1	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: B = 8-97212-185-1	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: B = 8-97212-185-1	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: B = 8-97212-185-1	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: B = 8-97212-185-1	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: B = 8-97212-185-1	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: B = 8-97212-185-1	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: B = 8-97212-185-1	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: B = 8-97212-185-1	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: B = 8-97212-185-1	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: B = 8-97212-185-1	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: B = 8-97212-185-1	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: B = 8-97212-185-1	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: B = 8-97212-185-1	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: B = 8-97212-185-1	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: B = 8-97212-185-1	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: B = 8-97212-185-1	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: B = 8-97212-185-1	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: B = 8-97212-185-1	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: B = 8-97212-185-1	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: B = 8-97212-185-1	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: B = 8-97212-185-1	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: B = 8-97212-185-1	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: B = 8-97212-185-1	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: B = 8-97212-185-1	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: B = 8-97212-185-1	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: B = 8-97212-185-1	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: B = 8-97212-185-1	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: B = 8-97212-185-1	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: B = 8-97212-185-1	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: B = 8-97212-185-1	1-15779-440-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97178-485-5	8-97085-014-0	01	1	-
198	BRACKET; COVER ASM PART: B = 8-97212-185-1	8-97201-138-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: B = 8-97212-185-1	1-15713-006-0	01	1	-
211	NUT; LOCK,GOV THA ASM PART: B = 8-97212-185-1	9-88410-525-0	01	1	-
212	PLATE; GOV THA ASM PART: B = 8-97212-185-1	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: B = 8-97212-185-1	8-97104-945-0	01	1	-
217	SHIM; GOV T=0.5 ASM PART: B = 8-97212-185-1	9-88410-122-0	01	1	-
218	NUT; DIAPH (B) ASM PART: B = 8-97212-185-1	8-97104-978-0	01	1	-
218	NUT; DIAPH (A), THA ASM PART: B = 8-97212-185-1	9-88410-525-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: B = 8-97212-185-1	9-09150-506-0	01	1	-
225	LEVER; GOV (A) ASM PART: B = 8-97212-185-1	8-97201-066-0	01	1	-
225	LEVER; GOV (B) ASM PART: B = 8-97212-185-1	8-97201-067-0	01	1	-
225	LEVER; GOV (C) ASM PART: B = 8-97212-185-1	8-97202-343-0	01	1	-
227	BOLT; GOV LEVER ASM PART: B = 8-97212-185-1	1-15719-005-0	02	1	-
233	SPRING; LEVER ASM PART: B = 8-97212-185-1	8-97201-077-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: B = 8-97212-185-1	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: B = 8-97212-185-1	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: B = 8-97212-185-1	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-97212-185-1	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: B = 8-97212-185-1	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	8-94472-271-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-97212-185-1	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-97212-185-1	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: B = 8-97212-185-1	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-97212-185-1	9-81325-553-0	AR	1	-
239	SCREW; GOV (A) ASM PART: B = 8-97212-185-1	1-15779-239-0	01	1	-
239	SCREW; GOV (C) ASM PART: A = 8-97178-485-5	8-94171-144-0	01	1	-
239	SCREW; GOV (B) ASM PART: B = 8-97212-185-1	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: B = 8-97212-185-1	1-15779-287-0	01	1	-
252	SCREW; GUIDE (C) ASM PART: A = 8-97178-485-5	1-15779-003-1	01	1	-
252	SCREW; GUIDE (A) ASM PART: B = 8-97212-185-1	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: B = 8-97212-185-1	8-97201-122-0	01	1	-
257	RING; SNAP,GOV (A) ASM PART: B = 8-97212-185-1	5-15729-023-0	01	1	-
257	RING; SNAP,GOV (B) ASM PART: B = 8-97212-185-1	8-94244-599-0	02	1	-
257	RING; SNAP,GOV (C), ID=4 ASM PART: B = 8-97212-185-1	9-09185-404-0	02	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (C) ASM PART: B = 8-97212-185-1	1-15723-445-0	02	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: B = 8-97212-185-1	1-15723-446-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (D) ASM PART: A = 8-97178-485-5	5-15723-056-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: B = 8-97212-185-1	8-97201-074-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (A) ASM PART: B = 8-97212-185-1	1-15723-459-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (C) ASM PART: A = 8-97178-485-5	5-15723-070-1	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (B) ASM PART: B = 8-97212-185-1	8-97201-073-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: B = 8-97212-185-1	1-15779-272-0	02	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 8-97212-185-1	1-15779-235-1	02	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: B = 8-97212-185-1	1-15779-289-0	02	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	1-15725-534-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: B = 8-97212-185-1	1-15725-901-0	01	1	-
284	PLATE; LEVER ASM PART: B = 8-97212-185-1	8-97201-135-0	01	1	-
286	LEVER; GOV ASM PART: B = 8-97212-185-1	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97178-485-5	1-15725-542-0	01	1	-
287	LEVER; GOV ASM PART: B = 8-97212-185-1	1-15725-781-0	01	1	-
295	RING; SNAP (A) ASM PART: B = 8-97212-185-1	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: B = 8-97212-185-1	5-15729-023-0	01	1	-
295	RING; SNAP (C) ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: B = 8-97212-185-1	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: B = 8-97212-185-1	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97178-485-5	8-97214-458-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 8-97212-185-1	8-97367-806-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97178-485-5, B = 8-97212-185-1	9-09185-404-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: B = 8-97212-185-1	1-15729-093-0	01	1	-
357	BOLT; PLATE,GOV ASM PART: B = 8-97212-185-1	1-15719-005-0	02	1	-
363	BOLT; LEVER FIX (A) ASM PART: B = 8-97212-185-1	1-15719-005-0	02	1	-
363	BOLT; LEVER FIX (B) ASM PART: B = 8-97212-185-1	8-94247-029-0	02	1	-
411	BOLT; BRKT (A) ASM PART: B = 8-97212-185-1	1-15719-005-0	02	1	-
411	BOLT; BRKT (B), M10X25 ASM PART: B = 8-97212-185-1	9-02041-025-0	01	1	-
411	BOLT; BRKT (C), M6X18 ASM PART: B = 8-97212-185-1	9-81325-186-0	02	1	-
413	GASKET; GOV COVER ASM PART: B = 8-97212-185-1	1-15779-129-0	02	1	-
429	GASKET; CAP NUT THA ASM PART: B = 8-97212-185-1	5-15729-099-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: B = 8-97212-185-1	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: B = 8-97212-185-1	1-15639-009-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: B = 8-97212-185-1	1-15723-538-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: B = 8-97212-185-1	1-15779-333-0	01	1	-
440	RING; SNAP,LEVER ASM PART: B = 8-97212-185-1	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (C) ASM PART: B = 8-97212-185-1	1-15723-551-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97178-485-5	8-94413-728-0	01	1	-
465	LINK; GOVERNOR (A) ASM PART: B = 8-97212-185-1	8-97201-146-0	01	1	-
465	LINK; GOVERNOR (B) ASM PART: B = 8-97212-185-1	8-97201-154-0	01	1	-
467	CAM; TIMING,GOVERNOR ASM PART: B = 8-97212-185-1	8-97202-356-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
