Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

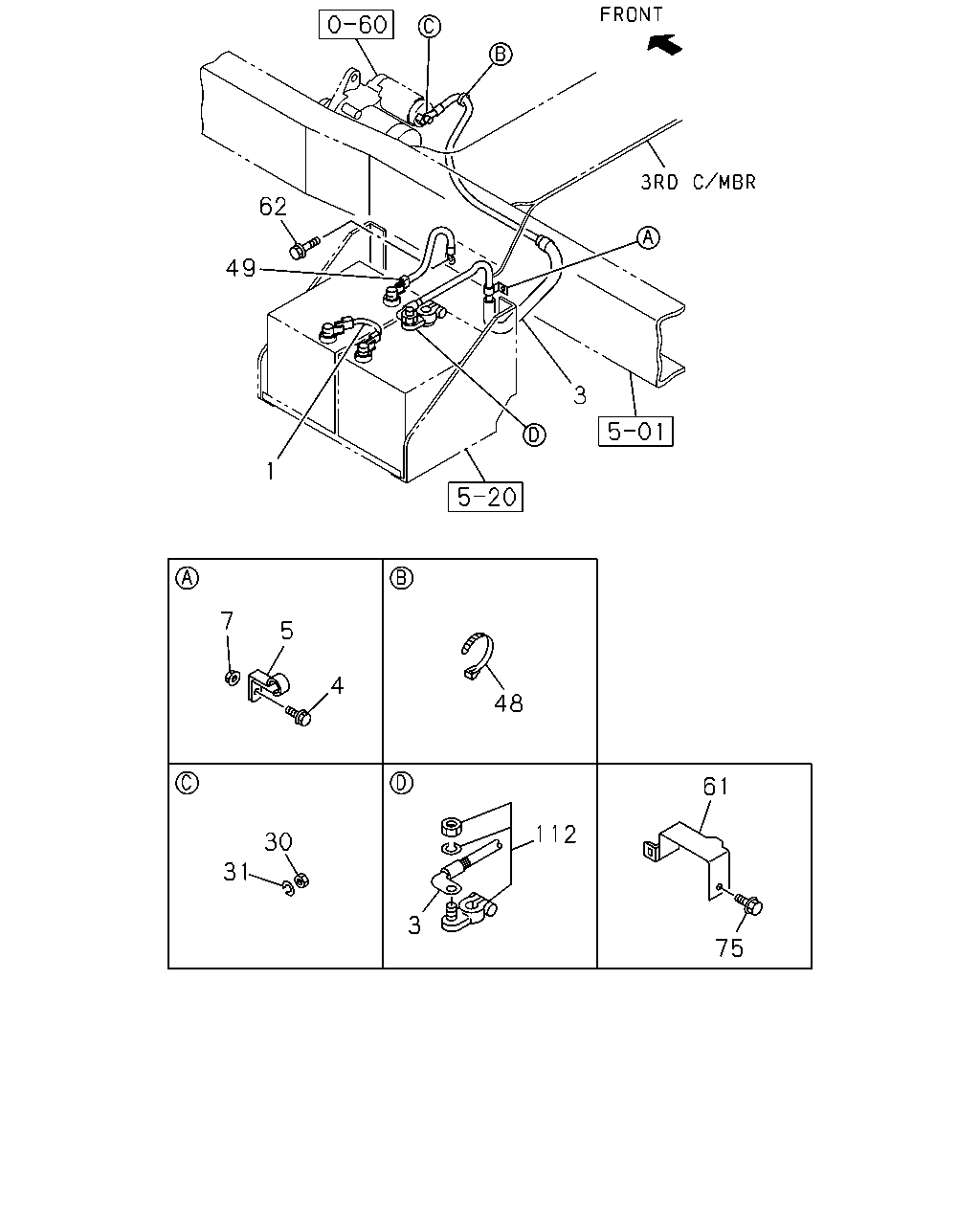

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#43070) — 31 parça
Tümü
A - 4HG1-T ENG
B - 4HE1-TCS ENG
C - 4HK1-TCS ENG
62
49
3
1
7
5
4
48
61
112
30
31
3
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
0508-
●
●
●
3
HARNESS; CABLE,BATTERY TO STARTER
EXC. FRAME STRAIGHT TYPE<7KJ> THA
8-97922-386-1
01
1
0508-
●
3
HARNESS; CABLE,BATTERY TO STARTER
FRAME STRAIGHT TYPE<7KJ> THA
8-97922-861-0
01
1
0508-
●
●
4
BOLT; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE THA
0-28650-625-0
01
1
0601-0611
●
●
4
BOLT; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE THA
0-28650-625-0
02
1
0612-
●
●
4
BOLT; BATTERY CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE
0-28680-825-0
01
1
0508-0611
●
4
BOLT; BATTERY CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
01
1
0612-
●
4
BOLT; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE
0-28680-625-0
01
1
0508-0510
●
●
4
BOLT; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE
0-28680-625-0
02
1
0511-0512
●
●
4
BOLT; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE
0-28680-625-0
01
1
0601-0611
●
●
5
CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> ID=13 H=18 L=20
1-09700-813-0
01
1
0508-
●
7
NUT; (+) CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE
0-91150-108-0
01
1
0508-
●
7
NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> M6 FLANGE
0-91150-106-0
01
1
0508-0605
●
●
7
NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> M6 FLANGE THA
0-91180-106-0
01
1
0606-
●
●
30
NUT; CABLE,STARTER TO BATTERY
M8
9-09110-408-0
01
1
0508-0509
●
●
30
NUT; CABLE,STARTER TO BATTERY
M8
9-09110-408-0
01
1
0510-
●
●
●
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
9-09150-508-0
01
1
0508-0509
●
●
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
9-09150-508-0
01
1
0510-
●
●
●
48
CLIP; CABLE
L=140
5-09707-031-1
01
1
0508-
●
●
●
49
CABLE; BATTERY TO S/MBR,RH
THA
8-97922-384-0
01
1
0508-
●
●
●
61
BRACKET; BATTERY CABLE
8-97369-198-1
01
1
0508-
●
●
●
62
BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER
8-97087-204-0
01
1
0508-
●
62
BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0508-0509
●
62
BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0510-
●
●
75
BOLT; BRKT
M6X25 FLANGE THA
0-28650-625-0
01
1
0701-
●
●
75
BOLT; BRKT
M6X25 FLANGE THA
0-28650-625-0
01
1
0601-0611
●
●
●
75
BOLT; BRKT
M6X25 FLANGE THA
0-28650-625-0
02
1
0612-
●
●
●
75
BOLT; BRKT
M6X25 FLANGE
0-28680-625-0
01
1
0508-0510
●
●
●
75
BOLT; BRKT
M6X25 FLANGE
0-28680-625-0
02
1
0511-0512
●
●
●
75
BOLT; BRKT
M6X25 FLANGE
0-28680-625-0
01
1
0601-0611
●
●
●
112
TERMINAL; BATTERY
<+>
8-97356-925-1
01
1
0508-
●
●
●
