◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43069) — 152 parça

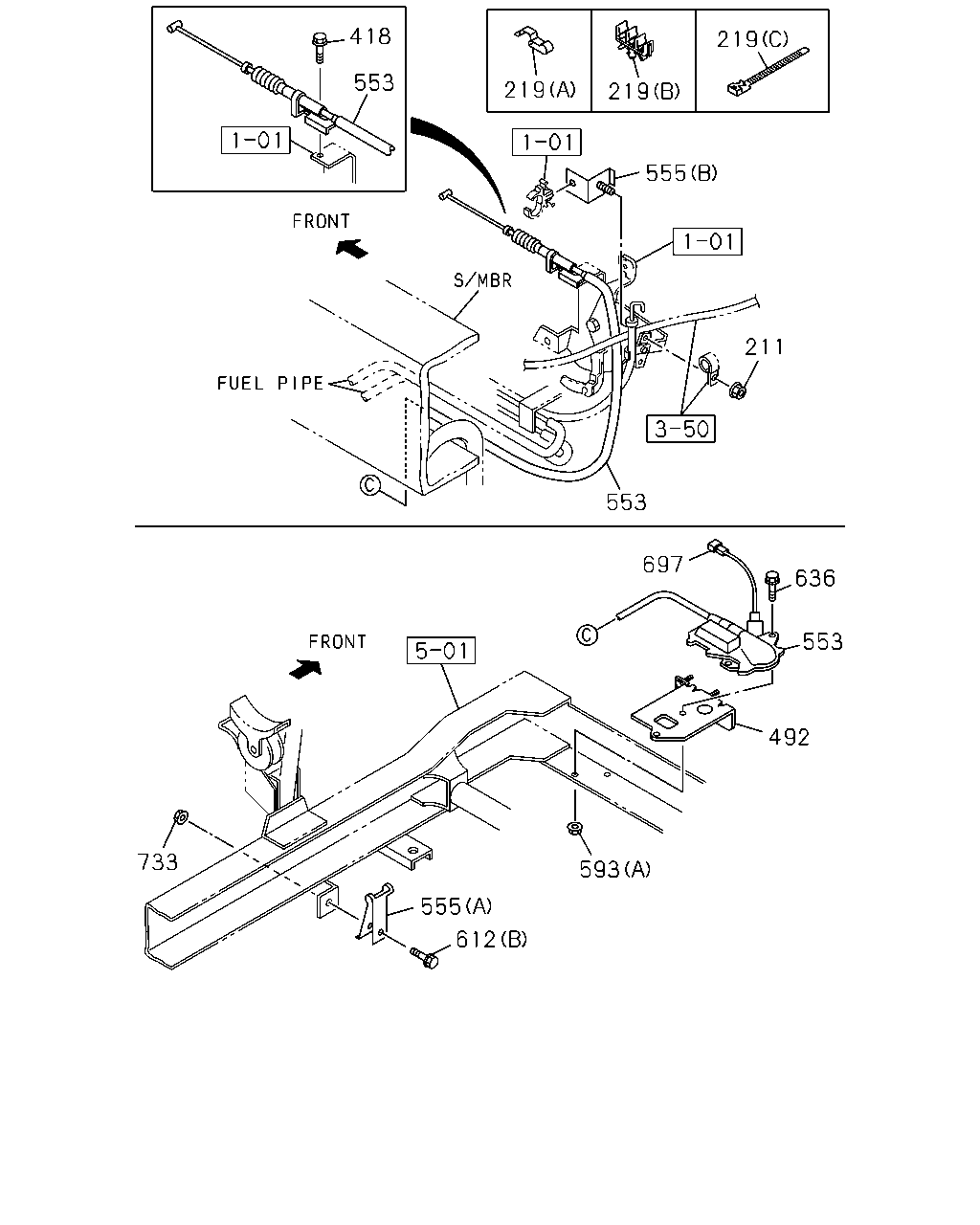

çizim 119243
418 219 553 219 219 555 211 553 697 636 553 492 733 593 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510-0510 ● ●
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510- ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0611 ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE THA 		0-28151-050-0 01 1 0612- ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0701 ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0702- ● ● ●
211 NUT; CABLE FIX
M8 FLANGE 		0-91150-108-0 01 1 0508- ●
211 NUT; CABLE FIX
M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
211 NUT; CABLE FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
219 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=9 & 10.5 		8-97041-091-0 01 1 0508- ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 		5-09709-023-0 01 1 0508- ● ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0508- ●
219 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0508- ●
418 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ●
418 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ●
492 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97113-497-1 01 1 0508- ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0508- ●
553 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-1 01 1 0508- ●
553 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-1 01 1 0508- ●
553 MOTOR ASM; ENG STOP 8-97255-071-1 01 1 0508- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0508- ● ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0508- ●
593 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0508-0602 ● ●
593 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 0603- ● ●
593 NUT; BRKT
(B) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ● ●
593 NUT; BRKT
(B) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●
612 BOLT; BRKT
(B) M8X20 		1-09981-468-0 01 1 0508- ● ●
612 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0508-0611 ● ●
612 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 0612- ● ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ● ●
636 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
697 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0508- ● ●
733 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0508- ● ●

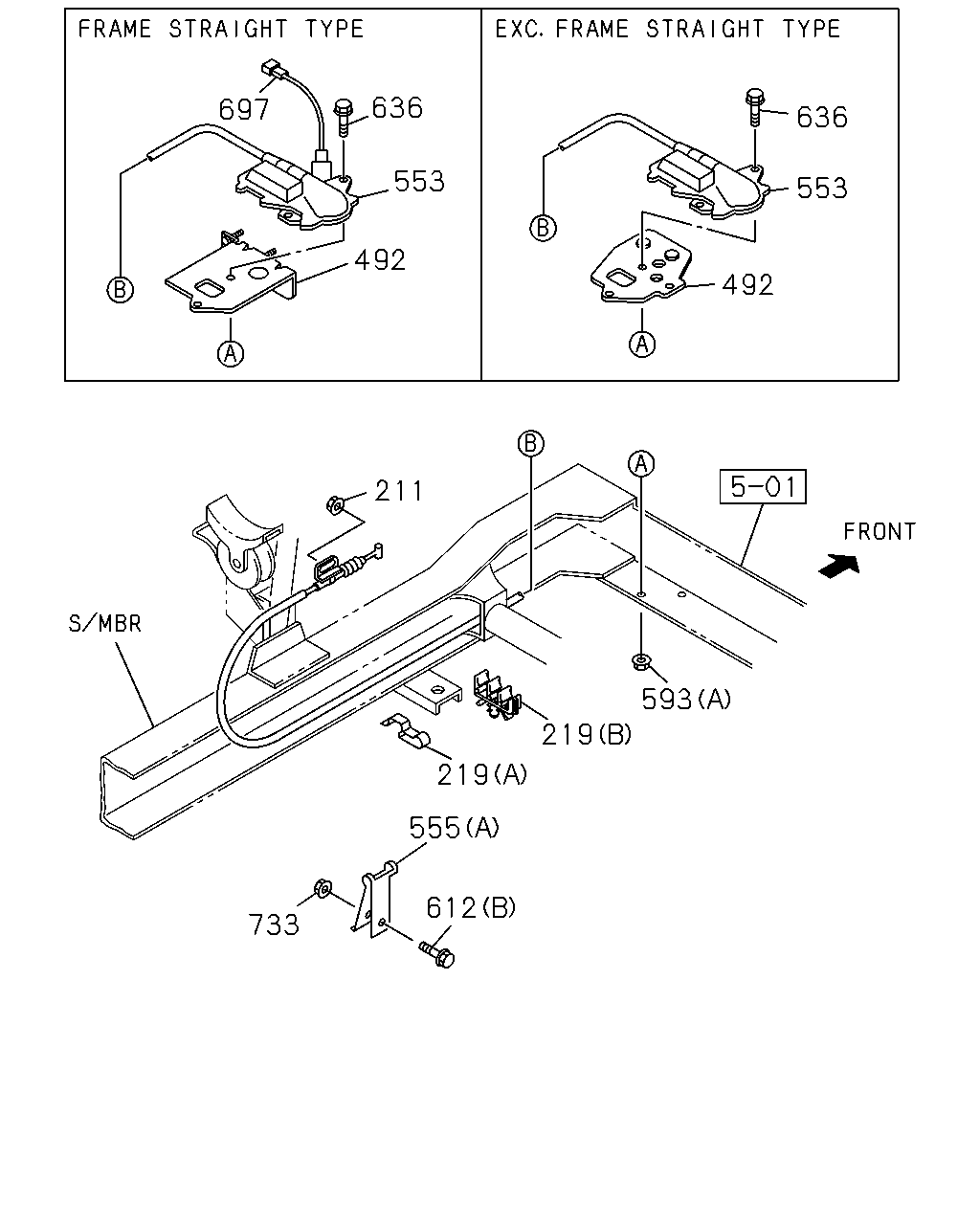

çizim 119245
636 697 636 553 553 492 492 211 593 219 219 555 612 733
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510-0510 ● ●
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510- ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0611 ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE THA 		0-28151-050-0 01 1 0612- ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0701 ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0702- ● ● ●
211 NUT; CABLE FIX
M8 FLANGE 		0-91150-108-0 01 1 0508- ●
211 NUT; CABLE FIX
M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
211 NUT; CABLE FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
219 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=9 & 10.5 		8-97041-091-0 01 1 0508- ●
219 CLIP; ENG STOP CABLE
(A) T=4.5 & 9 		5-09709-023-0 01 1 0508- ● ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0508- ●
219 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0508- ●
492 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97113-497-1 01 1 0508- ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0508- ●
553 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-1 01 1 0508- ●
553 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-1 01 1 0508- ●
553 MOTOR ASM; ENG STOP 8-97255-071-1 01 1 0508- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0508- ● ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0508- ●
593 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0508-0602 ● ●
593 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 0603- ● ●
593 NUT; BRKT
(B) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ● ●
593 NUT; BRKT
(B) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●
612 BOLT; BRKT
(B) M8X20 		1-09981-468-0 01 1 0508- ● ●
612 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0508-0611 ● ●
612 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 0612- ● ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ● ●
636 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
697 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0508- ● ●
733 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0508- ● ●

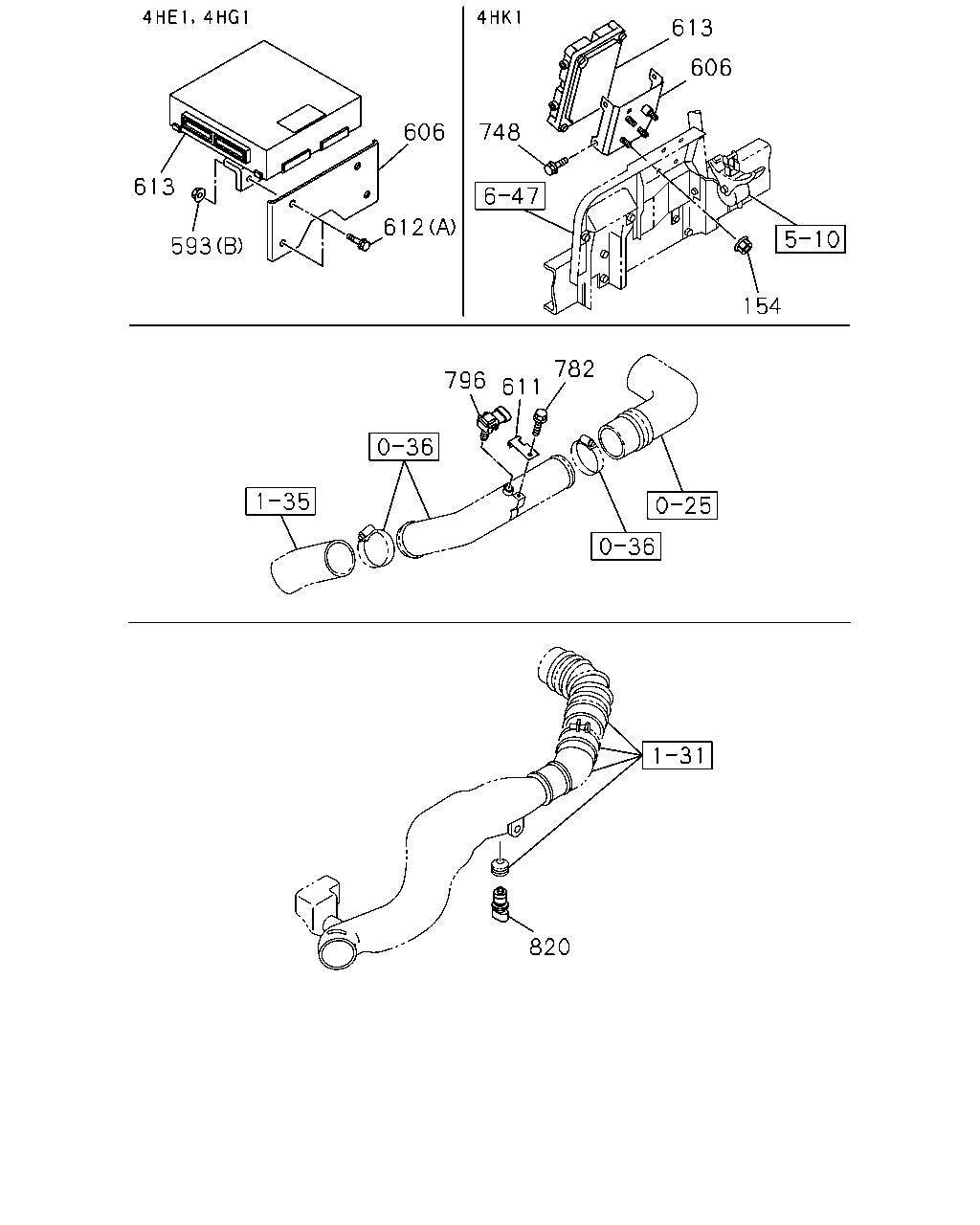

çizim 119247
613 606 606 748 613 612 593 154 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510-0510 ● ●
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510- ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0611 ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE THA 		0-28151-050-0 01 1 0612- ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0701 ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0702- ● ● ●
154 NUT; BRKT FIX
M6 W/DISHED WASHER 		8-94423-325-0 04 1 0510-0611 ●
154 NUT; BRKT FIX
M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ●
593 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0508-0602 ● ●
593 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 0603- ● ●
593 NUT; BRKT
(B) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ● ●
593 NUT; BRKT
(B) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●
606 BRACKET; CONT UNIT 8-97369-871-1 01 1 0510- ●
606 BRACKET; CONT UNIT 8-97187-422-1 01 1 0508- ● ●
611 BRACKET; SENSOR 8-97368-621-0 01 1 0510- ●
612 BOLT; BRKT
(B) M8X20 		1-09981-468-0 01 1 0508- ● ●
612 BOLT; BRKT
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0508-0611 ● ●
612 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 0612- ● ●
613 CONTROL UNIT; ENG 8-97187-466-7 01 1 0508- ●
613 CONTROL UNIT; ENG
EXC. EURO2 SPECIFICATION<NT2> 		8-97223-182-2 01 1 0508- ●
613 CONTROL UNIT; ENG 8-98018-787-4 01 1 0510- ●
748 BOLT; CONT UNIT
M6X10 		9-03800-610-0 03 1 0510-0604 ●
748 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605- ●
782 BOLT; SENSOR
M6X12 FLANGE 		0-28080-612-0 01 1 0510-0512 ●
782 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0601- ●
796 SENSOR; MAP 8-09373-269-1 01 1 0510-0810 ●
796 SENSOR; MAP 8-28139-775-0 01 1 0811- ●
820 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0510- ●

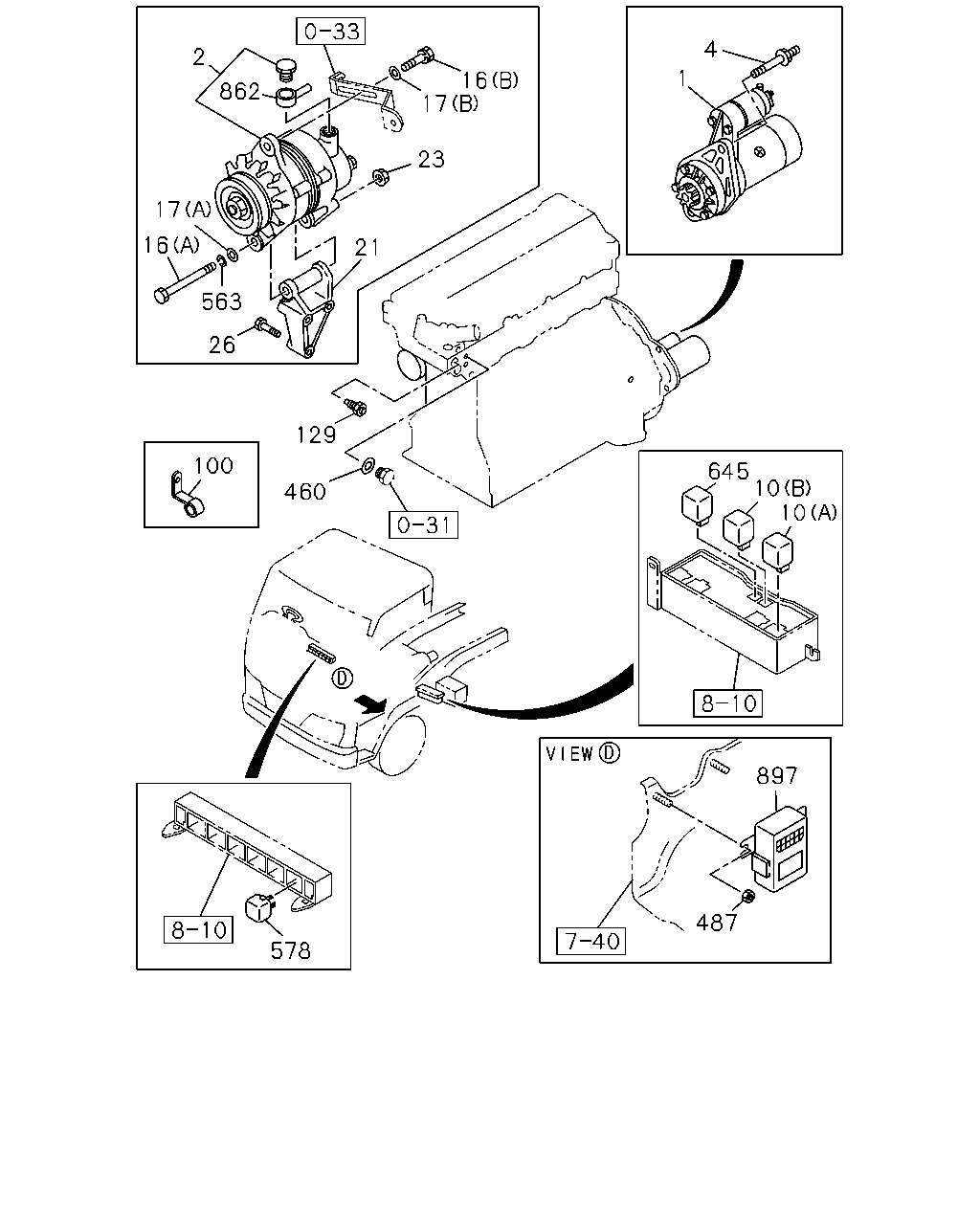

çizim 119249
4 2 1 16 17 862 23 17 16 21 563 26 129 100 645 10 10 460 897 487 578
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW THA 		8-97920-966-1 01 1 0508-0509 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW THA 		8-97920-966-1 01 1 0510- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97911-590-2 01 1 0508- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97920-935-2 01 1 0508-0509 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97920-935-2 01 1 0510- ● ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0508-0509 ● ●
4 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0510- ● ● ●
10 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0508- ● ● ●
10 RELAY; STARTER
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0510- ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT<C60> (B) M8X35 FLANGE 		0-28080-835-0 01 1 0508-0509 ● ●
16 BOLT; GEN
(B) M8X35 FLANGE 		0-28080-835-0 01 1 0510-0512 ● ● ●
16 BOLT; GEN
(B) M8X35 FLANGE THA 		0-28050-835-0 01 1 0601- ● ● ●
16 BOLT; GEN
(A) M10X115 THA 		8-97916-754-0 01 1 0508-0509 ● ●
16 BOLT; GEN
(A) M10X115 THA 		8-97916-754-0 01 1 0510- ● ● ●
17 WASHER; PL,GEN
(A) ID=10.5 OD=18 		9-09160-510-0 01 1 0508-0611 ● ●
17 WASHER; PL,GEN
EXC. AIR CONDITIONER MANUAL CONT<C60> (A) ID=10.5 		0-91610-510-0 01 1 0612- ● ●
17 WASHER; PL,GEN
(B) ID=8.4 OD=18 THA 		9-09160-608-0 01 1 0508-0509 ● ●
17 WASHER; PL,GEN
(B) ID=8.4 OD=18 THA 		9-09160-608-0 01 1 0510- ● ● ●
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510-0510 ● ●
19 BRACKET; GEN
THA 		8-97916-345-0 01 1 0510- ● ● ●
21 BRACKET; GEN
THA 		8-97075-884-2 01 1 0508-0509 ● ●
21 BRACKET; GEN
THA 		8-97075-884-2 01 1 0510- ● ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0508-0509 ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 0510-0602 ● ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0603- ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0611 ● ● ●
24 BOLT; GEN BRKT
M10X50 FLANGE THA 		0-28151-050-0 01 1 0612- ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0510 ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0701 ● ● ●
24 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0702- ● ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0508-0509 ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0510-0512 ● ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE THA 		0-28151-050-0 01 1 0601- ● ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0508-0509 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0510-0512 ● ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ● ●
100 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0510-0606 ●
100 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0607- ●
129 SENSOR; GLOW PLUG,THERMO
UNISIA JECS 		8-97167-008-0 01 1 0508-0509 ● ●
129 SENSOR; GLOW PLUG,THERMO
UNISIA JECS 		8-97167-008-0 01 1 0510- ● ● ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0508-0509 ● ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0510-1007 ● ● ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ● ● ●
460 GASKET; PLUG
ID=16.2 		1-09630-086-0 01 1 0508-0509 ● ●
460 GASKET; PLUG
ID=16.2 		1-09630-086-0 01 1 0510- ● ● ●
487 NUT
M6 FLANGE 		0-91150-106-0 02 1 0510-0602 ●
487 NUT
M6 FLANGE THA 		0-91180-106-0 02 1 0603- ●
563 WASHER; SPRING
ID=10.2 		9-09150-510-0 01 1 0508- ● ●
578 RELAY; CHARGE WARNING
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0508- ● ● ●
645 RELAY; ENG CONT
24V 30A JIDECO 		8-97238-540-0 01 1 0510-1402 ●
645 RELAY; ENG CONT
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
897 DRM 8-98013-144-8 01 1 0510-1401 ●
897 DRM 8-98260-912-0 01 1 1402- ●
