Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

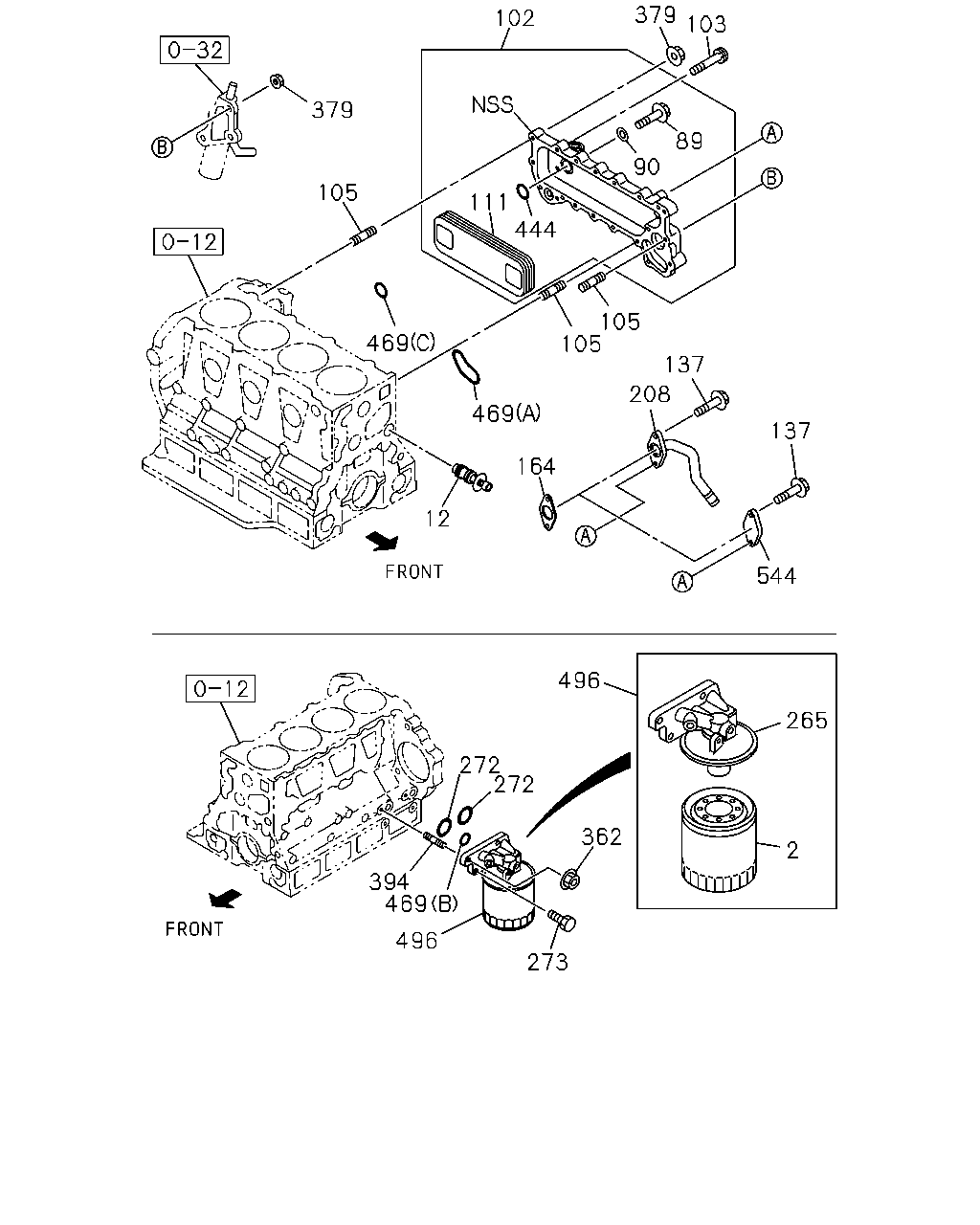

0-50 — OIL COOLER AND OIL FILTER (#43064) — 63 parça

379 102 103 379 89 90 105 111 444 105 105 469 137 208 469 137 164 12 544 496 265 272 272 362 2 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	0508-	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	0508-	●	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	0508-0509	●	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	0510-	●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE THA	0-28050-816-0	04	1	0708-1211		●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE THA	0-28050-816-0	04	1	1212-	●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE THA	0-28050-816-0	04	1	1212-	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	0508-0509	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	0510-0707	●	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	0708-1211	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	0508-0509	●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	0510-	●	●	●
102	COOLER ASM; OIL	8-97385-200-6	01	1	0508-	●
102	COOLER ASM; OIL	8-97385-201-0	01	1	0508-0509		●
102	COOLER ASM; OIL	8-97385-201-1	01	1	0510-0707		●	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	0708-		●	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	07	1	0508-0512	●
103	BOLT; OIL COOLER M8X20 FLANGE THA	0-28050-820-0	07	1	0601-	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	07	1	0508-0512	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	08	1	0508-0509		●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	08	1	0510-0512		●	●
103	BOLT; OIL COOLER M8X20 FLANGE THA	0-28050-820-0	08	1	0601-		●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	08	1	0508-0509		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	08	1	0510-0512		●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0508-0509	●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0510-	●	●	●
111	CORE; OIL COOLER	8-97334-101-1	01	1	0508-	●
111	CORE; OIL COOLER	8-97334-100-0	01	1	0508-0509		●
111	CORE; OIL COOLER	8-97334-100-2	01	1	0510-		●	●
137	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0508-0509	●	●
137	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0510-0512	●	●	●
137	BOLT M8X20 FLANGE THA	0-28650-820-0	02	1	0601-	●	●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0508-0509	●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0510-	●	●	●
208	PIPE; WATER,HTR AIR CONDITIONER MANUAL CONT<C60>	8-97146-519-0	01	1	0508-	●
265	BODY; OIL FILTER	8-97096-677-3	01	1	0508-0509	●	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	0510-	●	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0508-0509	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0510-	●	●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	0508-0509	●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	0510-0512	●	●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28751-030-0	02	1	0601-	●	●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	0508-0509	●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
362	NUT; OIL FILTER M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	0508-0509	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	0510-0602	●	●	●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	03	1	0603-	●	●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	0508-0509	●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	0510-0512	●	●	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-	●	●	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0508-0509	●	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0510-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0508-0509	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0510-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0508-0509	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0510-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2 THA	9-09566-226-0	01	1	0508-0509	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2 THA	9-09566-226-0	01	1	0510-0606	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-	●	●	●
496	FILTER ASM; OIL	8-97148-268-2	01	1	0508-0509	●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	0510-	●	●	●
544	COVER; HEATER EXC. AIR CONDITIONER MANUAL CONT<C60>	8-97147-028-0	01	1	0508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
