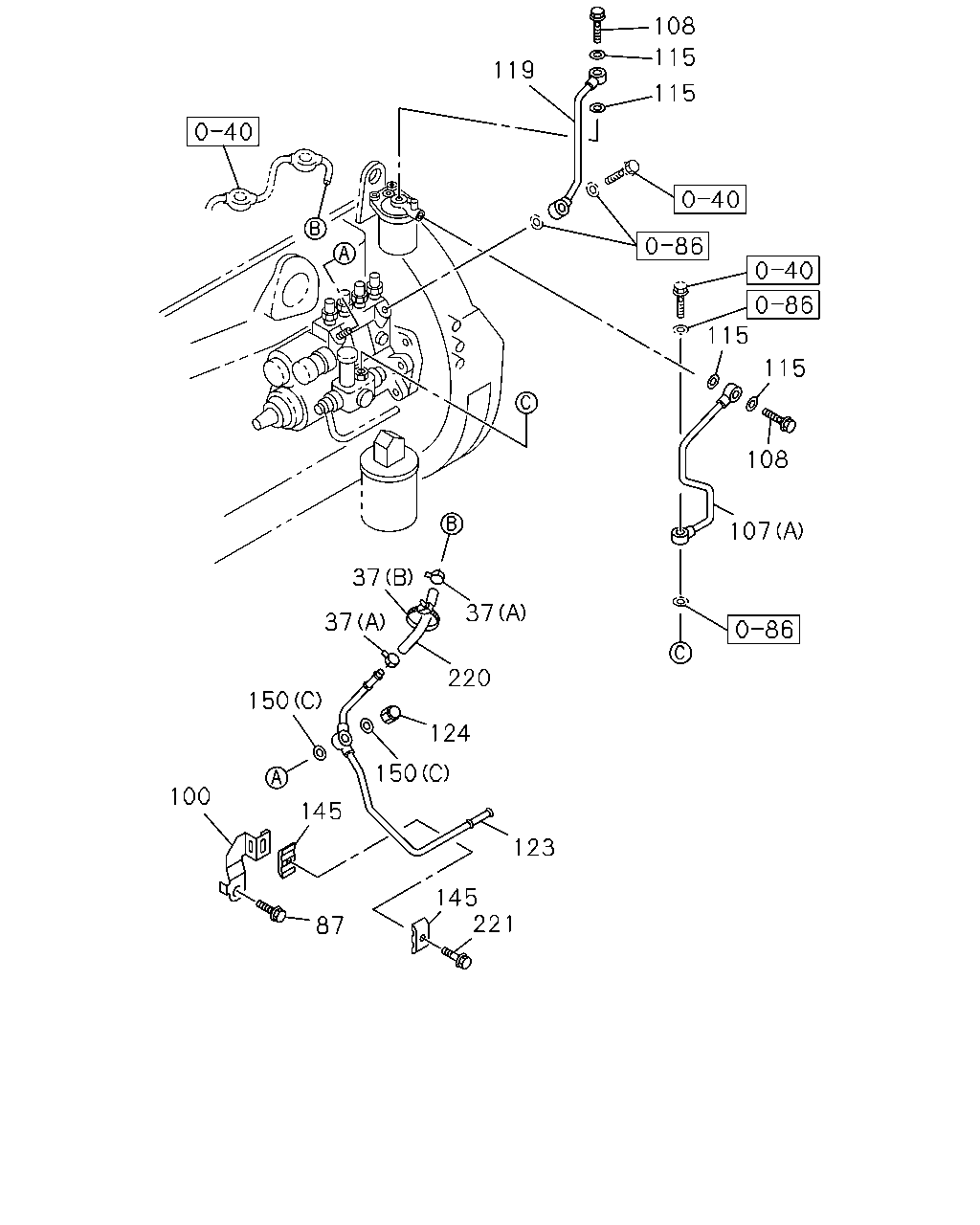

0-42 — FUEL PUMP AND PIPE (#43063) — 72 parça

108 115 119 115 115 115 108 107 37 37 37 220 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	0508-	●
37	CLIP; FUEL HOSE (A) ID=12	8-94238-610-0	02	1	0508-	●	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0508-0512	●	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●	●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0508-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER (A)	8-97210-721-1	01	1	0508-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER (B)	8-97148-967-3	01	1	0508-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0508-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0508-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-323-1	01	1	0508-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97357-237-0	01	1	0508-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0508-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0508-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0508-	●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-1	02	1	0508-	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0510-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.6	8-97240-975-0	01	1	0510-0908			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0508-	●	●
220	HOSE; FUEL	8-97208-874-0	01	1	0508-	●
220	HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0508-		●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	0510-			●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0508-0512	●	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●

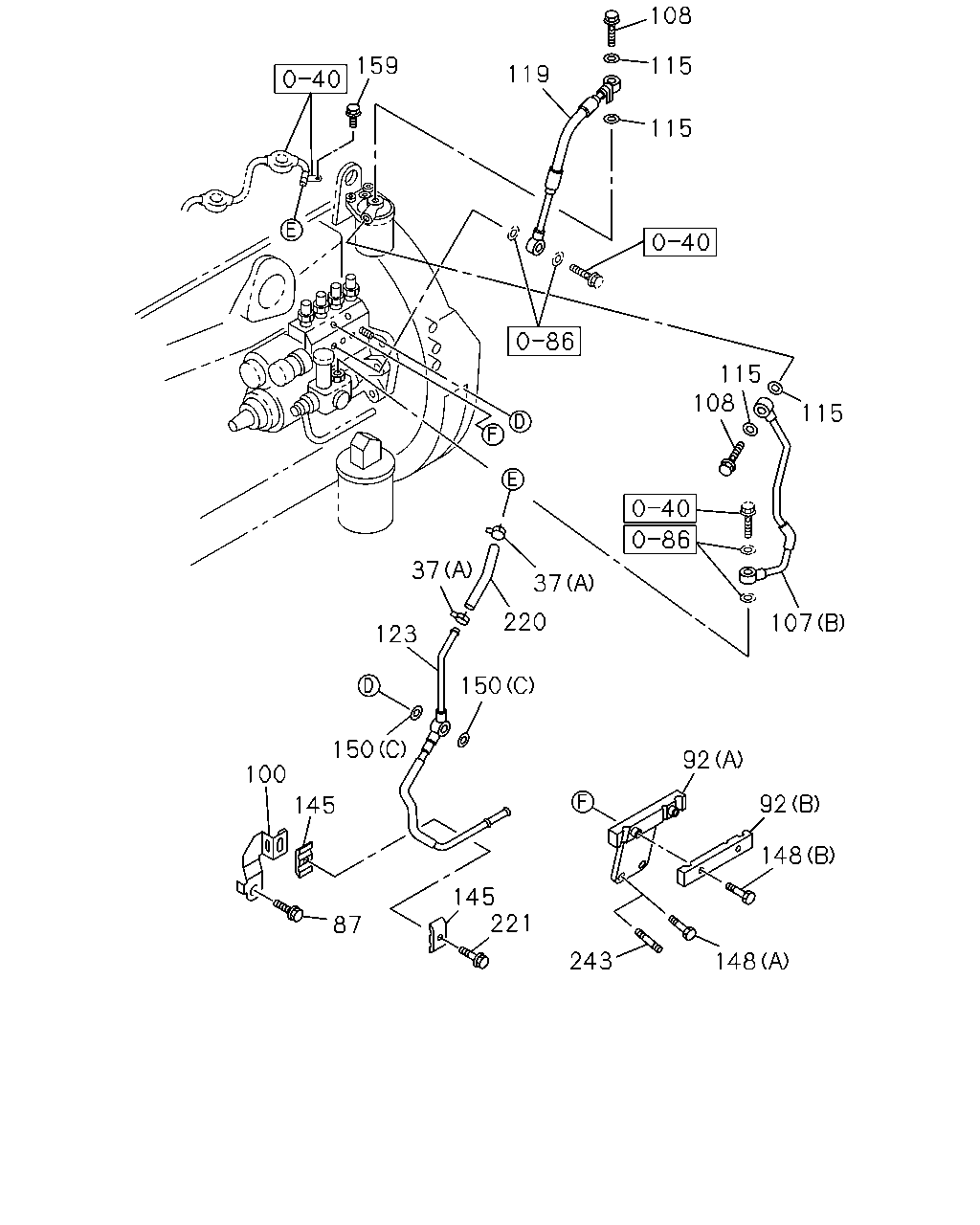

108 159 115 119 115 115 108 115 37 37 220 107 123 150 150 92 100 92 145 148 145 221 87 243 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	0508-	●
37	CLIP; FUEL HOSE (A) ID=12	8-94238-610-0	02	1	0508-	●	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0508-0512	●	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●	●
92	BRACKET; FUEL PIPE (A)	8-97166-995-1	01	1	0508-		●
92	BRACKET; FUEL PIPE (B)	8-97173-465-2	01	1	0508-		●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0508-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER (A)	8-97210-721-1	01	1	0508-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER (B)	8-97148-967-3	01	1	0508-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0508-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0508-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-323-1	01	1	0508-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97357-237-0	01	1	0508-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0508-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0508-		●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-1	02	1	0508-	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28090-816-0	01	1	0508-0512		●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28060-816-0	01	1	0601-		●
148	BOLT; BRKT (B) M6X25 FLANGE	0-28680-625-0	02	1	0508-0512		●
148	BOLT; BRKT (B) M6X25 FLANGE THA	0-28650-625-0	02	1	0601-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0510-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.6	8-97240-975-0	01	1	0510-0908			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0508-	●	●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0508-0509		●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0510-0512		●	●
159	BOLT; CLIP M6X12 FLANGE THA	0-28050-612-0	01	1	0601-		●	●
220	HOSE; FUEL	8-97208-874-0	01	1	0508-	●
220	HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0508-		●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	0510-			●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0508-0512	●	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●
243	STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0508-		●

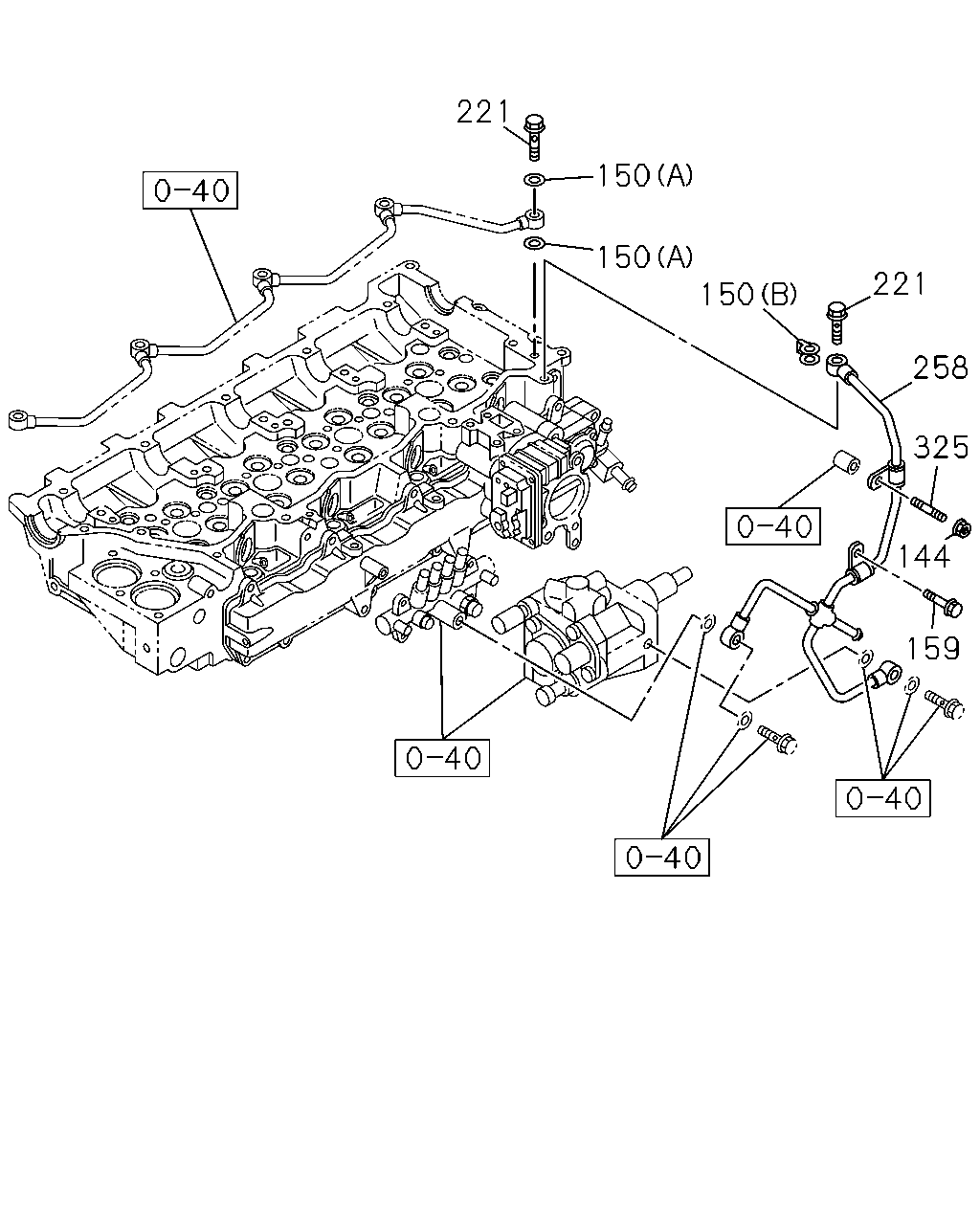

221 150 150 150 221 258 325 144 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0510-0602			●
144	NUT; CLIP M6 FLANGE THA	0-91180-106-0	01	1	0603-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0510-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.6	8-97240-975-0	01	1	0510-0908			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0508-	●	●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0508-0509		●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0510-0512		●	●
159	BOLT; CLIP M6X12 FLANGE THA	0-28050-612-0	01	1	0601-		●	●
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	0510-			●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0508-0512	●	●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●
258	PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0510-			●
325	STUD; CLIP M6X40 L=50	9-04110-640-0	01	1	0510-0604			●
325	STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-			●
