Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶
0-41 — FUEL FILTER AND BRACKET
(#43062) — 30 parça
Tümü
A - 4HG1-T ENG
B - 4HE1-TCS ENG
C - 4HK1-TCS ENG
◀

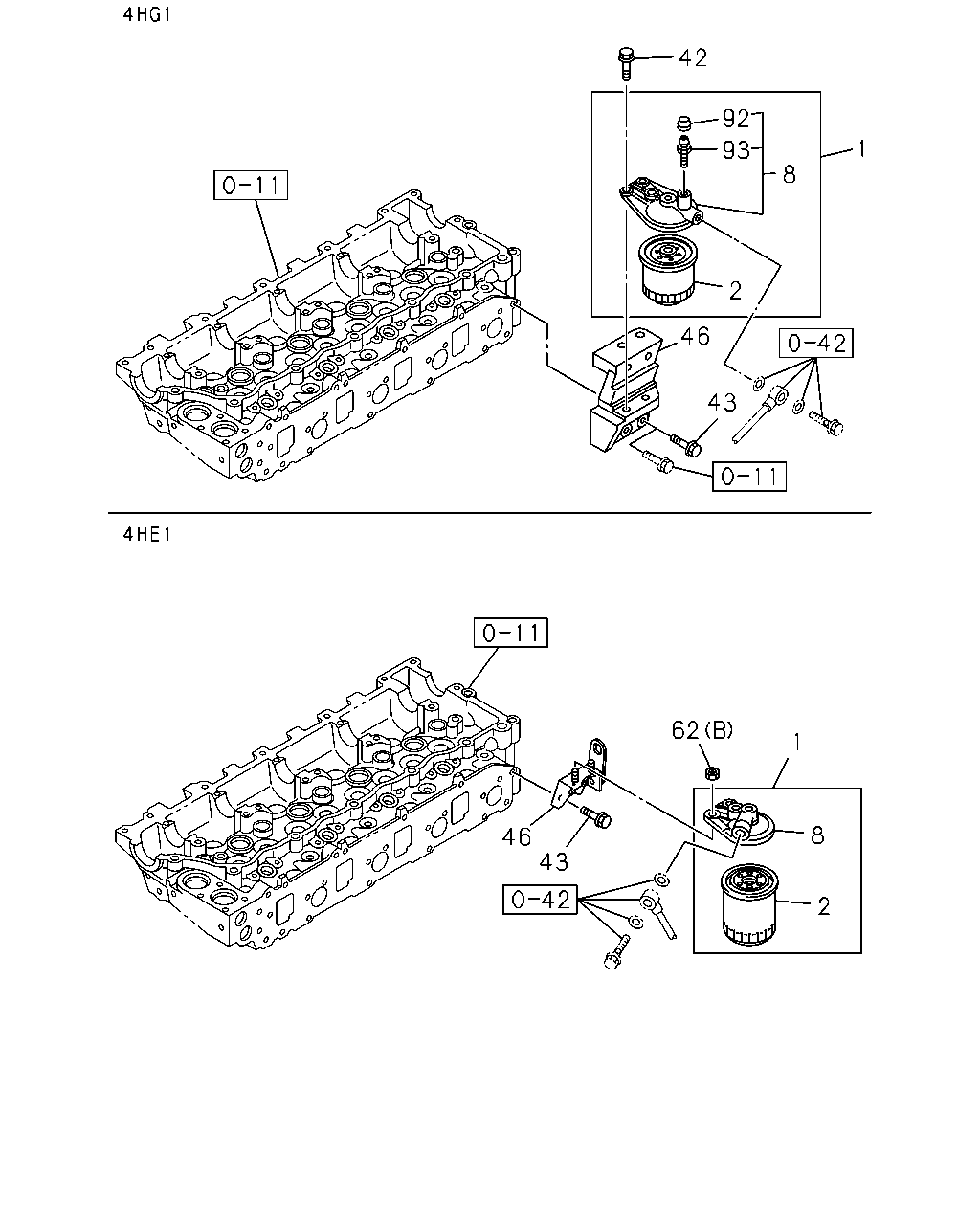

[041A] 4HG1,4HE1(NO.1) (22 parça)

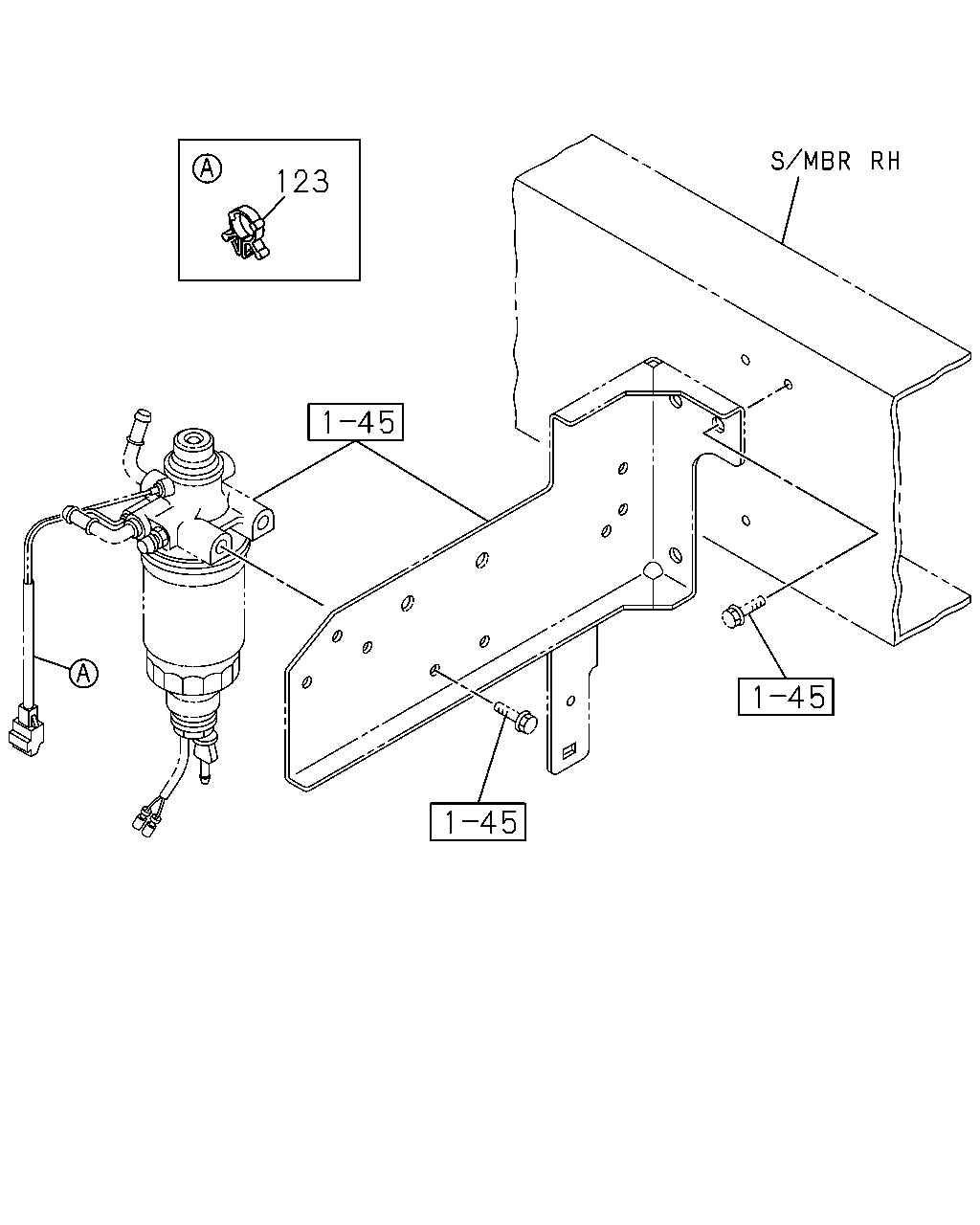

[041A] 4HK1 (1 parça)

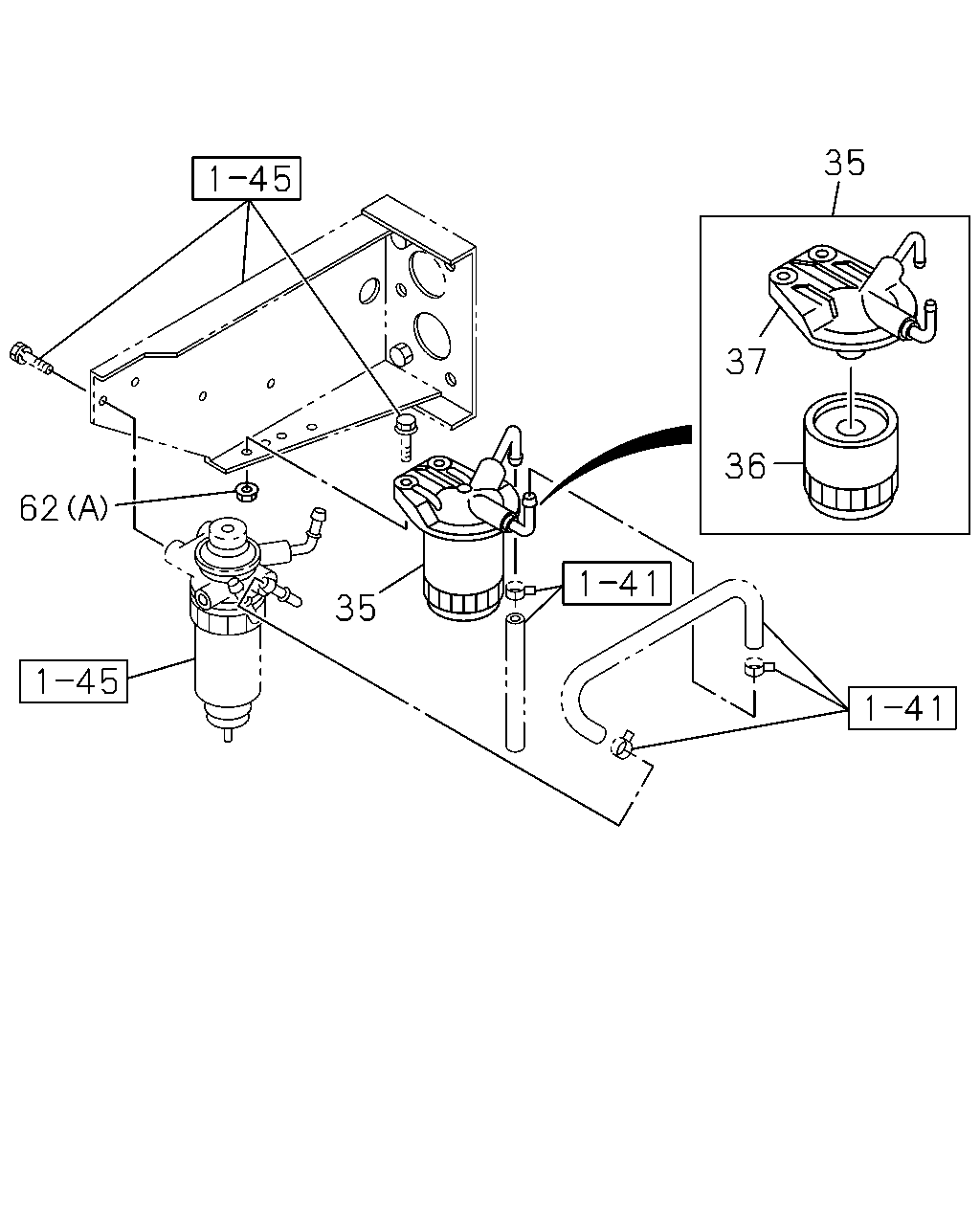

[041A] 4HG1,4HE1(NO.2) (7 parça)
▶
42
92
1
93
8
2
46
43
62
1
8
46
43
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FILTER ASM; FUEL
8-97171-451-2
01
1
0508-
●
1
FILTER ASM; FUEL
1-13200-890-4
01
1
0508-
●
2
ELEMENT KIT; FUEL FILTER
8-97172-549-1
01
1
0508-
●
2
ELEMENT KIT; FUEL FILTER
1-13240-079-1
01
1
0508-0803
●
2
ELEMENT KIT; FUEL FILTER
8-98036-654-0
01
1
0804-
●
2
ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS
5-87610-041-0
01
1
0508-
●
2
ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS
1-87610-053-1
01
1
0804-
●
8
COVER; FUEL FILTER
8-97172-543-1
01
1
0508-
●
8
COVER; FUEL FILTER
1-13212-159-2
01
1
0508-
●
42
BOLT; FUEL FILTER
M10X30 FLANGE
0-28781-030-0
02
1
0508-0512
●
42
BOLT; FUEL FILTER
M10X30 FLANGE
0-28751-030-0
02
1
0601-
●
43
BOLT; BRKT
M12X28 FLANGE
0-28181-228-0
02
1
0508-
●
43
BOLT; BRKT
M12X25
0-28781-225-0
02
1
0508-0512
●
43
BOLT; BRKT
M12X25 FLANGE
0-28751-225-0
02
1
0601-
●
46
BRACKET
8-97061-452-0
01
1
0508-
●
46
BRACKET
8-97148-962-2
01
1
0508-
●
62
NUT; FUEL FILTER
FUEL FILTER DUAL<S6B> (A) M10 FLANGE
0-91150-210-0
02
1
0508-0602
●
●
62
NUT; FUEL FILTER
FUEL FILTER DUAL<S6B> (A) M10 FLANGE THA
0-91180-210-0
02
1
0603-
●
●
62
NUT; FUEL FILTER
(B) M10 FLANGE
0-91150-110-0
02
1
0508-0602
●
62
NUT; FUEL FILTER
(B) M10 FLANGE THA
0-91180-110-0
02
1
0603-
●
92
CAP; FUEL FILTER
8-97172-548-0
01
1
0508-
●
93
CONNECTOR; FUEL FILTER
8-97172-546-1
01
1
0508-
●
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
123
CLIP; HARNESS
ID=9
8-97063-874-0
01
1
0510-
●
35
37
36
62
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
35
FILTER ASM; SUB FUEL
FUEL FILTER DUAL<S6B>
8-98006-454-0
01
1
0508-
●
●
36
ELEMENT; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-97916-993-2
01
1
0508-
●
●
37
COVER; FUEL FILTER
FUEL FILTER DUAL<S6B> THA
8-97917-558-0
01
1
0508-
●
●
62
NUT; FUEL FILTER
FUEL FILTER DUAL<S6B> (A) M10 FLANGE
0-91150-210-0
02
1
0508-0602
●
●
62
NUT; FUEL FILTER
FUEL FILTER DUAL<S6B> (A) M10 FLANGE THA
0-91180-210-0
02
1
0603-
●
●
62
NUT; FUEL FILTER
(B) M10 FLANGE
0-91150-110-0
02
1
0508-0602
●
62
NUT; FUEL FILTER
(B) M10 FLANGE THA
0-91180-110-0
02
1
0603-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
