Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#43061) — 379 parça

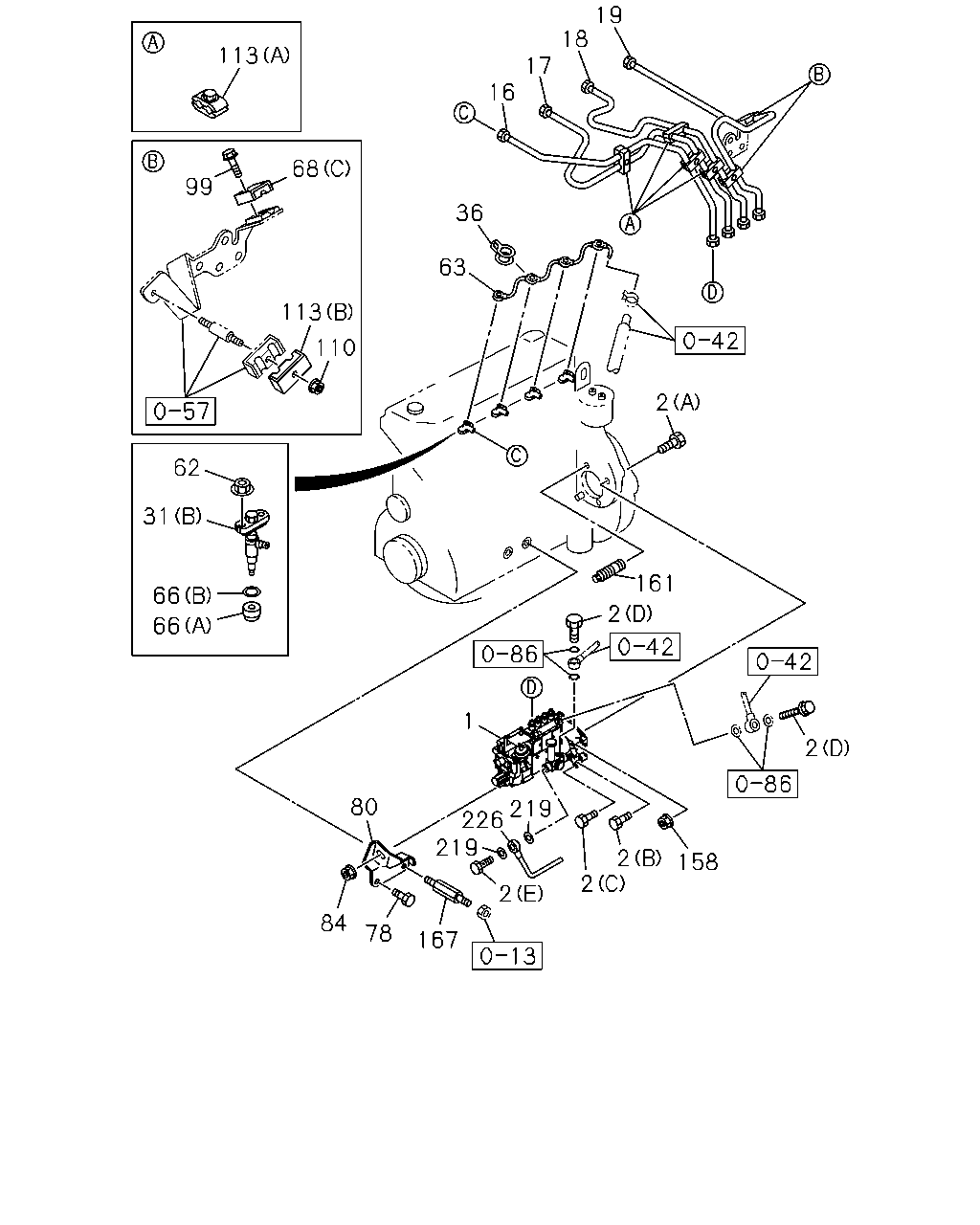

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97306-044-9	01	1	0510-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0508-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0508-			●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0508-0509		●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0510-0512	●	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0508-0509		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0510-0512	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28181-050-0	01	1	0510-0512	●
2	BOLT; INJ PUMP (F) M10X50 FLANGE THA	0-28151-050-0	01	1	0601-	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0508-		●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0508-		●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0508-0512		●	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-		●	●
2	BOLT; INJ PUMP (G) M12X110	0-28186-211-0	01	1	0508-0512			●
2	BOLT; INJ PUMP (G) M12X110 FLANGE	0-28156-211-0	01	1	0601-			●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	01	1	0508-			●
16	PIPE; INJ NO.1	8-97371-831-1	01	1	0510-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0508-		●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0508-			●
17	PIPE; INJ NO.2	8-97373-417-1	01	1	0510-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0508-		●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0508-			●
18	PIPE; INJ NO.3	8-97371-833-1	01	1	0510-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0508-		●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0508-			●
19	PIPE; INJ NO.4	8-97371-834-1	01	1	0510-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0508-		●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0508-			●
31	NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0510-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0508-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0508-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-97600-925-0	04	1	0510-0908	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0508-1312		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0508-0602		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE THA	0-91180-108-0	08	1	0603-		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0510-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0508-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3	8-94173-412-0	04	1	0510-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0510-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0508-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0508-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0508-			●
68	CLIP; INJ PIPE (A)	8-97330-118-3	04	1	0510-	●
68	CLIP; INJ PIPE (B)	8-97330-119-3	04	1	0510-	●
68	CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0508-		●
68	CLIP; INJ PIPE (D)	8-97213-049-0	06	1	0508-			●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0508-0512		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE THA	0-28751-020-0	01	1	0601-		●	●
80	BRACKET; PUMP	8-97601-699-0	01	1	0510-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0508-		●
80	BRACKET; PUMP	8-97148-958-1	01	1	0508-			●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0508-0602		●
84	NUT; BRKT TO BRKT M10 FLANGE THA	0-91180-210-0	01	1	0603-		●
84	NUT; BRKT TO BRKT M12 FLANGE	0-91150-212-0	01	1	0508-0602			●
84	NUT; BRKT TO BRKT M12 FLANGE THA	0-91180-212-0	01	1	0603-			●
99	BOLT; CLIP,INJ,PIPE M6X25 FLANGE	0-28680-625-0	01	1	0508-0512		●
99	BOLT; CLIP,INJ,PIPE M6X25 FLANGE THA	0-28650-625-0	01	1	0601-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	0510-0602	●
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	04	1	0603-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0508-0602		●
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	01	1	0603-		●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0508-		●
113	CLIP; INJ PIPE (B) THA	8-97213-481-0	01	1	0508-		●
113	CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0508-			●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0508-0509		●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
158	NUT; INJ PUMP M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0508-0602			●
158	NUT; INJ PUMP M12 FLANGE	0-91280-112-0	01	1	0603-			●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0508-0509		●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0510-0910	●	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-		●	●
167	SPACER; GUIDE TUBE	8-97065-515-2	01	1	0508-		●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0510-0605	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	1-09623-300-0	01	1	0510-0603	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-1312		●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
226	PIPE; FUEL	8-97320-019-0	01	1	0510-0808	●
226	PIPE; FUEL	8-98126-433-0	01	1	0809-	●
226	PIPE; FUEL	8-97203-567-0	01	1	0508-		●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0510-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0510-	●

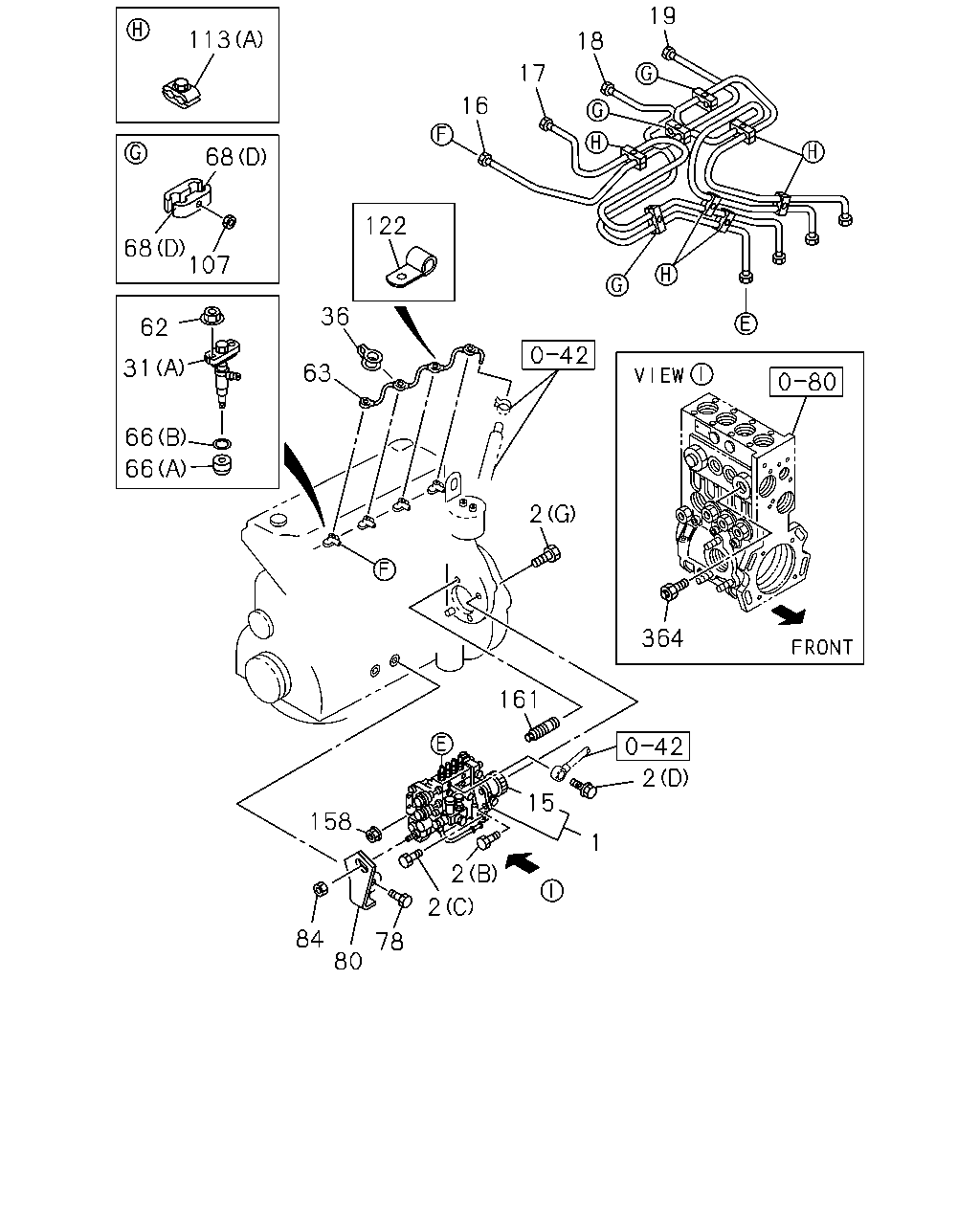

19 113 18 17 16 68 122 68 107 36 62 31 63 66 66 2 364 161 2 15 158 1 2 2 84 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97306-044-9	01	1	0510-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0508-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0508-			●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0508-0509		●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0510-0512	●	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0508-0509		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0510-0512	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28181-050-0	01	1	0510-0512	●
2	BOLT; INJ PUMP (F) M10X50 FLANGE THA	0-28151-050-0	01	1	0601-	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0508-		●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0508-		●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0508-0512		●	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-		●	●
2	BOLT; INJ PUMP (G) M12X110	0-28186-211-0	01	1	0508-0512			●
2	BOLT; INJ PUMP (G) M12X110 FLANGE	0-28156-211-0	01	1	0601-			●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	01	1	0508-			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-97367-625-0	01	1	0508-			●
16	PIPE; INJ NO.1	8-97371-831-1	01	1	0510-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0508-		●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0508-			●
17	PIPE; INJ NO.2	8-97373-417-1	01	1	0510-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0508-		●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0508-			●
18	PIPE; INJ NO.3	8-97371-833-1	01	1	0510-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0508-		●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0508-			●
19	PIPE; INJ NO.4	8-97371-834-1	01	1	0510-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0508-		●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0508-			●
31	NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0510-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0508-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0508-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-97600-925-0	04	1	0510-0908	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0508-1312		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	0508-0602		●	●
62	NUT; NOZZLE HOLDER M8 FLANGE THA	0-91180-108-0	08	1	0603-		●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0510-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0508-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3	8-94173-412-0	04	1	0510-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0510-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0508-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0508-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0508-			●
68	CLIP; INJ PIPE (A)	8-97330-118-3	04	1	0510-	●
68	CLIP; INJ PIPE (B)	8-97330-119-3	04	1	0510-	●
68	CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0508-		●
68	CLIP; INJ PIPE (D)	8-97213-049-0	06	1	0508-			●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	01	1	0508-0512		●	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE THA	0-28751-020-0	01	1	0601-		●	●
80	BRACKET; PUMP	8-97601-699-0	01	1	0510-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0508-		●
80	BRACKET; PUMP	8-97148-958-1	01	1	0508-			●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	0508-0602		●
84	NUT; BRKT TO BRKT M10 FLANGE THA	0-91180-210-0	01	1	0603-		●
84	NUT; BRKT TO BRKT M12 FLANGE	0-91150-212-0	01	1	0508-0602			●
84	NUT; BRKT TO BRKT M12 FLANGE THA	0-91180-212-0	01	1	0603-			●
107	NUT; INJ PIPE CLIP M5 FLANGE	8-94178-699-0	03	1	0508-			●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0508-		●
113	CLIP; INJ PIPE (B) THA	8-97213-481-0	01	1	0508-		●
113	CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0508-			●
122	CLIP; LEAK OFF PIPE	9-09524-662-0	01	1	0508-0606			●
122	CLIP; LEAK OFF PIPE ID=7 L=32	0-95234-662-0	01	1	0607-			●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0508-0509		●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
158	NUT; INJ PUMP M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0508-0602			●
158	NUT; INJ PUMP M12 FLANGE	0-91280-112-0	01	1	0603-			●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0508-0509		●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0510-0910	●	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-		●	●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0510-0605	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0510-	●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-321-0	01	1	0508-			●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0510-	●

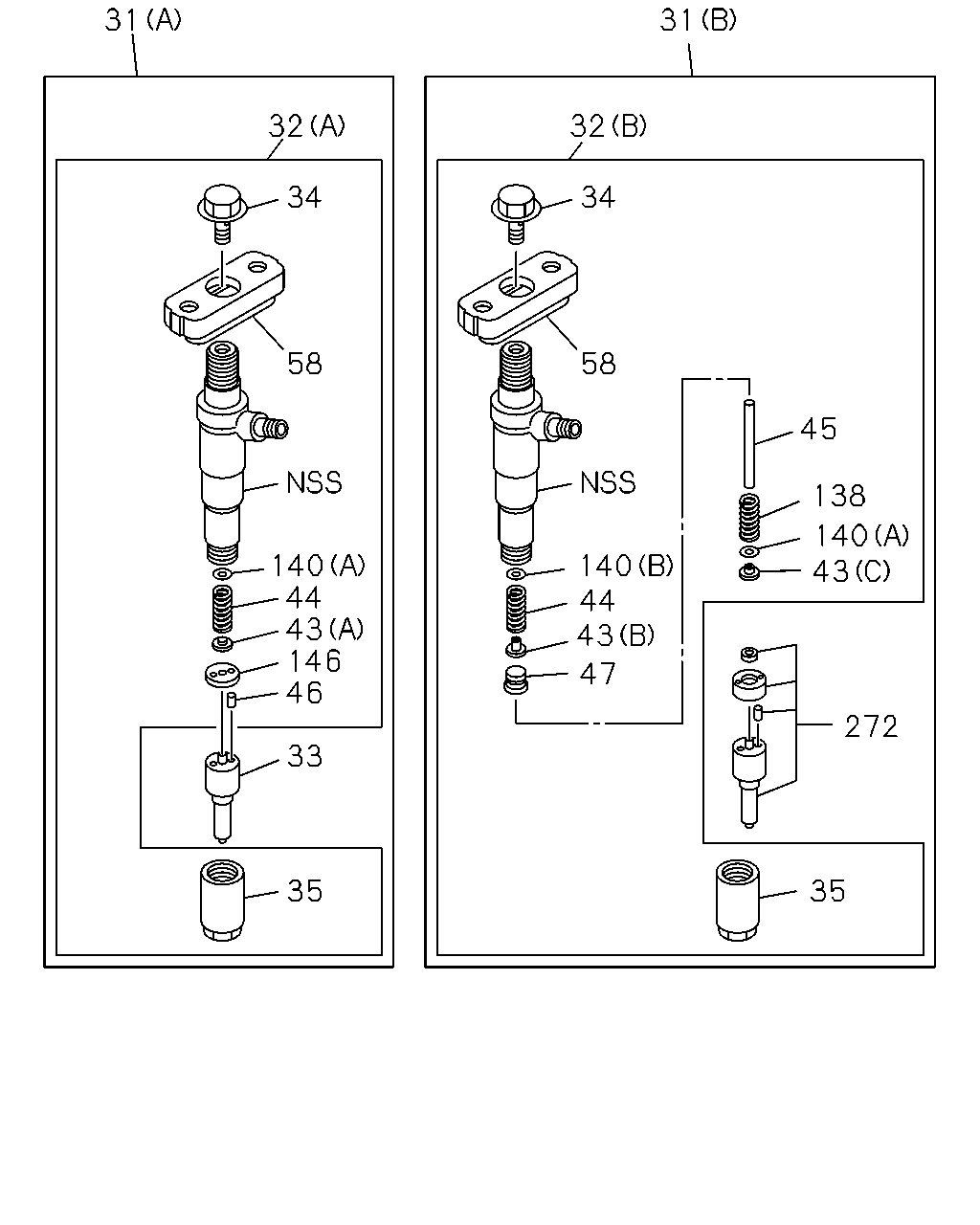

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0510-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0508-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0508-			●
32	HOLDER ASM; NOZZLE (B)	8-97352-048-0	04	1	0508-		●
32	HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0508-			●
33	NOZZLE; INJ	8-97148-961-1	04	1	0508-			●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	0508-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0508-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0508-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0508-			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (C)	8-97349-452-0	04	1	0508-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	8-97361-697-0	04	1	0508-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-94329-555-0	04	1	0508-			●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0508-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0508-			●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0508-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0508-			●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97223-340-0	04	1	0508-		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0508-		●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.20	1-15349-004-0	04	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-042-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-043-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-044-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-045-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-046-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-047-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-048-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-049-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10	8-97116-029-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20	8-97116-032-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30	8-97116-033-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	8-97116-034-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	8-97116-035-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.51	8-97116-036-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	8-97116-037-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.53	8-97116-038-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	8-97116-039-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.55	8-97116-040-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	8-97116-041-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.57	8-97116-042-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	8-97116-043-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.59	8-97116-044-0	AR	1	0508-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10 THA	8-97027-432-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20 THA	8-97027-433-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30 THA	8-97027-434-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40 THA	8-97027-435-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50 THA	8-97027-436-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52 THA	8-97027-437-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54 THA	8-97027-438-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56 THA	8-97027-439-0	AR	1	0508-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58 THA	8-97027-440-0	AR	1	0508-			●
146	SPACER; NOZZLE	8-94344-439-0	04	1	0508-			●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0510-0605	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	0508-		●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0510-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0510-	●

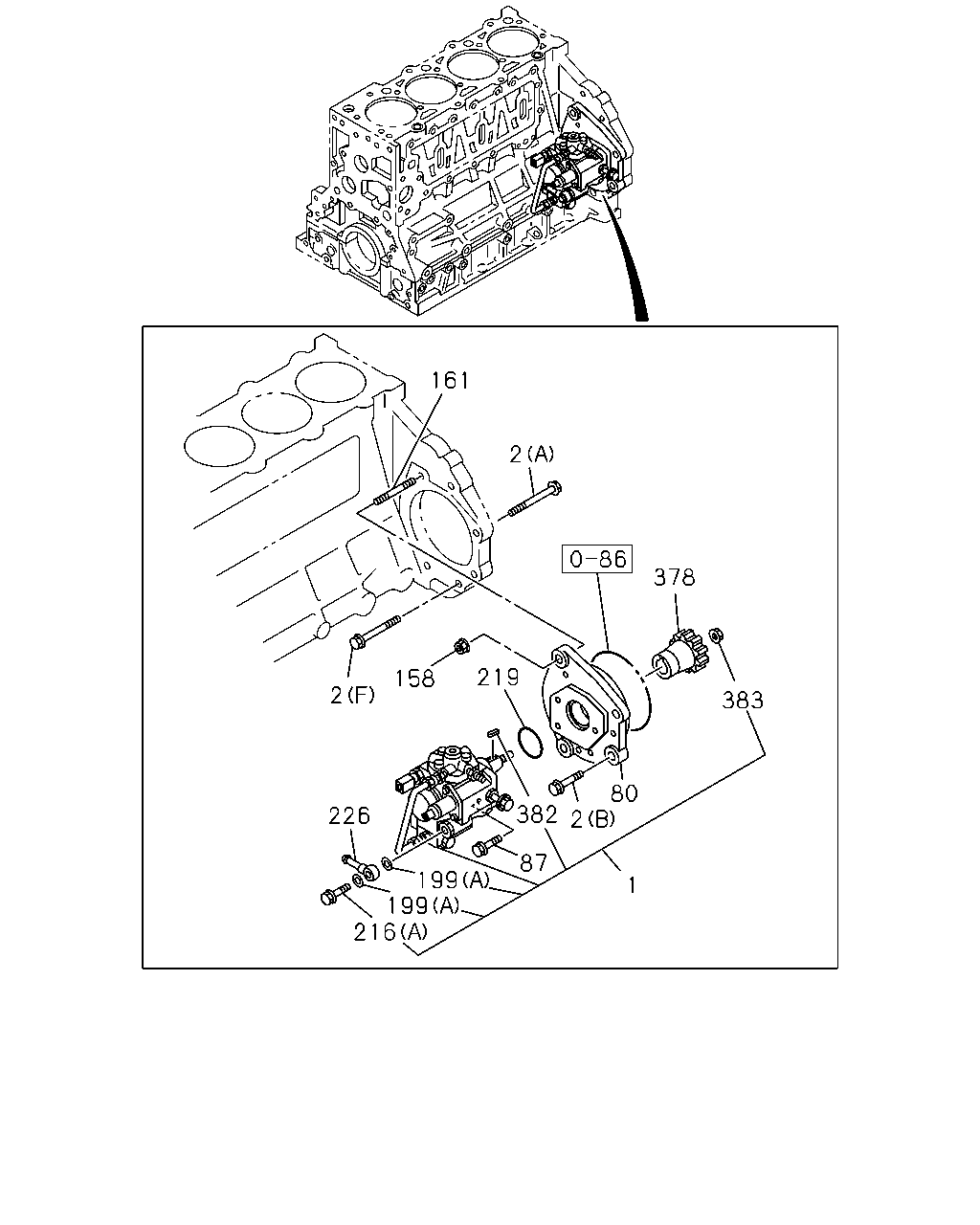

161 2 378 219 158 2 383 80 2 382 226 87 199 199 216 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97306-044-9	01	1	0510-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0508-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0508-			●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0508-0509		●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0510-0512	●	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0508-0509		●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0510-0512	●	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●
2	BOLT; INJ PUMP (F) M10X50 FLANGE	0-28181-050-0	01	1	0510-0512	●
2	BOLT; INJ PUMP (F) M10X50 FLANGE THA	0-28151-050-0	01	1	0601-	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	0508-		●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	0508-		●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	0508-0512		●	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-		●	●
2	BOLT; INJ PUMP (G) M12X110	0-28186-211-0	01	1	0508-0512			●
2	BOLT; INJ PUMP (G) M12X110 FLANGE	0-28156-211-0	01	1	0601-			●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	01	1	0508-			●
80	BRACKET; PUMP	8-97601-699-0	01	1	0510-	●
80	BRACKET; PUMP	8-97136-677-0	01	1	0508-		●
80	BRACKET; PUMP	8-97148-958-1	01	1	0508-			●
87	BOLT; PUMP M8X30 FLANGE	0-28680-830-0	03	1	0510-0512	●
87	BOLT; PUMP M8X30 FLANGE THA	0-28650-830-0	03	1	0601-	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0508-0509		●	●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	0510-0602	●	●	●
158	NUT; INJ PUMP M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●	●
158	NUT; INJ PUMP M12 FLANGE	0-91250-112-0	01	1	0508-0602			●
158	NUT; INJ PUMP M12 FLANGE	0-91280-112-0	01	1	0603-			●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0508-0509		●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0510-0910	●	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-		●	●
199	GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0510-	●
199	GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0510-	●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0510-0605	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●
216	BOLT; EYE (C)	8-97602-173-0	01	1	0510-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0510-	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0510-	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	1-09623-300-0	01	1	0510-0603	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-1312		●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
226	PIPE; FUEL	8-97320-019-0	01	1	0510-0808	●
226	PIPE; FUEL	8-98126-433-0	01	1	0809-	●
226	PIPE; FUEL	8-97203-567-0	01	1	0508-		●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0510-	●
378	GEAR; PUMP Z=35	8-97601-698-1	01	1	0510-	●
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	0510-	●
383	NUT; DRIVE SHAFT	8-97141-469-0	01	1	0510-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0510-	●

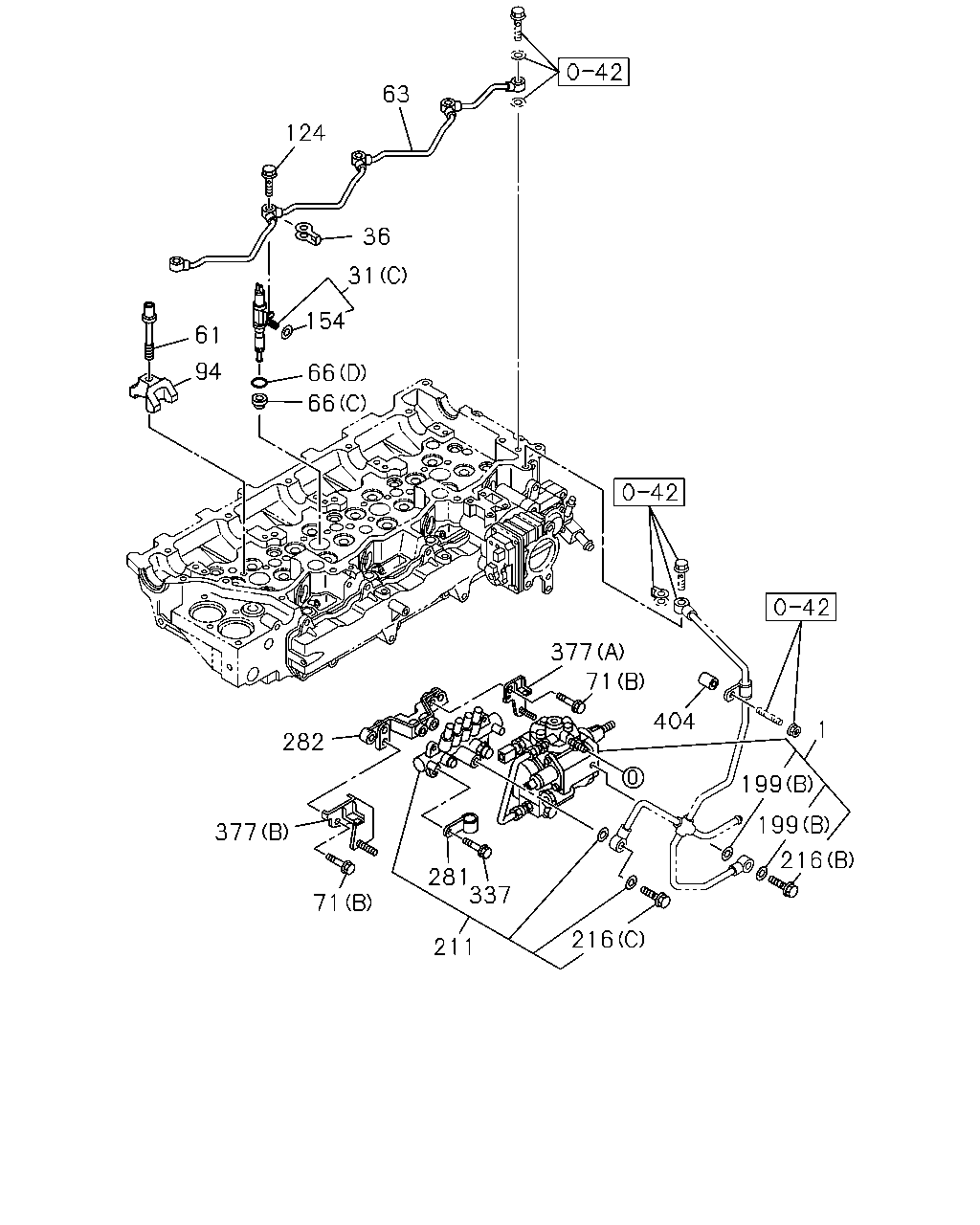

63 124 36 31 154 61 94 66 66 377 71 404 1 282 199 199 377 216 281 337 71 216 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97306-044-9	01	1	0510-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0508-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-185-1	01	1	0508-			●
31	NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0510-	●
31	NOZZLE ASM; INJ (B)	8-97367-553-0	04	1	0508-		●
31	NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0508-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-97600-925-0	04	1	0510-0908	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-98065-992-0	04	1	0909-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	0508-1312		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-		●	●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0510-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0510-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0508-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=23.3	8-94173-412-0	04	1	0510-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0510-0909	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	0508-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-94326-439-0	04	1	0508-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-922-0	04	1	0508-			●
71	BOLT; BRKT (B) M6X10 FLANGE	0-28080-610-0	02	1	0510-0512	●
71	BOLT; BRKT (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0601-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0510-0512	●
71	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	0510-0512	●
71	BOLT; BRKT (C) M8X40 FLANGE THA	0-28050-840-0	01	1	0601-	●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28080-850-0	01	1	0510-0512	●
71	BOLT; BRKT (D) M8X50 FLANGE THA	0-28050-850-0	01	1	0601-	●
94	BRACKET; INJ NOZZLE	8-97306-074-1	04	1	0510-0606	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0607-	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0510-	●
154	GASKET; CONNECTOR ID=11.0	9-09561-111-0	04	1	0510-1106	●
154	GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1107-	●
199	GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0510-	●
199	GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0510-	●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0510-0605	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●
211	RAIL ASM; COMMON	8-97306-063-4	01	1	0510-	●
216	BOLT; EYE (C)	8-97602-173-0	01	1	0510-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0510-	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0510-	●
281	CLIP ID=16 H=24 L=20	9-09527-015-0	01	1	0510-0606	●
281	CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0607-	●
282	BRACKET; COMMON RAIL	8-97324-194-0	01	1	0510-1005	●
282	BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-	●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0510-	●
337	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	0510-0512	●
337	BOLT; CLIP M6X10 FLANGE THA	0-28050-610-0	01	1	0601-	●
377	BRACKET; HARNESS (A)	8-97374-283-1	01	1	0510-	●
377	BRACKET; HARNESS (B)	8-98001-141-0	01	1	0510-	●
404	SPACER; FUEL LEAK OFF L=24.5	1-33659-186-1	01	1	0510-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0510-	●

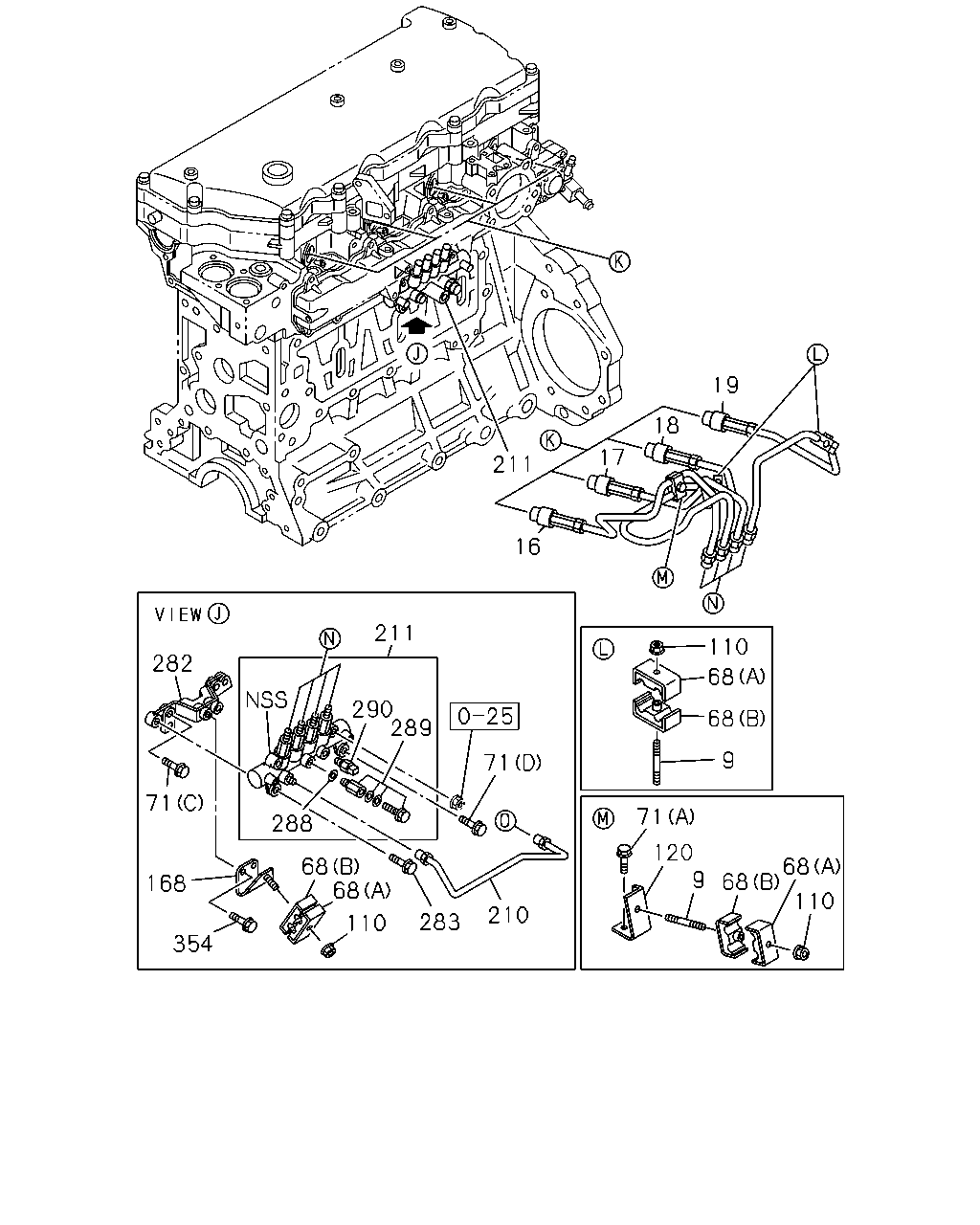

19 18 17 211 16 211 110 282 68 290 289 68 9 71 71 71 288 120 9 68 68 68 68 168 110 210 283 110 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	STUD; CLIP M6X30 L=38	9-04110-630-0	03	1	0510-0604	●
9	STUD; CLIP M6X30 L=38 THA	0-41010-630-0	03	1	0605-	●
16	PIPE; INJ NO.1	8-97371-831-1	01	1	0510-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	0508-		●
16	PIPE; INJ NO.1	8-97148-963-4	01	1	0508-			●
17	PIPE; INJ NO.2	8-97373-417-1	01	1	0510-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	0508-		●
17	PIPE; INJ NO.2	8-97148-964-3	01	1	0508-			●
18	PIPE; INJ NO.3	8-97371-833-1	01	1	0510-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	0508-		●
18	PIPE; INJ NO.3	8-97148-965-4	01	1	0508-			●
19	PIPE; INJ NO.4	8-97371-834-1	01	1	0510-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	0508-		●
19	PIPE; INJ NO.4	8-97148-966-3	01	1	0508-			●
68	CLIP; INJ PIPE (A)	8-97330-118-3	04	1	0510-	●
68	CLIP; INJ PIPE (B)	8-97330-119-3	04	1	0510-	●
68	CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0508-		●
68	CLIP; INJ PIPE (D)	8-97213-049-0	06	1	0508-			●
71	BOLT; BRKT (B) M6X10 FLANGE	0-28080-610-0	02	1	0510-0512	●
71	BOLT; BRKT (B) M6X10 FLANGE THA	0-28050-610-0	02	1	0601-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0510-0512	●
71	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	0510-0512	●
71	BOLT; BRKT (C) M8X40 FLANGE THA	0-28050-840-0	01	1	0601-	●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28080-850-0	01	1	0510-0512	●
71	BOLT; BRKT (D) M8X50 FLANGE THA	0-28050-850-0	01	1	0601-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	0510-0602	●
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	04	1	0603-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0508-0602		●
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	01	1	0603-		●
120	BRACKET; INJ PIPE	8-97306-084-2	01	1	0510-	●
168	BRACKET; FUEL PIPE	8-97324-195-0	01	1	0510-	●
205	SENSOR; FUEL TEMP	8-97216-283-0	01	1	0510-0605	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●
210	PIPE; INJ,C/R	8-97312-509-3	01	1	0510-	●
211	RAIL ASM; COMMON	8-97306-063-4	01	1	0510-	●
282	BRACKET; COMMON RAIL	8-97324-194-0	01	1	0510-1005	●
282	BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-	●
283	BOLT; COMMON RAIL M8X25 FLANGE	0-28080-825-0	01	1	0510-0512	●
283	BOLT; COMMON RAIL M8X25 FLANGE THA	0-28050-825-0	01	1	0601-	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0510-	●
289	LIMITER; FUEL PRESS	8-97318-691-0	01	1	0510-	●
290	SENSOR; PRESS	8-97318-684-0	01	1	0510-1102	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-	●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0510-	●
354	BOLT; FUEL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0510-0512	●
354	BOLT; FUEL PIPE M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
