◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#43060) — 18 parça

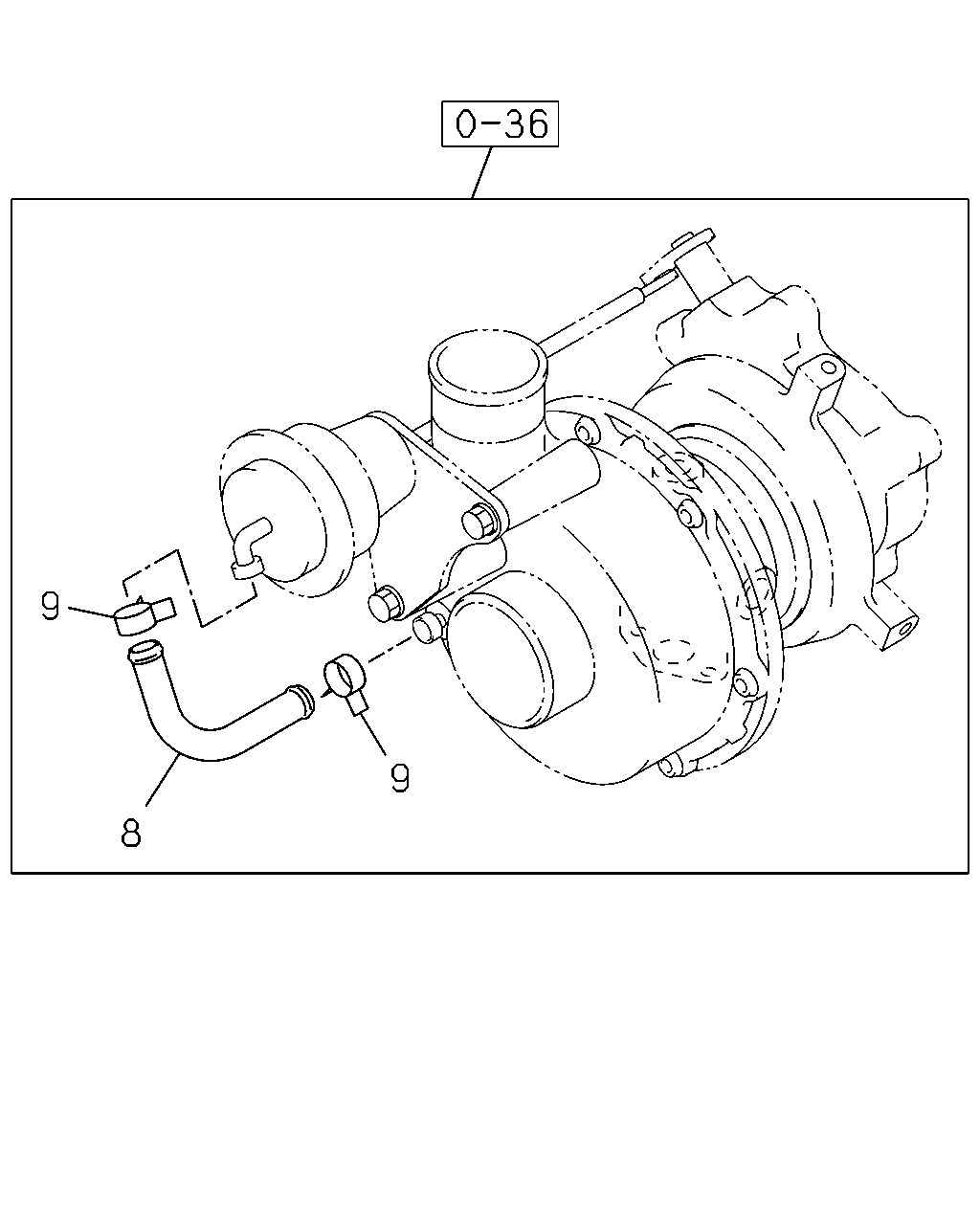

çizim 119213
9 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97326-752-1 		8-97213-591-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97208-966-4 		8-97215-553-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: C = 8-98000-031-2 		8-97375-933-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97208-966-4, B = 8-97326-752-1 		8-97182-742-0 02 1 -1002
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: C = 8-98000-031-2 		8-97213-592-0 02 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97208-966-4, B = 8-97326-752-1 		8-97213-592-0 02 1 1003-

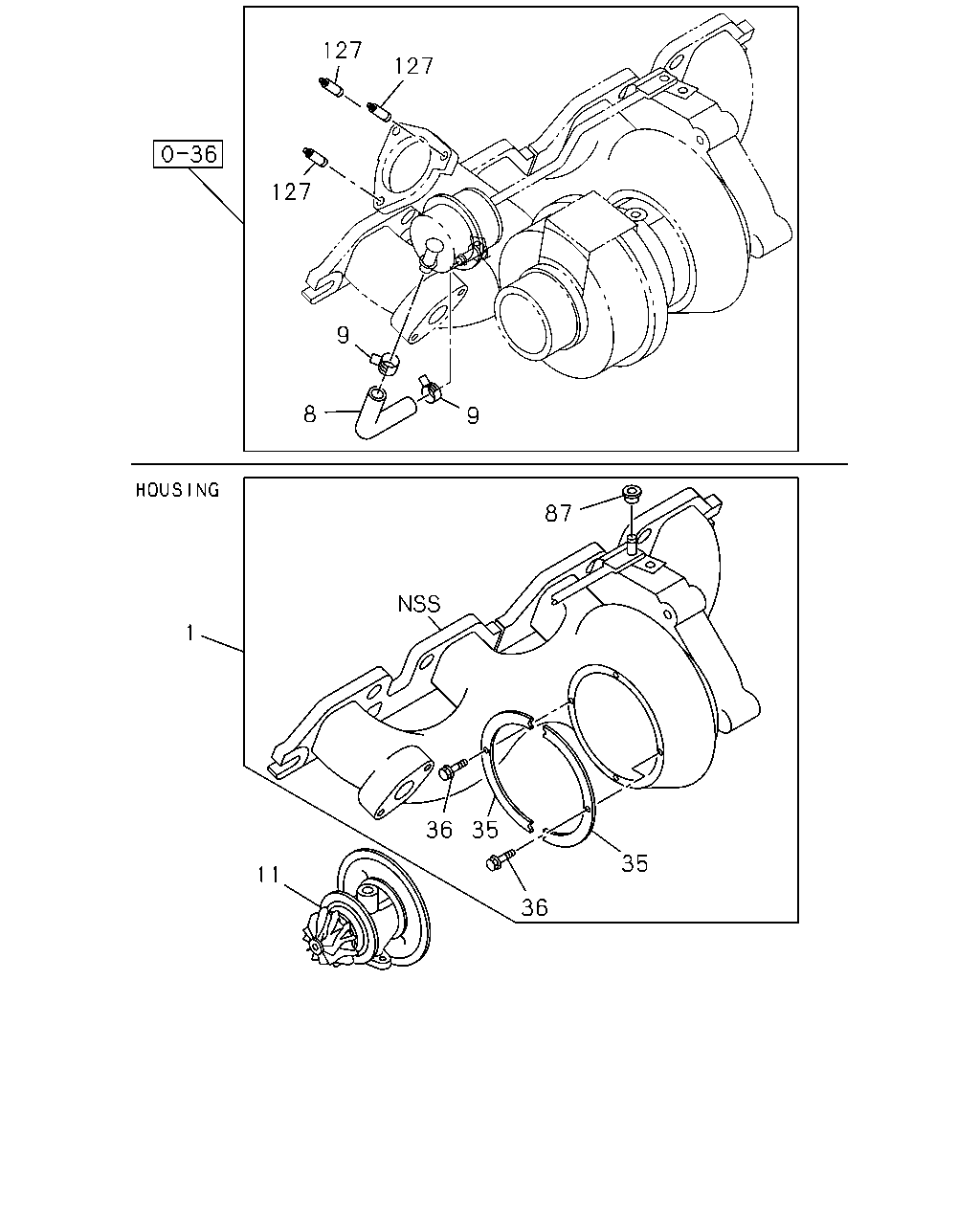

çizim 119214
127 127 127 9 8 9 87 1 36 35 35 11 36
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 8-97326-752-1 		8-97223-905-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97326-752-1 		8-97213-591-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97208-966-4 		8-97215-553-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: C = 8-98000-031-2 		8-97375-933-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97208-966-4, B = 8-97326-752-1 		8-97182-742-0 02 1 -1002
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: C = 8-98000-031-2 		8-97213-592-0 02 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97208-966-4, B = 8-97326-752-1 		8-97213-592-0 02 1 1003-
11 HOUSING ASM; TURBOCHARGER
ASM PART: B = 8-97326-752-1 		8-97326-280-0 01 1 -
35 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: B = 8-97326-752-1 		8-97213-590-0 02 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: B = 8-97326-752-1 		8-97213-579-0 04 1 -
87 RING; ACTUATOR,TURBOCHARGER
ASM PART: B = 8-97326-752-1 		8-97213-588-0 01 1 -
127 STUD; TURBOCHARGER
ASM PART: B = 8-97326-752-1 		8-97213-578-0 03 1 -
