Sayfa 0-36 - Isuzu EPC

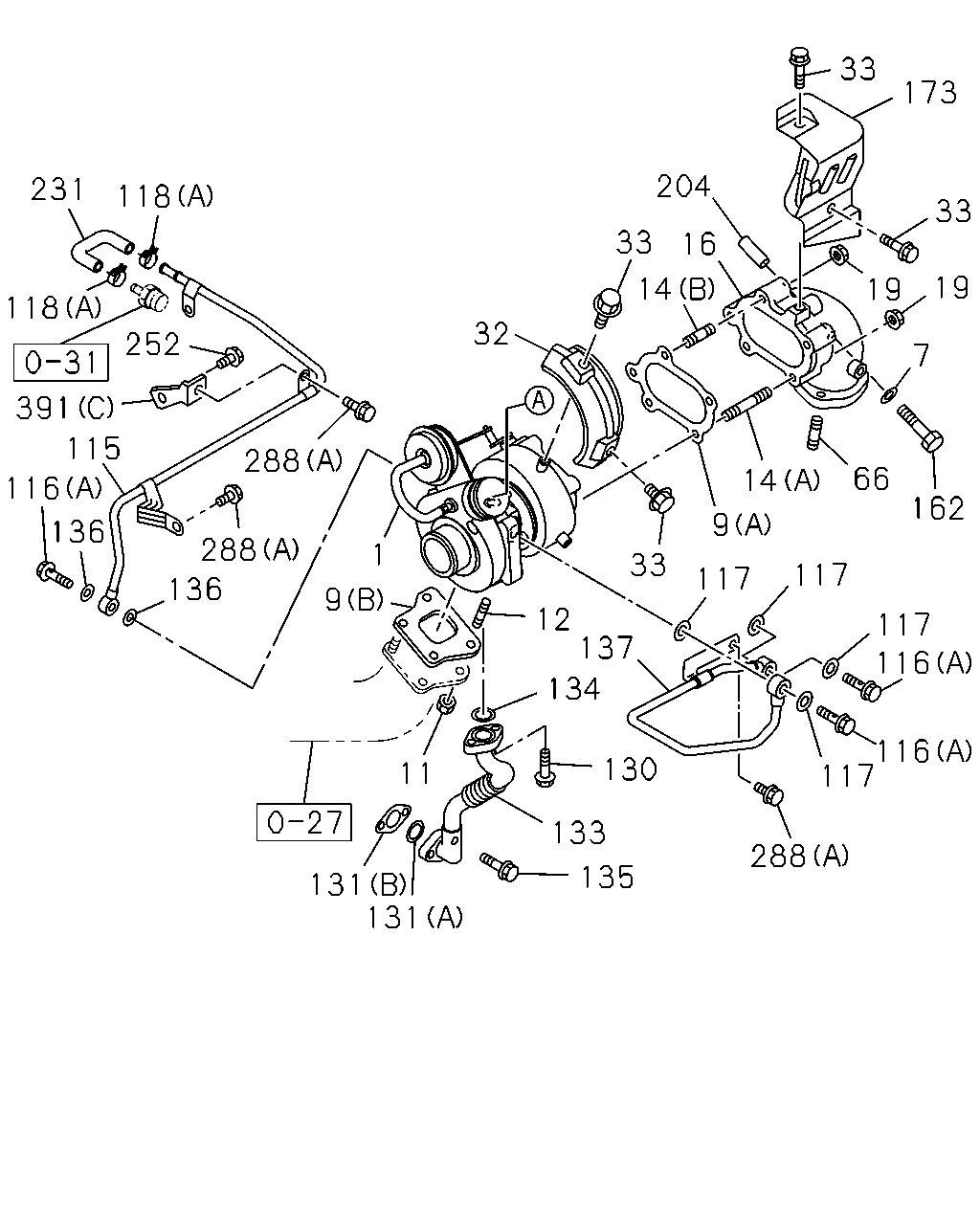

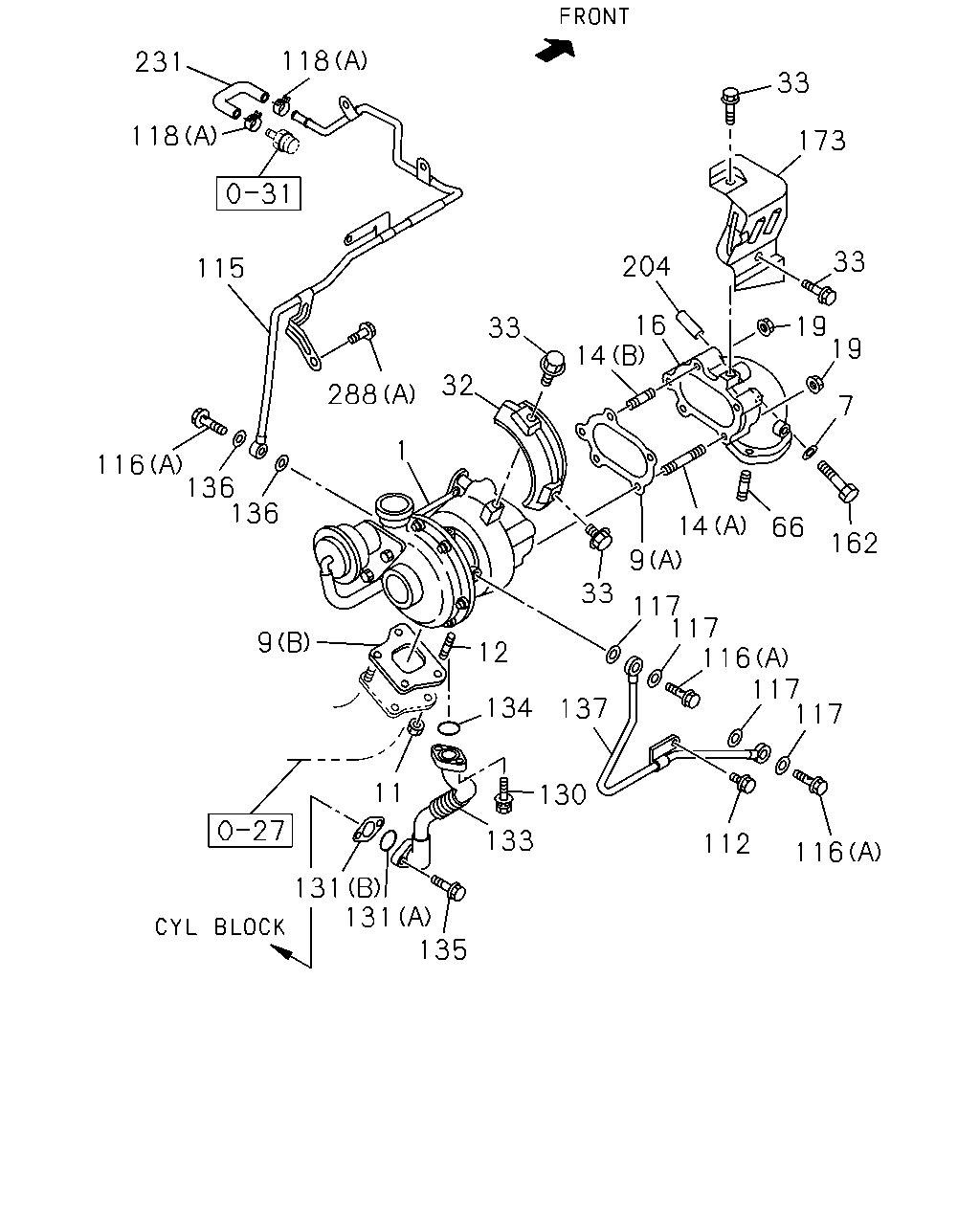

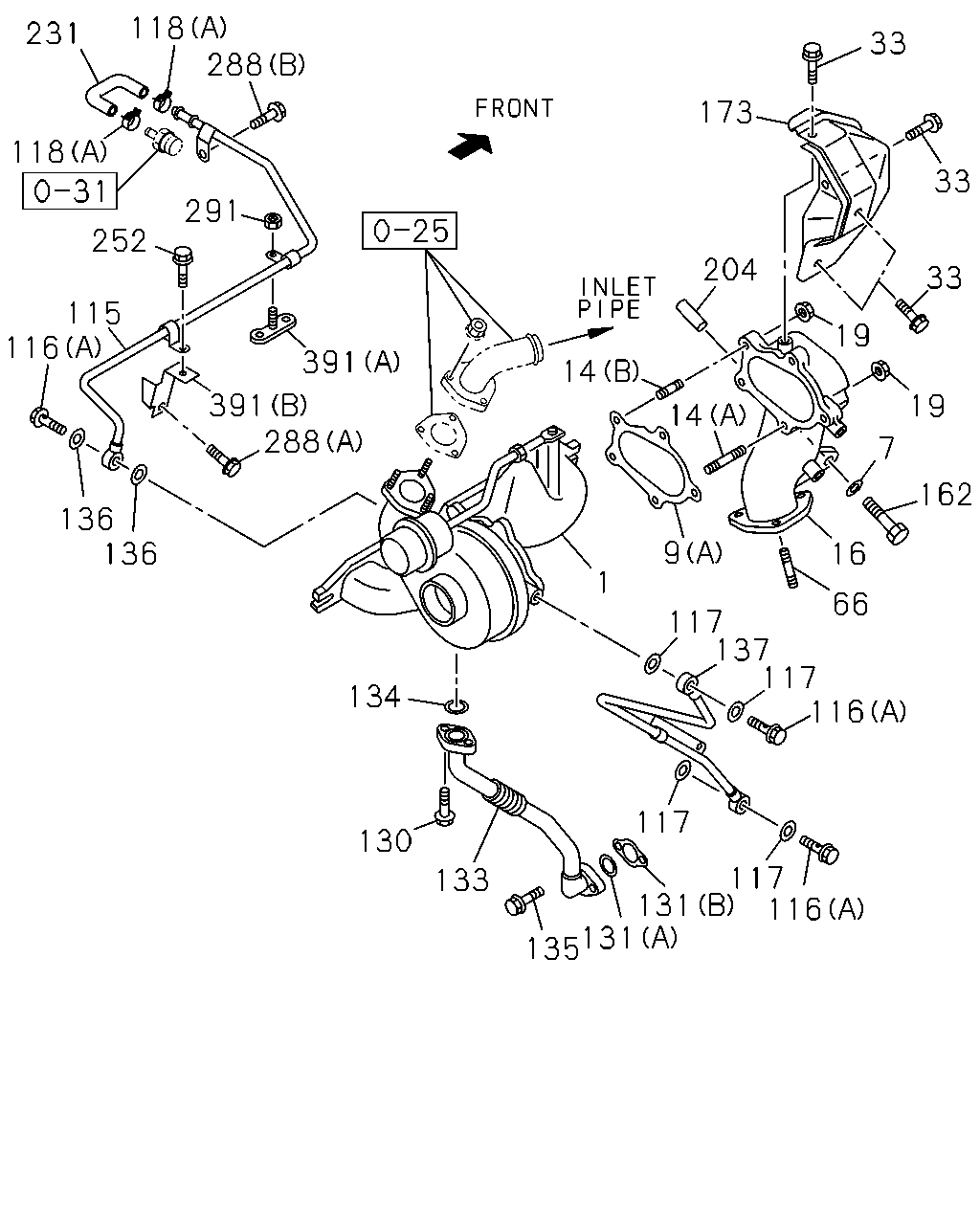

0-36 — TURBOCHARGER SYSTEM (#43059) — 300 parça

118 288 231 33 173 118 33 291 252 204 33 115 116 19 391 14 391 288 19 14 7 162 136 136 9 16 1 66 117 137 117 116 134 117 130 117 131 116 131 135 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0510-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0508-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-4	01	1	0508-			●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0508-0509		●	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0510-	●	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0508-0509		●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0510-	●	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0508-0509			●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0510-	●		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0508-0509		●	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0510-	●	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0508-0509		●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0510-	●	●	●
16	ADAPTER; EXH PIPE	8-97178-487-3	01	1	0508-		●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0508-0509			●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	0510-	●		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0508-0509		●	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0510-	●	●	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0508-		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0508-0509			●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0510-	●		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0508-0509		●	●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0510-0604	●	●	●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	03	1	0605-	●	●	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0510-0902	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0508-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-039-0	01	1	0508-0902			●
115	PIPE; WATER,TURBOCHARGER OUT	8-98137-572-0	01	1	0903-			●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0508-0509		●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0510-	●	●	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0510-0512	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0903-	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0508-0509		●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0510-0902	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0508-0509		●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0510-	●	●	●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0510-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0508-0509		●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0510-0512	●	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0508-0509		●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0510-1006	●	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0508-0509			●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0510-1006	●		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0508-1006		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0508-0509		●	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0510-	●	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0508-0509		●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0510-0512	●	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE THA	0-28050-820-0	02	1	0601-	●	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-0509		●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0510-1312	●	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0508-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0508-0509			●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0510-	●		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0508-0509		●	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0510-	●	●	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0508-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0508-0509			●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0510-1204	●		●
173	PROTECTOR; HEAT,FUEL PIPE	8-98176-248-0	01	1	1205-	●		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0508-0509		●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0510-	●	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0508-0509		●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0510-	●	●	●
252	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0508-0512		●
252	BOLT; BRKT M8X12 FLANGE THA	0-28050-812-0	01	1	0601-		●
252	BOLT; BRKT M12X19	8-97079-809-0	01	1	0508-			●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0510-0512	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0601-	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0508-0512		●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE THA	0-28151-016-0	01	1	0601-		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0508-0512		●	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	03	1	0601-		●	●
291	NUT; PIPE TO BRKT M8 FLANGE	0-91150-108-0	01	1	0508-0602		●
291	NUT; PIPE TO BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-		●
391	BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0508-		●
391	BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0508-		●
391	BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0508-			●

33 173 204 231 118 33 33 16 19 14 19 118 32 252 7 391 115 288 66 14 116 162 9 136 288 1 33 117 117 136 9 12 137 117 116 134 116 117 130 11 133 288 135 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0510-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0508-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-4	01	1	0508-			●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0508-0509		●	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0510-	●	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0508-0509		●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0510-	●	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0508-0509			●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0510-	●		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0508-0509			●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0510-	●		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0508-0509			●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0510-	●		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0508-0509		●	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0510-	●	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0508-0509		●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0510-	●	●	●
16	ADAPTER; EXH PIPE	8-97178-487-3	01	1	0508-		●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0508-0509			●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	0510-	●		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0508-0509		●	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0510-	●	●	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0508-0509			●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0510-	●		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0508-		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0508-0509			●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0510-	●		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0508-0509		●	●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0510-0604	●	●	●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	03	1	0605-	●	●	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0510-0902	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0508-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-039-0	01	1	0508-0902			●
115	PIPE; WATER,TURBOCHARGER OUT	8-98137-572-0	01	1	0903-			●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0508-0509		●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0510-	●	●	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0510-0512	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0903-	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0508-0509		●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0510-0902	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0508-0509		●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0510-	●	●	●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0510-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0508-0509		●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0510-0512	●	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0508-0509		●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0510-1006	●	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0508-0509			●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0510-1006	●		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0508-1006		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0508-0509		●	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0510-	●	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0508-0509		●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0510-0512	●	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE THA	0-28050-820-0	02	1	0601-	●	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-0509		●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0510-1312	●	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0508-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0508-0509			●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0510-	●		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0508-0509		●	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0510-	●	●	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0508-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0508-0509			●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0510-1204	●		●
173	PROTECTOR; HEAT,FUEL PIPE	8-98176-248-0	01	1	1205-	●		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0508-0509		●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0510-	●	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0508-0509		●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0510-	●	●	●
252	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0508-0512		●
252	BOLT; BRKT M8X12 FLANGE THA	0-28050-812-0	01	1	0601-		●
252	BOLT; BRKT M12X19	8-97079-809-0	01	1	0508-			●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0510-0512	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0601-	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0508-0512		●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE THA	0-28151-016-0	01	1	0601-		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0508-0512		●	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	03	1	0601-		●	●
391	BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0508-		●
391	BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0508-		●
391	BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0508-			●

118 231 33 118 173 33 204 115 16 14 19 19 33 32 288 7 1 116 136 136 14 66 162 9 33 117 117 116 117 117 9 12 134 137 11 130 133 112 116 131 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0510-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0508-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-4	01	1	0508-			●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0508-0509		●	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0510-	●	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0508-0509		●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0510-	●	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0508-0509			●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0510-	●		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0508-0509			●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0510-	●		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0508-0509			●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0510-	●		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0508-0509		●	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0510-	●	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0508-0509		●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0510-	●	●	●
16	ADAPTER; EXH PIPE	8-97178-487-3	01	1	0508-		●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0508-0509			●
16	ADAPTER; EXH PIPE	8-97039-749-2	01	1	0510-	●		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0508-0509		●	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0510-	●	●	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0508-0509			●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0510-	●		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0508-		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0508-0509			●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0510-	●		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0508-0509		●	●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0510-0604	●	●	●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	03	1	0605-	●	●	●
112	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0510-0512	●
112	BOLT; CLIP M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0510-0902	●
115	PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0508-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-039-0	01	1	0508-0902			●
115	PIPE; WATER,TURBOCHARGER OUT	8-98137-572-0	01	1	0903-			●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0508-0509		●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0510-	●	●	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0510-0512	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0903-	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0508-0509		●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0510-0902	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0508-0509		●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0510-	●	●	●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0510-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0508-0509		●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0510-0512	●	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0508-0509		●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0510-1006	●	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0508-0509			●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0510-1006	●		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0508-1006		●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0508-0509		●	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0510-	●	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0508-0509		●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0510-0512	●	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE THA	0-28050-820-0	02	1	0601-	●	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-0509		●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0510-1312	●	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0508-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0508-0509			●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0510-	●		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0508-0509		●	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0510-	●	●	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0508-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0508-0509			●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0510-1204	●		●
173	PROTECTOR; HEAT,FUEL PIPE	8-98176-248-0	01	1	1205-	●		●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0508-0509		●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0510-	●	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0508-0509		●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0510-	●	●	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0510-0512	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0601-	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0508-0512		●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE THA	0-28151-016-0	01	1	0601-		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0508-0512		●	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	03	1	0601-		●	●

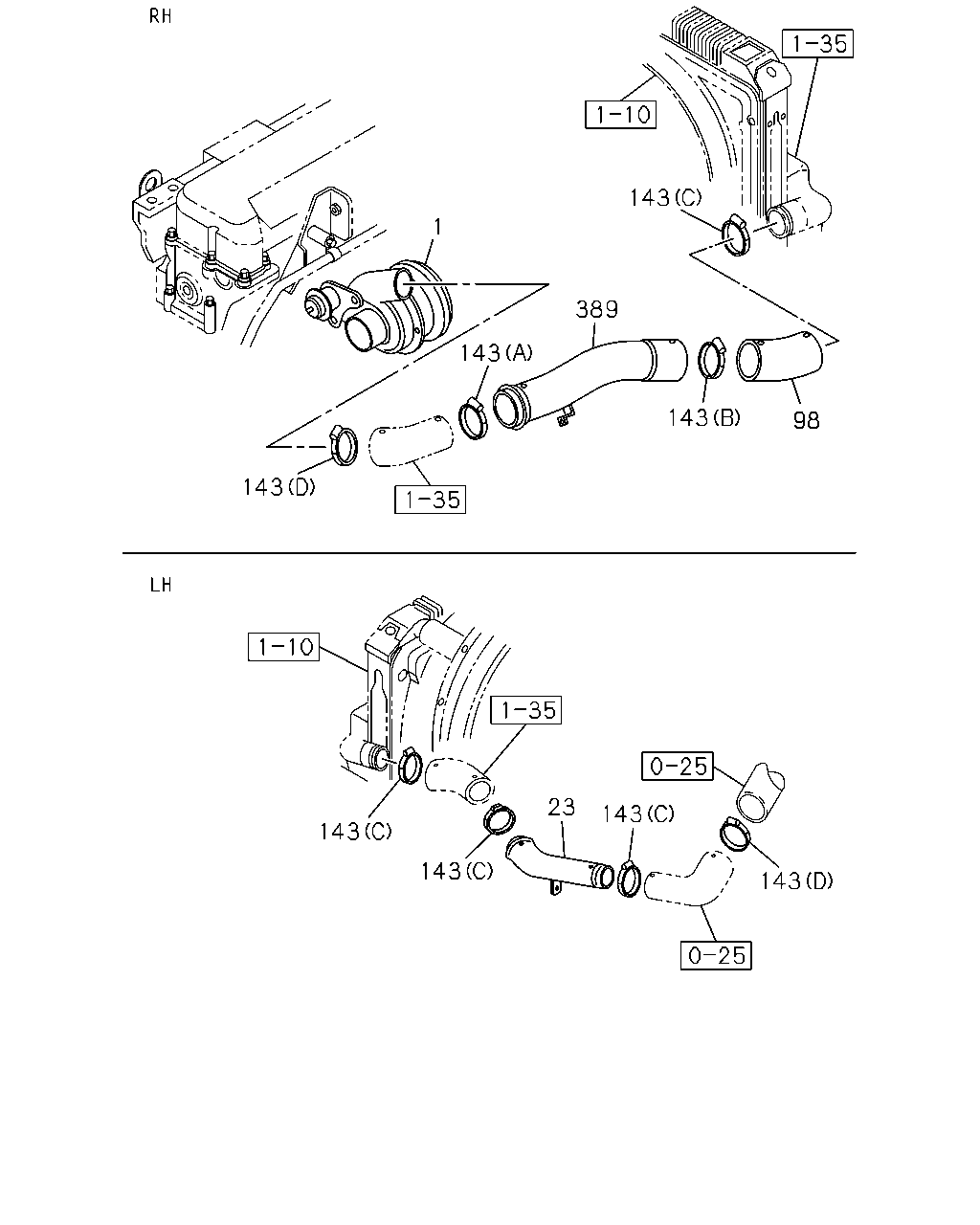

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0510-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0508-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-4	01	1	0508-			●
23	PIPE; INTAKE,TURBOCHARGER	8-97189-601-1	01	1	0508-			●
23	PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0510-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0508-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0510-0608	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0508-0509			●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0510-0810	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0508-0509			●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0510-0810	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-76 THA	1-09707-203-0	01	1	0508-0509			●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-76 THA	1-09707-203-0	01	1	0510-0811	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65 THA	1-09707-204-0	02	1	0508-0509			●
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65 THA	1-09707-204-0	02	1	0510-0810	●		●
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-	●		●
389	PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0508-			●
389	PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0510-	●

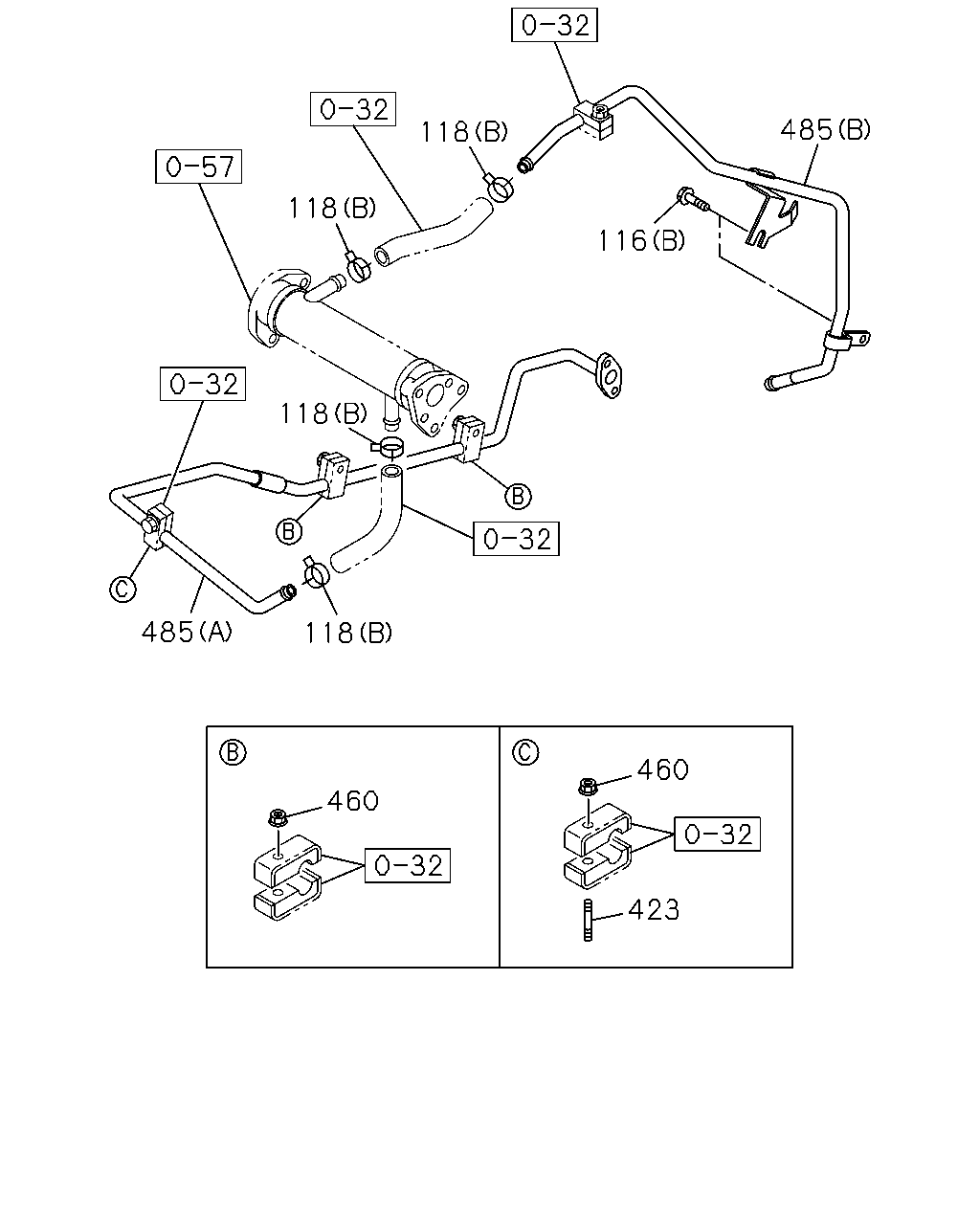

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0508-0509		●	●
116	BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0510-	●	●	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	0510-0512	●
116	BOLT; WATER PIPE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0508-0509		●	●
118	CLIP; WATER HOSE (A) ID=15.5	8-94221-519-0	02	1	0510-	●	●	●
118	CLIP; WATER HOSE (B) ID=20	1-09707-084-1	04	1	0510-	●
423	STUD; WATER PIPE M8X20 L=32	9-04110-820-0	01	1	0510-0604	●
423	STUD; WATER PIPE M8X20 L=32 THA	0-41010-820-0	01	1	0605-	●
460	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	0510-0602	●
460	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-	●
485	PIPE; WATER EGR (B)	8-98025-624-0	01	1	0510-	●
485	PIPE; WATER EGR (A)	8-97375-669-0	01	1	0510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
