Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

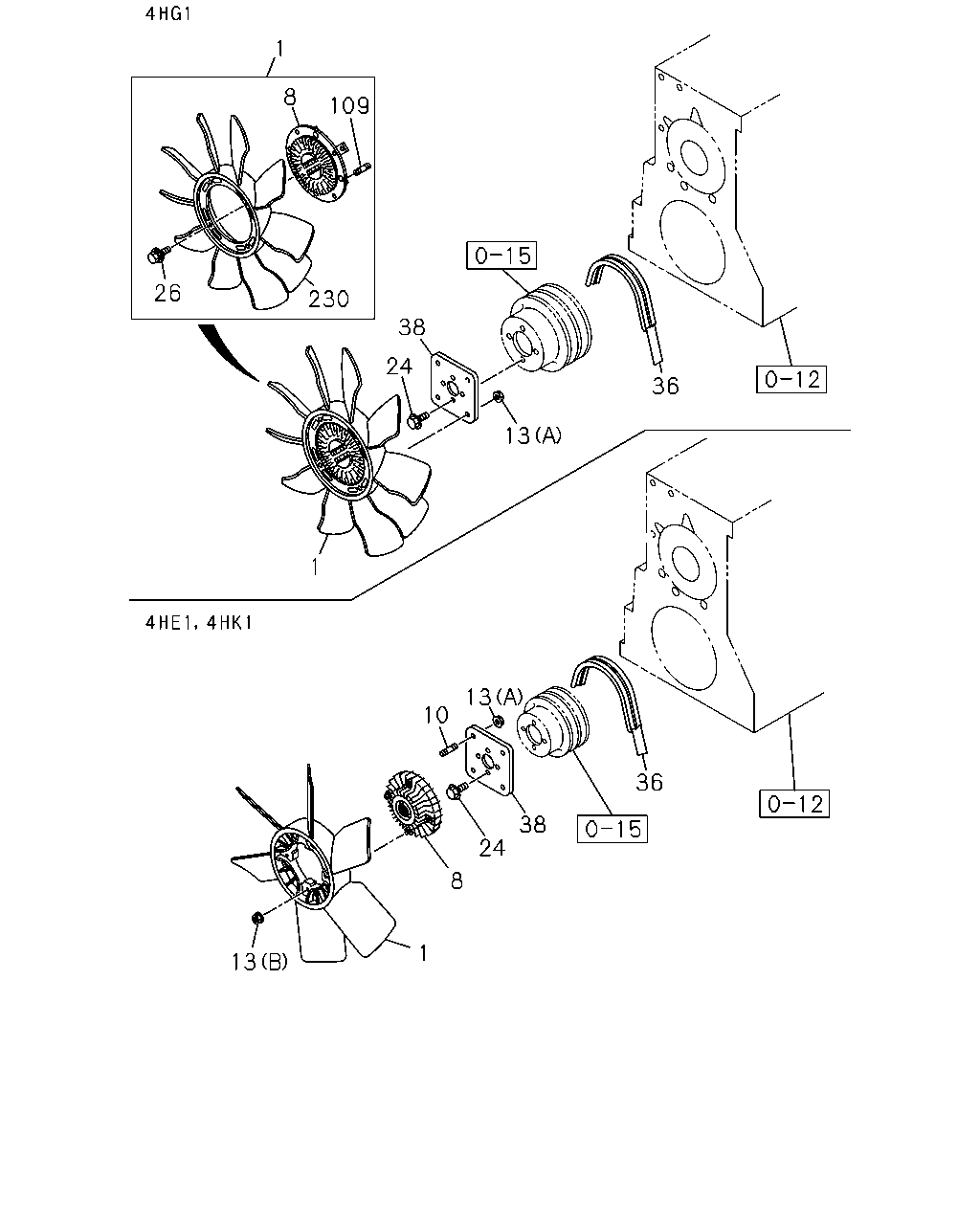

0-33 — FAN AND FAN BELT
(#43057) — 35 parça
Tümü
A - 4HG1-T ENG
B - 4HE1-TCS ENG
C - 4HK1-TCS ENG
◀
[033A] FIXING;GENERATOR (10 parça)
[033A] FIXING;FAN AND FAN BELT (25 parça)
▶
80
95
182
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
80
PLATE; ADJ
8-97172-415-0
01
1
0508-0509
●
●
80
PLATE; ADJ
8-97172-415-0
01
1
0510-
●
●
●
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE
0-28681-025-0
01
1
0508-0509
●
●
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE
0-28681-025-0
01
1
0510-0512
●
●
●
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE THA
0-28651-025-0
01
1
0601-
●
●
●
95
BRACKET; ADJ PLATE
8-97037-510-0
01
1
0508-0509
●
●
95
BRACKET; ADJ PLATE
8-97037-510-0
01
1
0510-
●
●
●
182
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
03
1
0508-0509
●
●
182
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
03
1
0510-0512
●
●
●
182
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
03
1
0601-
●
●
●
1
8
109
26
230
38
24
36
13
1
13
10
36
38
24
8
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FAN; COOLING
8-97329-394-1
01
1
0510-
●
1
FAN; COOLING
OD=430
8-97141-195-2
01
1
0508-
●
1
FAN; COOLING
5-13662-012-1
01
1
0508-
●
8
CLUTCH; COOLING FAN
8-97367-382-0
01
1
0510-
●
8
CLUTCH; COOLING FAN
8-97139-299-0
01
1
0508-
●
8
CLUTCH; COOLING FAN
8-97148-797-0
01
1
0508-
●
10
STUD; FAN CLU TO PLATE
M8X20 L=32
9-04110-820-0
04
1
0508-0604
●
10
STUD; FAN CLU TO PLATE
M8X20 L=32 THA
0-41010-820-0
04
1
0605-
●
13
NUT; COOLING FAN
(A) M8 FLANGE
0-91150-108-0
04
1
0508-0509
●
●
13
NUT; COOLING FAN
(A) M8 FLANGE
0-91150-108-0
04
1
0510-
●
●
●
13
NUT; COOLING FAN
(B) M6 FLANGE
5-09440-004-0
04
1
0508-
●
24
BOLT; FAN
M8X18 FLANGE
0-28080-818-0
04
1
0508-0509
●
●
24
BOLT; FAN
M8X18 FLANGE
0-28080-818-0
04
1
0510-
●
●
●
26
BOLT; FAN TO CLU
8-94389-764-0
04
1
0510-
●
26
BOLT; FAN TO CLU
M6X12 FLANGE
0-28080-612-0
04
1
0508-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(8979157890) THA
8-97915-790-1
01
1
0508-0509
●
●
36
BELT; COOLING FAN
1 SET=2 PIECE(8979157890) THA
8-97915-790-1
01
1
0510-
●
●
●
36
BELT; COOLING FAN
BEST VALUE PARTS THA
5-87610-098-0
01
1
0508-0509
●
●
36
BELT; COOLING FAN
BEST VALUE PARTS THA
5-87610-098-0
01
1
0510-
●
●
●
38
SPACER; FAN
8-97108-643-0
01
1
0508-0509
●
●
38
SPACER; FAN
8-97108-643-0
01
1
0510-
●
●
●
109
STUD; FAN CLU
M8X13.5 L=22
8-97049-577-1
04
1
0508-0509
●
109
STUD; FAN CLU
M8X13.5 L=22
8-97049-577-1
04
1
0510-
●
●
230
FAN; COOLING
8-97367-381-0
01
1
0510-
●
230
FAN; COOLING
8-97140-854-1
01
1
0508-
●
