Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#43056) — 19 parça
Tümü
A - 4HG1-T ENG
B - 4HE1-TCS ENG
C - 4HK1-TCS ENG
◀

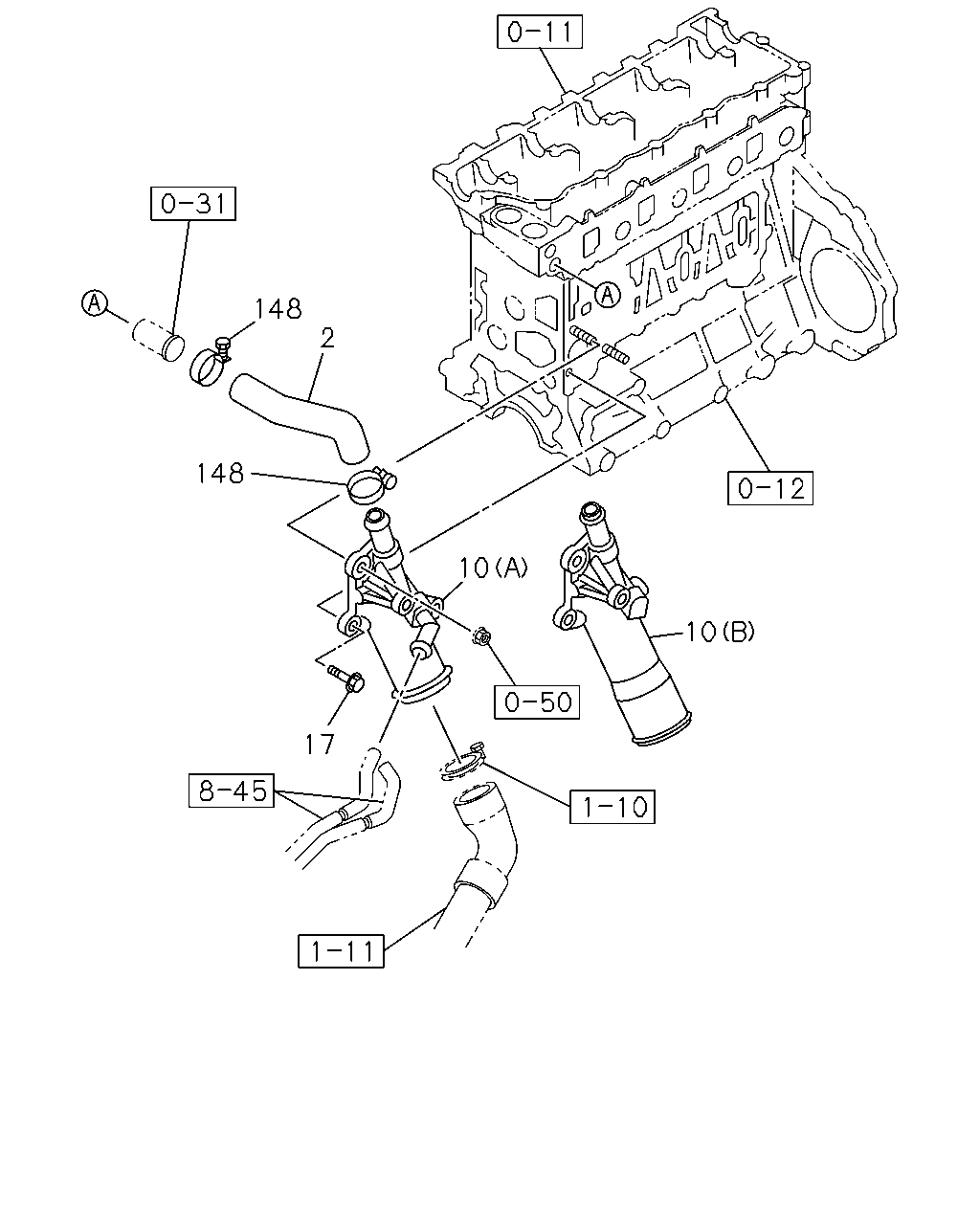

[032A] ALL MODEL (14 parça)
[032A] 4HK1 (5 parça)
▶
148
2
148
10
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
HOSE; WATER,BY-PASS
8-97209-948-0
01
1
0508-
●
2
HOSE; WATER,BY-PASS
8-97209-949-0
01
1
0508-0509
●
2
HOSE; WATER,BY-PASS
8-97209-949-1
01
1
0510-
●
●
10
PIPE; SUCTION
EXC. AIR CONDITIONER MANUAL CONT<C60> (B)
8-98212-009-0
01
1
1203-
●
10
PIPE; SUCTION
(B)
8-98212-009-0
01
1
1203-
●
10
PIPE; SUCTION
AIR CONDITIONER MANUAL CONT<C60> (A)
8-98166-992-0
01
1
1203-
●
10
PIPE; SUCTION
(A)
8-97371-775-1
01
1
0510-1010
●
10
PIPE; SUCTION
(A)
8-98166-991-0
01
1
1011-
●
10
PIPE; SUCTION
(A)
8-97216-157-1
01
1
0508-1010
●
●
10
PIPE; SUCTION
(A)
8-98166-992-0
01
1
1011-1202
●
●
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
0508-0509
●
●
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
0510-
●
●
●
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
0508-0509
●
●
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
0510-
●
●
●
202
202
31
29
29
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
CLIP; PIPE
1-09701-284-0
08
1
0510-
●
31
BOLT; CLIP
M8X40 FLANGE
0-28080-840-0
03
1
0510-0512
●
31
BOLT; CLIP
M8X40 FLANGE THA
0-28050-840-0
03
1
0601-
●
202
HOSE; RUBBER,EGR COOLER
(A) L=200 SERVICED BY L=3000
0-03566-300-0
01
1
0510-
●
202
HOSE; RUBBER,EGR COOLER
(B)
8-97138-881-0
01
1
0510-
●
