Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

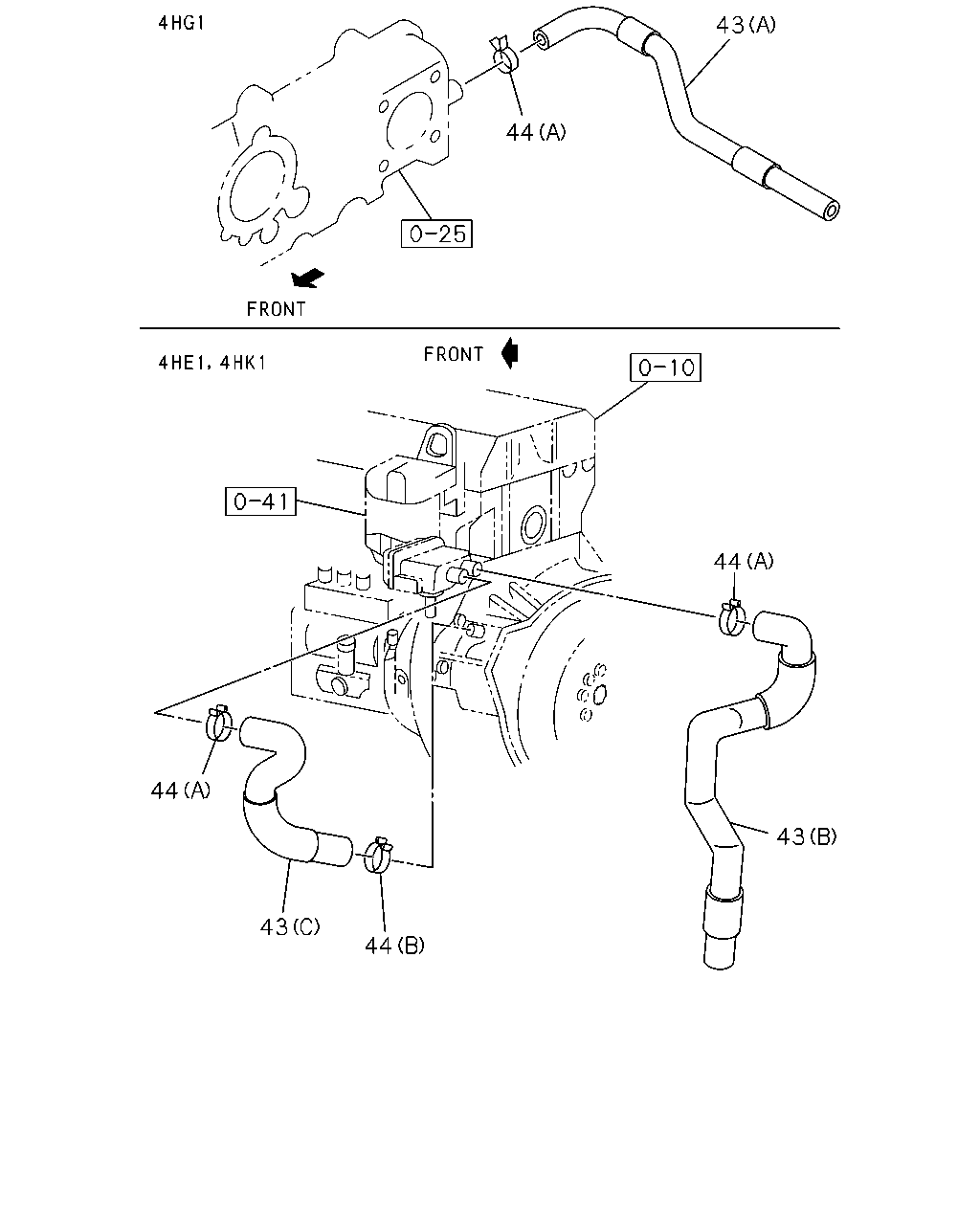

0-28 — VENTILATION SYSTEM
(#43053) — 17 parça
Tümü
A - 4HG1-T ENG
B - 4HE1-TCS ENG
C - 4HK1-TCS ENG
43
44
44
44
43
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
43
HOSE; PCV
(A)
8-97375-134-0
01
1
0508-
●
43
HOSE; PCV
(C)
8-97149-012-3
01
1
0508-0509
●
43
HOSE; PCV
(C)
8-97149-012-3
01
1
0510-
●
●
43
HOSE; PCV
(B)
8-97375-401-1
01
1
0508-
●
43
HOSE; PCV
(B)
8-98012-831-1
01
1
0510-
●
44
CLIP; HOSE,PCV
(A) ID=22.7
8-94466-382-0
01
1
0508-
●
44
CLIP; HOSE,PCV
(B) ID=21
8-94242-034-0
01
1
0508-0509
●
44
CLIP; HOSE,PCV
(B) ID=21
8-94242-034-0
01
1
0510-
●
●
44
CLIP; HOSE,PCV
(A) ID=22.7
8-94466-382-0
02
1
0508-0509
●
44
CLIP; HOSE,PCV
(A) ID=22.7
8-94466-382-0
02
1
0510-
●
●
90
CLIP; RUBBER HOSE
ID=11
8-94238-570-0
01
1
0508-0509
●
90
CLIP; RUBBER HOSE
ID=11
8-94238-570-0
01
1
0510-
●
●
90
CLIP; RUBBER HOSE
ID=11
8-94238-925-0
01
1
0508-0509
●
90
CLIP; RUBBER HOSE
ID=11
8-94238-925-0
01
1
0510-1007
●
●
90
CLIP; RUBBER HOSE
ID=11.5
8-97138-011-0
01
1
1008-
●
●
279
HOSE; RUBBER,OIL DRAIN
8-97328-223-0
01
1
0510-
●
279
HOSE; RUBBER,OIL DRAIN
8-97149-011-1
01
1
0508-
●
