◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#43051) — 212 parça

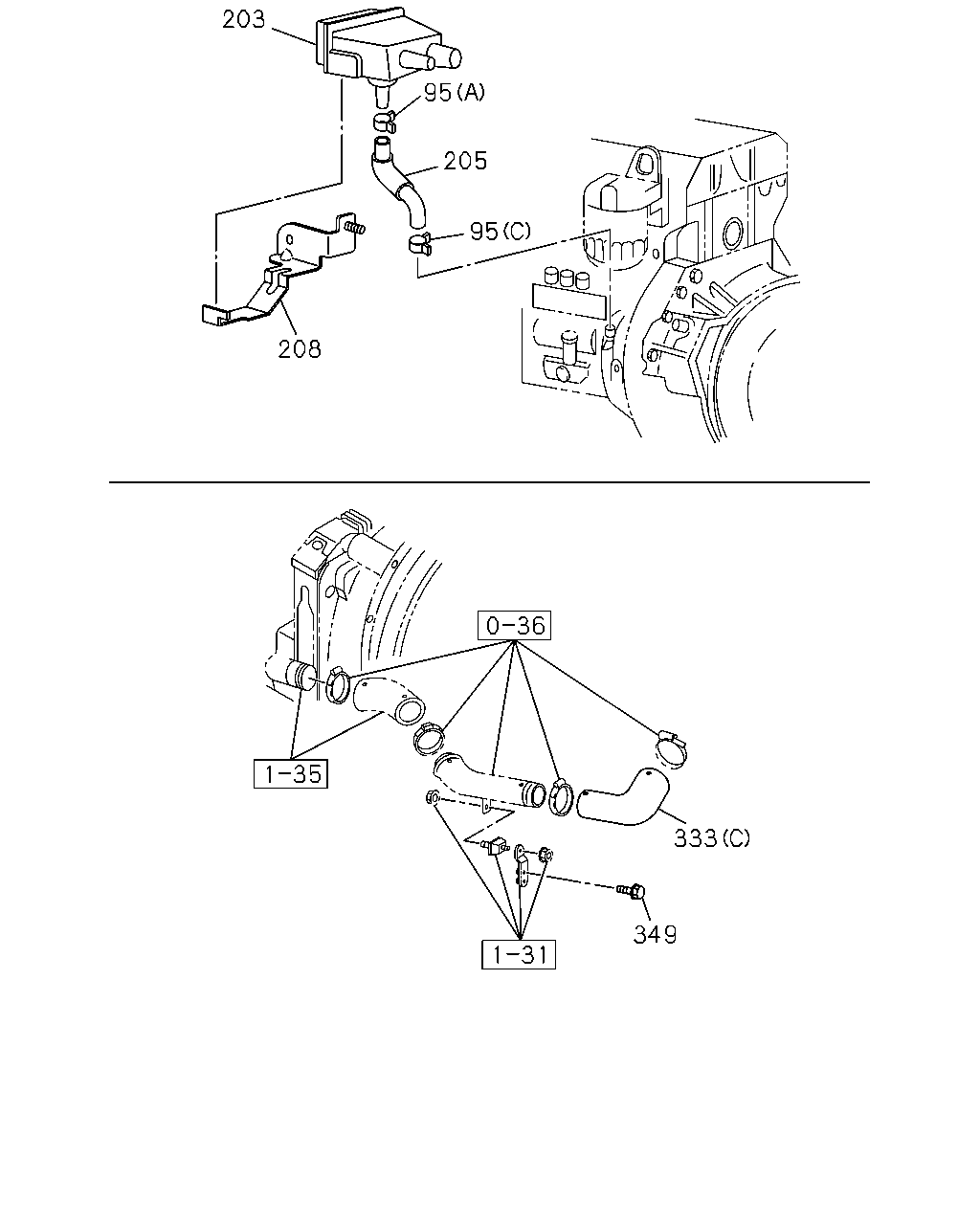

çizim 119183
203 95 205 95 208 333 349
BalonParca AdiParca NoAdetTipApplied Date A B C
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 		1-09707-202-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 THA 		8-94320-428-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(B) ID=50-65 THA 		1-09707-204-0 02 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(B) ID=50-69 THA 		8-94316-991-0 02 1 0811- ●
95 CLIP; RUBBER HOSE
(B) L=140 		5-09707-031-1 01 1 0508- ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0508-0509 ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0510- ● ●
208 BRACKET; CATCH TANK,OIL 8-97375-702-0 01 1 0510- ●
208 BRACKET; CATCH TANK,OIL 8-97166-887-0 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0508-0509 ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0510-0608 ● ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-98053-755-0 01 1 0609- ● ●
333 HOSE; RUBBER,INL PIPE
(A) 		8-97201-103-2 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(B) 		8-97369-717-3 01 1 0508- ●
349 BOLT; BRKT,INL PIPE
M8X20 FLANGE 		0-28480-820-0 04 1 0508-0512 ●
349 BOLT; BRKT,INL PIPE
M8X20 FLANGE 		0-28450-820-0 04 1 0601- ●

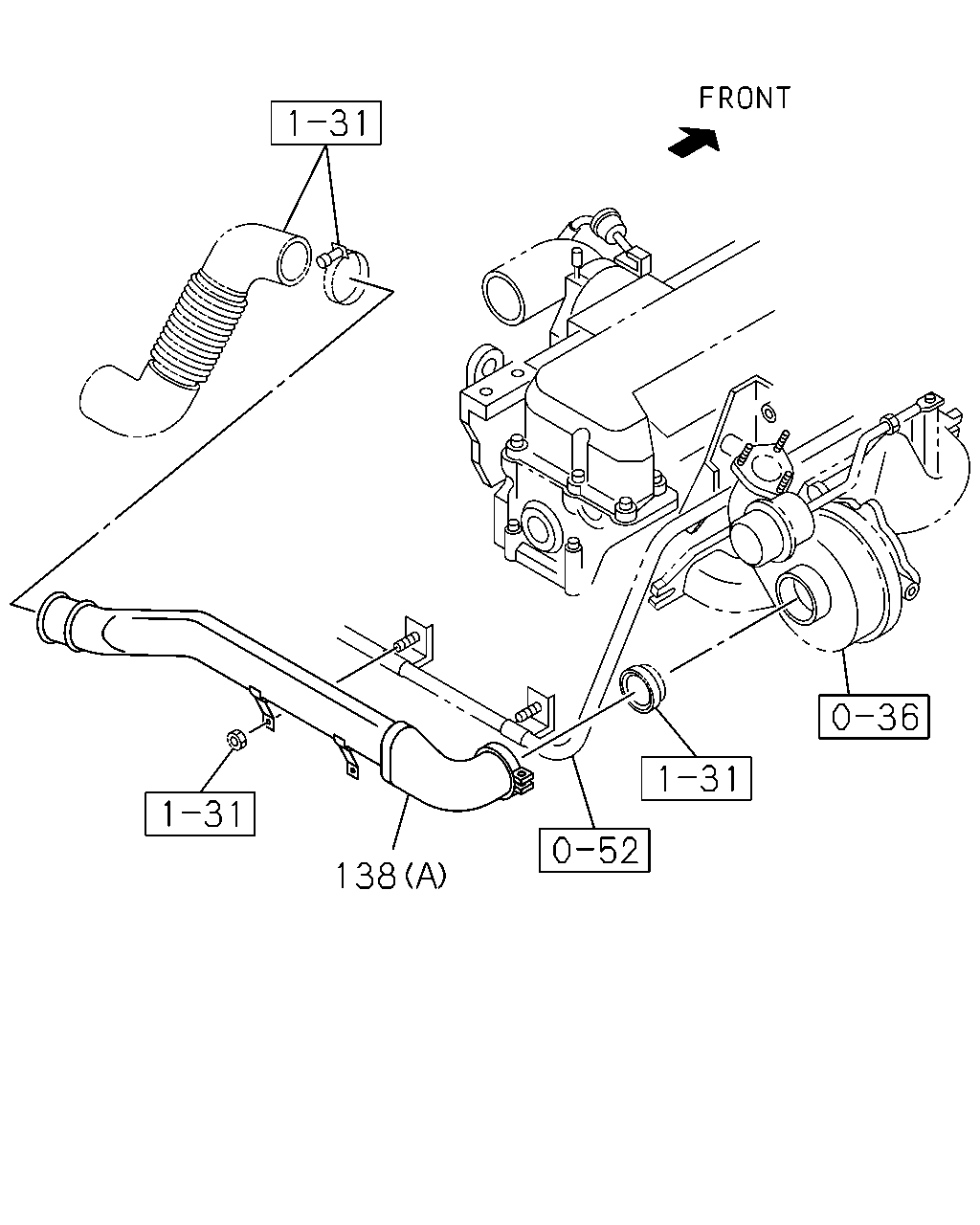

çizim 119192
138
BalonParca AdiParca NoAdetTipApplied Date A B C
138 PIPE; INL
(A) 		8-97178-748-3 01 1 0508- ●
138 PIPE; INL
(C) 		8-98001-263-0 01 1 0510- ●
138 PIPE; INL
(B) 		8-97180-566-2 01 1 0508- ●

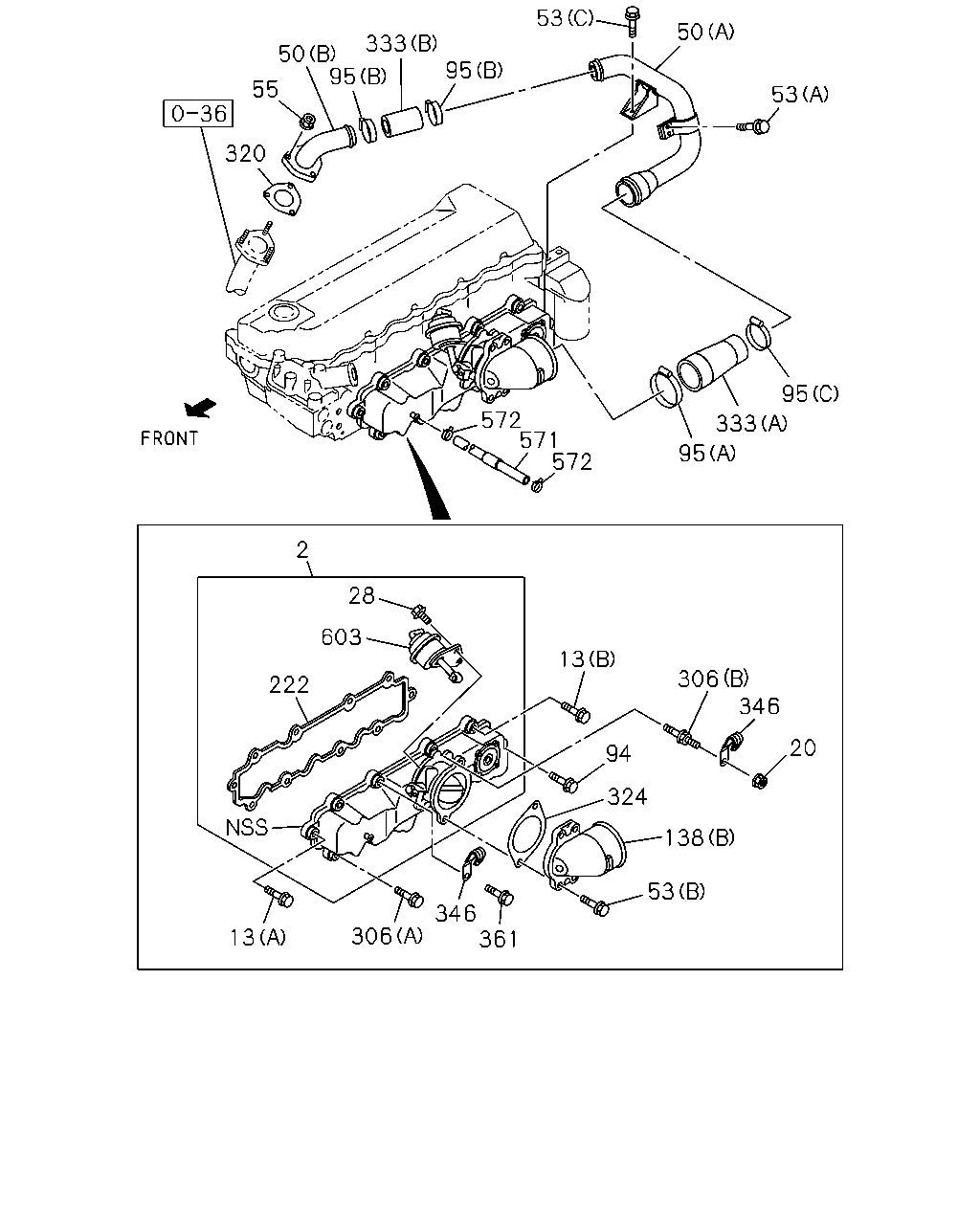

çizim 119194
53 50 333 95 50 95 55 53 320 572 571 572 95 333 95 2 28 603 13 306 346 222 20 94 324 138 53 346 361 306 13
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-97310-495-0 01 1 0510- ●
2 COVER; INL 8-97212-454-3 01 1 0508- ●
2 COVER; INL 8-97219-653-2 01 1 0508- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 09 1 0510-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 09 1 0601- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 07 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 07 1 0601- ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-97118-455-0 01 1 0508-0701 ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 06 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 06 1 0601- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 02 1 0508-0509 ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 02 1 0510-0602 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
28 BOLT; CHAMBER
M6X12 FLANGE 		0-28080-612-0 02 1 0508-0512 ●
28 BOLT; CHAMBER
M6X12 FLANGE THA 		0-28050-612-0 02 1 0601- ●
50 PIPE; INL
(A) 		8-97178-735-5 01 1 0508- ●
50 PIPE; INL
(B) 		8-97202-327-2 01 1 0508- ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0510-0512 ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 0601- ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0510-0512 ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 04 1 0601- ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0601- ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0601- ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE 		0-28681-025-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 0601- ●
55 NUT; INL PIPE
M6 FLANGE 		0-91150-206-0 03 1 0508-0602 ●
55 NUT; INL PIPE
M6 FLANGE THA 		0-91180-206-0 03 1 0603- ●
94 BOLT
M8X30 FLANGE 		0-28080-830-0 01 1 0508-0512 ●
94 BOLT
M8X30 FLANGE THA 		0-28050-830-0 01 1 0601- ●
94 BOLT
M8X45 FLANGE 		0-28080-845-0 04 1 0508-0512 ●
94 BOLT
M8X45 FLANGE THA 		0-28050-845-0 04 1 0601- ●
94 BOLT
M8X50 FLANGE 		0-28080-850-0 02 1 0508-0512 ●
94 BOLT
M8X50 FLANGE THA 		0-28050-850-0 02 1 0601- ●
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 		1-09707-202-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 THA 		8-94320-428-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(B) ID=50-65 THA 		1-09707-204-0 02 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(B) ID=50-69 THA 		8-94316-991-0 02 1 0811- ●
95 CLIP; RUBBER HOSE
(B) L=140 		5-09707-031-1 01 1 0508- ●
138 PIPE; INL
(A) 		8-97178-748-3 01 1 0508- ●
138 PIPE; INL
(C) 		8-98001-263-0 01 1 0510- ●
138 PIPE; INL
(B) 		8-97180-566-2 01 1 0508- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0508- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97219-649-0 01 1 0508- ●
306 BOLT; VLV
(A) M8X45 FLANGE 		0-28080-845-0 05 1 0508-0512 ●
306 BOLT; VLV
(A) M8X45 FLANGE THA 		0-28050-845-0 05 1 0601- ●
306 BOLT; VLV
(B) M8X85 L=101 		8-97118-454-0 01 1 0508-0701 ●
306 BOLT; VLV
(B) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97202-328-1 01 1 0508- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97306-025-1 01 1 0510- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0508-0509 ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0510-0608 ● ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-98053-755-0 01 1 0609- ● ●
333 HOSE; RUBBER,INL PIPE
(A) 		8-97201-103-2 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(B) 		8-97369-717-3 01 1 0508- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0510-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 03 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0802- ●
361 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0510-0512 ●
361 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●
361 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ●
361 BOLT; CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 0601- ●
571 HOSE; AIR BOOST
L=210 SERVICED BY L=3000 		0-04740-300-0 01 1 0508- ●
571 HOSE; AIR BOOST
L=350 SERVICED BY L=3000 		0-01254-300-0 01 1 0508- ●
572 CLIP; BOOST HOSE
ID=8 		8-94107-762-0 02 1 0508- ●
572 CLIP; BOOST HOSE
ID=11 		8-94238-570-0 02 1 0508- ●
603 CHAMBER; THROTTLE 8-97204-780-0 01 1 0508- ●

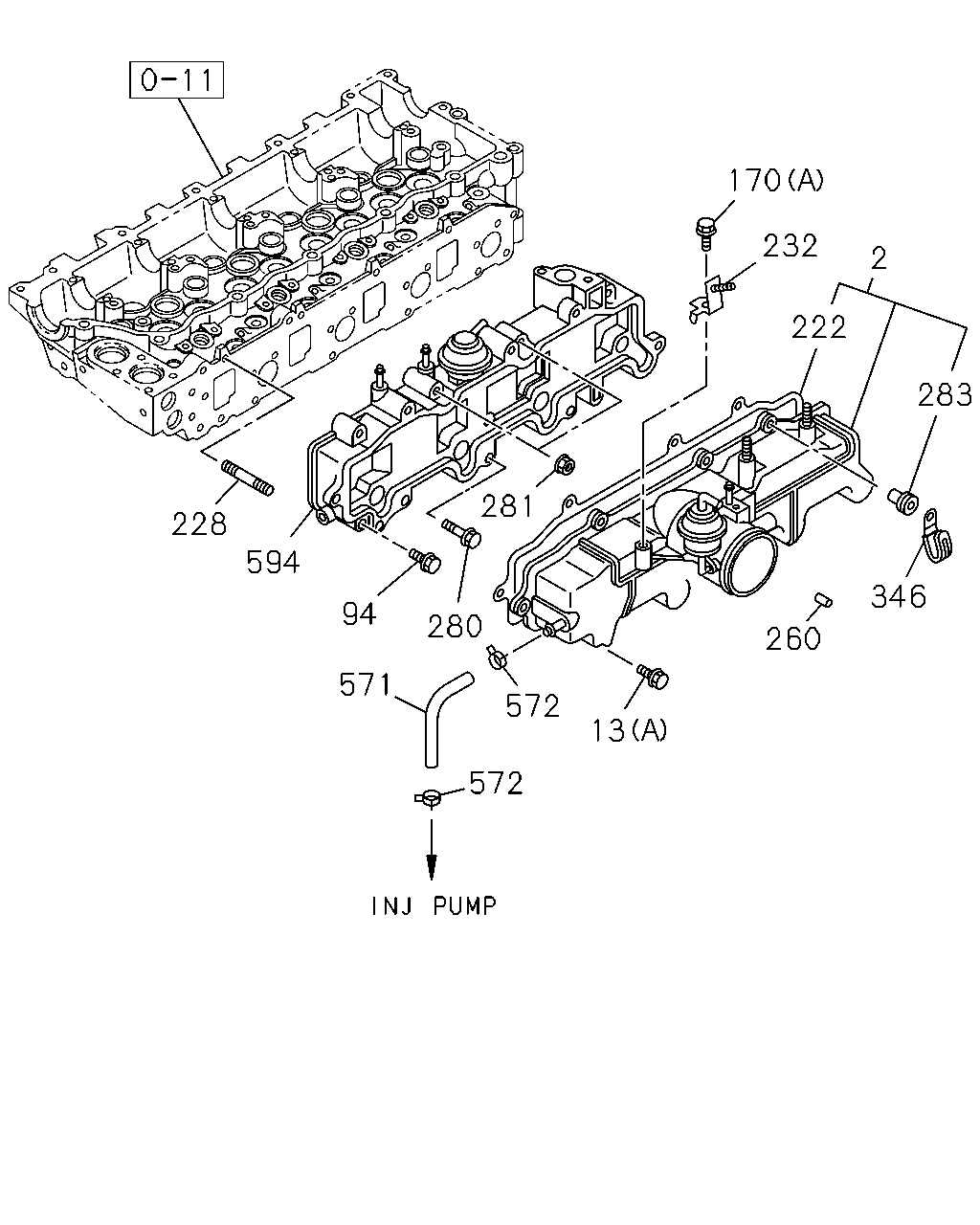

çizim 119197
170 232 2 222 283 281 228 594 346 94 280 260 571 572 13 572
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-97310-495-0 01 1 0510- ●
2 COVER; INL 8-97212-454-3 01 1 0508- ●
2 COVER; INL 8-97219-653-2 01 1 0508- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 09 1 0510-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 09 1 0601- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 07 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 07 1 0601- ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-97118-455-0 01 1 0508-0701 ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 06 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 06 1 0601- ●
94 BOLT
M8X30 FLANGE 		0-28080-830-0 01 1 0508-0512 ●
94 BOLT
M8X30 FLANGE THA 		0-28050-830-0 01 1 0601- ●
94 BOLT
M8X45 FLANGE 		0-28080-845-0 04 1 0508-0512 ●
94 BOLT
M8X45 FLANGE THA 		0-28050-845-0 04 1 0601- ●
94 BOLT
M8X50 FLANGE 		0-28080-850-0 02 1 0508-0512 ●
94 BOLT
M8X50 FLANGE THA 		0-28050-850-0 02 1 0601- ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ●
170 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0601- ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28181-220-0 01 1 0508-0512 ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0601- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0508- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97219-649-0 01 1 0508- ●
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 0510- ●
228 STUD; INL COVER
M8X84 L=95 		8-97181-739-0 02 1 0508- ●
232 BRACKET; INJ PIPE 8-97190-249-0 01 1 0508- ●
260 CAP; RUBBER
ID=4 		8-94217-809-0 01 1 0508- ●
280 BOLT; INL COVER
M8X80 FLANGE 		0-28080-880-0 01 1 0508-0512 ●
280 BOLT; INL COVER
M8X80 FLANGE THA 		0-28050-880-0 01 1 0601- ●
281 NUT; INL COVER
M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
281 NUT; INL COVER
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
283 RUBBER
L=18 		8-97219-650-0 09 1 0508- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0510-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 03 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0802- ●
571 HOSE; AIR BOOST
L=210 SERVICED BY L=3000 		0-04740-300-0 01 1 0508- ●
571 HOSE; AIR BOOST
L=350 SERVICED BY L=3000 		0-01254-300-0 01 1 0508- ●
572 CLIP; BOOST HOSE
ID=8 		8-94107-762-0 02 1 0508- ●
572 CLIP; BOOST HOSE
ID=11 		8-94238-570-0 02 1 0508- ●
594 CASE 8-98012-738-0 01 1 0508-0801 ●
594 CASE 8-98096-150-0 01 1 0802- ●

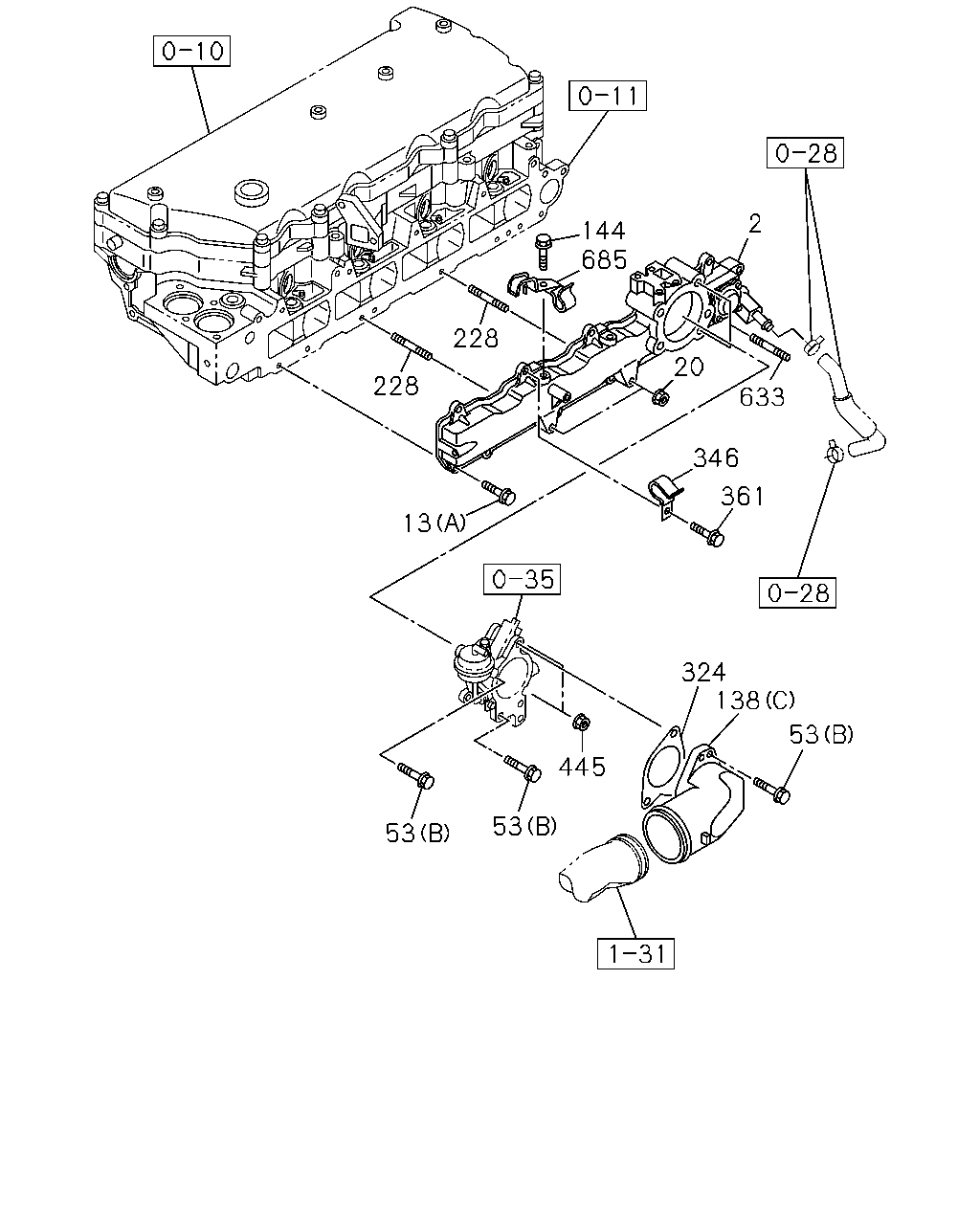

çizim 119201
2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; INL 8-97310-495-0 01 1 0510- ●
2 COVER; INL 8-97212-454-3 01 1 0508- ●
2 COVER; INL 8-97219-653-2 01 1 0508- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 09 1 0510-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 09 1 0601- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 07 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 07 1 0601- ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-97118-455-0 01 1 0508-0701 ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 06 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 06 1 0601- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 02 1 0508-0509 ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 02 1 0510-0602 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0510-0512 ●
53 BOLT; INL PIPE
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 0601- ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0510-0512 ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 04 1 0601- ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0601- ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0601- ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE 		0-28681-025-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 0601- ●
138 PIPE; INL
(A) 		8-97178-748-3 01 1 0508- ●
138 PIPE; INL
(C) 		8-98001-263-0 01 1 0510- ●
138 PIPE; INL
(B) 		8-97180-566-2 01 1 0508- ●
144 BOLT; BRKT FIX
M8X12 FLANGE 		0-28080-812-0 01 1 0510-0512 ●
144 BOLT; BRKT FIX
M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●
228 STUD; INL COVER
M8X117 L=128 		8-97111-477-0 02 1 0510- ●
228 STUD; INL COVER
M8X84 L=95 		8-97181-739-0 02 1 0508- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97306-025-1 01 1 0510- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 0508- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0510-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 03 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0802- ●
361 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0510-0512 ●
361 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●
361 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ●
361 BOLT; CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 0601- ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE 		0-91150-108-0 02 1 0510-0602 ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
633 STUD; THROTTLE BODY
M8X25 L=37 		9-04110-825-0 01 1 0510-0604 ●
633 STUD; THROTTLE BODY
M8X25 L=37 THA 		0-41010-825-0 01 1 0605- ●
633 STUD; THROTTLE BODY
M8X55 L=67 		9-04110-855-0 01 1 0510-0604 ●
633 STUD; THROTTLE BODY
M8X55 L=67 		0-41010-855-0 01 1 0605- ●
685 BRACKET; HARNESS 8-97331-921-1 01 1 0510- ●

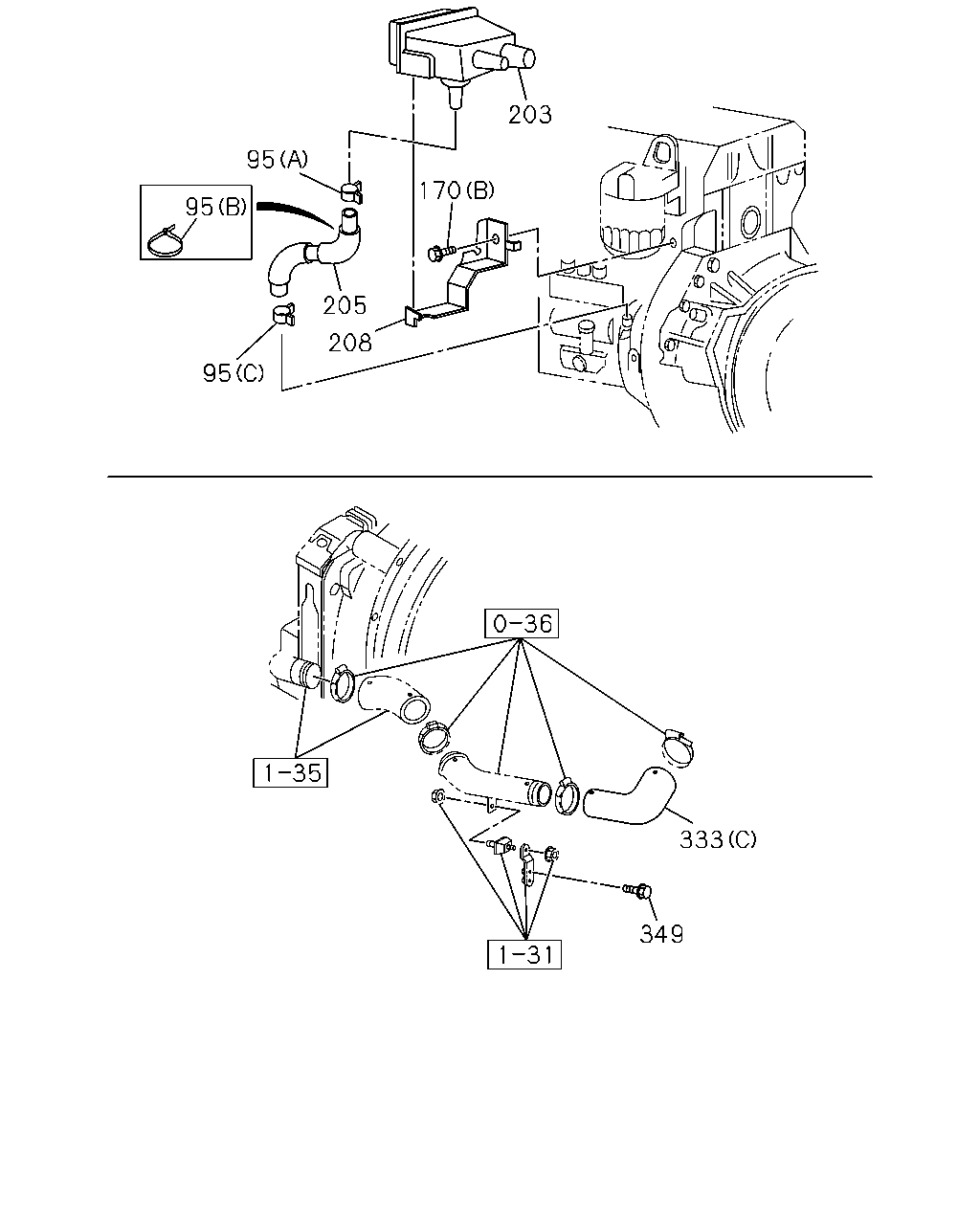

çizim 119202
203 95 170 95 205 208 95 333 349
BalonParca AdiParca NoAdetTipApplied Date A B C
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 		1-09707-202-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 THA 		8-94320-428-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(B) ID=50-65 THA 		1-09707-204-0 02 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(B) ID=50-69 THA 		8-94316-991-0 02 1 0811- ●
95 CLIP; RUBBER HOSE
(B) L=140 		5-09707-031-1 01 1 0508- ●
170 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ●
170 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0601- ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28181-220-0 01 1 0508-0512 ●
170 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0601- ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0508-0509 ●
203 TANK; CATCH,PRESSURE CONT VLV 8-97088-685-1 01 1 0510- ● ●
208 BRACKET; CATCH TANK,OIL 8-97375-702-0 01 1 0510- ●
208 BRACKET; CATCH TANK,OIL 8-97166-887-0 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0508-0509 ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-97189-631-1 01 1 0510-0608 ● ●
333 HOSE; RUBBER,INL PIPE
(C) 		8-98053-755-0 01 1 0609- ● ●
333 HOSE; RUBBER,INL PIPE
(A) 		8-97201-103-2 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(B) 		8-97369-717-3 01 1 0508- ●
349 BOLT; BRKT,INL PIPE
M8X20 FLANGE 		0-28480-820-0 04 1 0508-0512 ●
349 BOLT; BRKT,INL PIPE
M8X20 FLANGE 		0-28450-820-0 04 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
