Sayfa 1-55A - Isuzu EPC

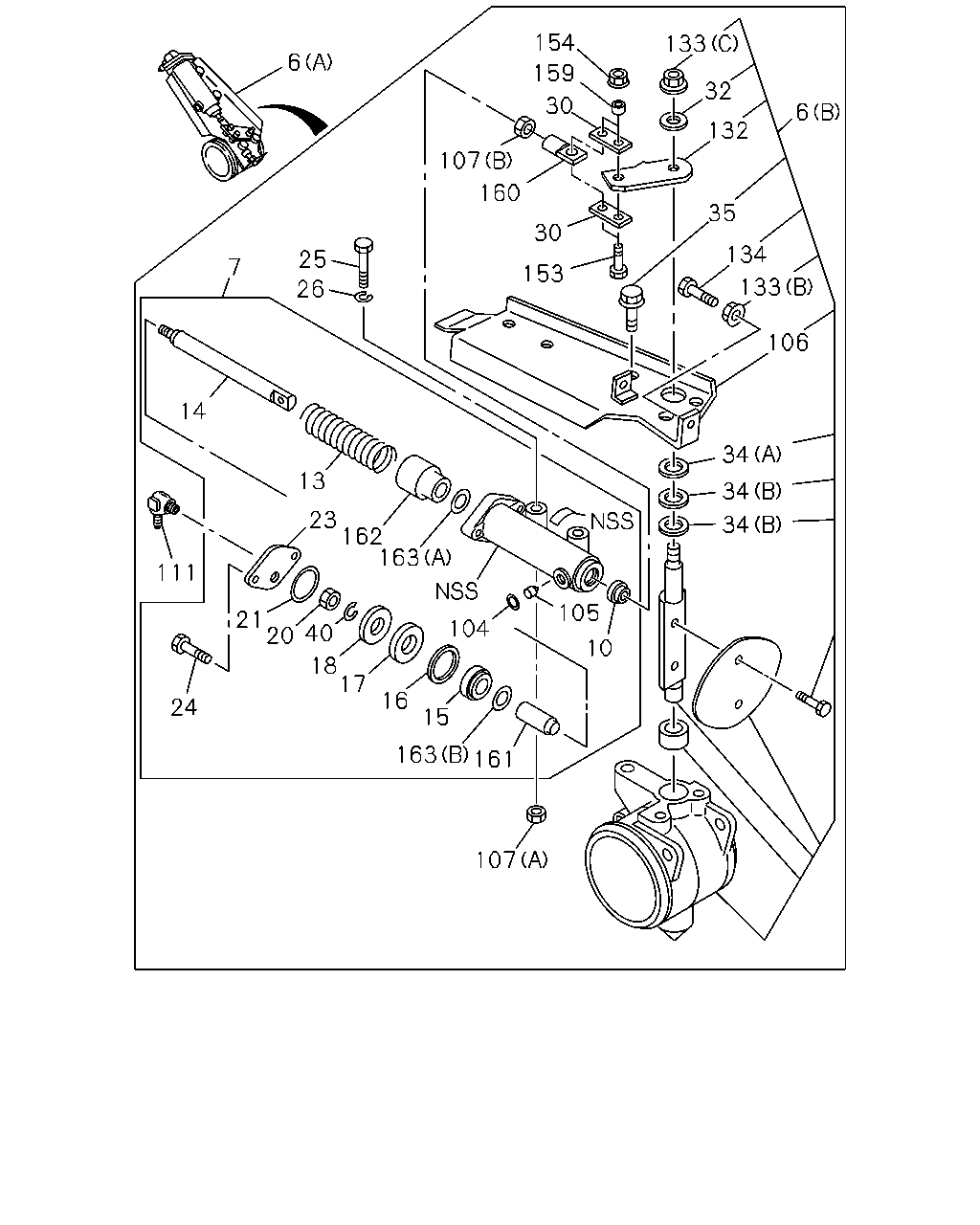

1-55A — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#4305) — 232 parça

154 133 6 159 32 30 6 132 107 160 35 30 134 25 7 153 133 26 106 14 34 13 34 23 162 163 34 111 105 21 20 104 40 10 18 17 16 24 15 163 161 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	VALVE; EXH BRAKE (A)	1-14144-603-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE NEW ZEALAND EQUIPMENT(PK5) (A)	1-14144-631-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-14144-603-1	01	1	9701-9704	●
6	VALVE; EXH BRAKE (A)	1-14144-603-2	01	1	9705-9904	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE (B)	1-14144-612-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22181-150-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-14144-616-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9705-9904	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE (B)	1-22181-146-0	01	1	9707-9709				●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9905-					●
6	VALVE; EXH BRAKE (A)	1-22190-636-1	01	1	9707-9709				●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9905-					●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9603-9904	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9905-	●	●	●
7	CYLINDER ASM; CONT	1-22190-642-0	01	1	9707-9904				●
7	CYLINDER ASM; CONT	1-22190-642-0	01	1	9905-					●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9603-9904	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-	●	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9707-9904				●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9905-					●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9603-9904	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9905-	●	●	●
13	SPRING; CONT CYL	1-22199-173-0	01	1	9707-9904				●
13	SPRING; CONT CYL	1-22199-173-0	01	1	9905-					●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9603-9904	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9905-	●	●	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9707-9904				●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9905-					●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9603-9904	●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9905-	●	●	●
15	PLATE; CONT CYL	1-22199-168-0	01	1	9707-9904				●
15	PLATE; CONT CYL	1-22199-168-0	01	1	9905-					●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9603-9904	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9905-	●	●	●
16	RING; WEAR,CONT CYL	1-22199-169-0	01	1	9707-9904				●
16	RING; WEAR,CONT CYL	1-22199-169-0	01	1	9905-					●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9603-9904	●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9905-	●	●	●
17	GASKET; CONT CYL	1-22199-170-0	01	1	9707-9904				●
17	GASKET; CONT CYL	1-22199-170-0	01	1	9905-					●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9603-9904	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9905-	●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9603-9904	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9905-	●	●	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9707-9904				●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9905-					●
21	GASKET; COVER	9-88510-372-0	01	1	9603-9904	●
21	GASKET; COVER	9-88510-372-0	01	1	9905-	●	●	●
21	GASKET; COVER	1-22199-171-0	01	1	9707-9904				●
21	GASKET; COVER	1-22199-171-0	01	1	9905-					●
23	COVER; CONT CYL	1-22199-066-0	01	1	9603-9904	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9905-	●	●	●
23	COVER; CONT CYL	1-22199-172-0	01	1	9707-9904				●
23	COVER; CONT CYL	1-22199-172-0	01	1	9905-					●
24	BOLT; COVER M8X20	9-01000-820-0	02	1	9603-9612	●
24	BOLT; COVER	1-22199-155-0	02	1	9701-9706	●
24	BOLT; COVER	1-22199-155-0	02	1	9707-9904	●			●
24	BOLT; COVER	1-22199-155-0	02	1	9905-	●	●	●		●
25	BOLT; CONT CYL M10X60	9-01056-060-0	02	1	9603-9612	●
25	BOLT; CONT CYL NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	0-28081-060-0	02	1	9701-9704	●
25	BOLT; CONT CYL EXC. NEW ZEALAND EQUIPMENT(PK5) M10X60 FLANGE	1-22199-160-0	02	1	9701-9704	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9705-9904	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9905-	●	●	●
25	BOLT; CONT CYL	1-22199-166-0	02	1	9707-9709				●
25	BOLT; CONT CYL	1-19519-244-0	02	1	9710-9904				●
25	BOLT; CONT CYL	1-19519-244-0	02	1	9905-					●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9603-9603	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9603-9612	●
30	ROD; LINK,CONT CYL NEW ZEALAND EQUIPMENT(PK5)	1-22199-162-0	02	1	9701-9704	●
30	ROD; LINK,CONT CYL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-22199-165-0	02	1	9701-9704	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9705-9904	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9905-	●	●	●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9707-9904				●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9905-					●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9603-9706	●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9707-9904	●			●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9905-	●	●	●		●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9603-9706	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9707-9904	●			●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9905-	●	●	●		●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9603-9706	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9707-9904	●			●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9905-	●	●	●		●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9603-9706	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9707-9904	●			●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9905-	●	●	●		●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9603-9904	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9905-	●	●	●
104	RING; RET	9-88510-331-0	01	1	9603-9706	●
104	RING; RET	9-88510-331-0	01	1	9707-9904	●			●
104	RING; RET	9-88510-331-0	01	1	9905-	●	●	●		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9603-9706	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9707-9904	●			●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9905-	●	●	●		●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9603-9904	●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9905-	●	●	●
106	BRACKET; CONT CYL	1-22186-144-0	01	1	9707-9904				●
106	BRACKET; CONT CYL	1-22186-144-0	01	1	9905-					●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9603-9706	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9707-9709	●			●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9710-9904	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9905-	●	●	●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9603-9612	●
107	NUT; CONT CYL NEW ZEALAND EQUIPMENT(PK5) (A) M10 FLANGE	0-91150-110-0	02	1	9701-9704	●
107	NUT; CONT CYL EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	9-83315-080-0	02	1	9701-9704	●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9705-9904	●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9905-	●	●	●
107	NUT; CONT CYL (A) M8 FLANGE	0-91150-108-0	02	1	9707-9709				●
107	NUT; CONT CYL (A) M10 FLANGE	0-91150-110-0	02	1	9710-9904				●
107	NUT; CONT CYL (A) M10 FLANGE	0-91150-110-0	02	1	9905-					●
107	NUT; CONT CYL (B) M8	9-09110-508-0	01	1	9710-9904				●
107	NUT; CONT CYL (B) M8	9-09110-508-0	01	1	9905-					●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9603-9706	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9707-9904	●			●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9905-	●	●	●		●
132	LEVER; BRK VLV	1-22196-332-0	01	1	9603-9603	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9604-9706	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9707-9904	●			●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9905-	●	●	●		●
133	NUT; LK (A) M12	1-09400-010-0	03	1	9603-9605	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9603-9706	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●			●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9603-9706	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9707-9904	●			●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9905-	●	●	●		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9603-9706	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9707-9904	●			●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9905-	●	●	●		●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9603-9612	●
153	BOLT; CLEVIS,CONT CYL NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28080-825-0	02	1	9701-9704	●
153	BOLT; CLEVIS,CONT CYL EXC. NEW ZEALAND EQUIPMENT(PK5)	1-33739-200-0	02	1	9701-9704	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9705-9904	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9905-	●	●	●
153	BOLT; CLEVIS,CONT CYL M8X25 FLANGE	0-28080-825-0	02	1	9707-9904				●
153	BOLT; CLEVIS,CONT CYL M8X25 FLANGE	0-28080-825-0	02	1	9905-					●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9603-9706	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9707-9904	●			●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9603-9706	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9707-9904	●			●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9905-	●	●	●		●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9603-9603	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9604-9706	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9707-9904	●			●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9905-	●	●	●		●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9707-9904				●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9905-					●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9707-9904				●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9905-					●
163	WASHER; CONT CYL (A)	1-22199-148-0	01	1	9707-9904				●
163	WASHER; CONT CYL (A)	1-22199-148-0	01	1	9905-					●
163	WASHER; CONT CYL (B)	1-22199-177-0	01	1	9707-9709				●
163	WASHER; CONT CYL (B)	1-22199-179-0	01	1	9710-9904				●
163	WASHER; CONT CYL (B)	1-22199-179-0	01	1	9905-					●

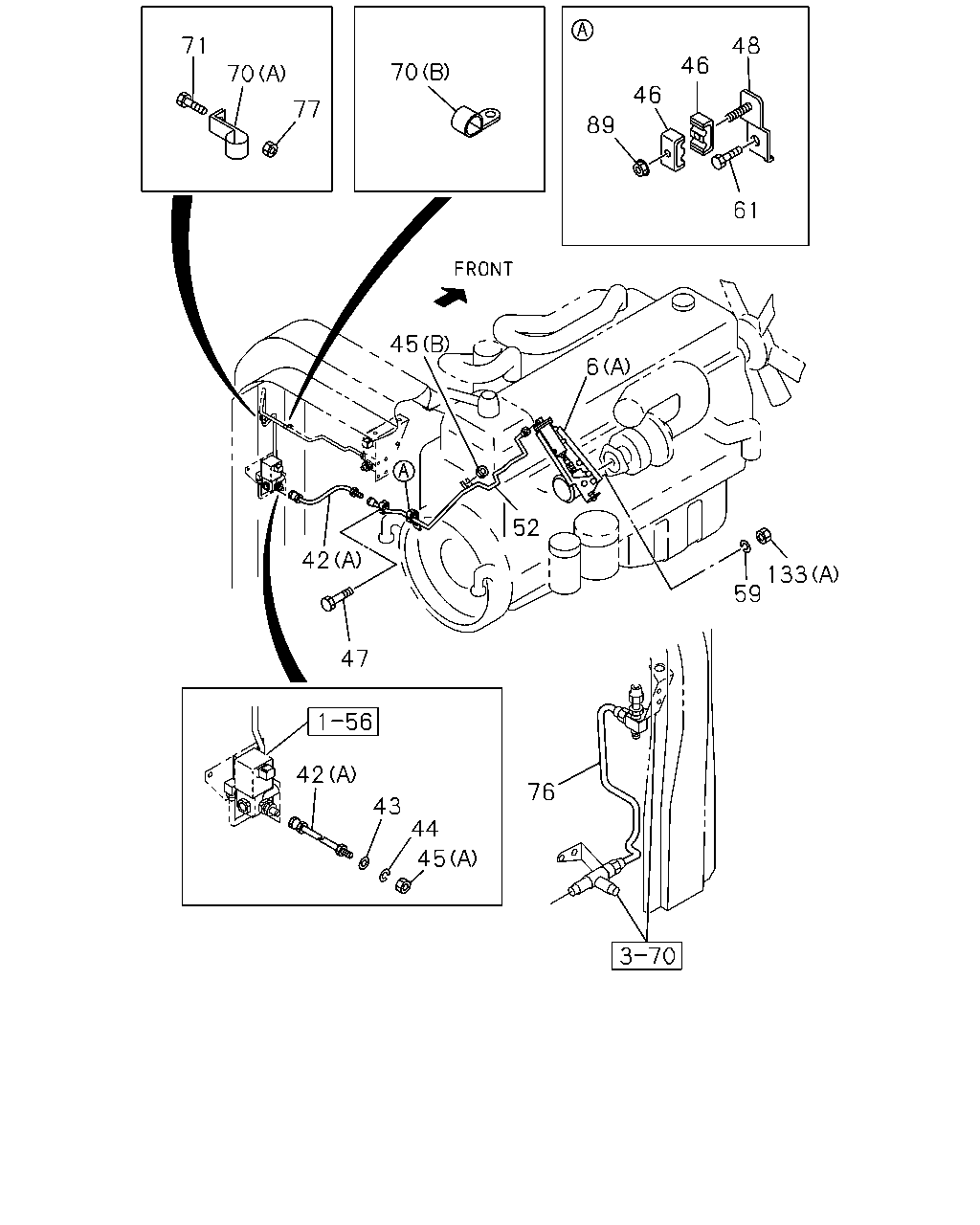

48 71 46 70 70 46 77 89 61 45 6 52 42 133 59 47 42 76 43 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	VALVE; EXH BRAKE (A)	1-14144-603-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE NEW ZEALAND EQUIPMENT(PK5) (A)	1-14144-631-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-14144-603-1	01	1	9701-9704	●
6	VALVE; EXH BRAKE (A)	1-14144-603-2	01	1	9705-9904	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE (B)	1-14144-612-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22181-150-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-14144-616-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9705-9904	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE (B)	1-22181-146-0	01	1	9707-9709				●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9905-					●
6	VALVE; EXH BRAKE (A)	1-22190-636-1	01	1	9707-9709				●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9905-					●
42	HOSE; FLEX,EXH BRK (A) L=260	0-07120-260-0	01	1	9603-9702	●
42	HOSE; FLEX,EXH BRK (A) L=260	1-09363-609-0	01	1	9703-9904	●			●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9905-	●	●	●		●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9603-9702	●			●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9603-9904	●			●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9905-	●	●	●		●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9603-9904	●			●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●		●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9603-9904	●			●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9905-	●	●	●		●
46	CLIP; AIR PIPE	1-09701-132-0	02	1	9603-9904	●			●
46	CLIP; AIR PIPE	1-09701-132-1	02	1	9905-	●	●	●		●
47	BOLT; CLIP MIXER TRUCK<RA2> M6X30 FLANGE	0-28680-630-0	01	1	9703-9904	●
47	BOLT; CLIP SHORT CHASSIS(CXZ5MC) MIXER TRUCK<RA2> M6X30 FLANGE	0-28680-630-0	01	1	9905-			●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9603-9706	●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9707-9904	●			●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9905-	●	●	●		●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9603-9702	●
52	PIPE ASM; AIR FLEX HOSE EXC. MIXER TRUCK<RA2>	1-19192-904-0	01	1	9703-9706	●
52	PIPE ASM; AIR FLEX HOSE EXC. MIXER TRUCK<RA2>	1-19192-904-0	01	1	9707-9904	●			●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9905-	●	●			●
52	PIPE ASM; AIR FLEX HOSE EXC. MIXER TRUCK<RA2>	1-19192-904-0	01	1	9905-			●
52	PIPE ASM; AIR FLEX HOSE MIXER TRUCK<RA2>	1-19193-017-0	01	1	9703-9904	●
52	PIPE ASM; AIR FLEX HOSE MIXER TRUCK<RA2>	1-19193-017-0	01	1	9905-			●
59	WASHER; LK ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9605	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28181-420-0	01	1	9603-9606	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9607-9706	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9707-9904	●			●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9905-	●	●	●		●
70	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9707-9904				●
70	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	9707-9904				●
71	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9707-9904				●
76	PIPE ASM; AIR UNION TO UNION L=489 SERVICED BY L=500	1-47428-807-0	01	1	9603-9702	●
76	PIPE ASM; AIR UNION TO UNION EXC. MIXER TRUCK<RA2> L=489 SERVICED BY L=500	1-47428-807-0	01	1	9703-9904	●			●
76	PIPE ASM; AIR UNION TO UNION EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> L=489 SERVICED BY L=500	1-47428-807-0	01	1	9905-9908	●	●	●		●
76	PIPE ASM; AIR UNION TO UNION EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> L=488	1-49122-245-0	01	1	9909-9910	●	●	●		●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> L=488	1-49122-245-0	01	1	9911-	●	●	●		●
76	PIPE ASM; AIR UNION TO UNION MIXER TRUCK<RA2> L=504 SERVICED BY L=550	1-47428-808-0	01	1	9703-9910	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> L=504 SERVICED BY L=550	1-47428-808-0	01	1	9911-			●
76	PIPE ASM; AIR UNION TO UNION SILENCER SINGLE VERTICAL<N28> L=496 SERVICED BY L=500	1-47428-807-0	01	1	9905-9908	●	●	●
76	PIPE ASM; AIR UNION TO UNION SILENCER SINGLE VERTICAL<N28> L=462	1-49122-247-0	01	1	9909-9910	●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> L=462	1-49122-247-0	01	1	9911-	●	●	●		●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> L=1058	1-49122-238-0	01	1	9911-			●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> L=1066	1-49122-236-0	01	1	9911-			●
77	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9707-9904				●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9603-9702	●
89	NUT; BRKT EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91150-106-0	01	1	9703-9706	●
89	NUT; BRKT EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91150-106-0	01	1	9707-9904	●			●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9905-	●	●			●
89	NUT; BRKT EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91150-106-0	01	1	9905-			●
133	NUT; LK (A) M12	1-09400-010-0	03	1	9603-9605	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9603-9706	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●			●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9603-9706	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9707-9904	●			●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9905-	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
