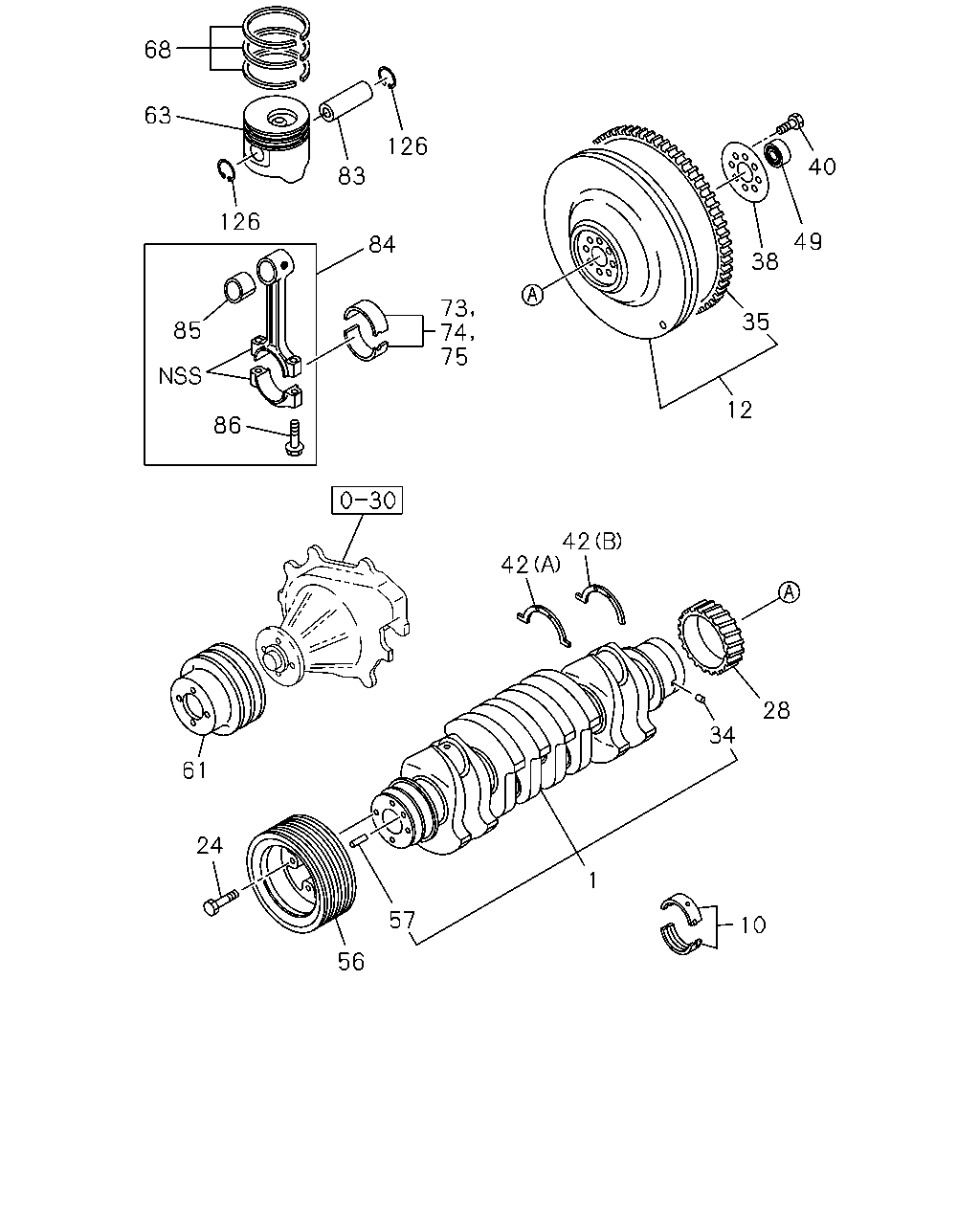

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#43048) — 84 parça

68 63 126 40 83 126 49 84 38 73 74 75 35 85 12 86 42 42 28 34 61 24 1 57 10 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-97112-981-3	01	1	0508-	●
1	CRANKSHAFT	8-97352-534-3	01	1	0508-0509		●
1	CRANKSHAFT	8-98029-270-0	01	1	0510-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0508-0509	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0510-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0508-0509	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0510-	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0508-0509	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0510-	●	●	●
12	FLYWHEEL	8-97326-227-2	01	1	0510-			●
12	FLYWHEEL	8-97330-892-1	01	1	0508-	●
12	FLYWHEEL	8-97166-516-1	01	1	0508-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0508-0509	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0510-	●	●	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0508-	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0508-0509		●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0510-		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	0508-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	0508-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0508-0509		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0510-		●	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	0508-0509	●	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	0510-	●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0508-0509	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0510-	●	●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0508-0509	●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0510-	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0508-0509	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0510-0703	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0508-0509	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0510-0703	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	0508-0509	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	0510-	●	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0508-0509	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0510-	●	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	04	1	0508-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	04	1	0508-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0508-0509		●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0510-		●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0508-	●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97364-396-1	01	1	0510-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-800-0	04	1	0510-			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	0508-1112	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97251-696-1	04	1	0508-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97251-697-1	04	1	0508-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97603-423-1	04	1	0510-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0508-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97166-992-1	04	1	0508-0509		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98031-121-0	04	1	0510-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0508-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0508-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0508-0509		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0510-0701		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	04	1	0702-0706		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0707-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0508-0509		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0510-0701		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	04	1	0702-0706		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0707-		●	●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0508-	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0508-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0508-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0508-0509		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0510-		●	●
84	ROD ASM; CONN	8-97135-032-5	04	1	0508-	●
84	ROD ASM; CONN	8-94399-661-2	04	1	0508-0509		●
84	ROD ASM; CONN	8-94399-661-2	04	1	0510-0706		●	●
84	ROD ASM; CONN	8-98018-425-2	04	1	0707-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	0508-0509		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	0510-0706		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0707-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0508-0805	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	04	1	0806-0905	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0508-0509	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0510-1004	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0508-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0508-0509		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0510-		●	●
