Sayfa 0-14 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶

0-14 — CAMSHAFT AND VALVE (#43047) — 203 parça

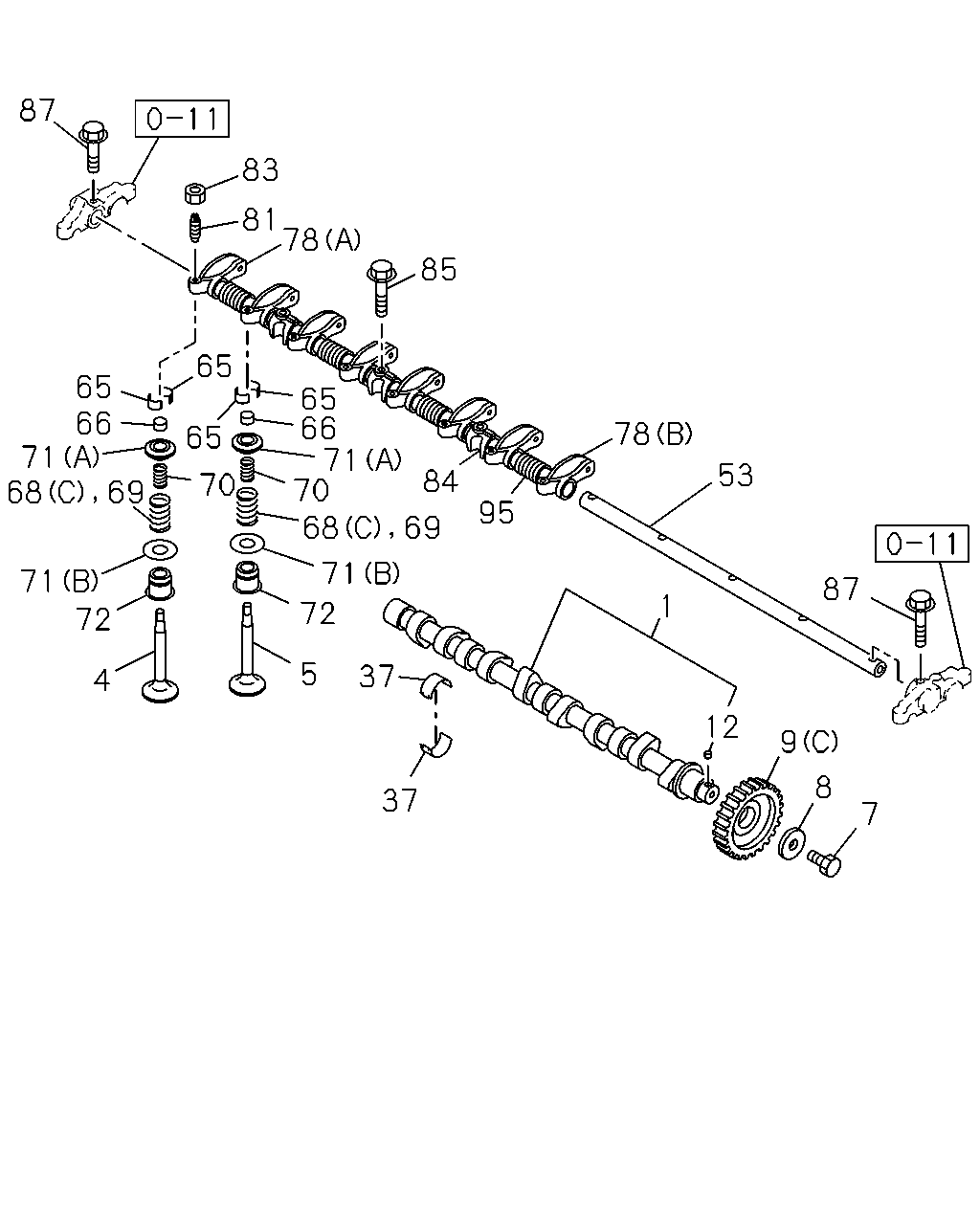

87 83 81 78 85 65 65 66 71 65 66 71 70 78 65 70 53 84 95 71 71 72 87 1 72 5 37 4 12 9 8 37 7 68 69 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97262-166-0	01	1	0510-	●
1	CAMSHAFT	8-97077-829-0	01	1	0508-		●
1	CAMSHAFT	8-97077-830-0	01	1	0508-			●
4	VALVE; INL	8-94395-882-2	08	1	0510-	●
4	VALVE; INL	8-97171-398-0	04	1	0508-		●
4	VALVE; INL	8-97033-864-2	04	1	0508-			●
5	VALVE; EXH	8-97209-876-3	08	1	0510-	●
5	VALVE; EXH	8-97171-399-0	04	1	0508-		●
5	VALVE; EXH	8-97219-509-2	04	1	0508-			●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0508-0509		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0510-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0508-0509		●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0510-	●	●	●
9	GEAR; CM/SHF (A) SUB Z=35	8-97300-972-2	01	1	0510-	●
9	GEAR; CM/SHF (B) MAIN Z=35	8-97309-327-2	01	1	0510-	●
9	GEAR; CM/SHF (C) Z=35	8-97094-440-2	01	1	0508-		●	●
12	KEY; CAM GEAR SET	8-94399-487-0	02	1	0510-	●
12	KEY; CAM GEAR SET	8-94399-487-0	01	1	0508-		●	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0508-0509		●	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0510-0706	●	●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-	●	●	●
53	SHAFT; ROCKER ARM	8-97306-426-2	01	1	0510-0610	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0611-	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0508-		●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0508-		●	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	0510-	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0508-		●	●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0508-		●	●
68	SPRING; VLV (A) MARK RED	8-97210-682-0	08	1	0510-	●
68	SPRING; VLV (B) MARK BLUE	8-97352-888-0	08	1	0510-	●
68	SPRING; VLV (C) ID=28.5	8-97023-559-0	08	1	0508-		●
69	SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	0508-			●
69	SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	0508-			●
70	SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	0508-			●
70	SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	0508-			●
71	SEAT; SPR (D) ID=14.3 T=1.0	8-94391-468-0	16	1	0708-	●
71	SEAT; SPR (C) OD=32.8 T=12.75	8-94390-783-2	16	1	0510-	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0508-		●	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0508-		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97210-702-0	16	1	0510-0707	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0708-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0508-		●	●
78	ARM; ROCKER (C) INLET INLET	8-97306-421-3	04	1	0510-	●
78	ARM; ROCKER (C) EXHAUST EXHAUST	8-97306-424-3	04	1	0510-	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0508-		●	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0508-		●	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0508-		●	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0508-		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0510-	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0508-		●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0510-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0508-0512		●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0508-		●	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0508-		●	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0508-		●	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0508-		●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28080-840-0	02	1	0510-0512	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	0601-	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	0508-0512		●	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE THA	0-28050-835-0	02	1	0601-		●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0510-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0508-		●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0508-		●	●

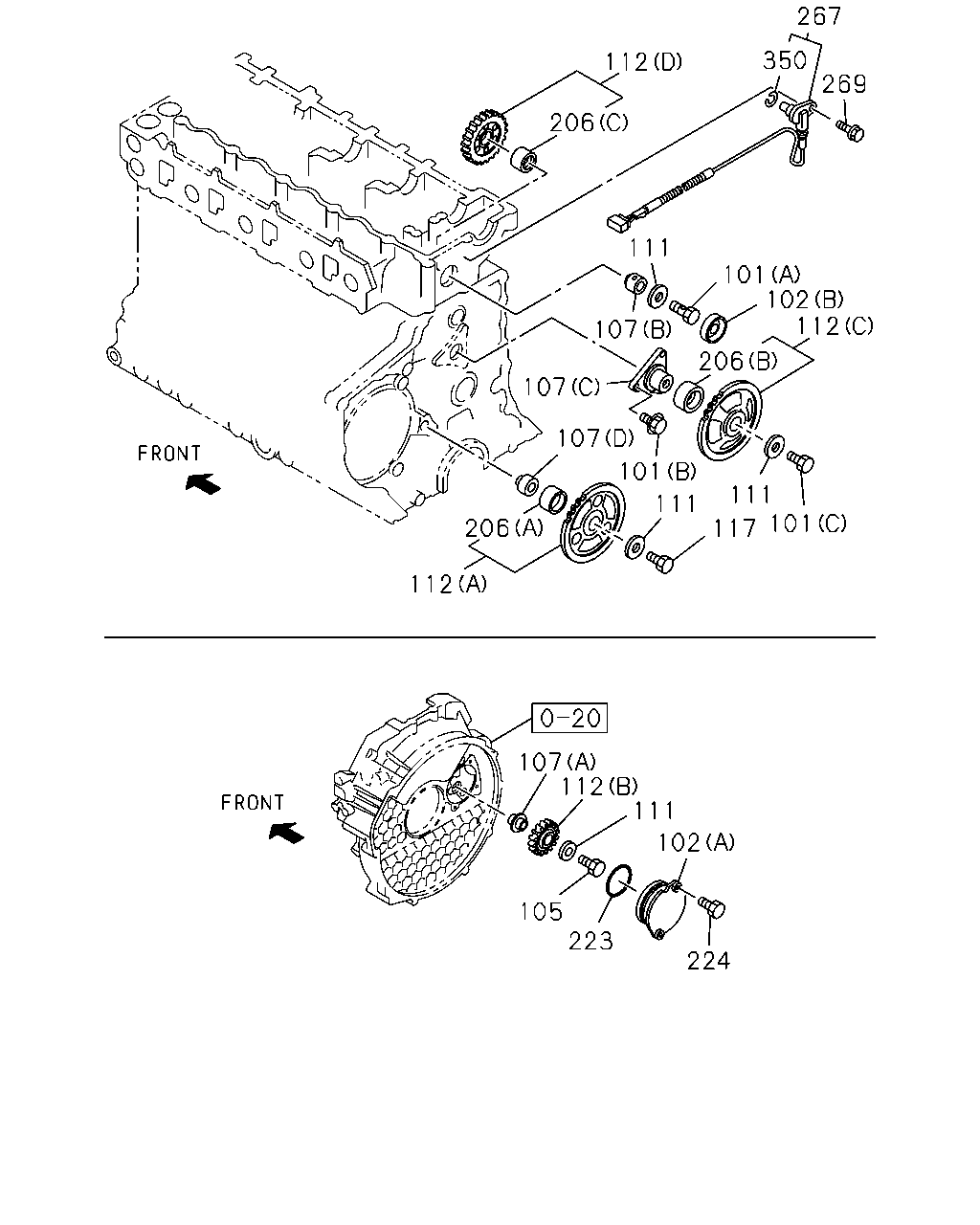

267 350 112 269 206 111 101 102 112 107 206 107 107 101 111 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0508-0509		●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0510-0512	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-	●	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0508-0509		●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0510-	●	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0508-0509		●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0510-1310	●	●	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0508-0509		●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0510-	●	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0508-0509		●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0510-	●	●	●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	9-91666-460-0	01	1	0508-0509		●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	0508-0509			●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	9-91666-460-0	01	1	0510-0512		●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	0510-0512	●		●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-		●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0601-	●		●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0508-0509		●	●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0510-0609	●	●	●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-	●	●	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0508-0509		●	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0510-	●	●	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0508-0509		●	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0510-	●	●	●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	0508-0509		●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0508-0509			●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0510-		●
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0510-	●		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0510-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0508-		●	●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0508-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0508-			●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0508-		●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0508-0509		●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	0508-0509			●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0510-		●
112	GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	0510-	●		●
112	GEAR; IDLE (C) Z=61	8-94393-439-4	01	1	0508-			●
112	GEAR; IDLE (A) Z=72-30	8-97223-189-0	01	1	0508-			●
112	GEAR; IDLE (D) Z=41	8-97300-448-0	01	1	0510-0703	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	0704-	●
112	GEAR; IDLE (A) Z=72-60-30	8-97600-586-1	01	1	0510-1402	●
112	GEAR; IDLE (A) Z=72-60-30	8-98254-970-0	01	1	1403-	●
112	GEAR; IDLE (C) Z=61	8-97600-590-0	01	1	0510-0705	●
112	GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	0706-	●
112	GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0508-		●
112	GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0508-		●	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0508-0509		●	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0510-	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0510-1402	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0706-0802	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0704-0809	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0508-		●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0508-0509		●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0510-0705	●	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0706-0802		●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0508-0509		●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0510-0703	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0704-0809		●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0508-0509		●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0510-	●	●	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0508-0509		●	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0510-0512	●	●	●
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●	●	●
267	SENSOR; CAM ANGLE	8-97329-775-1	01	1	0510-	●
269	BOLT; SENSOR M6X12 FLANGE	0-28080-612-0	01	1	0510-0512	●
269	BOLT; SENSOR M6X12 FLANGE THA	0-28050-612-0	01	1	0601-	●
350	GASKET; SENSOR,CAM ANGLE	8-97387-194-0	01	1	0510-	●

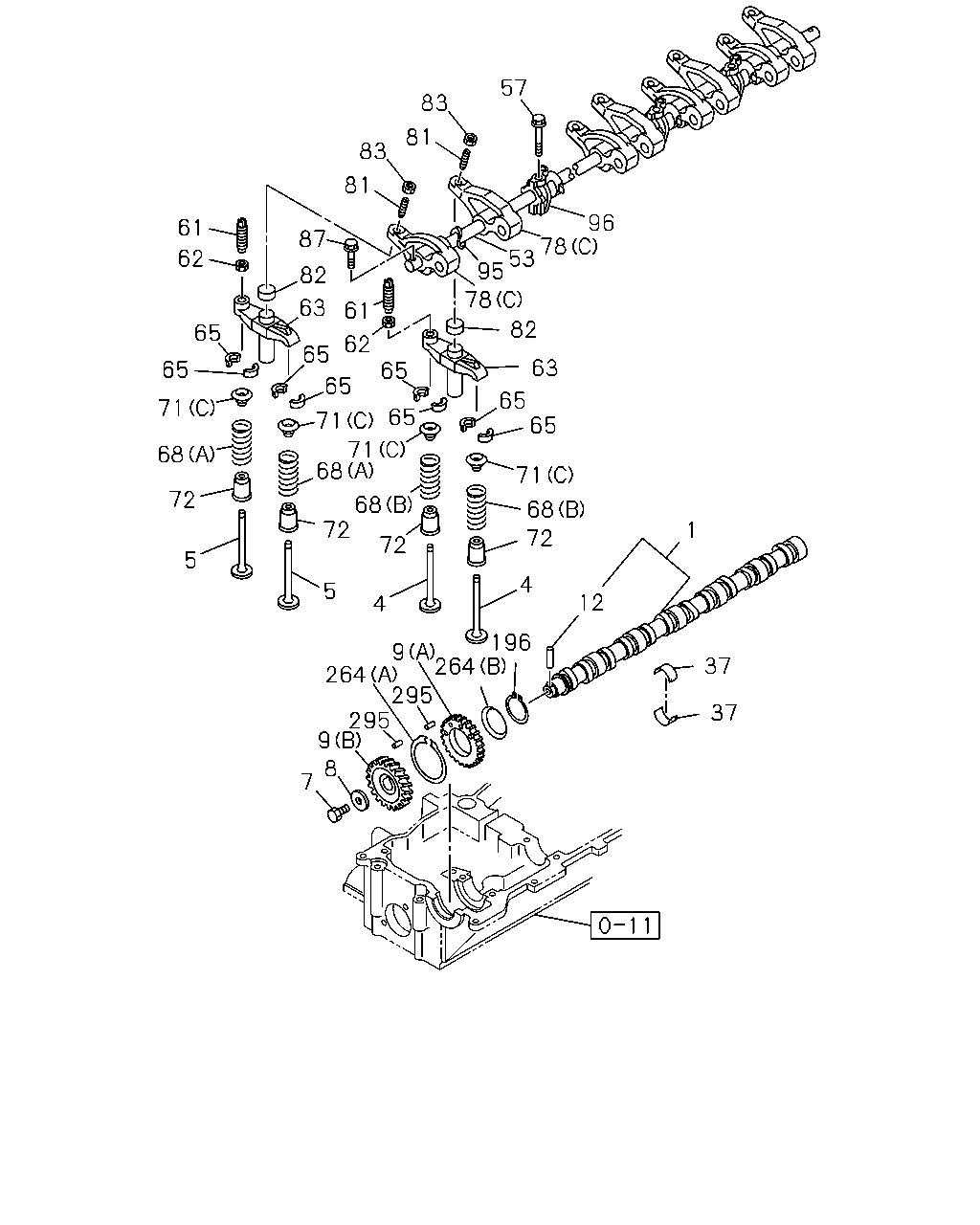

57 83 81 83 81 96 78 53 95 87 61 62 82 78 63 61 82 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 71 68 72 72 68 1 72 72 5 4 5 12 4 196 264 9 295 295 9 8 37 264 37 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	8-97262-166-0	01	1	0510-	●
1	CAMSHAFT	8-97077-829-0	01	1	0508-		●
1	CAMSHAFT	8-97077-830-0	01	1	0508-			●
4	VALVE; INL	8-94395-882-2	08	1	0510-	●
4	VALVE; INL	8-97171-398-0	04	1	0508-		●
4	VALVE; INL	8-97033-864-2	04	1	0508-			●
5	VALVE; EXH	8-97209-876-3	08	1	0510-	●
5	VALVE; EXH	8-97171-399-0	04	1	0508-		●
5	VALVE; EXH	8-97219-509-2	04	1	0508-			●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0508-0509		●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0510-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0508-0509		●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0510-	●	●	●
9	GEAR; CM/SHF (A) SUB Z=35	8-97300-972-2	01	1	0510-	●
9	GEAR; CM/SHF (B) MAIN Z=35	8-97309-327-2	01	1	0510-	●
9	GEAR; CM/SHF (C) Z=35	8-97094-440-2	01	1	0508-		●	●
12	KEY; CAM GEAR SET	8-94399-487-0	02	1	0510-	●
12	KEY; CAM GEAR SET	8-94399-487-0	01	1	0508-		●	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0508-0509		●	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0510-0706	●	●	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-	●	●	●
53	SHAFT; ROCKER ARM	8-97306-426-2	01	1	0510-0610	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0611-	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0508-		●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0508-		●	●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0510-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0510-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0510-	●
63	BRIDGE	8-94392-002-3	08	1	0510-	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	0510-	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0508-		●	●
68	SPRING; VLV (A) MARK RED	8-97210-682-0	08	1	0510-	●
68	SPRING; VLV (B) MARK BLUE	8-97352-888-0	08	1	0510-	●
68	SPRING; VLV (C) ID=28.5	8-97023-559-0	08	1	0508-		●
71	SEAT; SPR (D) ID=14.3 T=1.0	8-94391-468-0	16	1	0708-	●
71	SEAT; SPR (C) OD=32.8 T=12.75	8-94390-783-2	16	1	0510-	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0508-		●	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0508-		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97210-702-0	16	1	0510-0707	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0708-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0508-		●	●
78	ARM; ROCKER (C) INLET INLET	8-97306-421-3	04	1	0510-	●
78	ARM; ROCKER (C) EXHAUST EXHAUST	8-97306-424-3	04	1	0510-	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0508-		●	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0508-		●	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0508-		●	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0508-		●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0510-	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0508-		●	●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0510-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0510-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0508-0512		●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28080-840-0	02	1	0510-0512	●
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	0601-	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	0508-0512		●	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE THA	0-28050-835-0	02	1	0601-		●	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0510-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0508-		●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0508-		●	●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0510-	●
196	RING; SNAP ID=50.8	9-09180-055-0	01	1	0510-	●
264	SPRING; GEAR (A)	8-97190-117-1	01	1	0510-	●
264	SPRING; GEAR (B)	8-97190-118-1	01	1	0510-	●
295	PIN; CM/SHF GEAR OD=4 L=8.0	8-97213-454-0	02	1	0510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
