Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#43046) — 41 parça
Tümü
A - 4HG1-T ENG
B - 4HE1-TCS ENG
C - 4HK1-TCS ENG
◀

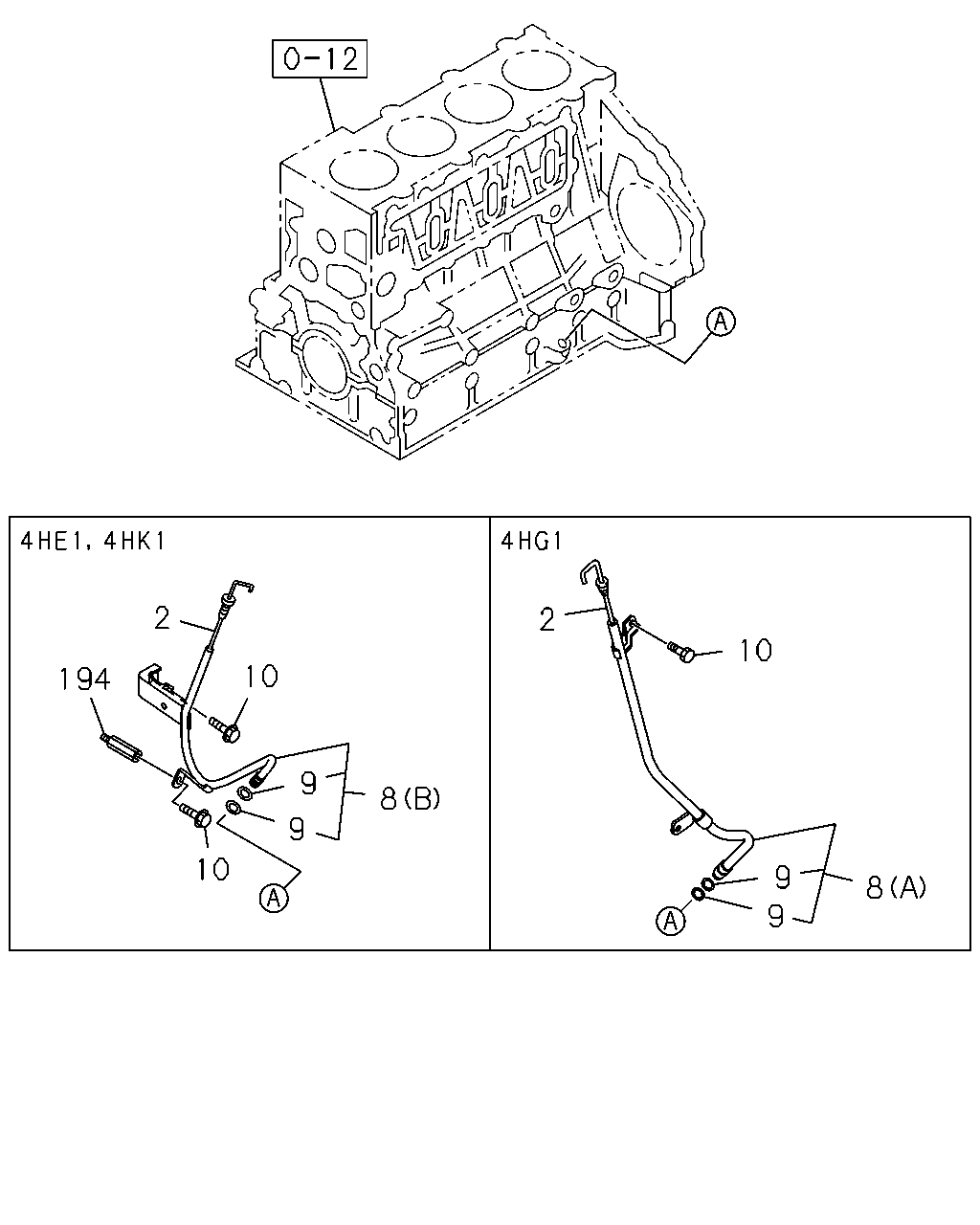

[013A] LEVEL GAUGE AND GUIDE TUBE ASM (15 parça)

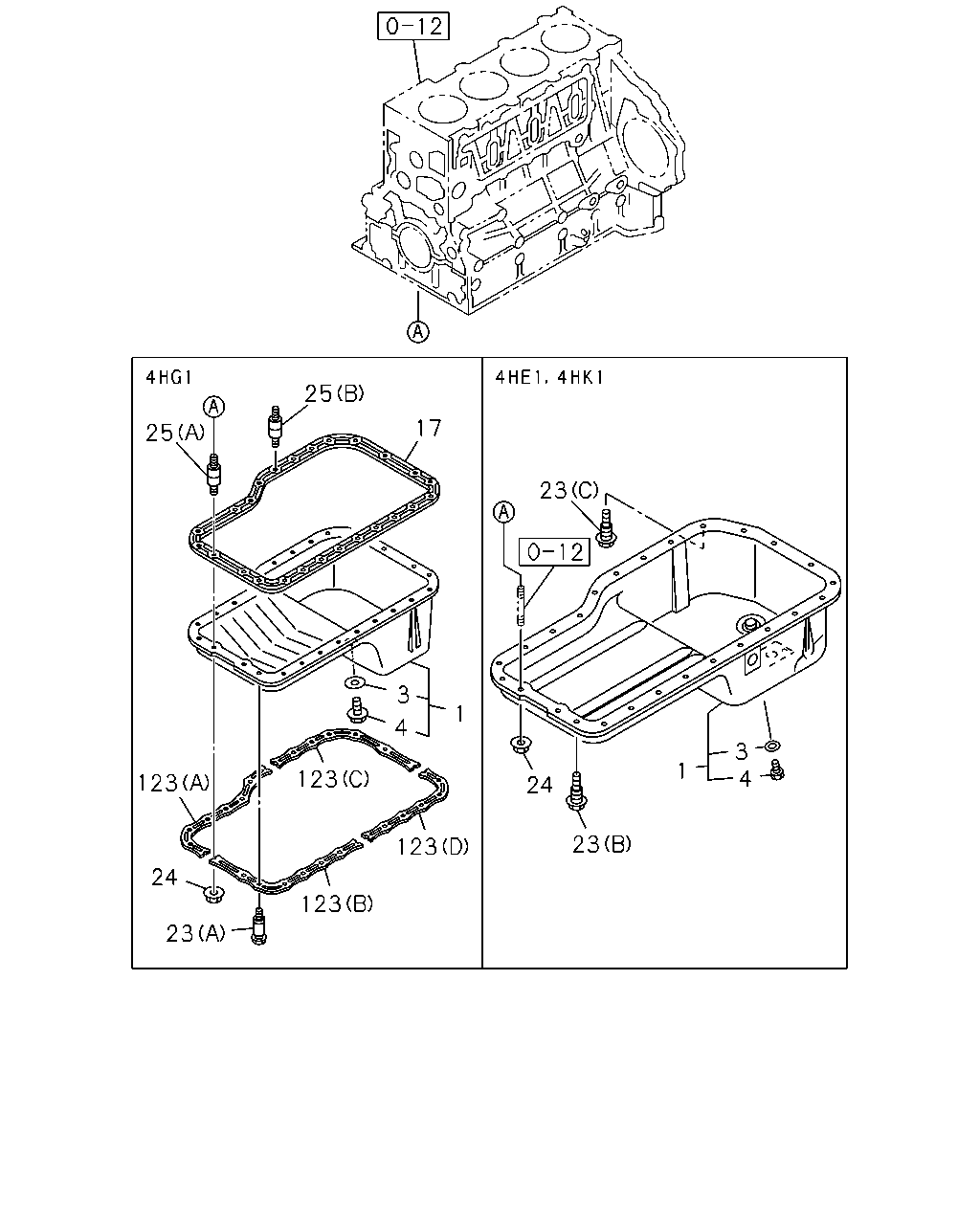

[013A] OIL PAN ASM AND OTHER PARTS (26 parça)
▶
2
2
10
10
194
9
8
9
10
9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GAUGE; OIL LEVEL
8-97094-460-2
01
1
0508-
●
2
GAUGE; OIL LEVEL
8-97019-885-1
01
1
0508-0509
●
2
GAUGE; OIL LEVEL
8-97019-885-1
01
1
0510-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-97200-567-1
01
1
0508-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-97354-831-0
01
1
0508-0509
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-97354-831-0
01
1
0510-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
5-09623-002-0
02
1
0508-
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0508-
●
10
BOLT; GUIDE TUBE
M10X110 FLANGE
0-28186-011-0
01
1
0508-0512
●
10
BOLT; GUIDE TUBE
M10X110 FLANGE
0-28156-011-0
01
1
0601-
●
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28680-820-0
02
1
0508-0509
●
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28680-820-0
02
1
0510-0512
●
●
10
BOLT; GUIDE TUBE
M8X20 FLANGE THA
0-28650-820-0
02
1
0601-
●
●
194
SPACER; GUIDE TUBE
8-97101-215-0
01
1
0508-0509
●
194
SPACER; GUIDE TUBE
8-97101-215-0
01
1
0510-
●
●
25
25
17
123
24
23
123
123
123
1
4
3
23
1
4
23
24
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PAN ASM; OIL
8-97385-249-0
01
1
0508-1202
●
1
PAN ASM; OIL
8-98203-596-0
01
1
1203-
●
1
PAN ASM; OIL
THA
8-97149-314-0
01
1
0508-0509
●
1
PAN ASM; OIL
THA
8-97149-314-0
01
1
0510-1109
●
●
1
PAN ASM; OIL
8-98191-050-0
01
1
1110-
●
●
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0508-0509
●
●
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0510-
●
●
●
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
0508-0509
●
●
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
0510-
●
●
●
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
0508-
●
23
BOLT; OIL PAN
(A) M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
0508-
●
23
BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
0508-0509
●
23
BOLT; OIL PAN
(C) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
0510-
●
●
23
BOLT; OIL PAN
(B) M8X14
8-97047-005-0
18
1
0508-0509
●
23
BOLT; OIL PAN
(B) M8X14
8-97047-005-0
18
1
0510-
●
●
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
13
1
0508-0602
●
24
NUT; OIL PAN
M8 FLANGE THA
0-91180-108-0
13
1
0603-
●
24
NUT; OIL PAN
M8 W/LK WASHER
8-94327-073-0
07
1
0508-0509
●
24
NUT; OIL PAN
M8 W/LK WASHER
8-94327-073-0
07
1
0510-0805
●
●
24
NUT; OIL PAN
M8 W/LK WASHER THA
8-97581-234-0
07
1
0806-
●
●
25
STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
0508-
●
25
STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
0508-
●
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
0508-
●
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
0508-
●
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
0508-
●
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
0508-
●
