0-12 — CYLINDER BLOCK (#43045) — 92 parça

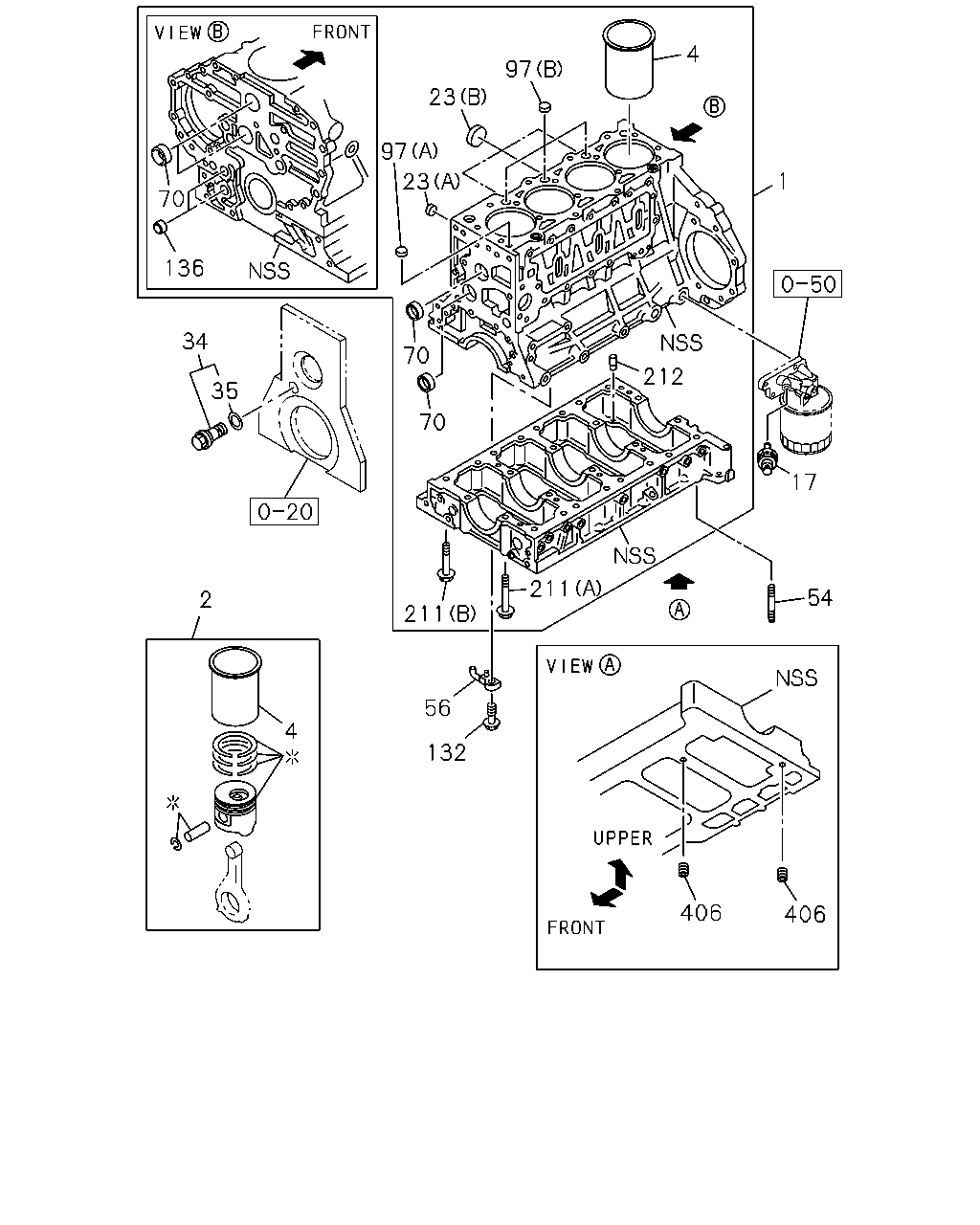

çizim 119184
211 211 56 132 406 406 54 17 212 1 4 97 23 97 23 136 34 35 2 4 70 70 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-98005-443-7 01 1 0510-1209 ●
1 BLOCK ASM; CYL 8-98204-528-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-98005-434-3 01 1 0508-1209 ●
1 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-97148-885-6 01 1 0508-1209 ●
1 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ●
2 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-579-0 04 1 0510-0706 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87815-151-3 04 1 0707- ●
2 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-580-0 04 1 0510-0706 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87815-152-3 04 1 0707- ●
2 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 0508-1112 ●
2 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 0508-1112 ●
2 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0508-0509 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87814-919-0 04 1 0510-0706 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87815-153-2 04 1 0707- ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0508-0509 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87814-920-0 04 1 0510-0706 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87815-154-2 04 1 0707- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 04 1 0510- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 04 1 0510- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 0508- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 0508- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-1 04 1 0508- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-1 04 1 0508- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-1 04 1 0508- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-1 04 1 0508- ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0508-0509 ● ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0510- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0508-0509 ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0510- ● ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0508-0509 ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0510- ● ● ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 0508-0509 ● ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 0510-0706 ● ● ●
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 0707- ● ●
35 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0508-0509 ● ●
35 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0510- ● ● ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0508-0509 ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0510- ● ●
56 JET; OIL,PISTON COOLING 8-94395-194-0 04 1 0510-0703 ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 04 1 0704-1007 ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1008- ●
56 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 0508- ●
56 JET; OIL,PISTON COOLING 8-94399-166-1 04 1 0508- ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0508-0509 ● ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0510- ● ● ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 01 1 0508-0509 ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 01 1 0510- ● ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 0508-0509 ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 0510- ● ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 0508-0509 ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 0510- ● ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0508-0509 ● ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0510-0704 ● ● ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705- ● ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0508-0509 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0510-0812 ● ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0508-0509 ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0510- ● ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0508-0509 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0510- ● ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0508-0509 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0510- ● ● ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 0508-0509 ● ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 0510- ● ● ●

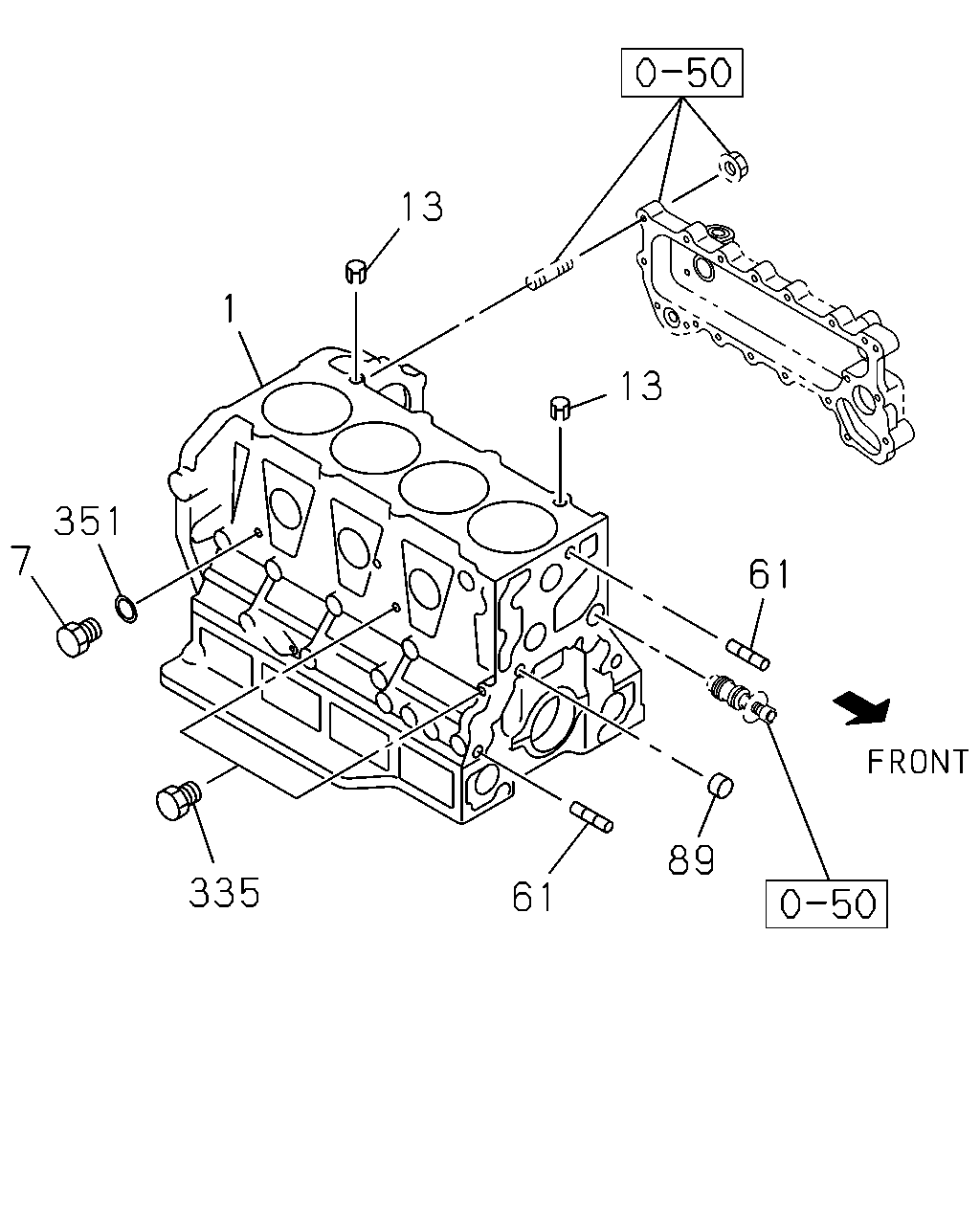

çizim 119189
89 61 61 335 351 7 1 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-98005-443-7 01 1 0510-1209 ●
1 BLOCK ASM; CYL 8-98204-528-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-98005-434-3 01 1 0508-1209 ●
1 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 BLOCK ASM; CYL 8-97148-885-6 01 1 0508-1209 ●
1 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0508-0509 ● ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0510- ● ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0508-0509 ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0510- ● ● ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0508-0509 ● ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0510- ● ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0508-0509 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0510- ● ● ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0508-0712 ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0508-0509 ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0510-0712 ● ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 02 1 0801- ● ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0508-0509 ● ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0510- ● ● ●
