◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#43044) — 144 parça

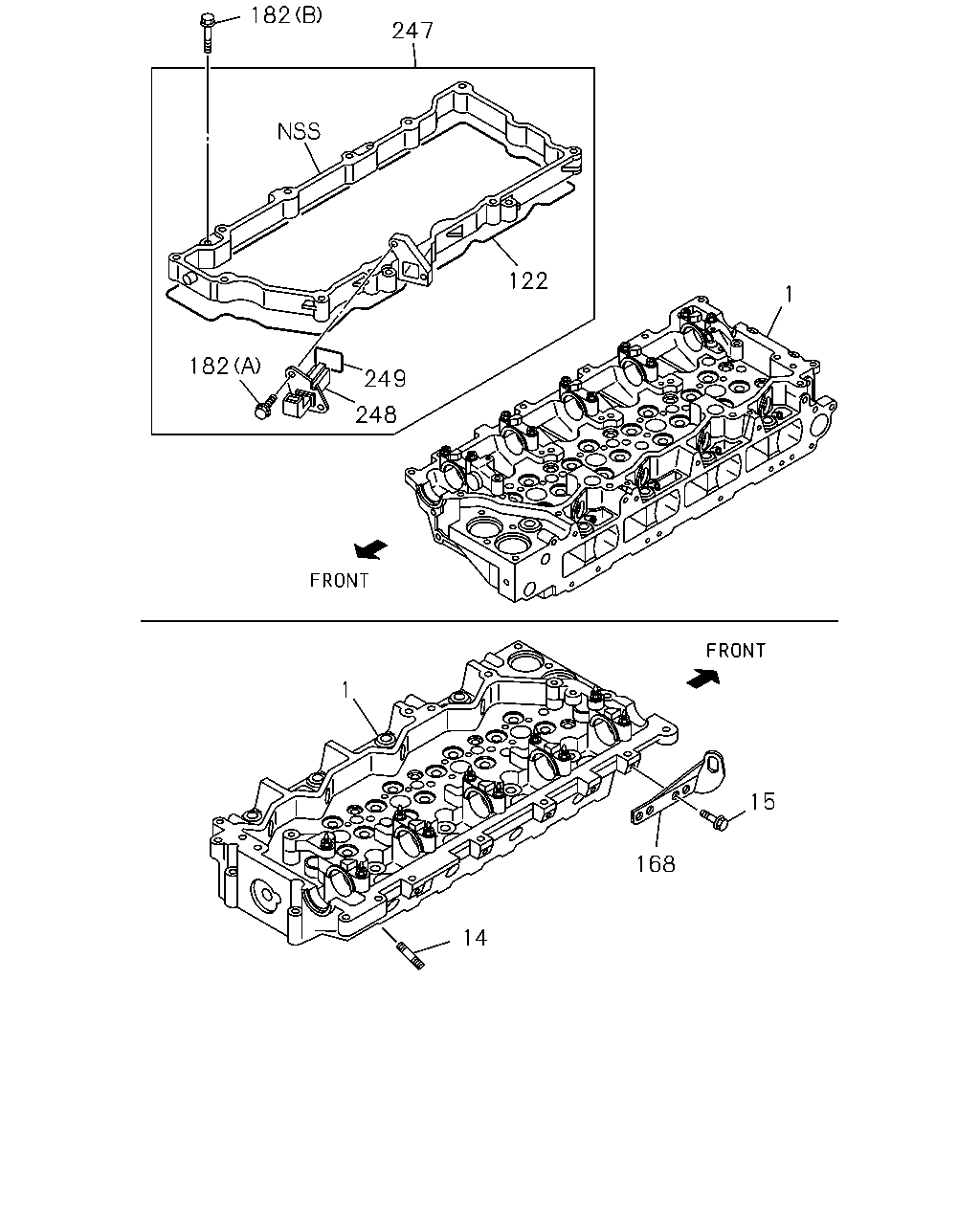

çizim 119178
182 247 122 1 182 249 248 1 15 168 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 8-97383-041-1 01 1 0510-0510 ●
1 HEAD ASM; CYL 8-98008-363-8 01 1 0511-1005 ●
1 HEAD ASM; CYL 8-98170-617-1 01 1 1006- ●
1 HEAD ASM; CYL 8-97358-368-2 01 1 0508- ●
1 HEAD ASM; CYL 8-97358-366-2 01 1 0508- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0508-0509 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0510- ● ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0508-0509 ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0510-0512 ● ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE THA 		0-28751-020-0 02 1 0601- ● ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 0510- ●
168 HANGER; ENG,FRT 8-97310-254-2 01 1 0510- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 0508- ●
168 HANGER; ENG,FRT 8-97127-373-0 01 1 0508- ●
182 BOLT; CASE
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0510-0512 ●
182 BOLT; CASE
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0601- ●
182 BOLT; CASE
(B) M8X45 FLANGE 		0-28080-845-0 04 1 0510-0512 ●
182 BOLT; CASE
(B) M8X45 FLANGE THA 		0-28050-845-0 04 1 0601- ●
247 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0510- ●
248 CONNECTOR 8-94390-858-1 01 1 0510- ●
249 GASKET; CONNECTOR 8-94391-310-0 01 1 0510- ●
çizim 119185
47 1 3 23 71 23 3 106 24 24 53 7 7 47 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 8-97383-041-1 01 1 0510-0510 ●
1 HEAD ASM; CYL 8-98008-363-8 01 1 0511-1005 ●
1 HEAD ASM; CYL 8-98170-617-1 01 1 1006- ●
1 HEAD ASM; CYL 8-97358-368-2 01 1 0508- ●
1 HEAD ASM; CYL 8-97358-366-2 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0510- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0510- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0510- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0508-0509 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0510- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0508-0509 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0510- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0508-0509 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0510- ● ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0510-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 GUIDE; VLV 8-94396-598-0 08 1 0508- ● ●
5 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-2 08 1 0510- ●
5 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 08 1 0510-0703 ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0508- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0508- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0508- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 0510- ●
7 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 0510- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0510- ●
7 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 07 1 0510- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0508- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0508- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0508- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0508-0509 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0510-0602 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE THA 		0-91180-208-0 10 1 0603- ● ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0508-0509 ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0510- ● ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0508-0509 ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0510- ● ● ●
47 STUD; CYL HD
M8X60 L=72 		0-49740-860-0 02 1 0510-0512 ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 0601- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0508- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0508- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0508- ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0508- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0508-0509 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0510-0512 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE THA 		0-28050-835-0 02 1 0601- ● ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 04 1 0508- ● ●
106 PLUG; GLOW PLUG HOLE 8-94392-236-0 04 1 0510- ●
çizim 119187
3 47 24 23 24 23 71 23 57 58 23 24 24 7 7 1 23 24 59 3 3 25 201 7 4 106 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 8-97383-041-1 01 1 0510-0510 ●
1 HEAD ASM; CYL 8-98008-363-8 01 1 0511-1005 ●
1 HEAD ASM; CYL 8-98170-617-1 01 1 1006- ●
1 HEAD ASM; CYL 8-97358-368-2 01 1 0508- ●
1 HEAD ASM; CYL 8-97358-366-2 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0510- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0510- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0510- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0508-0509 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0510- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0508-0509 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0510- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0508-0509 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0510- ● ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0510-0707 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 GUIDE; VLV 8-94396-598-0 08 1 0508- ● ●
5 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-2 08 1 0510- ●
5 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 08 1 0510-0703 ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0508- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0508- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0508- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 0510- ●
7 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 0510- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0510- ●
7 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 07 1 0510- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0508- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0508- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0508- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0508-0509 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0510-0602 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE THA 		0-91180-208-0 10 1 0603- ● ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0508-0509 ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0510- ● ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0508-0509 ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0510- ● ● ●
25 PLUG; CYL HD
M8X10 		8-98003-416-0 01 1 0510- ●
47 STUD; CYL HD
M8X60 L=72 		0-49740-860-0 02 1 0510-0512 ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 0601- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0508- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0508- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0508- ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 04 1 0510-0510 ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 04 1 0511- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.2 		8-98004-187-0 04 1 0511- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 0510- ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 0510- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0508-0509 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0510-0512 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE THA 		0-28050-835-0 02 1 0601- ● ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 04 1 0508- ● ●
106 PLUG; GLOW PLUG HOLE 8-94392-236-0 04 1 0510- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 04 1 0510- ●

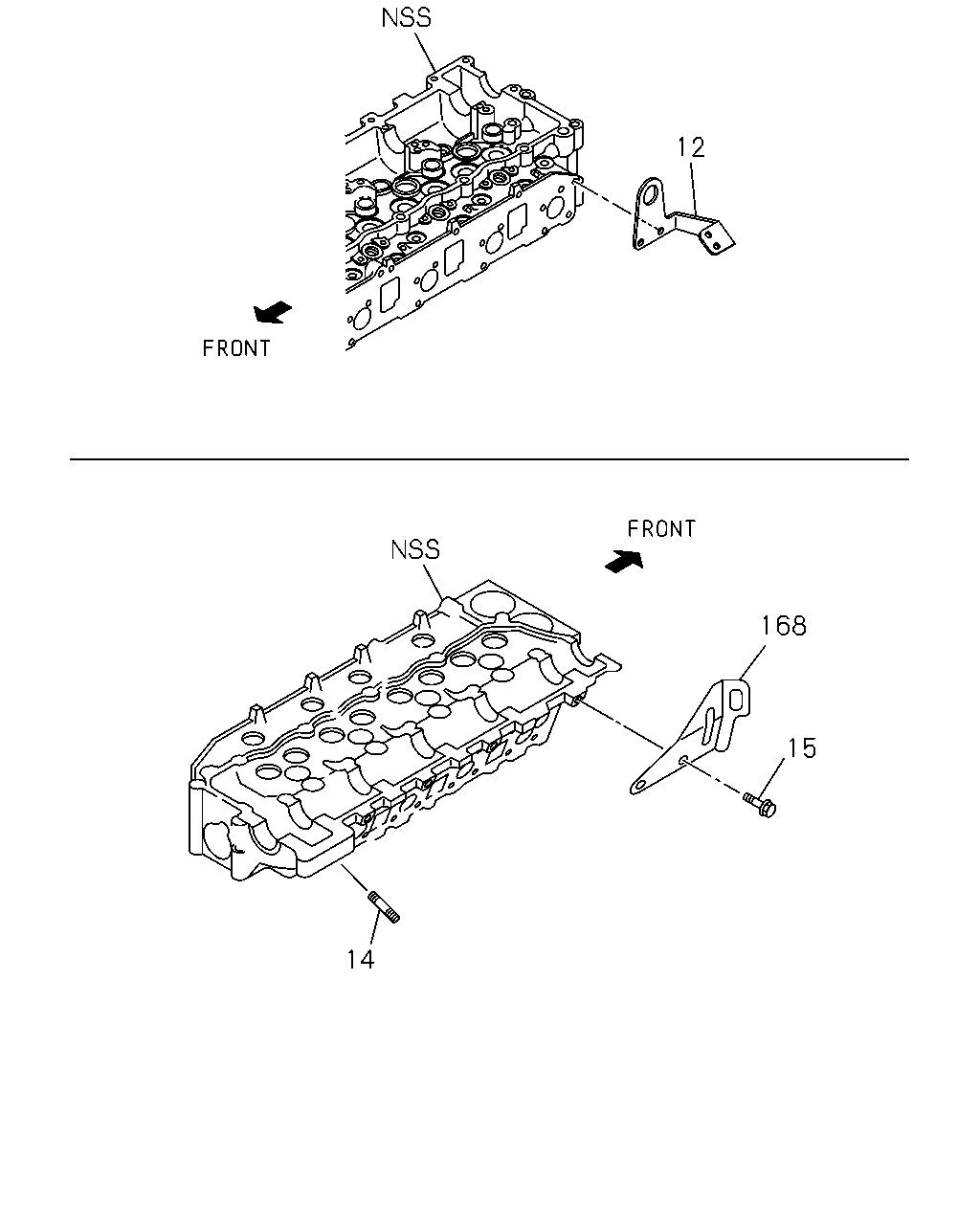

çizim 119196
12 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HANGER; ENG,RR 8-97210-326-0 01 1 0508- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0508-0509 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0510- ● ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0508-0509 ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0510-0512 ● ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE THA 		0-28751-020-0 02 1 0601- ● ● ●
168 HANGER; ENG,FRT 8-97310-254-2 01 1 0510- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 0508- ●
168 HANGER; ENG,FRT 8-97127-373-0 01 1 0508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
