◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#43042) — 81 parça

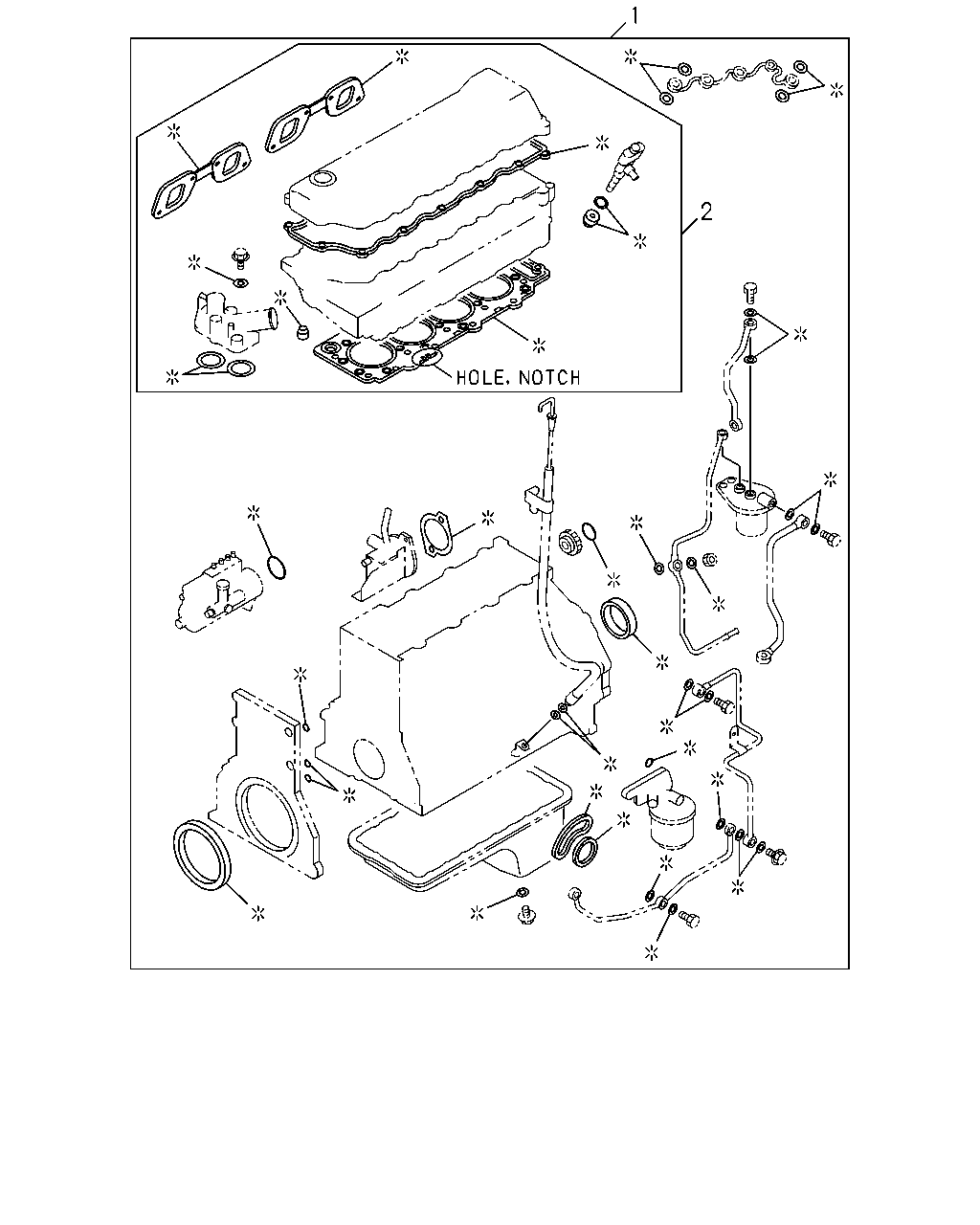

çizim 119177
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-881-2 01 1 0510-0707 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-193-1 01 1 0708-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-473-0 01 1 0903-0908 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-540-1 01 1 0909-1005 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-786-0 01 1 1006-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-792-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-999-2 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-085-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-882-2 01 1 0510-0707 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-194-1 01 1 0708-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-474-0 01 1 0903-0908 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-541-1 01 1 0909-1005 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-787-0 01 1 1006-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-793-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87816-001-2 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-086-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-883-2 01 1 0510-0707 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-195-1 01 1 0708-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-475-0 01 1 0903-0908 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-542-1 01 1 0909-1005 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-788-0 01 1 1006-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-794-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87816-002-2 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-087-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-433-2 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87815-482-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87815-712-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87815-971-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87817-076-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-434-2 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87815-483-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87815-713-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87815-972-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87817-077-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-435-2 01 1 0508-0902 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87815-484-1 01 1 0903-1006 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87815-714-0 01 1 1007-1101 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87815-973-1 01 1 1102-1312 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87817-078-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0510-0512 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0612 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-008-0 01 1 0701-0707 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-127-1 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-543-3 01 1 0909- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0510-0512 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0612 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-009-0 01 1 0701-0707 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-128-1 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-544-3 01 1 0909- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0510-0512 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0612 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-010-0 01 1 0701-0707 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-129-1 01 1 0708-0908 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-545-3 01 1 0909- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87817-079-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87817-080-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-4 01 1 0508-1312 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87817-081-0 01 1 1401- ●
