Sayfa 1-50B - Isuzu EPC

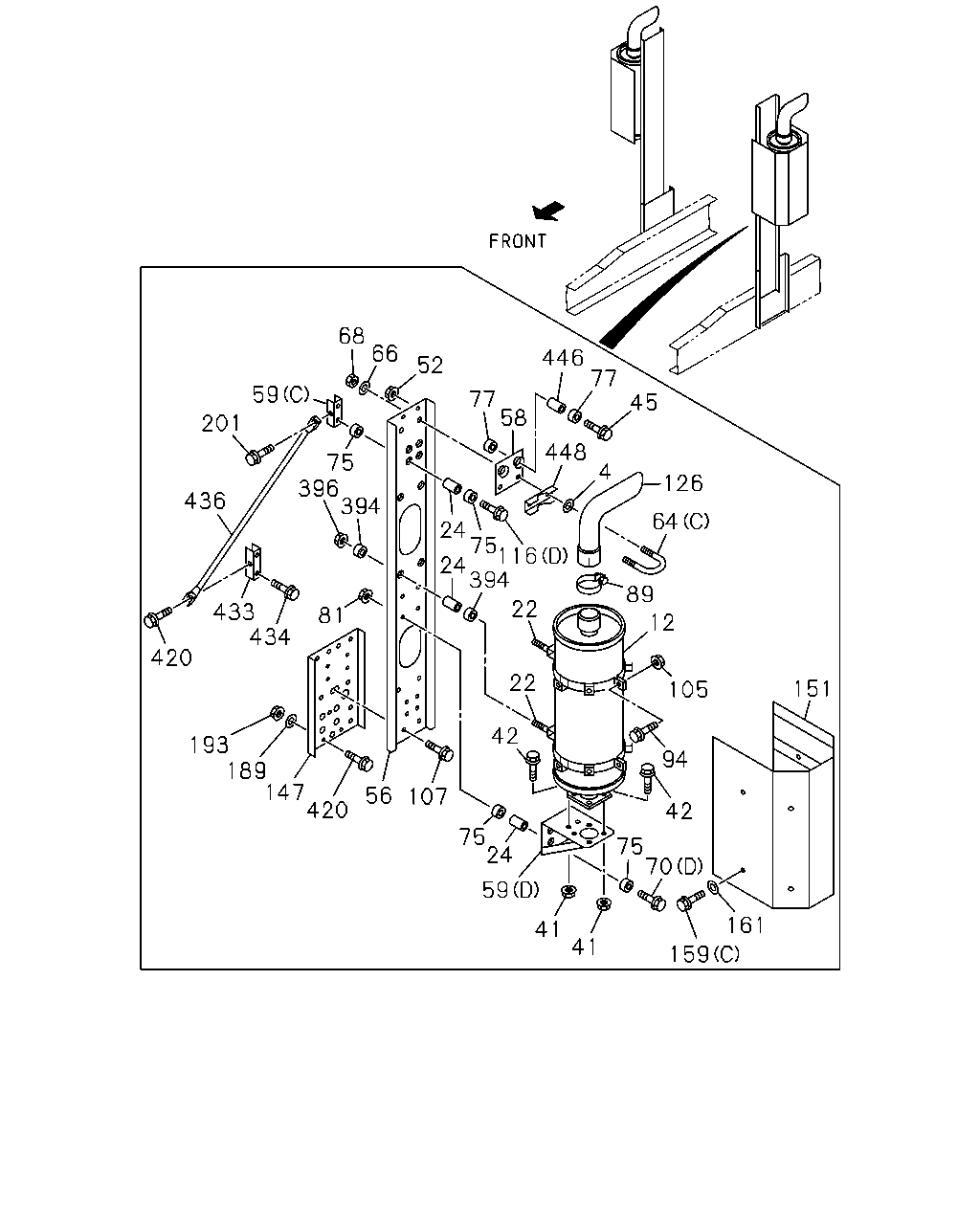

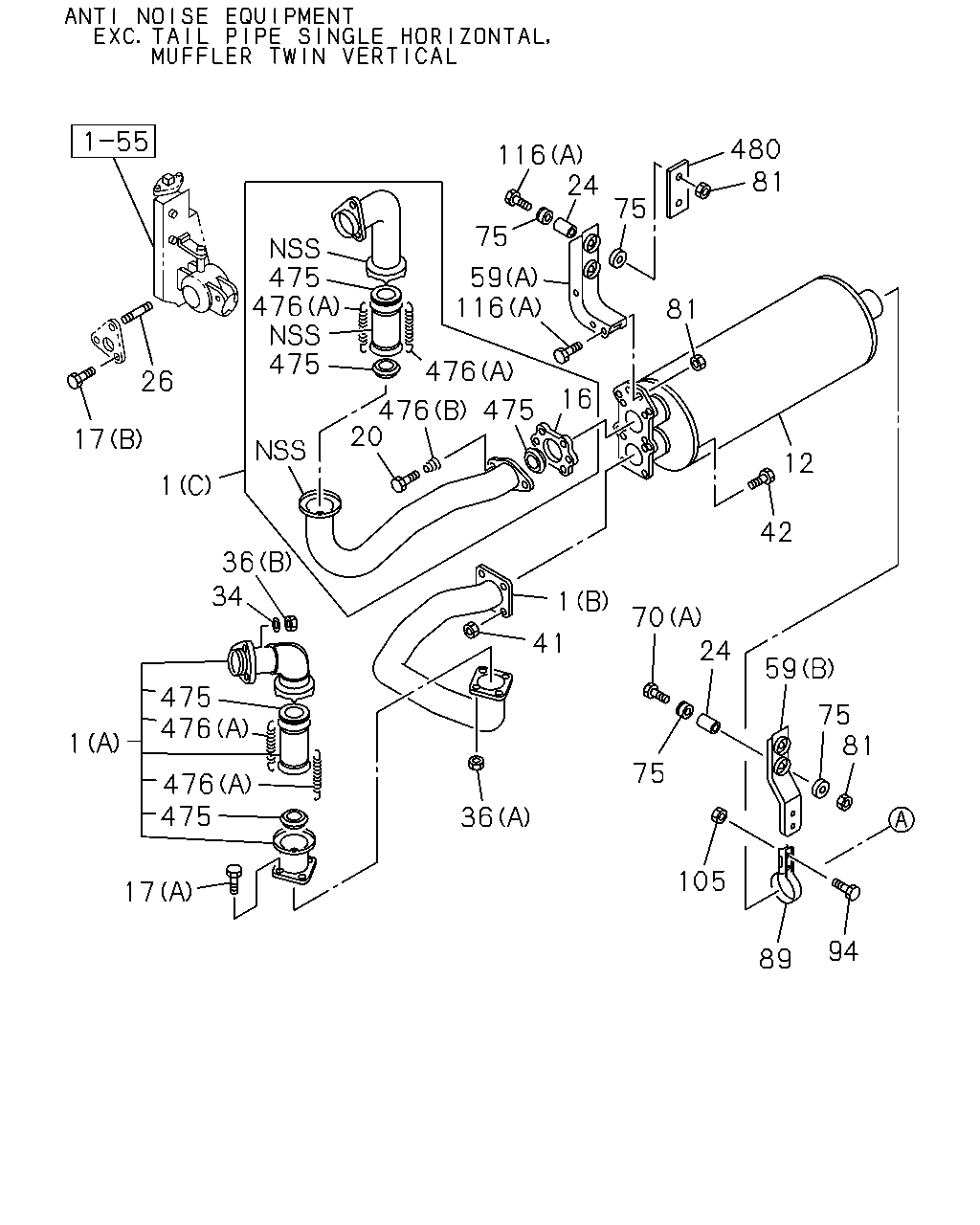

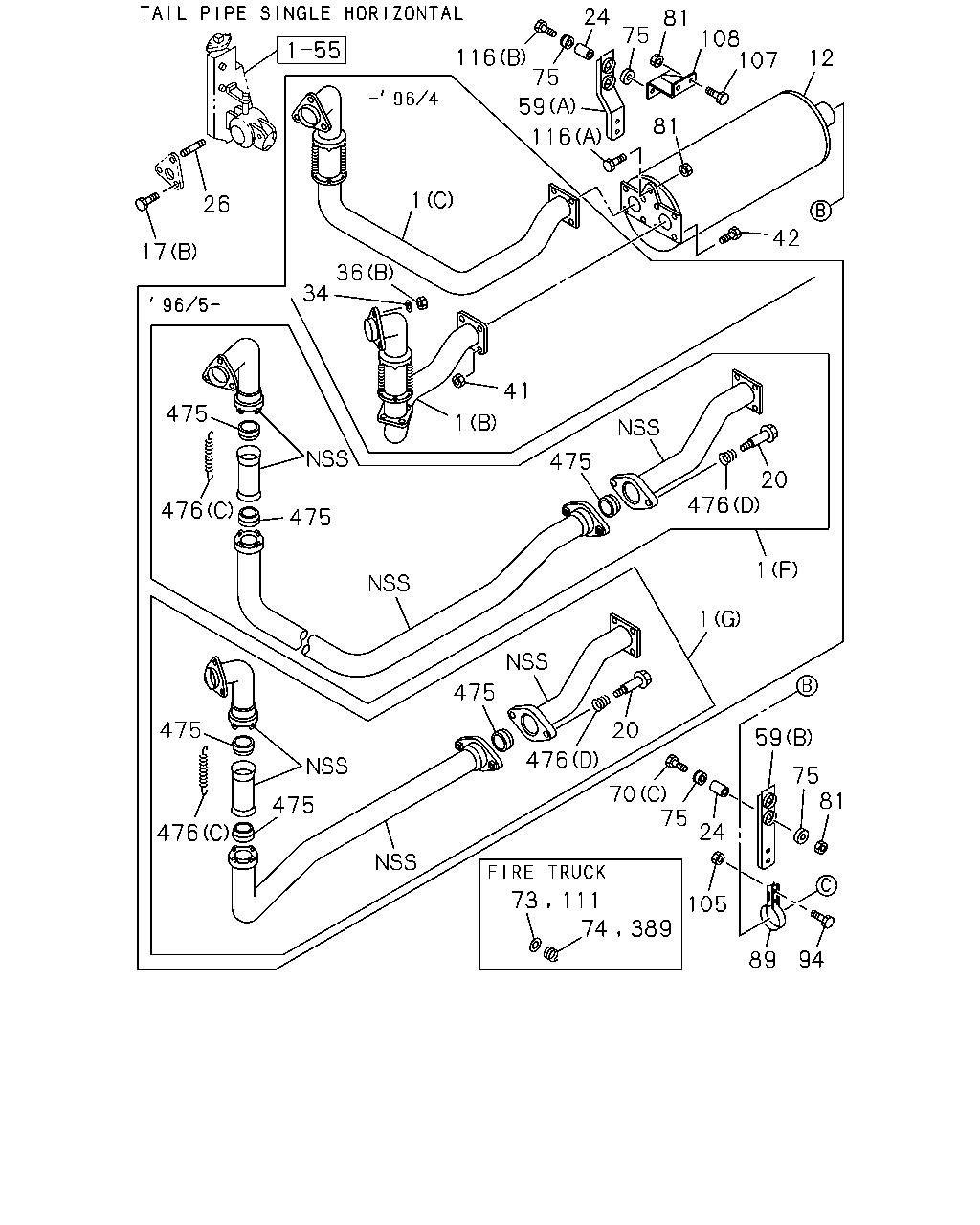

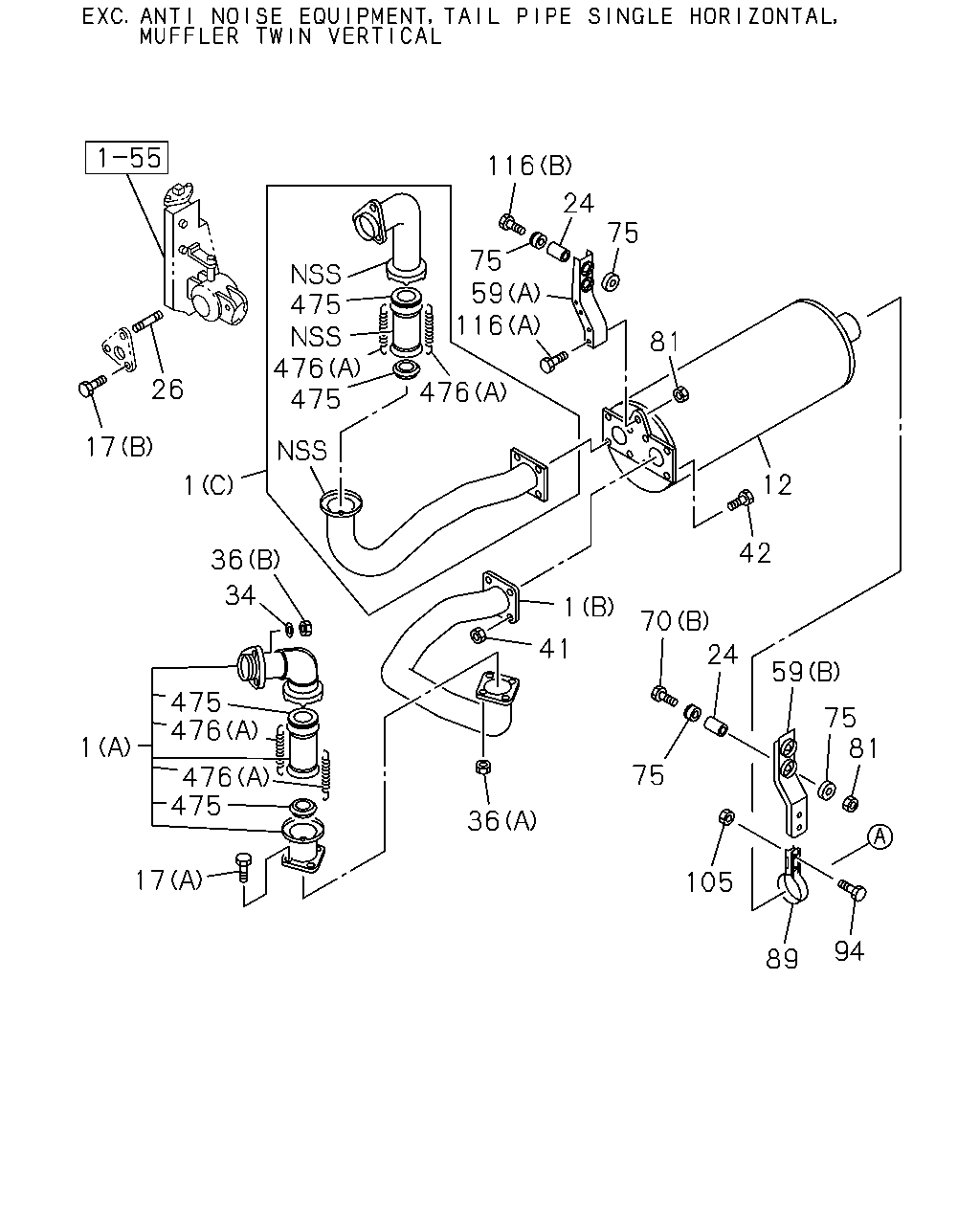

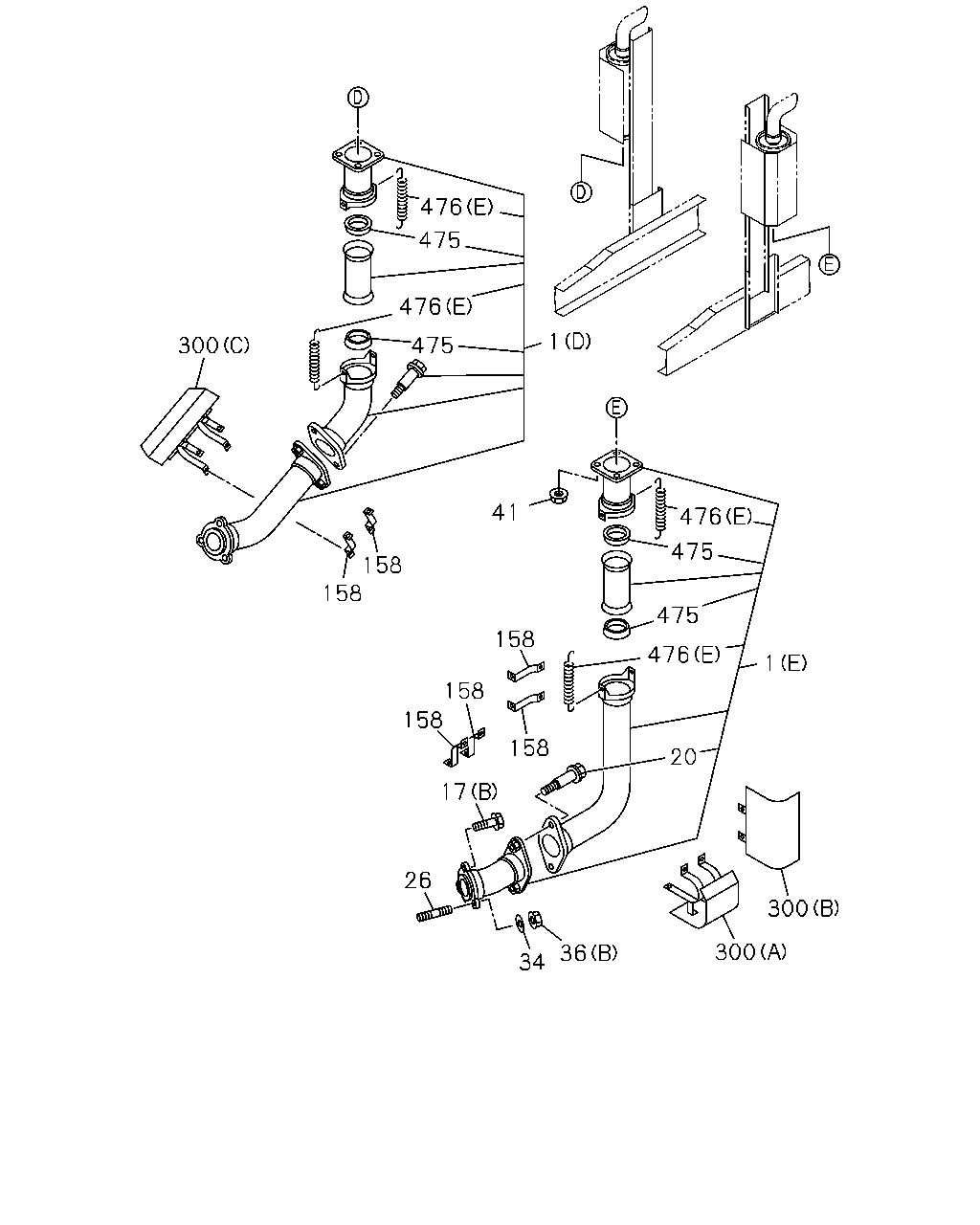

1-50B — EXHAUST PIPE AND SILENCER (#4304) — 1151 parça

116 24 75 75 59 116 475 476 475 81 26 476 17 12 1 42 36 34 1 70 24 41 59 475 476 75 81 1 75 476 475 36 17 105 94 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-300-1	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-301-1	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22122-301-1	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-503-0	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-22122-503-0	01	1	9905-	●	●	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-835-0	01	1	9605-9904		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-836-0	01	1	9605-9904		●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (D)	1-22123-247-0	01	1	9905-		●	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9905-		●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9905-		●	●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (E)	1-22123-276-0	01	1	9905-		●	●	●
12	SILENCER ASM; EXH MUFFLER TWIN VERTICAL<NBS>	1-22140-874-0	02	1	9905-		●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9905-0003	●	●	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-931-0	01	1	0004-	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-738-1	01	1	9603-9904		●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-738-1	01	1	9905-0002	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-941-2	01	1	0003-	●	●	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9604-9604	●	●
17	BOLT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9605-9904	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●
17	BOLT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-		●	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-603-0	02	1	9603-9606	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9607-9904	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9905-	●	●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●
24	COLLAR; DIST,CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> L=22	9-22159-024-0	04	1	9905-		●	●	●
24	COLLAR; DIST,CLAMP MUFFLER TWIN VERTICAL<NBS> L=25	1-14234-083-0	20	1	9905-		●	●	●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9603-9606	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9904	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9603-9606	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	08	1	9607-9610	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9611-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9605-9606	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9710-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9905-	●
36	NUT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9905-		●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9603-9807	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9904	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9912-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12	9-99110-512-0	04	1	9905-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. MUFFLER TWIN VERTICAL<NBS> M12X25 FLANGE	1-09000-604-0	08	1	9905-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12X35 FLANGE	1-09000-653-0	12	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-539-1	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-716-0	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-408-0	02	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (D)	1-22151-784-0	02	1	9905-		●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9701		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9605-9904		●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
70	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X60 FLANGE	0-28081-060-0	08	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9603-9603	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9604-9904	●	●
75	RUBBER; SUPPORT,BRKT MUFFLER TWIN VERTICAL<NBS> OD=40	1-22159-094-0	24	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,FIRE TRUCK<RA9> OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9604-9606		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9607-9706		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9707-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	08	1	9905-		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9905-	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9607-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9905-9909		●	●	●
81	NUT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9910-9912		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9603-9701		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9702-9706		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9707-9904		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-172-2	01	1	9905-9910	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-9911	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-	●	●	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9603-9605	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9606-9904	●	●
89	CLAMP; EXH SILENCER,RR EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9905-	●	●	●	●
89	CLAMP; EXH SILENCER,RR MUFFLER TWIN VERTICAL<NBS> ID=97	1-22133-043-1	02	1	9905-		●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603		●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10X40 FLANGE	0-28681-040-0	06	1	9905-		●	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904		●
105	NUT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9905-		●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
116	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	04	1	9603-9603		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904		●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-		●	●
116	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X50 FLANGE	0-28081-050-0	04	1	9905-		●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	01	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=122	1-22119-297-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9603-9604	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9605-9704	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9705-9904	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	05	1	9603-9604		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9605-9904		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	03	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	06	1	9605-		●	●
475	BEARING; SEAL,VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> OD=100.4	1-22119-374-0	04	1	9905-		●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-09583-248-0	02	1	9705-9705	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	08	1	9603-9604		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9603-9904		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09583-248-0	08	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-94141-851-0	04	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9905-9908		●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9909-9910	●	●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9911-		●	●	●

24 81 75 108 107 116 75 12 59 81 116 1 26 42 17 36 34 41 475 1 475 20 476 476 475 1 1 475 475 20 59 476 75 81 70 75 475 24 476 73 111 105 94 89 74 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-300-1	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-301-1	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22122-301-1	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-503-0	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-22122-503-0	01	1	9905-	●	●	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-835-0	01	1	9605-9904		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-836-0	01	1	9605-9904		●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (D)	1-22123-247-0	01	1	9905-		●	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9905-		●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9905-		●	●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (E)	1-22123-276-0	01	1	9905-		●	●	●
12	SILENCER ASM; EXH MUFFLER TWIN VERTICAL<NBS>	1-22140-874-0	02	1	9905-		●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9905-0003	●	●	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-931-0	01	1	0004-	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-738-1	01	1	9603-9904		●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-738-1	01	1	9905-0002	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-941-2	01	1	0003-	●	●	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9604-9604	●	●
17	BOLT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9605-9904	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●
17	BOLT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-		●	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-603-0	02	1	9603-9606	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9607-9904	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9905-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M10X51.4	8-94436-943-0	02	1	9603-9904		●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9905-9908	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9909-9910	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9911-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M10X51.4	8-94436-943-0	04	1	9605-		●	●
20	BOLT; FLANGE,EXH PIPE MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9905-		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●
24	COLLAR; DIST,CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> L=22	9-22159-024-0	04	1	9905-		●	●	●
24	COLLAR; DIST,CLAMP MUFFLER TWIN VERTICAL<NBS> L=25	1-14234-083-0	20	1	9905-		●	●	●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9603-9606	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9904	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9603-9606	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	08	1	9607-9610	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9611-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9605-9606	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9710-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9905-	●
36	NUT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9905-		●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9603-9807	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9904	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9912-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12	9-99110-512-0	04	1	9905-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. MUFFLER TWIN VERTICAL<NBS> M12X25 FLANGE	1-09000-604-0	08	1	9905-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12X35 FLANGE	1-09000-653-0	12	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-539-1	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-716-0	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-408-0	02	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (D)	1-22151-784-0	02	1	9905-		●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9701		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9605-9904		●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
70	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X60 FLANGE	0-28081-060-0	08	1	9905-		●	●	●
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9603-9904	●	●
73	WASHER; PL FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS> ID=10.5 OD=26	9-09160-710-0	06	1	9905-		●
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9603-9904	●	●
74	SPRING; BRKT FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22159-005-0	06	1	9905-		●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9603-9603	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9604-9904	●	●
75	RUBBER; SUPPORT,BRKT MUFFLER TWIN VERTICAL<NBS> OD=40	1-22159-094-0	24	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,FIRE TRUCK<RA9> OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9604-9606		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9607-9706		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9707-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	08	1	9905-		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9905-	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9607-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9905-9909		●	●	●
81	NUT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9910-9912		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9603-9701		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9702-9706		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9707-9904		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-172-2	01	1	9905-9910	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-9911	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-	●	●	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9603-9605	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9606-9904	●	●
89	CLAMP; EXH SILENCER,RR EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9905-	●	●	●	●
89	CLAMP; EXH SILENCER,RR MUFFLER TWIN VERTICAL<NBS> ID=97	1-22133-043-1	02	1	9905-		●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603		●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10X40 FLANGE	0-28681-040-0	06	1	9905-		●	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904		●
105	NUT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9905-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE	0-28681-240-0	04	1	9605-9904		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE	0-28681-240-0	04	1	9905-		●	●
107	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> M12X45 FLANGE	0-28081-245-0	08	1	9905-		●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-577-2	02	1	9605-9904		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-577-2	02	1	9905-		●
111	WASHER; PL,BRKT FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9603-9904	●	●
111	WASHER; PL,BRKT FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS> ID=10.5 OD=26	9-09160-710-0	04	1	9909-		●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
116	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	04	1	9603-9603		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904		●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-		●	●
116	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X50 FLANGE	0-28081-050-0	04	1	9905-		●	●	●
389	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	04	1	9603-9904	●	●
389	SPRING; BRKT FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22159-005-0	04	1	9905-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	01	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=122	1-22119-297-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9603-9604	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9605-9704	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9705-9904	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	05	1	9603-9604		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9605-9904		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	03	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	06	1	9605-		●	●
475	BEARING; SEAL,VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> OD=100.4	1-22119-374-0	04	1	9905-		●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-09583-248-0	02	1	9705-9705	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	08	1	9603-9604		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9603-9904		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09583-248-0	08	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-94141-851-0	04	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9905-9908		●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9909-9910	●	●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9911-		●	●	●

68 66 446 77 52 59 77 58 45 201 448 75 396 394 4 126 436 64 24 75 116 24 394 89 12 22 433 434 81 420 22 151 105 42 193 189 147 420 94 56 107 42 75 24 75 70 59 161 41 41 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	WASHER; PL,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	04	1	9605-9904		●
4	WASHER; PL,U BOLT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	04	1	9905-		●	●	●
12	SILENCER ASM; EXH MUFFLER TWIN VERTICAL<NBS>	1-22140-874-0	02	1	9905-		●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9905-0003	●	●	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-931-0	01	1	0004-	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-738-1	01	1	9603-9904		●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-738-1	01	1	9905-0002	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-941-2	01	1	0003-	●	●	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9605-9904		●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9905-		●	●
22	CLAMP; EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22133-163-0	04	1	9905-0003		●	●	●
22	CLAMP; EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22133-286-0	04	1	0004-0103		●	●	●
22	CLAMP; EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22133-290-0	04	1	0104-		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●
24	COLLAR; DIST,CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> L=22	9-22159-024-0	04	1	9905-		●	●	●
24	COLLAR; DIST,CLAMP MUFFLER TWIN VERTICAL<NBS> L=25	1-14234-083-0	20	1	9905-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12	9-99110-512-0	04	1	9905-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. MUFFLER TWIN VERTICAL<NBS> M12X25 FLANGE	1-09000-604-0	08	1	9905-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12X35 FLANGE	1-09000-653-0	12	1	9905-		●	●	●
45	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> M10X50 FLANGE	0-28081-050-0	04	1	9905-		●	●	●
52	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	04	1	9905-		●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9603-9604	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-769-0	01	1	9605-9706	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-769-0	01	1	9707-9904	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>	1-22131-769-0	01	1	9905-	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-786-0	02	1	9905-9905		●	●	●
56	BRACKET; CLAMP,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-823-0	02	1	9905-9912		●	●	●
56	BRACKET; CLAMP,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-850-0	02	1	0001-		●	●	●
58	BRACKET; EXH PIPE,RR MUFFLER TWIN VERTICAL<NBS>	1-22131-169-0	02	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-539-1	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-716-0	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-408-0	02	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (D)	1-22151-784-0	02	1	9905-		●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-033-0	01	1	9605-9904		●
64	U-BOLT; EXH PIPE,RR MUFFLER TWIN VERTICAL<NBS> (C)	1-22113-063-1	02	1	9905-		●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-061-0	02	1	9605-9904		●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-061-0	02	1	9905-		●	●
64	U-BOLT; EXH PIPE,RR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-080-0	01	1	9905-		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9604-9904		●
66	WASHER; LK,U BOLT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9905-		●	●	●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9605-9904		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9905-		●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9604-9606		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
68	NUT; U BOLT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	04	1	9905-		●	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9605-9606		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	04	1	9607-9904		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9701		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9605-9904		●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
70	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X60 FLANGE	0-28081-060-0	08	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9603-9603	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9604-9904	●	●
75	RUBBER; SUPPORT,BRKT MUFFLER TWIN VERTICAL<NBS> OD=40	1-22159-094-0	24	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,FIRE TRUCK<RA9> OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
77	RUBBER; CUSHION,BRKT MUFFLER TWIN VERTICAL<NBS> OD=40	1-22159-094-0	08	1	9905-		●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9604-9606		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9607-9706		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9707-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	08	1	9905-		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9905-	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9607-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9905-9909		●	●	●
81	NUT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9910-9912		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9603-9701		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9702-9706		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9707-9904		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-172-2	01	1	9905-9910	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-9911	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-	●	●	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9603-9605	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9606-9904	●	●
89	CLAMP; EXH SILENCER,RR EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9905-	●	●	●	●
89	CLAMP; EXH SILENCER,RR MUFFLER TWIN VERTICAL<NBS> ID=97	1-22133-043-1	02	1	9905-		●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603		●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10X40 FLANGE	0-28681-040-0	06	1	9905-		●	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904		●
105	NUT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9905-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE	0-28681-240-0	04	1	9605-9904		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE	0-28681-240-0	04	1	9905-		●	●
107	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> M12X45 FLANGE	0-28081-245-0	08	1	9905-		●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
116	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	04	1	9603-9603		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904		●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-		●	●
116	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X50 FLANGE	0-28081-050-0	04	1	9905-		●	●	●
126	PIPE; EXH,RR MUFFLER TWIN VERTICAL<NBS>	1-22123-201-0	02	1	9905-		●	●	●
147	BRACKET; VERTICAL PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-825-0	02	1	9905-9912		●	●	●
147	BRACKET; VERTICAL PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-848-0	02	1	0001-		●	●	●
151	PROTECTOR; HEAT,EXH PIPE SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9)	1-22159-303-0	01	1	9605-9904		●
151	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22159-323-0	02	1	9905-0003		●	●	●
151	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22159-337-0	02	1	0004-		●	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9605-9606	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904		●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904		●
159	BOLT; HEAT PROTECTOR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9605-9904		●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28080-830-0	02	1	9605-9606		●
159	BOLT; HEAT PROTECTOR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-		●
159	BOLT; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> (C) M8X20 FLANGE	0-28680-820-0	12	1	9905-		●	●	●
159	BOLT; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	16	1	9905-0003		●	●	●
159	BOLT; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	12	1	0004-		●	●	●
161	WASHER; PL,HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> ID=8.4 OD=22	9-09160-708-0	16	1	9905-		●	●	●
189	WASHER; PL,BRKT TO FRAME MUFFLER TWIN VERTICAL<NBS> ID=12.5 OD=32	9-09164-712-0	02	1	9905-		●	●	●
193	NUT; BRKT,VERTICAL PIPE MUFFLER TWIN VERTICAL<NBS> M12 FLANGE	0-91150-212-0	06	1	9905-		●	●	●
201	BOLT; STAY MUFFLER TWIN VERTICAL<NBS> M10X25 FLANGE	0-28681-025-0	01	1	9905-9909		●	●	●
201	BOLT; STAY MUFFLER TWIN VERTICAL<NBS> M10X25 FLANGE	0-28681-025-0	04	1	9910-		●	●	●
394	RUBBER; SUPPORT,CLAMP MUFFLER TWIN VERTICAL<NBS> OD=40	1-22159-094-0	16	1	9905-		●	●	●
396	NUT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	12	1	9905-		●	●	●
420	BOLT; BRKT,VERTICAL PIPE MUFFLER TWIN VERTICAL<NBS> M12X40 FLANGE	0-28681-240-0	06	1	9905-		●	●	●
433	BRACKET; STAY,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22119-408-0	02	1	9905-		●	●	●
434	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> M10X35 FLANGE	0-28681-035-0	04	1	9905-		●	●	●
436	STAY; SUPPORT,EXH MUFFLER TWIN VERTICAL<NBS>	1-22131-798-2	02	1	9905-		●	●	●
446	PIECE; DIST,EXH PIPE,RR MUFFLER TWIN VERTICAL<NBS> L=25	1-14234-083-0	04	1	9905-		●	●	●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-078-1	01	1	9605-9904		●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-078-1	01	1	9905-		●	●
448	PIECE; DIST,U-BOLT MUFFLER TWIN VERTICAL<NBS>	1-22113-064-0	02	1	9905-		●	●	●

480 81 116 24 75 75 475 476 475 59 116 81 476 26 16 475 476 20 17 12 1 42 36 34 1 70 24 41 59 475 476 75 81 1 75 476 475 36 105 17 94 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-300-1	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-301-1	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22122-301-1	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-503-0	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-22122-503-0	01	1	9905-	●	●	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-835-0	01	1	9605-9904		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-836-0	01	1	9605-9904		●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (D)	1-22123-247-0	01	1	9905-		●	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9905-		●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9905-		●	●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (E)	1-22123-276-0	01	1	9905-		●	●	●
12	SILENCER ASM; EXH MUFFLER TWIN VERTICAL<NBS>	1-22140-874-0	02	1	9905-		●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9603-9904	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9905-0003	●	●	●	●
12	SILENCER ASM; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22140-931-0	01	1	0004-	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-738-1	01	1	9603-9904		●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-738-1	01	1	9905-0002	●	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22140-941-2	01	1	0003-	●	●	●	●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22115-148-1	01	1	9603-9904		●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22115-148-1	01	1	9905-9908	●	●	●	●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22115-148-1	01	1	9909-9910	●	●	●	●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22115-148-1	01	1	9911-	●	●	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9604-9604	●	●
17	BOLT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9605-9904	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●
17	BOLT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-		●	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-603-0	02	1	9603-9606	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9607-9904	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9905-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M10X51.4	8-94436-943-0	02	1	9603-9904		●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9905-9908	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9909-9910	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9911-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M10X51.4	8-94436-943-0	04	1	9605-		●	●
20	BOLT; FLANGE,EXH PIPE MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9905-		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●
24	COLLAR; DIST,CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> L=22	9-22159-024-0	04	1	9905-		●	●	●
24	COLLAR; DIST,CLAMP MUFFLER TWIN VERTICAL<NBS> L=25	1-14234-083-0	20	1	9905-		●	●	●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9603-9606	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9904	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9603-9606	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	08	1	9607-9610	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9611-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9605-9606	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9710-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9905-	●
36	NUT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9905-		●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9603-9807	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9904	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9912-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12	9-99110-512-0	04	1	9905-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. MUFFLER TWIN VERTICAL<NBS> M12X25 FLANGE	1-09000-604-0	08	1	9905-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12X35 FLANGE	1-09000-653-0	12	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-539-1	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-716-0	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-408-0	02	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (D)	1-22151-784-0	02	1	9905-		●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9701		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9605-9904		●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
70	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X60 FLANGE	0-28081-060-0	08	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9603-9603	●	●
75	RUBBER; SUPPORT,BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9604-9904	●	●
75	RUBBER; SUPPORT,BRKT MUFFLER TWIN VERTICAL<NBS> OD=40	1-22159-094-0	24	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,FIRE TRUCK<RA9> OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9604-9606		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9607-9706		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9707-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	08	1	9905-		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9905-	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9607-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9905-9909		●	●	●
81	NUT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9910-9912		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9603-9701		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9702-9706		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9707-9904		●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-172-2	01	1	9905-9910	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-9911	●	●	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22133-276-0	01	1	9911-	●	●	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9603-9605	●	●
89	CLAMP; EXH SILENCER,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9606-9904	●	●
89	CLAMP; EXH SILENCER,RR EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9>	1-22133-256-0	01	1	9905-	●	●	●	●
89	CLAMP; EXH SILENCER,RR MUFFLER TWIN VERTICAL<NBS> ID=97	1-22133-043-1	02	1	9905-		●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603		●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10X40 FLANGE	0-28681-040-0	06	1	9905-		●	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904		●
105	NUT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9905-		●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
116	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	04	1	9603-9603		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904	●	●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904		●
116	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-		●	●
116	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X50 FLANGE	0-28081-050-0	04	1	9905-		●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	01	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=122	1-22119-297-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9603-9604	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9605-9704	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9705-9904	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	05	1	9603-9604		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9605-9904		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	03	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	06	1	9605-		●	●
475	BEARING; SEAL,VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> OD=100.4	1-22119-374-0	04	1	9905-		●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-09583-248-0	02	1	9705-9705	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	08	1	9603-9604		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9603-9904		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09583-248-0	08	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-94141-851-0	04	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9905-9908		●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9909-9910	●	●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9911-		●	●	●
480	SPACER; BRKT,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22131-688-0	02	1	9603-9904		●
480	SPACER; BRKT,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22131-688-0	02	1	9905-	●	●	●	●

476 475 476 1 300 475 475 41 476 158 158 475 158 476 1 158 158 158 20 17 26 300 300 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (A)	1-22122-300-1	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-22122-300-1	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-737-0	01	1	9905-	●	●	●	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9603-9604	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9605-9904	●	●
1	PIPE; EXH EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-738-0	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-301-1	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22122-301-1	01	1	9905-	●	●	●	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (C)	1-22122-503-0	01	1	9603-9904		●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-22122-503-0	01	1	9905-	●	●	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-835-0	01	1	9605-9904		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-836-0	01	1	9605-9904		●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (D)	1-22123-247-0	01	1	9905-		●	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22122-837-0	01	1	9905-		●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9605-9904		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22122-838-0	01	1	9905-		●	●
1	PIPE; EXH MUFFLER TWIN VERTICAL<NBS> (E)	1-22123-276-0	01	1	9905-		●	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9604-9604	●	●
17	BOLT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9605-9904	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●
17	BOLT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-		●	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-603-0	02	1	9603-9606	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9607-9904	●	●
17	BOLT; EXH PIPE (B) M12X120	1-09000-293-0	02	1	9905-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> M10X51.4	8-94436-943-0	02	1	9603-9904		●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9905-9908	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9909-9910	●	●	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9911-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> M10X51.4	8-94436-943-0	04	1	9605-		●	●
20	BOLT; FLANGE,EXH PIPE MUFFLER TWIN VERTICAL<NBS> M10X51.4	8-94436-943-0	02	1	9905-		●	●	●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9603-9606	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9904	●	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9603-9606	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	08	1	9607-9610	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9611-9904	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A) M12	9-99110-512-0	04	1	9603-9603	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9605-9606	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●	●
36	NUT; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9710-9904	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9905-	●
36	NUT; EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A) M12	9-99110-512-0	04	1	9905-		●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9603-9807	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9904	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9912-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER MUFFLER TWIN VERTICAL<NBS> M12	9-99110-512-0	04	1	9905-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●	●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-291-0	02	1	9605-9904		●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-291-0	02	1	9905-		●	●
158	BRACKET; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS>	1-22119-443-0	06	1	9905-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22119-290-0	01	1	9605-9904		●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22119-290-0	01	1	9905-		●	●
300	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (A)	1-22119-448-0	01	1	9905-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (B)	1-22119-449-0	01	1	9905-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-441-0	01	1	9905-		●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	01	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=122	1-22119-297-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9603-9604	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9605-9704	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9705-9904	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> OD=112	1-22119-294-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	05	1	9603-9604		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	03	1	9605-9904		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> OD=112	1-22119-294-0	03	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	06	1	9605-		●	●
475	BEARING; SEAL,VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> OD=100.4	1-22119-374-0	04	1	9905-		●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9603-9604	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-09583-248-0	02	1	9705-9705	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	08	1	9603-9604		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9605-9704	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9705-9904	●	●
476	SPRING; VIBNON,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-09583-248-0	04	1	9905-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B)	8-94141-851-0	02	1	9603-9904		●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9905-9908	●	●	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	8-94141-851-0	02	1	9909-	●	●	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09583-248-0	08	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	8-94141-851-0	04	1	9605-		●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9905-9908		●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9909-9910	●	●	●	●
476	SPRING; VIBNON,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (E)	1-09583-298-0	04	1	9911-		●	●	●

64 4 66 68 68 448 66 405 299 415 11 406 22 105 128 159 64 300 151 160 81 159 158 159 130 264 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	WASHER; PL,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	04	1	9605-9904		●
4	WASHER; PL,U BOLT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	04	1	9905-		●	●	●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-279-1	01	1	9605-9904		●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-279-1	01	1	9905-		●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9605-9904		●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9905-		●	●
22	CLAMP; EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22133-163-0	04	1	9905-0003		●	●	●
22	CLAMP; EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22133-286-0	04	1	0004-0103		●	●	●
22	CLAMP; EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22133-290-0	04	1	0104-		●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-033-0	01	1	9605-9904		●
64	U-BOLT; EXH PIPE,RR MUFFLER TWIN VERTICAL<NBS> (C)	1-22113-063-1	02	1	9905-		●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-061-0	02	1	9605-9904		●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-061-0	02	1	9905-		●	●
64	U-BOLT; EXH PIPE,RR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-080-0	01	1	9905-		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9604-9904		●
66	WASHER; LK,U BOLT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9905-		●	●	●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9605-9904		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9905-		●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9604-9606		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
68	NUT; U BOLT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	04	1	9905-		●	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9605-9606		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	04	1	9607-9904		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9604-9606		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9607-9706		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9707-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	08	1	9905-		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9905-	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9607-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9905-9909		●	●	●
81	NUT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9910-9912		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●	●	●
105	NUT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9603-9603	●	●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●	●
105	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8	9-09110-508-0	02	1	9603-9603		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606		●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904		●
105	NUT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9905-		●
128	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9603-9604	●	●
128	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9>	1-22126-170-0	01	1	9605-9904	●	●
128	PIPE; EXH,RR EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9905-	●	●	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-057-0	01	1	9603-9904		●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22126-057-0	01	1	9905-	●	●	●	●
128	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-394-0	01	1	9605-9904		●
128	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-278-0	01	1	9605-9904		●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-278-0	01	1	9905-		●	●
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	02	1	9605-9904		●
130	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
151	PROTECTOR; HEAT,EXH PIPE SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9)	1-22159-303-0	01	1	9605-9904		●
151	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22159-323-0	02	1	9905-0003		●	●	●
151	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22159-337-0	02	1	0004-		●	●	●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-291-0	02	1	9605-9904		●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-291-0	02	1	9905-		●	●
158	BRACKET; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS>	1-22119-443-0	06	1	9905-		●	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9605-9606	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904		●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904		●
159	BOLT; HEAT PROTECTOR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9605-9904		●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28080-830-0	02	1	9605-9606		●
159	BOLT; HEAT PROTECTOR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-		●
159	BOLT; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> (C) M8X20 FLANGE	0-28680-820-0	12	1	9905-		●	●	●
159	BOLT; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	16	1	9905-0003		●	●	●
159	BOLT; HEAT PROTECTOR MUFFLER TWIN VERTICAL<NBS> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	12	1	0004-		●	●	●
160	NUT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
160	NUT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9902	●	●
160	NUT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9903-		●
264	TUBE; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9605-9904		●
264	TUBE; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9905-		●	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	02	1	9604-		●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22119-290-0	01	1	9605-9904		●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22119-290-0	01	1	9905-		●	●
300	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (A)	1-22119-448-0	01	1	9905-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (B)	1-22119-449-0	01	1	9905-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-441-0	01	1	9905-		●	●	●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9605-9904		●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9905-		●	●
405	BOLT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28680-825-0	02	1	9605-9811		●
405	BOLT; DIST PIECE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	02	1	9812-9904		●
405	BOLT; DIST PIECE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
405	BOLT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	02	1	9812-9904		●
405	BOLT; DIST PIECE SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	02	1	9812-9904		●
405	BOLT; DIST PIECE LONG CHASSIS(CXZ5MF) FRAME EQUIPMENT HEAVY DUTY<F03> TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	02	1	9812-9904		●
405	BOLT; DIST PIECE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
406	NUT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
406	NUT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
406	NUT; DIST PIECE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-9905		●
406	NUT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
406	NUT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 FLANGE	0-28081-035-0	01	1	9604-9606		●
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28081-040-0	01	1	9607-		●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-078-1	01	1	9605-9904		●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-078-1	01	1	9905-		●	●
448	PIECE; DIST,U-BOLT MUFFLER TWIN VERTICAL<NBS>	1-22113-064-0	02	1	9905-		●	●	●

59 281 334 225 63 59 334 63 73 111 81 80 76 70 56 76 128 125 88 94 74 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9603-9604	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-769-0	01	1	9605-9706	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-769-0	01	1	9707-9904	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>	1-22131-769-0	01	1	9905-	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-786-0	02	1	9905-9905		●	●	●
56	BRACKET; CLAMP,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-823-0	02	1	9905-9912		●	●	●
56	BRACKET; CLAMP,EXH PIPE MUFFLER TWIN VERTICAL<NBS>	1-22151-850-0	02	1	0001-		●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B) L=292	1-22151-395-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9603-9604	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9605-9904	●	●
59	BRACKET; EXH SILENCER,FRT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-715-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-539-1	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-22151-539-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-716-0	01	1	9603-9904		●
59	BRACKET; EXH SILENCER,FRT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-22151-716-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9605-9904		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-599-0	01	1	9905-		●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (C)	1-22119-408-0	02	1	9905-		●	●	●
59	BRACKET; EXH SILENCER,FRT MUFFLER TWIN VERTICAL<NBS> (D)	1-22151-784-0	02	1	9905-		●	●	●
63	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=44.3	1-14149-170-1	01	1	9606-9904	●	●
63	TUBE; DIST,BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> L=44.3	1-14149-170-1	01	1	9905-	●	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603	●	●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606	●	●
70	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904	●	●
70	BOLT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,ANTI NOISE EQUIPMENT<SV9> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9701		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9605-9904		●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X30 FLANGE	0-28680-830-0	02	1	9905-		●
70	BOLT; BRKT MUFFLER TWIN VERTICAL<NBS> (D) M10X60 FLANGE	0-28081-060-0	08	1	9905-		●	●	●
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9603-9904	●	●
73	WASHER; PL FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS> ID=10.5 OD=26	9-09160-710-0	06	1	9905-		●
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9603-9904	●	●
74	SPRING; BRKT FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22159-005-0	06	1	9905-		●
76	SUPPORT; BRKT EXC. FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9603-9603	●	●
76	SUPPORT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9604-9904	●	●
76	SUPPORT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,FIRE TRUCK<RA9> OD=40	1-22159-193-0	02	1	9905-	●	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9603-9603	●	●
80	COLLAR; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	01	1	9604-9904	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9905-	●
80	COLLAR; DIST,SUPPORT RUBBER EXC. MUFFLER TWIN VERTICAL<NBS> L=22	9-22159-024-0	01	1	9905-		●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	05	1	9603-9603		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9604-9606		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9607-9706		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9707-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	08	1	9905-		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9905-	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	01	1	9905-		●	●	●
81	NUT; BRKT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	03	1	9603-9603	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9604-9606	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-508-0	02	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9605-9606		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9607-9904		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9905-9909		●	●	●
81	NUT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	9910-9912		●
81	NUT; BRKT MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●	●	●
88	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT<SV9> D=101.4	1-22133-170-1	01	1	9603-9904		●
88	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> D=101.4	1-22133-170-1	01	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603		●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9904	●	●
94	BOLT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP EXC. ANTI NOISE EQUIPMENT<SV9> M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9603	●	●
94	BOLT; CLAMP MUFFLER TWIN VERTICAL<NBS> M10X40 FLANGE	0-28681-040-0	06	1	9905-		●	●	●
111	WASHER; PL,BRKT FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9603-9904	●	●
111	WASHER; PL,BRKT FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS> ID=10.5 OD=26	9-09160-710-0	04	1	9909-		●
125	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9604-9606	●	●
125	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
125	NUT; CLAMP EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
125	NUT; CLAMP M8	9-09110-508-0	02	1	9603-9603	●	●
128	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9603-9604	●	●
128	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9>	1-22126-170-0	01	1	9605-9904	●	●
128	PIPE; EXH,RR EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>	1-22126-170-0	01	1	9905-	●	●	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9>	1-22126-057-0	01	1	9603-9904		●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22126-057-0	01	1	9905-	●	●	●	●
128	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-394-0	01	1	9605-9904		●
128	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-278-0	01	1	9605-9904		●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-278-0	01	1	9905-		●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9603-9606	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9>	1-22119-352-0	01	1	9607-9904	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22119-352-0	01	1	9905-9910	●	●	●	●
225	PROTECTOR; HEAT ANTI NOISE EQUIPMENT<SV9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22119-352-0	01	1	9911-	●	●	●	●
225	PROTECTOR; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-22119-351-0	01	1	9603-9604	●	●
225	PROTECTOR; HEAT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISEEQUIPMENT<SV9>	1-22119-351-0	01	1	9605-9904	●	●
225	PROTECTOR; HEAT EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>	1-22119-351-0	01	1	9905-	●	●	●	●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9603-9604	●	●
281	NUT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	01	1	9605-9606	●	●
281	NUT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
281	NUT; HEAT PROTECTOR EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9603-9604	●	●
334	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X70 FLANGE	0-28080-870-0	01	1	9605-9904	●	●
334	BOLT; HEAT PROTECTOR EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLEHORIZONTAL<NC2> M8X70 FLANGE	0-28080-870-0	01	1	9905-	●	●	●	●
389	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	04	1	9603-9904	●	●
389	SPRING; BRKT FIRE TRUCK<RA9> EXC. MUFFLER TWIN VERTICAL<NBS>	1-22159-005-0	04	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
