◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶

8-40 — HEATER SYSTEM (#43034) — 14 parça

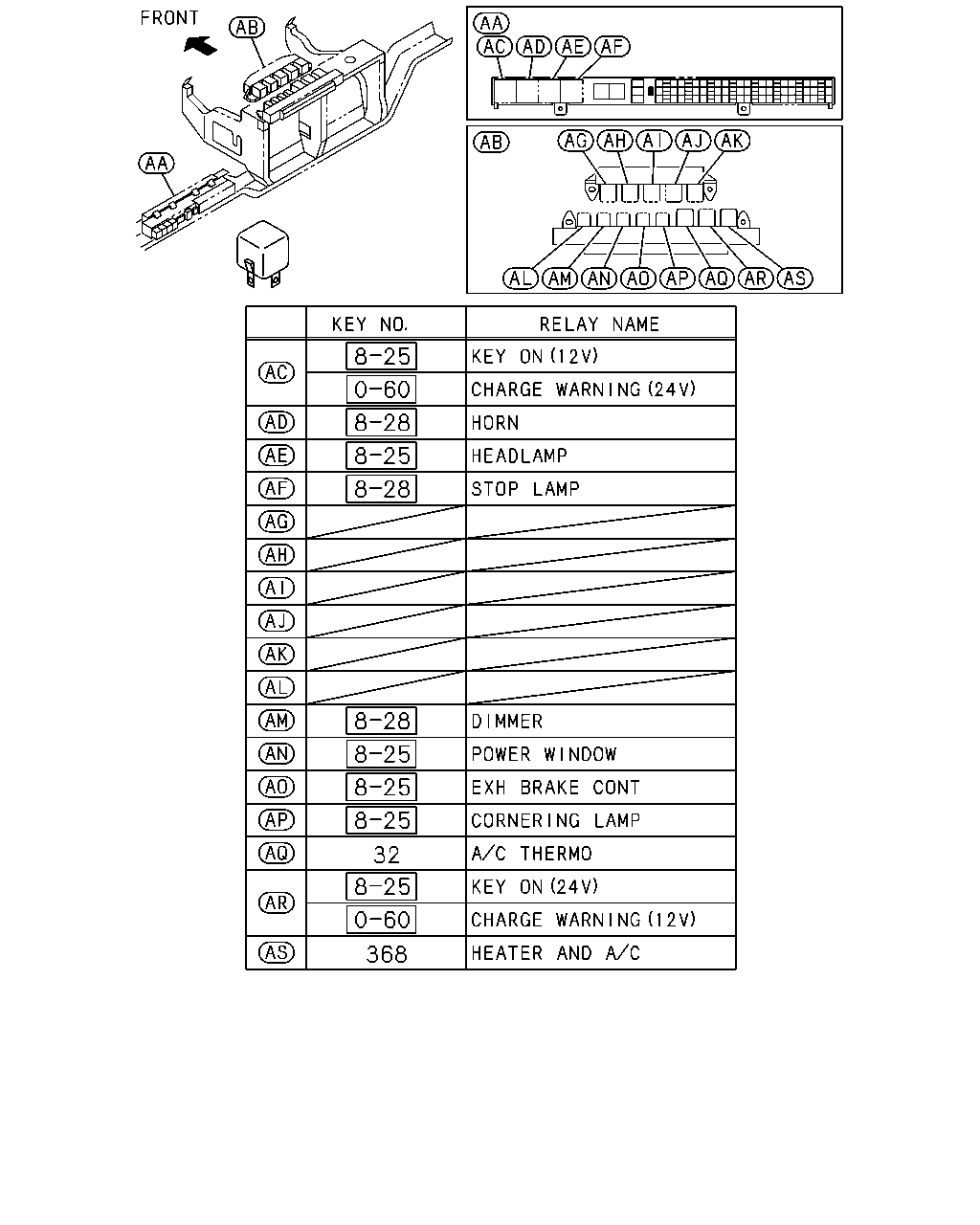

çizim 119067

32 368

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	32	RELAY; A/C AIR CONDITIONER MANUAL CONT<C60> 12V 20A THA	8-97060-926-1	01	1	0508-	●	●
	32	RELAY; A/C AIR CONDITIONER MANUAL CONT<C60> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0508-			●
	123	SCREW; DUCT M5X12 TAPPING	0-72180-512-0	02	1	0701-	●	●	●
	317	SCREW; DEFROSTER NOZZLE M5X12 TAPPING	0-72180-512-0	05	1	0701-	●	●	●
	368	RELAY; HEATER AND A/C 12V 20A THA	8-97060-926-1	01	1	0508-	●	●
	368	RELAY; HEATER AND A/C 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0508-			●

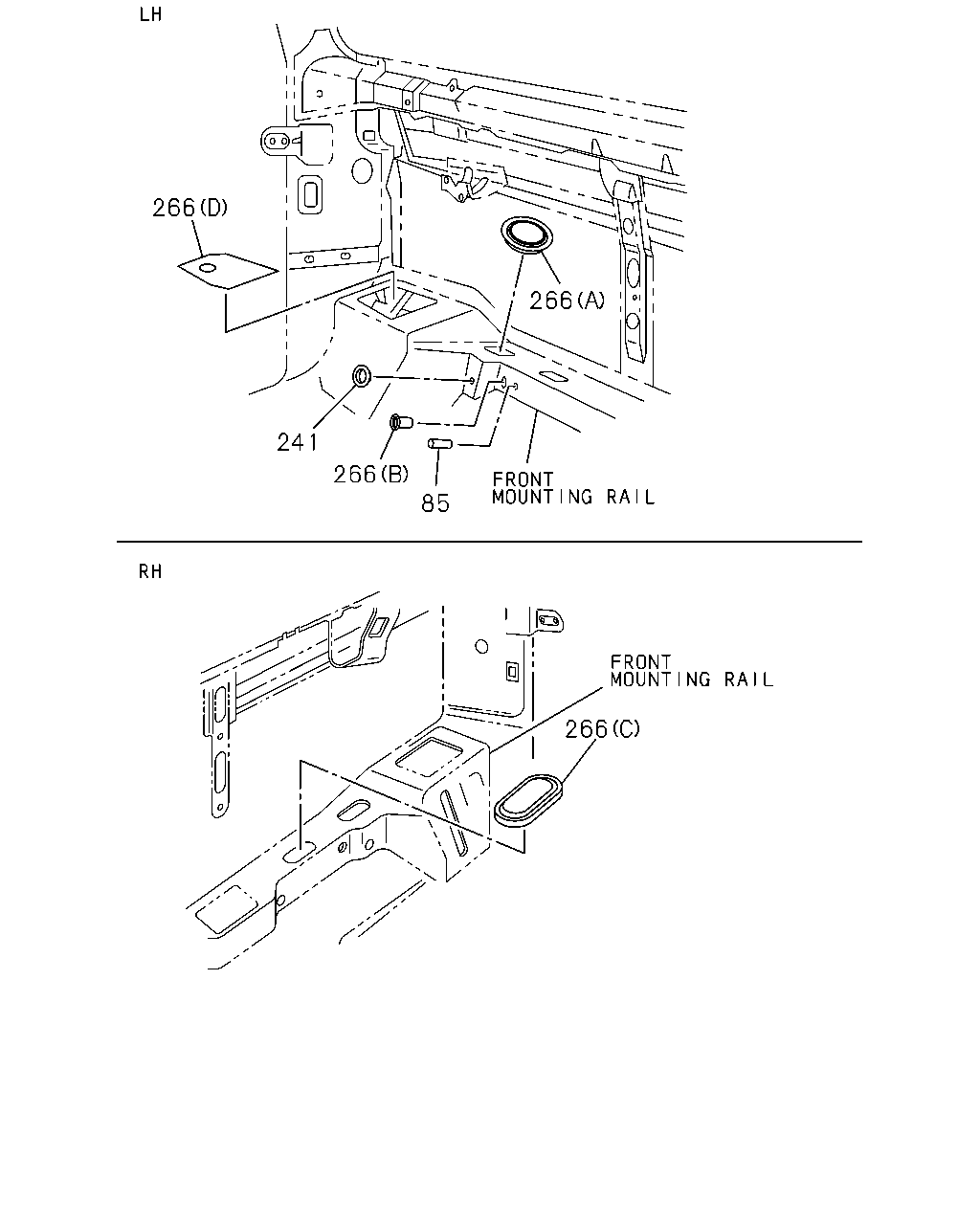

çizim 119077

266 266 241 266 85 266

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	85	SEAL; HTR UNIT THA	8-97916-502-0	02	1	0508-	●	●	●
	123	SCREW; DUCT M5X12 TAPPING	0-72180-512-0	02	1	0701-	●	●	●
	241	PLUG; RUBBER,EVAP DRAIN HOLE	8-97037-392-0	01	1	0508-	●	●	●
	266	PLUG; HTR HOLE (A) H=78 B=37	8-97036-019-0	01	1	0508-	●	●	●
	266	PLUG; HTR HOLE (C) H=69.5 B=29.5	8-97036-020-0	01	1	0508-	●	●	●
	266	PLUG; HTR HOLE (D) THA	8-97917-228-0	01	1	0508-	●	●	●
	266	PLUG; HTR HOLE (B) THA	8-97917-405-0	01	1	0508-	●	●	●
	317	SCREW; DEFROSTER NOZZLE M5X12 TAPPING	0-72180-512-0	05	1	0701-	●	●	●
