◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#43033) — 34 parça

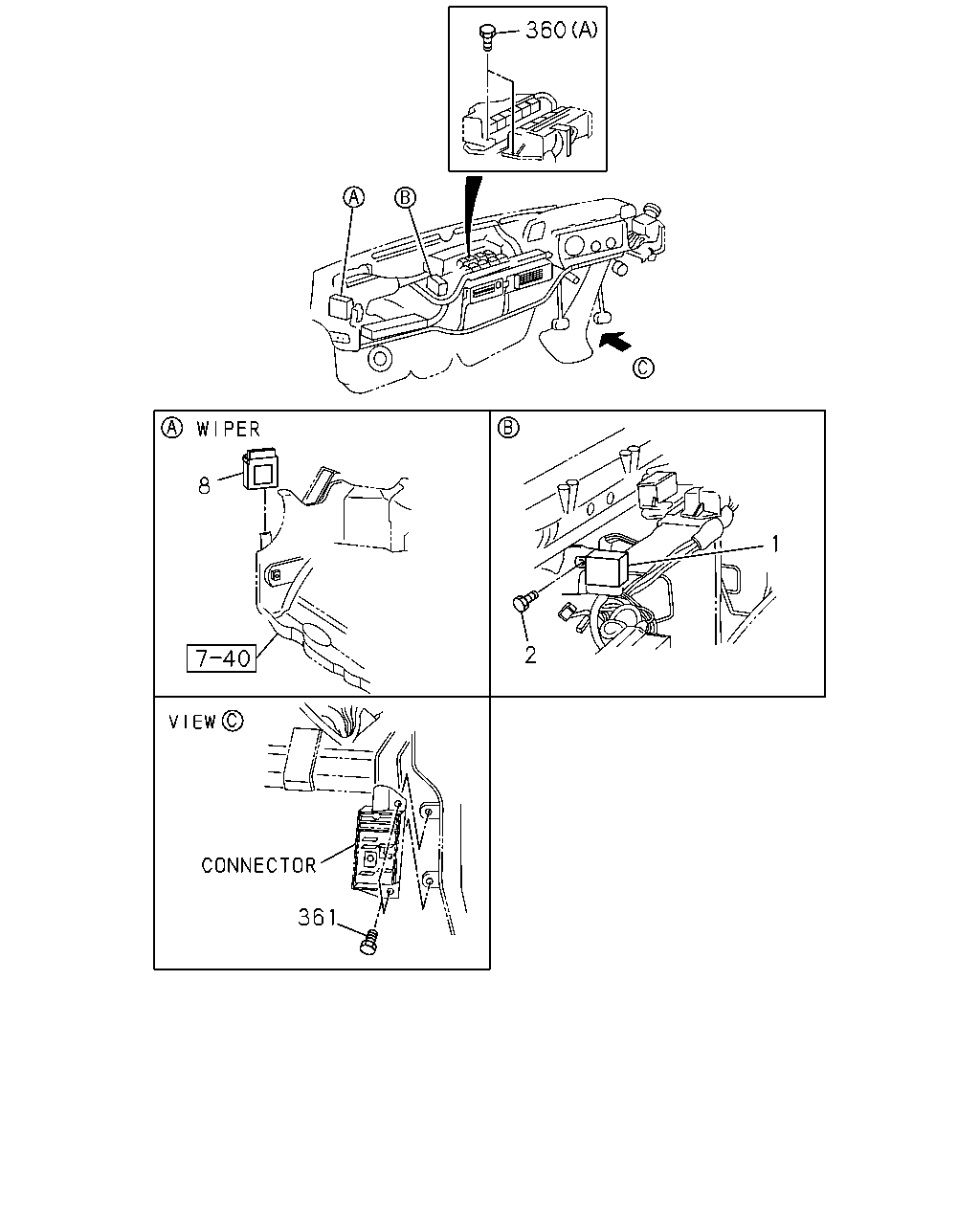

çizim 119062
360 8 1 2 361
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-97228-398-0 01 1 0508- ● ●
1 UNIT; FLASHER 8-97360-084-1 01 1 0508- ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER THA 		8-94139-963-0 01 1 0508-1210 ● ● ●
2 BOLT; FLASHER UNIT
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0508- ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0508- ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER THA 		8-94139-963-0 02 1 0508-1210 ● ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0508-0611 ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ● ● ●
360 BOLT; RELAY BOX
4HG1-T ENG<RDP> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0508-0611 ●
360 BOLT; RELAY BOX
4HG1-T ENG<RDP> (B) M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0508-1210 ● ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ●

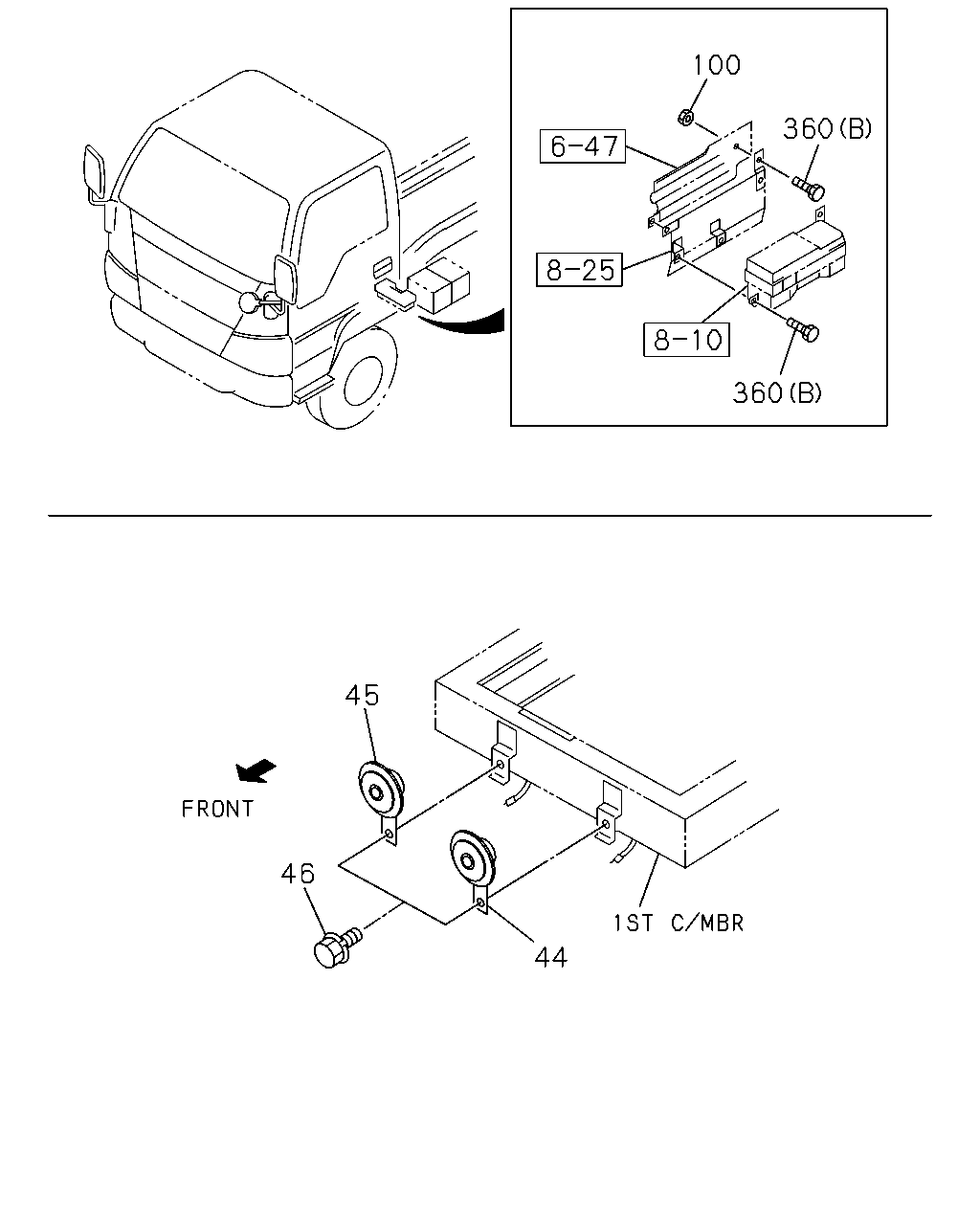

çizim 119066
100 360 360 45 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-355-0 01 1 0508- ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-356-0 01 1 0508- ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-358-0 01 1 0508- ● ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> THA 		8-97910-357-0 01 1 0508- ●
46 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0508- ● ● ●
46 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0508- ● ● ●
100 NUT; RELAY BOX COVER
4JB1-TC ENG<RDT> M8 FLANGE 		0-91150-108-0 03 1 0508- ● ●
100 NUT; RELAY BOX COVER
4HG1-T ENG<RDP> M8 FLANGE 		0-91150-108-0 02 1 0508- ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER THA 		8-94139-963-0 02 1 0508-1210 ● ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0508-0611 ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ● ● ●
360 BOLT; RELAY BOX
4HG1-T ENG<RDP> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0508-0611 ●
360 BOLT; RELAY BOX
4HG1-T ENG<RDP> (B) M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ●

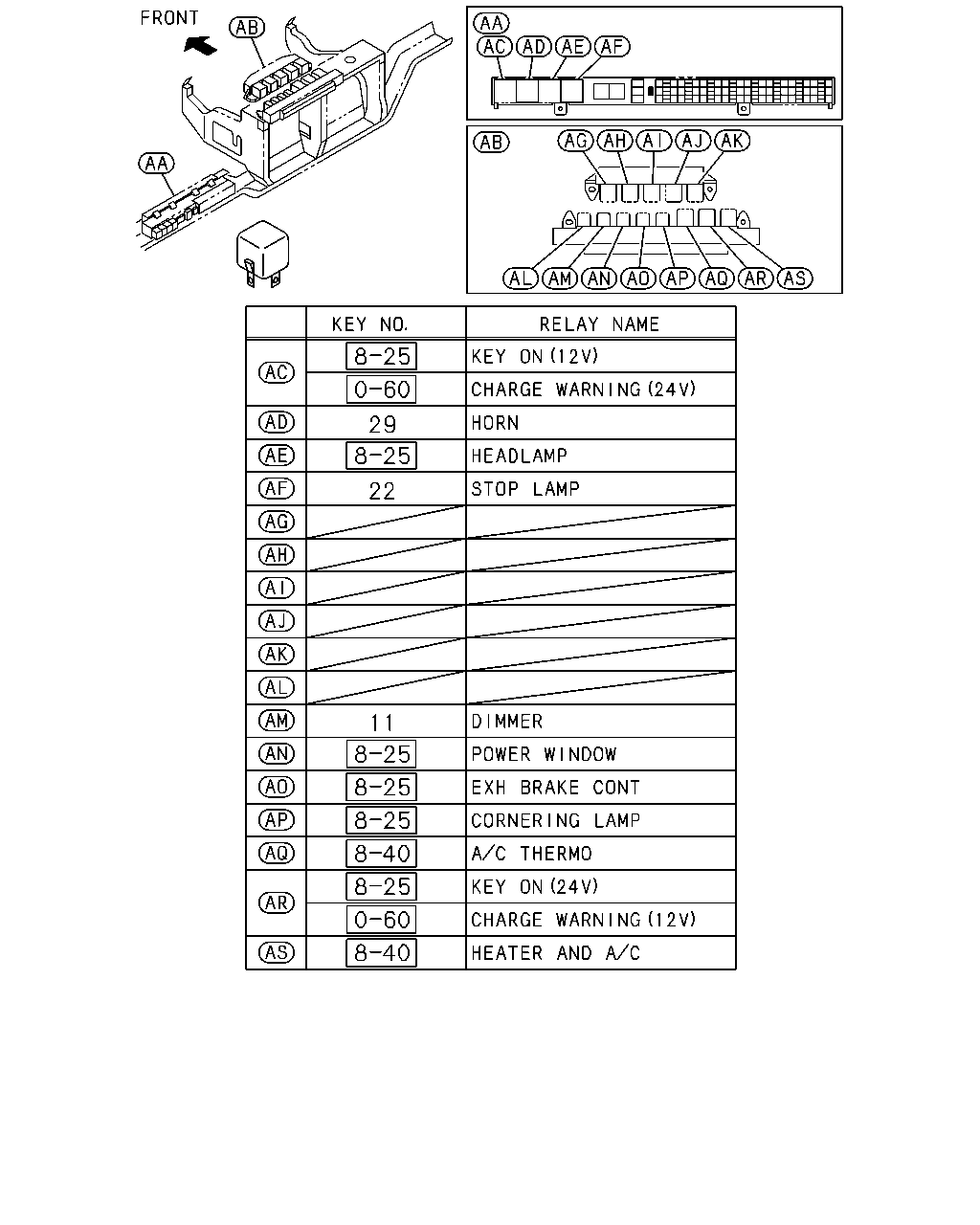

çizim 119070
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B C
11 RELAY; DIMMER
12V 20A 		8-97173-037-1 01 1 0508- ● ●
11 RELAY; DIMMER
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0508- ●
22 RELAY; STOP LAMP
12V 20A 		8-97173-037-1 01 1 0508- ● ●
22 RELAY; STOP LAMP
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0508- ●
29 RELAY; HORN
12V 20A 		8-97173-037-1 01 1 0508- ● ●
29 RELAY; HORN
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0508- ●
