◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#43032) — 14 parça

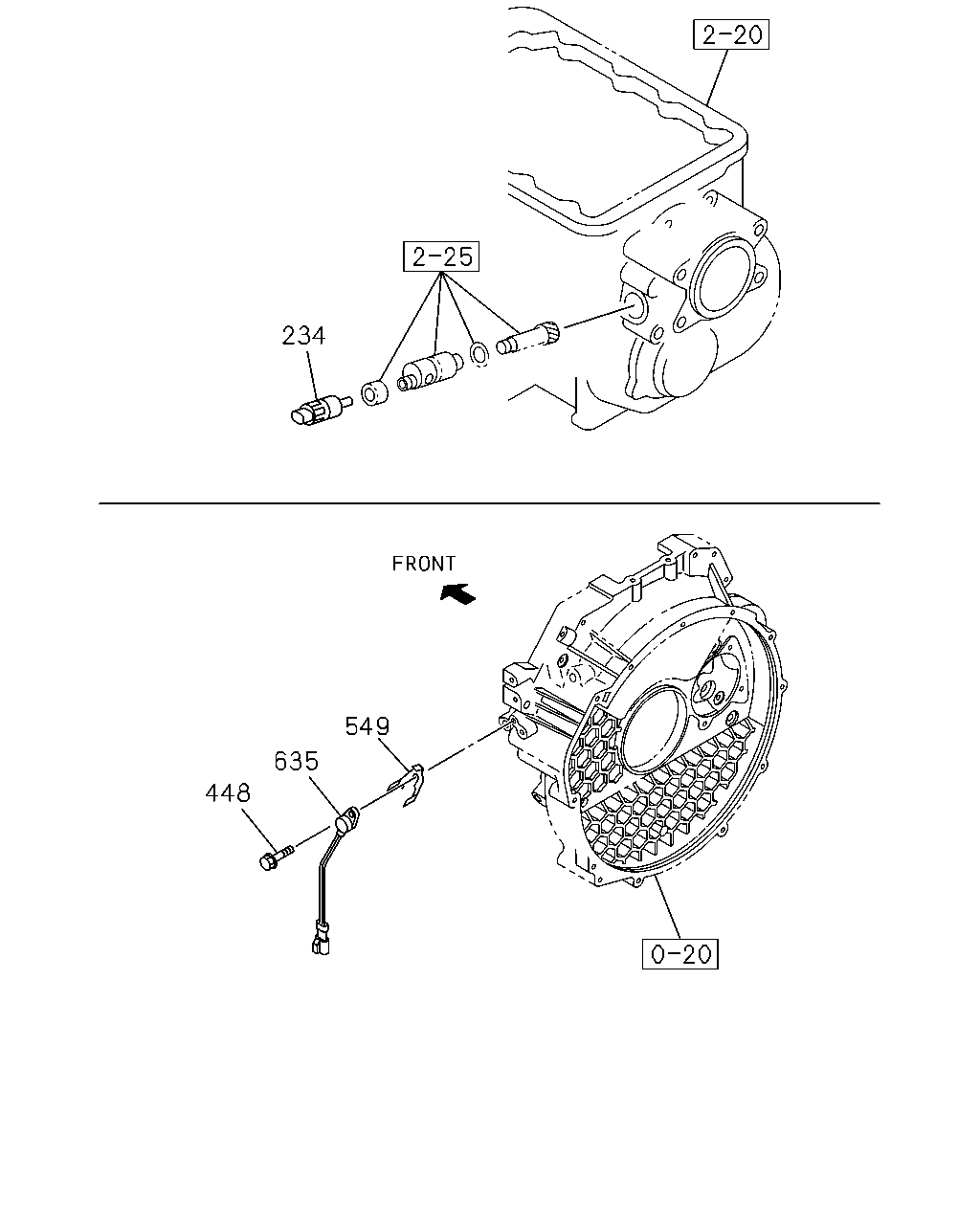

çizim 119061
234 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0508- ● ● ●
448 BOLT; SENSOR
4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> M6X16 FLANGE 		0-28080-616-0 01 1 0508-0512 ●
448 BOLT; SENSOR
4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> M6X16 FLANGE THA 		0-28050-616-0 01 1 0601- ●
549 SHEET
4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> 		8-97161-633-2 01 1 0508- ●
635 SENSOR; TACHOMETER
4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> YAZAKI 		8-97214-325-0 01 1 0508- ●

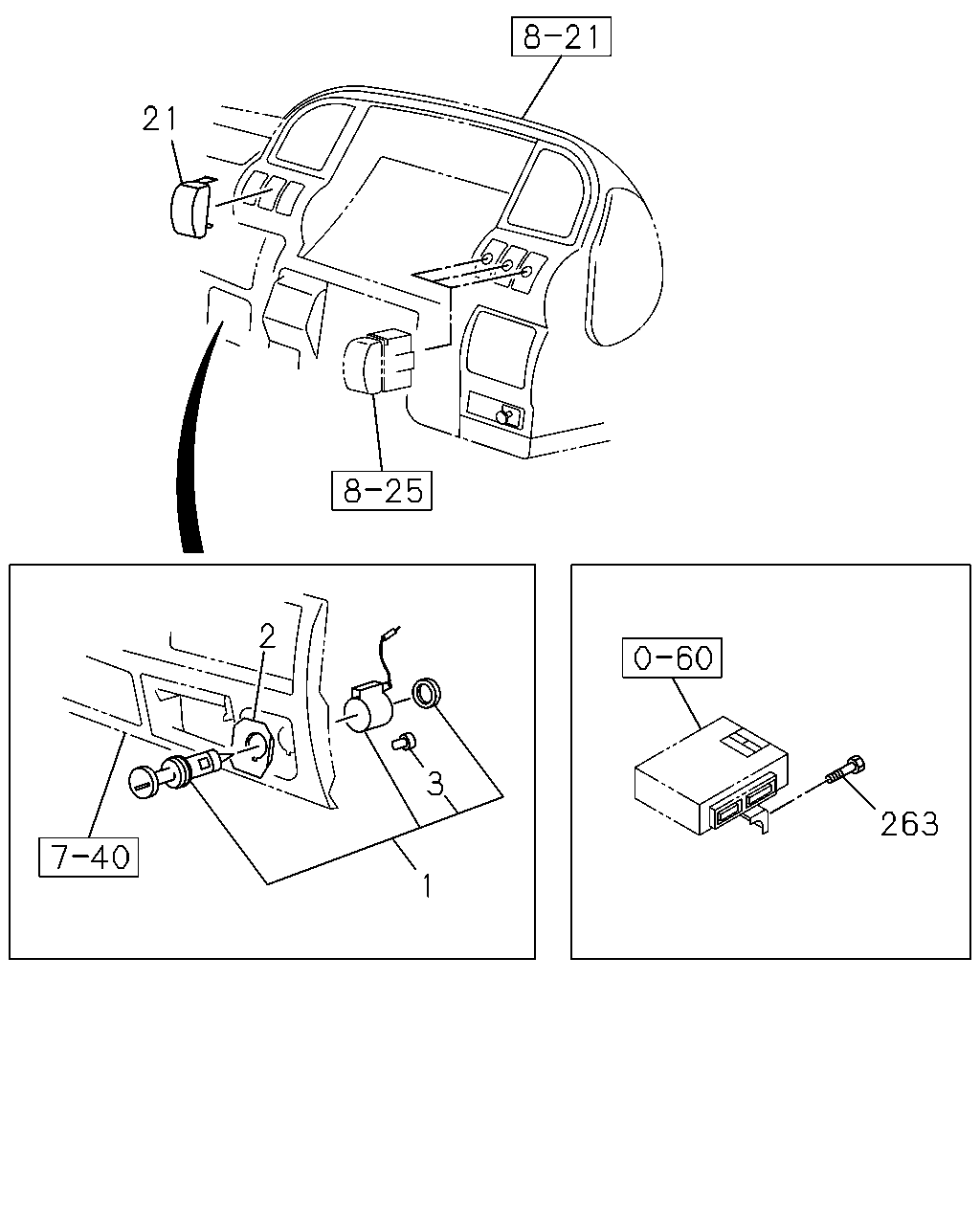

çizim 119064
21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97320-322-0 01 1 0508- ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0508- ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0508-0706 ● ● ●
2 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0508- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0508- ●
21 COVER; HOLE 8-97136-694-0 03 1 0508- ● ● ●
263 BOLT; CONT UNIT
4HG1-T ENG<RDP> M6X20 		0-28280-620-0 02 1 0508-0512 ●
263 BOLT; CONT UNIT
4HG1-T ENG<RDP> M6X20 FLANGE 		0-28250-620-0 02 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
