8-21 — METER ASM (#43030) — 56 parça

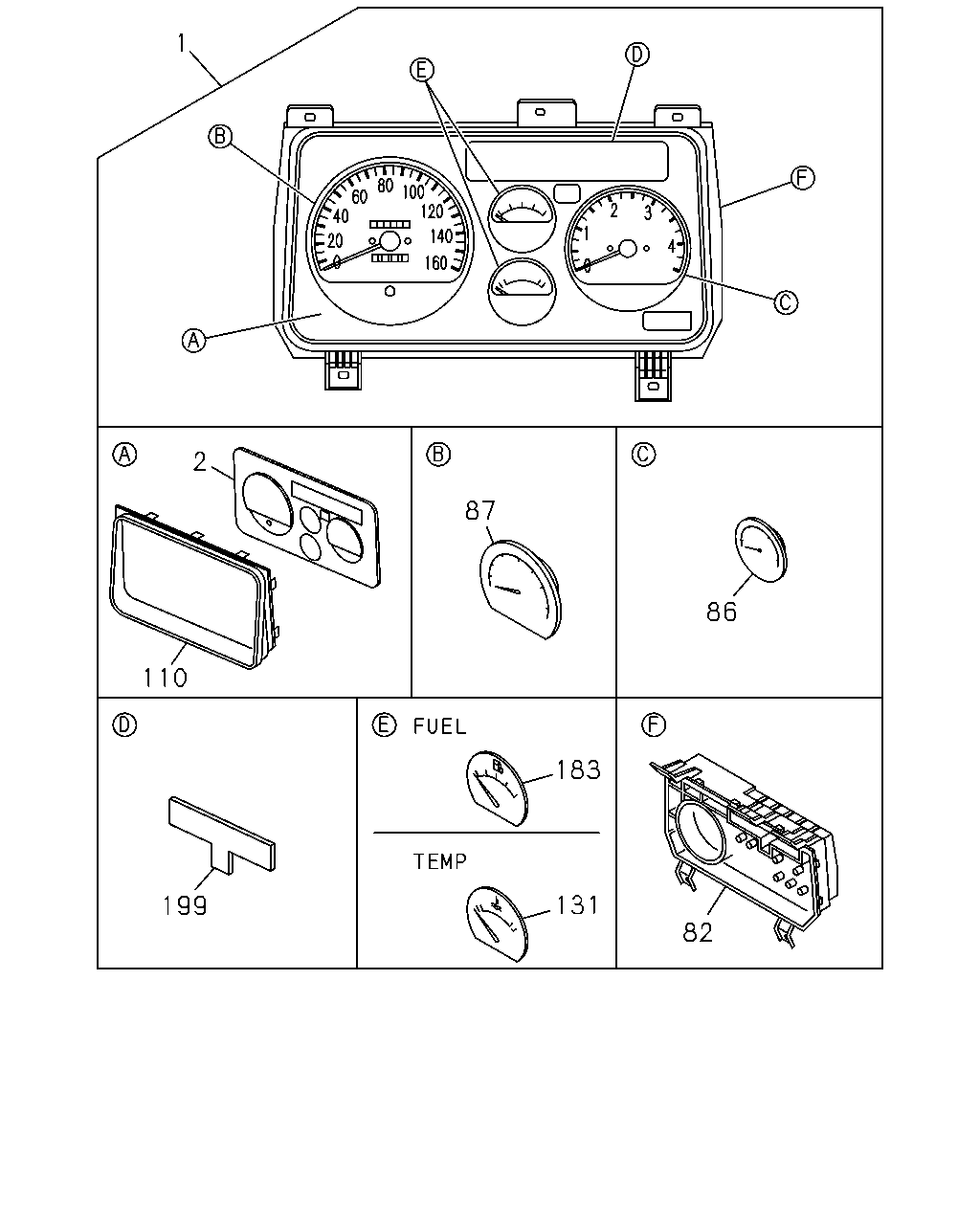

1 2 87 86 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97381-294-1	01	1	0508-	●	●
1	METER COMPL; CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97385-406-0	01	1	0508-			●
2	PANEL; CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97185-443-0	01	1	0508-	●	●
2	PANEL; CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-443-0	01	1	0508-			●
82	CASE ASM; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97185-448-0	01	1	0508-	●	●
82	CASE ASM; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-448-0	01	1	0508-			●
86	TACHOMETER; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-98002-111-0	01	1	0508-	●	●
86	TACHOMETER; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-98002-115-0	01	1	0508-			●
87	SPEEDOMETER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-98002-108-0	01	1	0508-	●	●
87	SPEEDOMETER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-98002-108-0	01	1	0508-			●
110	GLASS; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97185-452-0	01	1	0508-	●	●
110	GLASS; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-452-0	01	1	0508-			●
131	GAUGE; TEMP,CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-98002-122-0	01	1	0508-	●	●
131	GAUGE; TEMP,CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-98002-121-0	01	1	0508-			●
183	GAUGE; FUEL 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-98002-118-0	01	1	0508-	●	●
183	GAUGE; FUEL 4HG1-T ENG<RDP> TACHOMETER<U16>	8-98002-118-0	01	1	0508-			●
199	LENS; WARNING LAMP 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-98002-124-1	01	1	0508-	●	●
199	LENS; WARNING LAMP 4HG1-T ENG<RDP> TACHOMETER<U16>	8-98002-124-1	01	1	0508-			●

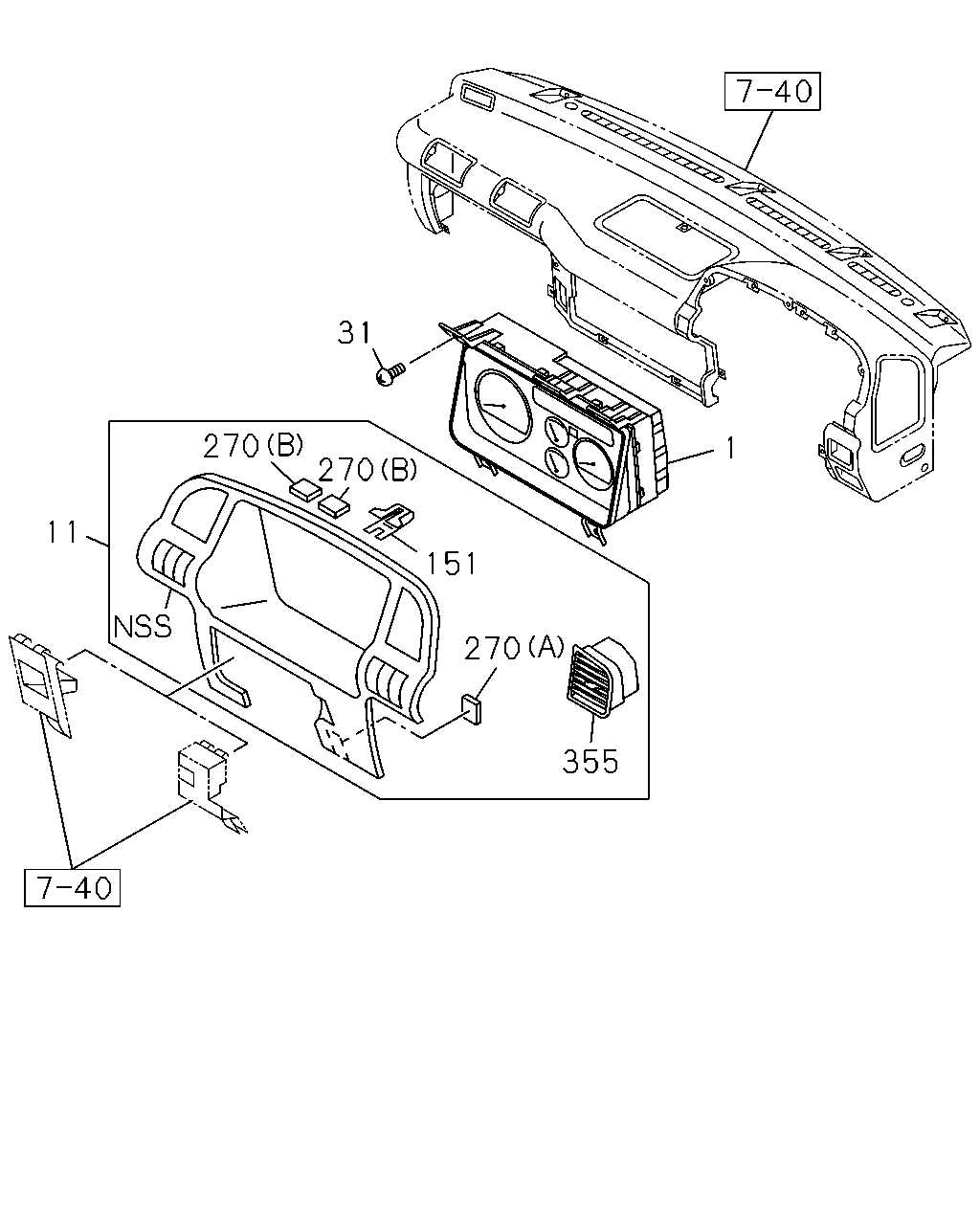

31 1 270 11 151 355 270 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97381-294-1	01	1	0508-	●	●
1	METER COMPL; CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97385-406-0	01	1	0508-			●
11	CLUSTER ASM; METER BLACK	8-97195-964-2	01	1	0508-	●	●	●
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0508-1210	●	●	●
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-	●	●	●
151	CLIP; METER CLUSTER	8-97217-066-0	07	1	0508-	●	●	●
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0508-	●	●	●
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0508-	●	●	●
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0508-	●	●	●
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0508-	●	●	●

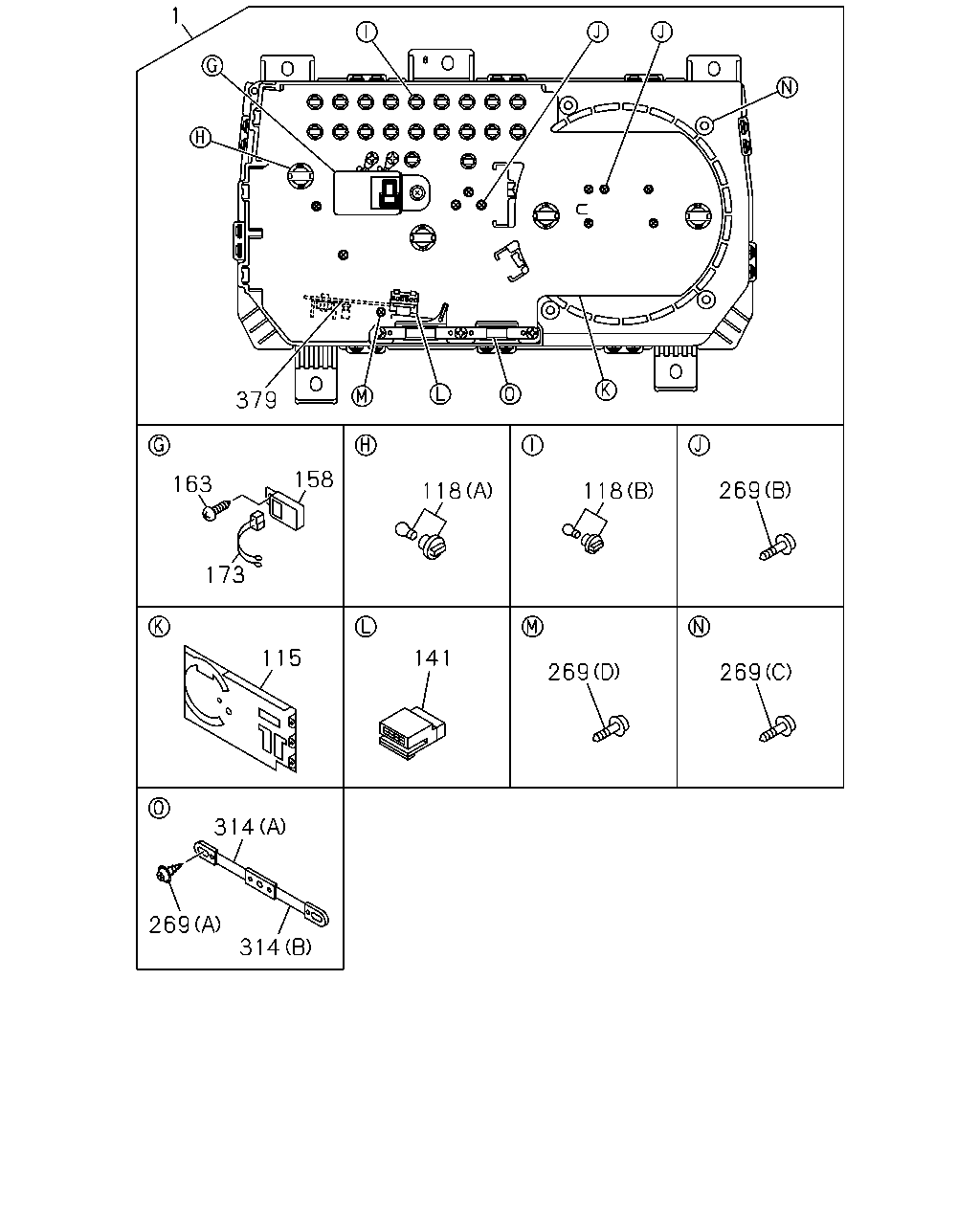

1 379 158 163 269 118 118 173 115 141 269 269 314 269 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	METER COMPL; CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97381-294-1	01	1	0508-	●	●
1	METER COMPL; CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97385-406-0	01	1	0508-			●
115	CIRCUIT; PRINTED,CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97185-506-0	01	1	0508-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97210-311-0	01	1	0508-			●
118	BULB; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16> (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	0508-	●	●
118	BULB; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	0508-0911	●	●
118	BULB; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	10	1	0912-	●	●
118	BULB; CLUSTER METER 4JB1-TC ENG<RDT> TACHOMETER<U16> (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	0508-	●	●
118	BULB; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16> (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0508-			●
118	BULB; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	09	1	0508-			●
118	BULB; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16> (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	02	1	0508-			●
141	CONNECTOR; CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-513-0	01	1	0508-			●
158	BUZZER; VAC WARNING 4JB1-TC ENG<RDT> TACHOMETER<U16> 12V	8-97185-520-0	01	1	0508-	●	●
158	BUZZER; VAC WARNING 4HG1-T ENG<RDP> TACHOMETER<U16> 24V	8-97185-519-0	01	1	0508-			●
163	SCREW; BUZZER 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97185-527-0	01	1	0508-	●	●
163	SCREW; BUZZER 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-527-0	01	1	0508-			●
173	WIRE; LEAD 4JB1-TC ENG<RDT> TACHOMETER<U16>	8-97185-643-0	01	1	0508-	●	●
173	WIRE; LEAD 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-643-0	01	1	0508-			●
269	SCREW; METER CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16> (A)	8-97185-528-0	02	1	0508-	●	●
269	SCREW; METER CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16> (B)	8-97185-524-0	08	1	0508-	●	●
269	SCREW; METER CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16> (B)	8-97185-524-0	08	1	0508-			●
269	SCREW; METER CLUSTER 4JB1-TC ENG<RDT> TACHOMETER<U16> (C)	8-97185-525-0	06	1	0508-	●	●
269	SCREW; METER CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16> (C)	8-97185-525-0	06	1	0508-			●
269	SCREW; METER CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16> (D)	8-97185-523-0	01	1	0508-			●
269	SCREW; METER CLUSTER 4HG1-T ENG<RDP> TACHOMETER<U16> (A)	8-97185-528-0	05	1	0508-			●
314	RESISTOR; COMB METER,CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16> (A)	8-97185-515-0	01	1	0508-			●
314	RESISTOR; COMB METER,CLUSTER METER 4HG1-T ENG<RDP> TACHOMETER<U16> (B)	8-97185-516-0	01	1	0508-			●
379	CIRCUIT; DROP 4HG1-T ENG<RDP> TACHOMETER<U16>	8-97185-512-0	01	1	0508-			●
