Sayfa 1-50A - Isuzu EPC

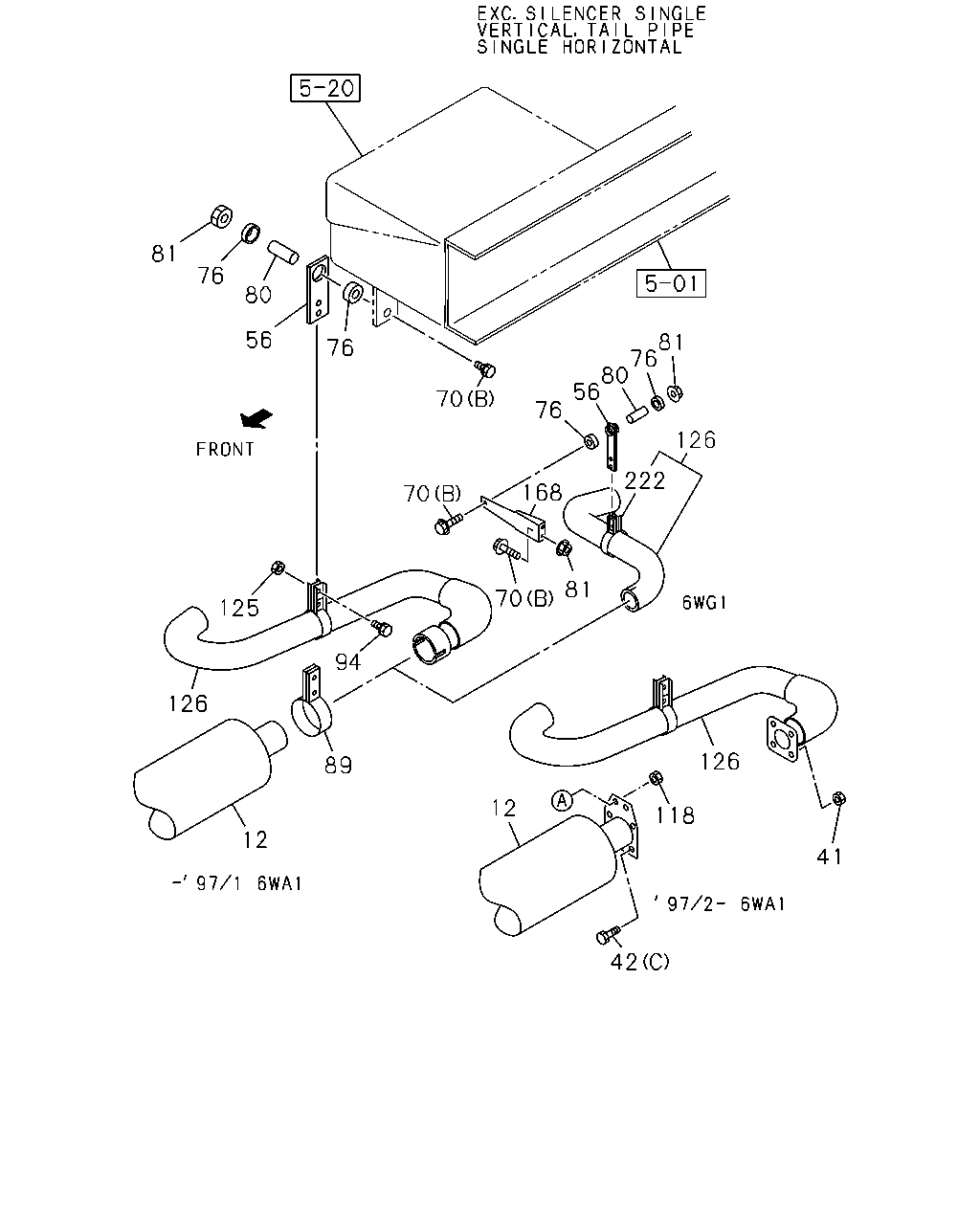

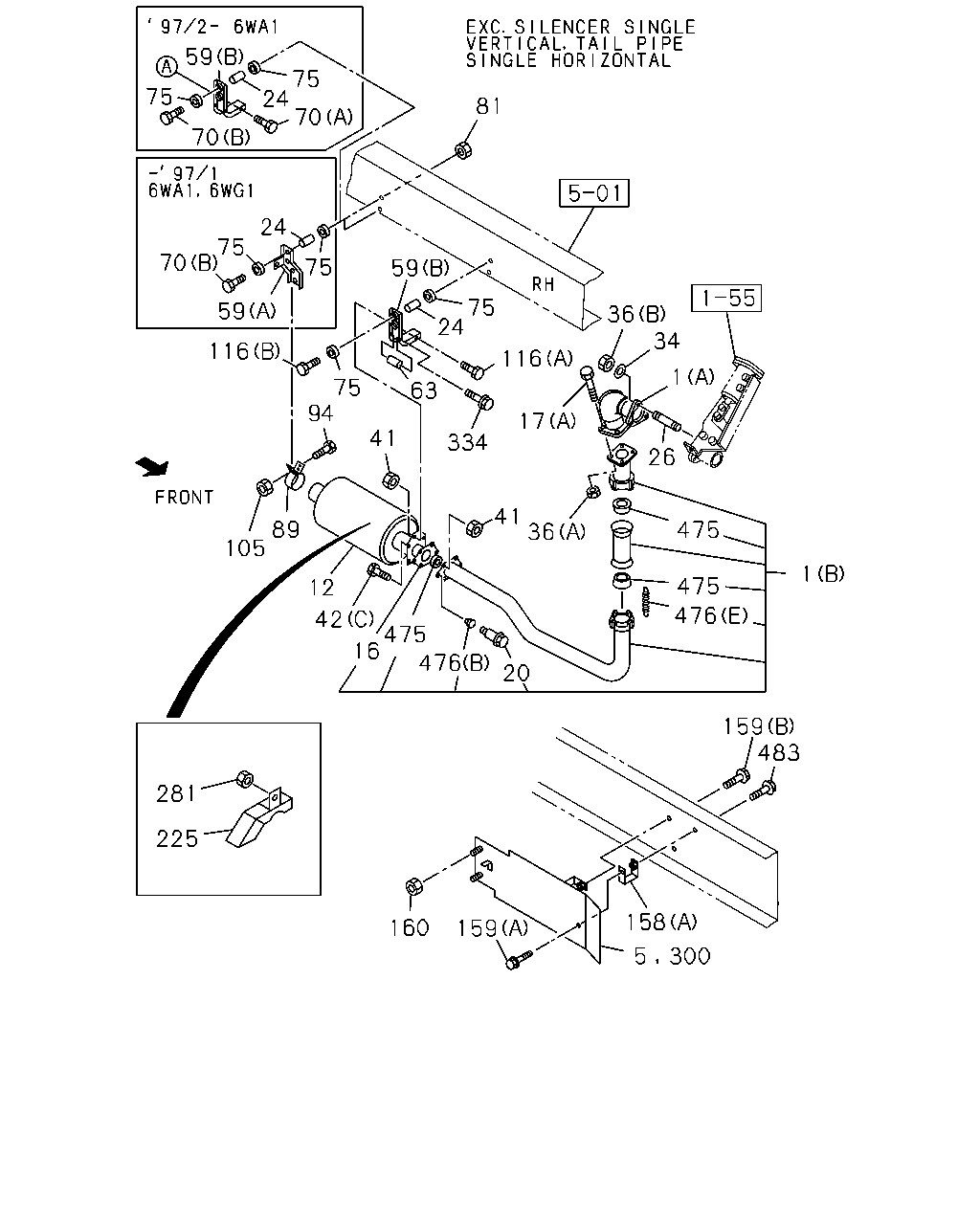

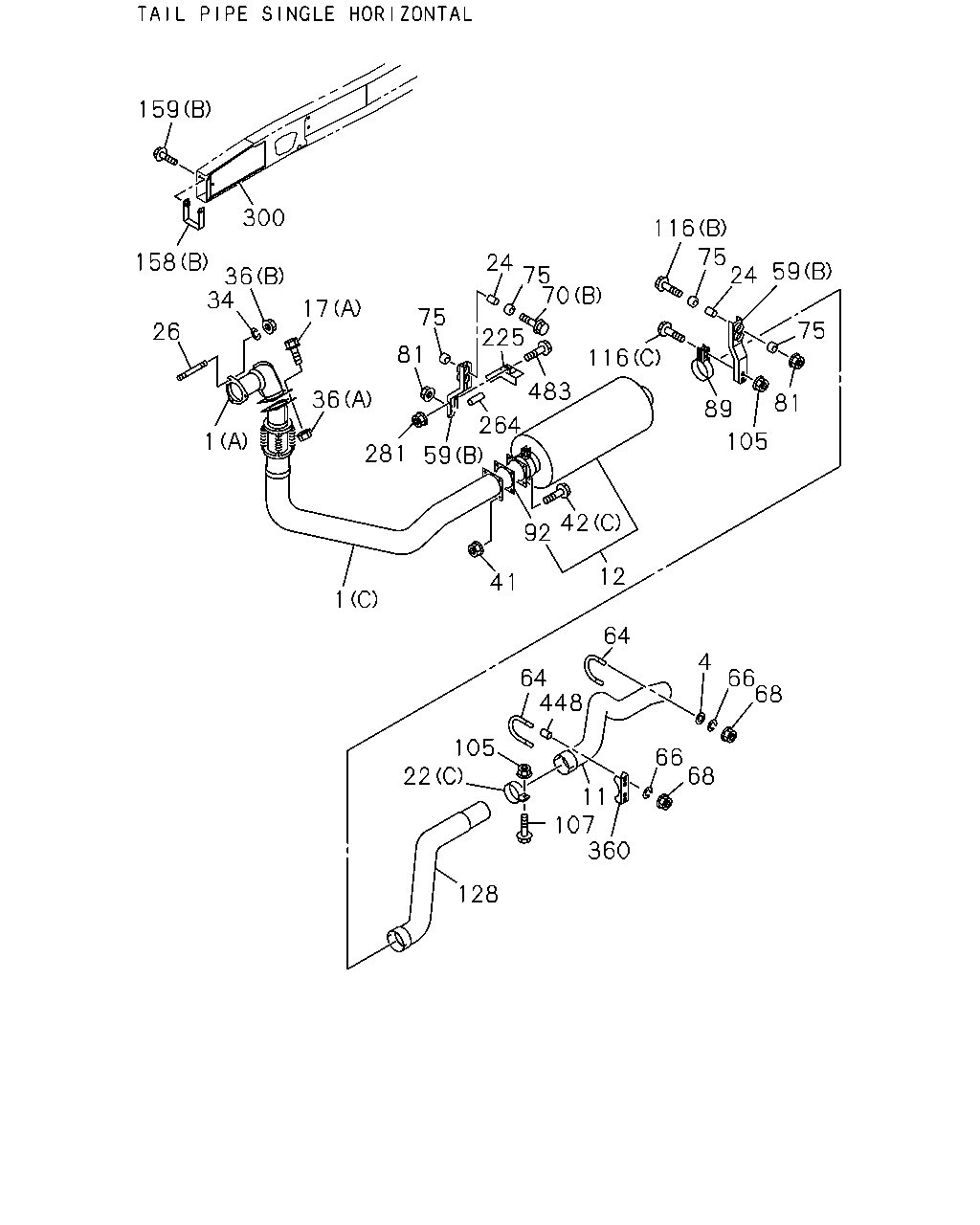

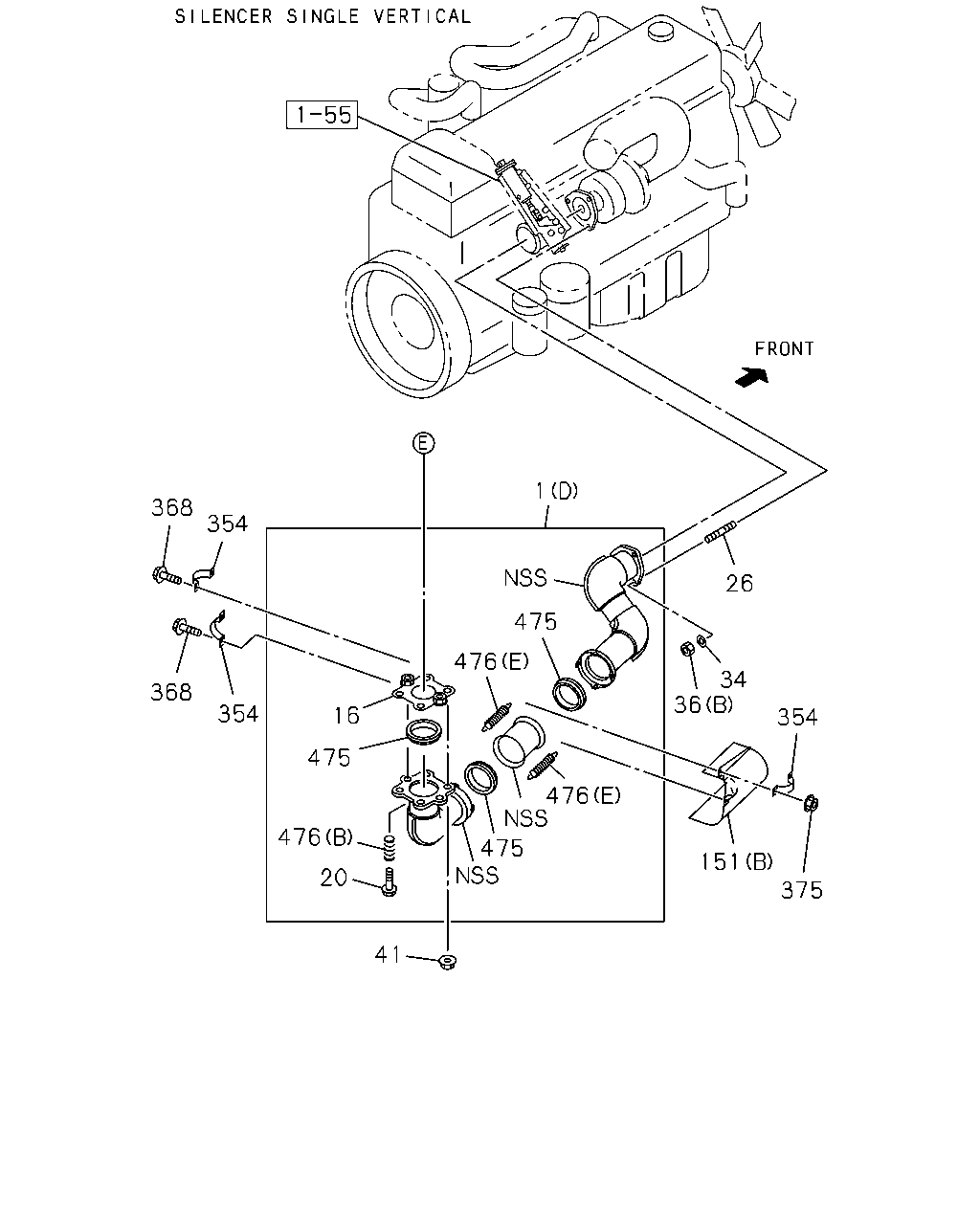

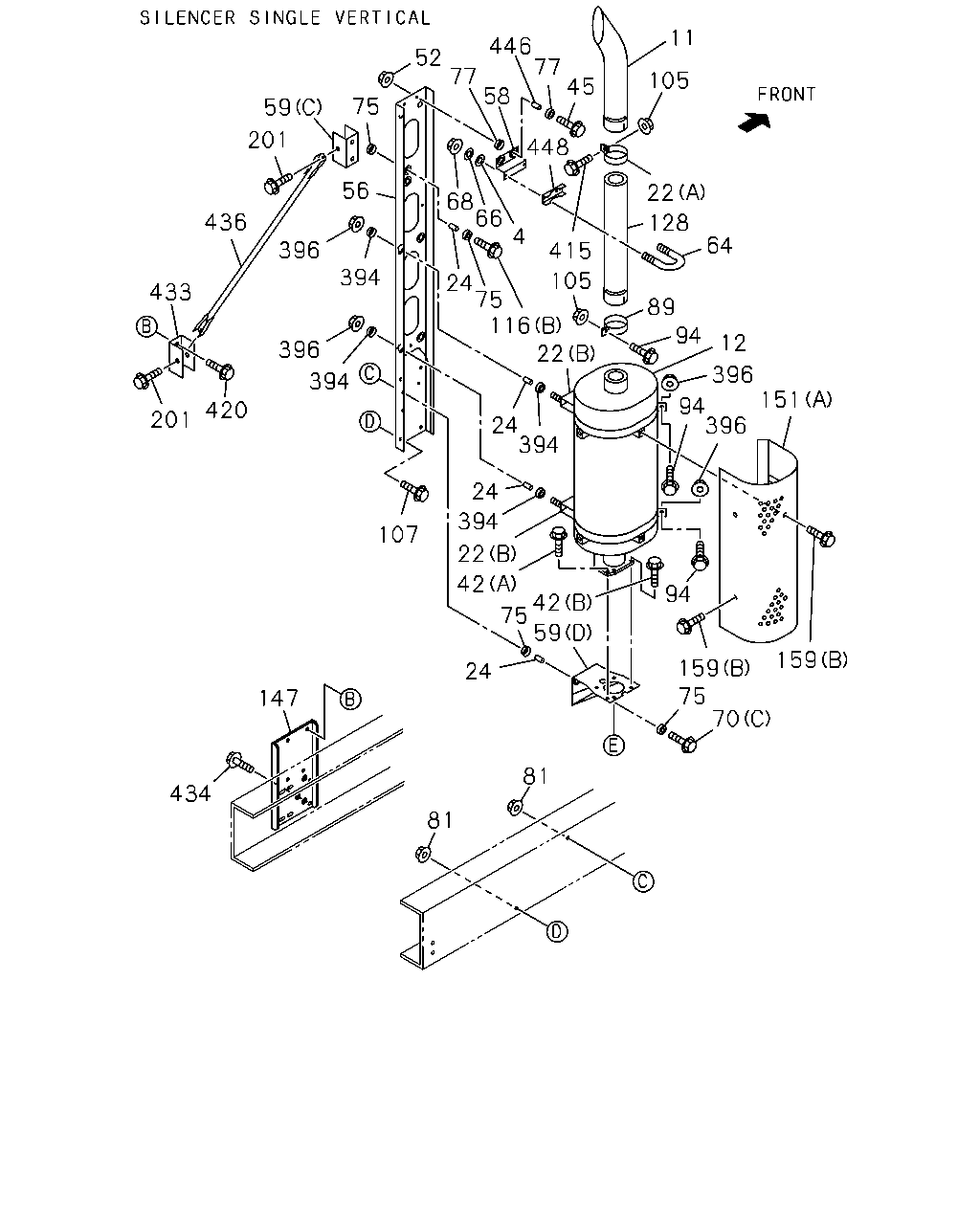

1-50A — EXHAUST PIPE AND SILENCER (#4303) — 805 parça

11 446 77 45 52 77 58 105 75 59 201 448 68 56 22 436 128 4 64 396 415 394 105 24 75 116 22 433 89 94 12 396 396 151 394 94 396 420 201 24 394 24 394 107 22 42 75 59 42 94 159 159 75 70 24 147 81 434 81 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9905-	●	●	●	●
4	WASHER; PL,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	04	1	9905-		●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	9905-	●	●	●	●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22123-197-0	01	1	9905-		●
12	SILENCER ASM; EXH	1-22140-725-0	01	1	9603-9701			●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9702-9904			●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22140-845-0	01	1	9905-0001	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-845-0	01	1	0002-0003	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-938-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9707-9904					●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-887-1	01	1	9911-		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-887-1	01	1	9911-				●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-910-1	01	1	9911-0003		●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-940-0	01	1	0004-		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9905-0003		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-936-0	01	1	0004-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-				●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-266-1	01	1	9905-	●	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	9905-	●	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22133-222-0	01	1	9905-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-270-0	02	1	9910-				●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603			●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904			●		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	9905-	●	●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9603-9701			●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9905-	●	●	●	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9603-9604			●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9605-9706			●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-769-0	01	1	9707-9904			●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22131-769-0	01	1	9905-	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-800-0	01	1	9905-9905	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-824-0	01	1	9905-9912	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-851-0	01	1	0001-	●	●	●
56	BRACKET; CLAMP,EXH PIPE L=217	1-22131-126-2	01	1	9707-9904					●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> L=217	1-22131-126-2	01	1	9905-				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-841-0	01	1	9910-9912				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-852-0	01	1	0001-				●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9603-9701			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9603-9701			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	02	1	9702-9706			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9707-9904			●		●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9707-9904			●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-717-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-717-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9905-				●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	1-22119-252-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (D)	1-22151-768-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9707-9904					●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9905-				●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22151-842-0	02	1	9911-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-	●	●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	9905-	●	●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-080-0	02	1	9905-		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9905-		●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9905-	●		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9905-		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	04	1	9905-		●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-	●		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-				●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28081-060-0	04	1	9905-	●	●	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9707-9904					●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-9910				●
70	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE	0-28681-035-0	02	1	9911-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904			●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●
75	RUBBER; SUPPORT,BRKT LONG CHASSIS(CXZ5MF) OD=40	1-22159-094-0	08	1	9603-9603			●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9604-9904			●		●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	9905-	●	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
75	RUBBER; SUPPORT,BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-				●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
81	NUT; BRKT M10	9-09110-510-0	05	1	9603-9603			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	9905-	●	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	02	1	0001-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9904			●		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	9905-	●	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-9909	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9701			●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9904					●
89	CLAMP; EXH SILENCER,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22133-276-0	01	1	9911-		●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9905-	●	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-214-1	01	1	9905-		●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603			●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606			●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606			●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701			●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701			●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904			●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	9905-	●	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9707-9904					●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9905-9910				●
94	BOLT; CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28680-840-0	04	1	9911-		●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) M8	9-09110-408-0	02	1	9603-9603			●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904					●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-9910				●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	9905-	●	●	●
116	BOLT; BRKT LONG CHASSIS(CXZ5MF) (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606			●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT LONG CHASSIS(CXZ5MF) (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603			●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X40 FLANGE	0-28080-840-0	02	1	9905-		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904			●		●
116	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-				●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22123-196-0	01	1	9905-		●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	9905-	●	●	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-826-0	01	1	9905-9912	●	●	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-849-0	01	1	0001-	●	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22119-444-0	01	1	9905-	●	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	9905-	●	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9902			●		●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9603-9604			●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9605-9606			●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902			●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904			●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904			●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9905-0003	●	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0004-	●	●	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	01	1	9905-9909	●	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	04	1	9910-	●	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	9905-	●	●	●	●
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9905-	●	●	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	9905-	●	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	02	1	9905-	●	●	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-813-0	01	1	9905-	●	●	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-798-2	02	1	9905-	●	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	9905-	●	●	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	9905-	●	●	●	●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-087-0	01	1	9905-		●

159 300 116 75 24 158 24 75 70 59 36 34 17 75 75 26 225 81 16 81 483 36 89 264 105 1 281 59 42 92 12 41 1 64 4 64 448 66 68 105 22 66 68 11 107 360 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; EXH (A)	1-22122-227-1	01	1	9603-9606			●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9607-9904			●		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22122-227-1	01	1	9905-	●	●	●	●
1	PIPE; EXH (B)	1-22122-769-0	01	1	9603-9606			●
1	PIPE; EXH (B)	1-22122-769-0	01	1	9607-9904			●		●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG> (B)	1-22122-769-0	01	1	9905-	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG> (D)	1-22123-279-0	01	1	9905-	●	●	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22123-374-0	01	1	9911-		●
1	PIPE; EXH CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-259-0	01	1	9905-9905		●
1	PIPE; EXH (B)	1-22123-259-0	01	1	9905-9905				●
1	PIPE; EXH CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-259-0	01	1	9905-	●	●	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22123-195-0	01	1	9905-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (D)	1-22123-200-0	01	1	9905-9905		●
1	PIPE; EXH CAB UP +110MM<TGG> SILENCER SINGLE VERTICAL<N28> (D)	1-22123-200-0	01	1	9905-	●	●	●	●
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9905-	●	●	●	●
4	WASHER; PL,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	04	1	9905-		●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	9905-	●	●	●	●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22123-197-0	01	1	9905-		●
12	SILENCER ASM; EXH	1-22140-725-0	01	1	9603-9701			●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9702-9904			●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22140-845-0	01	1	9905-0001	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-845-0	01	1	0002-0003	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-938-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9707-9904					●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-887-1	01	1	9911-		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-887-1	01	1	9911-				●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-910-1	01	1	9911-0003		●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-940-0	01	1	0004-		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9905-0003		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-936-0	01	1	0004-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-				●
16	FLANGE; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22115-148-1	01	1	9909-9910	●	●	●
16	FLANGE; EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	9909-9910				●
16	FLANGE; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	9911-	●	●	●	●
16	FLANGE; EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22115-148-1	01	1	9911-		●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603			●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603			●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9604-9604			●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9605-9904			●		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-				●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-266-1	01	1	9905-	●	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	9905-	●	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22133-222-0	01	1	9905-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-270-0	02	1	9910-				●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603			●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904			●		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	9905-	●	●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	9905-	●	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9603-9606			●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9607-9904			●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9606			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9904			●		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9603-9606			●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9607-9807			●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9808-9904			●		●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9912-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603			●
36	NUT; EXH PIPE LONG CHASSIS(CXZ5MF) (A) M12	9-99110-512-0	04	1	9603-9603			●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604			●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9605-9606			●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709			●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9904			●		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9603-9606			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9904			●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9904			●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9603-9701			●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9603-9701			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9603-9701			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	02	1	9702-9706			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9707-9904			●		●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9707-9904			●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-717-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-717-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9905-				●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	1-22119-252-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (D)	1-22151-768-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9707-9904					●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9905-				●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22151-842-0	02	1	9911-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-	●	●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	9905-	●	●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-080-0	02	1	9905-		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9905-		●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9905-	●		●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9905-		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	04	1	9905-		●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-	●		●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-				●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28081-060-0	04	1	9905-	●	●	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9707-9904					●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-9910				●
70	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE	0-28681-035-0	02	1	9911-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904			●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●
75	RUBBER; SUPPORT,BRKT LONG CHASSIS(CXZ5MF) OD=40	1-22159-094-0	08	1	9603-9603			●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9604-9904			●		●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	9905-	●	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
75	RUBBER; SUPPORT,BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-				●
81	NUT; BRKT M10	9-09110-510-0	05	1	9603-9603			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	9905-	●	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	02	1	0001-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9904			●		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	9905-	●	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-9909	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9701			●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9904					●
89	CLAMP; EXH SILENCER,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22133-276-0	01	1	9911-		●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9905-	●	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-214-1	01	1	9905-		●
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> D=101.4	1-22133-170-1	01	1	9905-		●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) M8	9-09110-408-0	02	1	9603-9603			●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904					●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-9910				●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	9905-	●	●	●
116	BOLT; BRKT LONG CHASSIS(CXZ5MF) (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606			●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT LONG CHASSIS(CXZ5MF) (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603			●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X40 FLANGE	0-28080-840-0	02	1	9905-		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904			●		●
116	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-				●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22123-196-0	01	1	9905-		●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	9905-	●	●	●	●
158	BRACKET; HEAT PROTECTOR (A)	1-22119-367-0	01	1	9603-9603			●
158	BRACKET; HEAT PROTECTOR (A)	1-22119-368-0	01	1	9604-9606			●
158	BRACKET; HEAT PROTECTOR (A)	1-22119-368-0	01	1	9607-9904			●		●
158	BRACKET; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-368-0	01	1	9905-	●	●	●	●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22119-428-0	02	1	9905-		●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9902			●		●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9603-9604			●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9605-9606			●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902			●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904			●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904			●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9905-0003	●	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0004-	●	●	●	●
225	PROTECTOR; HEAT LONG CHASSIS(CXZ5MF)	1-22119-352-0	01	1	9603-9606			●
225	PROTECTOR; HEAT	1-22119-352-0	01	1	9607-9904			●		●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-352-0	01	1	9905-9910	●	●	●
225	PROTECTOR; HEAT	1-22119-352-0	01	1	9905-9910				●
225	PROTECTOR; HEAT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-352-0	01	1	9911-	●	●	●
225	PROTECTOR; HEAT	1-22119-352-0	01	1	9911-				●
225	PROTECTOR; HEAT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22159-260-0	01	1	9911-		●
264	TUBE; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-087-0	01	1	9905-		●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9603-9604			●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9605-9606			●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9607-9904			●
281	NUT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-9904			●		●
281	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-366-0	01	1	9603-9606			●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-366-0	01	1	9607-9902			●		●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-427-0	01	1	9905-		●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-087-0	01	1	9905-		●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	9905-	●	●	●	●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-087-0	01	1	9905-		●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9603-9606			●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9607-9904			●		●
483	BOLT; BRKT,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●	●

1 368 354 26 475 476 34 36 368 354 16 354 475 476 476 475 151 375 20 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; EXH (A)	1-22122-227-1	01	1	9603-9606			●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9607-9904			●		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22122-227-1	01	1	9905-	●	●	●	●
1	PIPE; EXH (B)	1-22122-769-0	01	1	9603-9606			●
1	PIPE; EXH (B)	1-22122-769-0	01	1	9607-9904			●		●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG> (B)	1-22122-769-0	01	1	9905-	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG> (D)	1-22123-279-0	01	1	9905-	●	●	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22123-374-0	01	1	9911-		●
1	PIPE; EXH CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-259-0	01	1	9905-9905		●
1	PIPE; EXH (B)	1-22123-259-0	01	1	9905-9905				●
1	PIPE; EXH CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-259-0	01	1	9905-	●	●	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22123-195-0	01	1	9905-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (D)	1-22123-200-0	01	1	9905-9905		●
1	PIPE; EXH CAB UP +110MM<TGG> SILENCER SINGLE VERTICAL<N28> (D)	1-22123-200-0	01	1	9905-	●	●	●	●
16	FLANGE; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22115-148-1	01	1	9909-9910	●	●	●
16	FLANGE; EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	9909-9910				●
16	FLANGE; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	9911-	●	●	●	●
16	FLANGE; EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22115-148-1	01	1	9911-		●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X51.4	8-94436-943-0	02	1	9909-9910	●	●	●
20	BOLT; FLANGE,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	9909-9910				●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	9911-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X51.4	8-94436-943-0	02	1	9911-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9603-9606			●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9607-9904			●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9606			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9904			●		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9603-9606			●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9607-9807			●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9808-9904			●		●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9912-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603			●
36	NUT; EXH PIPE LONG CHASSIS(CXZ5MF) (A) M12	9-99110-512-0	04	1	9603-9603			●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604			●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9605-9606			●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709			●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9904			●		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9603-9606			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9904			●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9904			●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9905-	●	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22119-444-0	01	1	9905-	●	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	9905-	●	●	●	●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	1-22119-445-0	03	1	9905-	●	●	●	●
368	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	04	1	9905-	●	●	●	●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> OD=112	1-22119-294-0	01	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=112	1-22119-294-0	01	1	9909-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> OD=122	1-22119-297-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=122	1-22119-297-0	02	1	9909-		●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94141-851-0	02	1	9909-	●	●	●
476	SPRING; VIBNON,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9909-				●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-09583-298-0	04	1	9909-9910	●	●	●
476	SPRING; VIBNON,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (E)	1-09583-298-0	04	1	9909-9910				●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-09583-298-0	04	1	9911-	●	●	●
476	SPRING; VIBNON,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (E)	1-09583-298-0	04	1	9911-				●

59 75 24 70 75 81 70 24 75 75 70 59 75 24 59 36 34 116 116 1 63 75 94 17 41 26 334 41 36 89 105 475 1 475 12 476 42 475 16 476 20 159 483 281 225 158 160 159 5 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; EXH (A)	1-22122-227-1	01	1	9603-9606			●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9607-9904			●		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22122-227-1	01	1	9905-	●	●	●	●
1	PIPE; EXH (B)	1-22122-769-0	01	1	9603-9606			●
1	PIPE; EXH (B)	1-22122-769-0	01	1	9607-9904			●		●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG> (B)	1-22122-769-0	01	1	9905-	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG> (D)	1-22123-279-0	01	1	9905-	●	●	●	●
1	PIPE; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22123-374-0	01	1	9911-		●
1	PIPE; EXH CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-259-0	01	1	9905-9905		●
1	PIPE; EXH (B)	1-22123-259-0	01	1	9905-9905				●
1	PIPE; EXH CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-259-0	01	1	9905-	●	●	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22123-195-0	01	1	9905-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (D)	1-22123-200-0	01	1	9905-9905		●
1	PIPE; EXH CAB UP +110MM<TGG> SILENCER SINGLE VERTICAL<N28> (D)	1-22123-200-0	01	1	9905-	●	●	●	●
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9903-9904			●		●
5	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22119-366-0	01	1	9905-9909	●	●	●	●
5	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22119-366-0	01	1	9910-	●	●	●	●
5	PROTECTOR; HEAT CAB UP +110MM<TGG> MIXER TRUCK<RA2>	1-22119-366-0	01	1	9910-		●		●
5	PROTECTOR; HEAT CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-405-0	01	1	9905-9909		●		●
5	PROTECTOR; HEAT CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2>	1-22119-405-0	01	1	9910-		●		●
12	SILENCER ASM; EXH	1-22140-725-0	01	1	9603-9701			●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9702-9904			●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22140-845-0	01	1	9905-0001	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-845-0	01	1	0002-0003	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-938-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9707-9904					●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-887-1	01	1	9911-		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-887-1	01	1	9911-				●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-910-1	01	1	9911-0003		●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-940-0	01	1	0004-		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9905-0003		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-936-0	01	1	0004-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-				●
16	FLANGE; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22115-148-1	01	1	9909-9910	●	●	●
16	FLANGE; EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	9909-9910				●
16	FLANGE; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	9911-	●	●	●	●
16	FLANGE; EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22115-148-1	01	1	9911-		●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603			●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) (A) M12X25 FLANGE	1-09000-604-0	04	1	9603-9603			●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9604-9604			●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9605-9904			●		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
17	BOLT; EXH PIPE (A) M12X25 FLANGE	1-09000-604-0	04	1	9905-				●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X51.4	8-94436-943-0	02	1	9909-9910	●	●	●
20	BOLT; FLANGE,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	9909-9910				●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	9911-	●	●	●	●
20	BOLT; FLANGE,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X51.4	8-94436-943-0	02	1	9911-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9603			●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9604-9904			●		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	9905-	●	●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	9905-	●	●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9603-9606			●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9607-9904			●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9905-	●	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9606			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9904			●		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9905-	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9603-9606			●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9607-9807			●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9808-9904			●		●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9905-9911	●	●	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9912-	●	●	●	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9603-9603			●
36	NUT; EXH PIPE LONG CHASSIS(CXZ5MF) (A) M12	9-99110-512-0	04	1	9603-9603			●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9604-9604			●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9605-9606			●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709			●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9904			●		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9603-9606			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9904			●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9904			●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9603-9701			●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9603-9701			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9603-9701			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	02	1	9702-9706			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9707-9904			●		●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9707-9904			●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-717-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-717-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-717-0	01	1	9905-				●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	1-22119-252-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (D)	1-22151-768-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9707-9904					●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-336-1	01	1	9905-				●
59	BRACKET; EXH SILENCER,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-22151-842-0	02	1	9911-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-	●	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-349-1	01	1	9905-	●	●	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9606-9904			●		●
63	TUBE; DIST,BRKT EXC. SILENCER SINGLE VERTICAL<N28> L=44.3	1-14149-170-1	01	1	9905-			●
63	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> L=44.3	1-14149-170-1	01	1	9905-	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9905-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-				●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28081-060-0	04	1	9905-	●	●	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9707-9904					●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-9910				●
70	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE	0-28681-035-0	02	1	9911-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904			●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●
75	RUBBER; SUPPORT,BRKT LONG CHASSIS(CXZ5MF) OD=40	1-22159-094-0	08	1	9603-9603			●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9604-9904			●		●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	9905-	●	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●	●
75	RUBBER; SUPPORT,BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-				●
81	NUT; BRKT M10	9-09110-510-0	05	1	9603-9603			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	9905-	●	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	02	1	0001-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9904			●		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	9905-	●	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-9909	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9701			●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9904					●
89	CLAMP; EXH SILENCER,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22133-276-0	01	1	9911-		●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9905-	●	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-214-1	01	1	9905-		●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603			●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606			●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606			●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701			●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701			●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904			●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	9905-	●	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9707-9904					●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9905-9910				●
94	BOLT; CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28680-840-0	04	1	9911-		●
105	NUT; CLAMP LONG CHASSIS(CXZ5MF) M8	9-09110-408-0	02	1	9603-9603			●
105	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9701			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9904					●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9910	●	●	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-9910				●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●	●	●
105	NUT; CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
116	BOLT; BRKT LONG CHASSIS(CXZ5MF) (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9606			●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●	●
116	BOLT; BRKT LONG CHASSIS(CXZ5MF) (A) M10X70 FLANGE	0-28081-070-0	02	1	9603-9603			●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X40 FLANGE	0-28080-840-0	02	1	9905-		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9604-9904			●		●
116	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●	●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-				●
158	BRACKET; HEAT PROTECTOR (A)	1-22119-367-0	01	1	9603-9603			●
158	BRACKET; HEAT PROTECTOR (A)	1-22119-368-0	01	1	9604-9606			●
158	BRACKET; HEAT PROTECTOR (A)	1-22119-368-0	01	1	9607-9904			●		●
158	BRACKET; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-368-0	01	1	9905-	●	●	●	●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22119-428-0	02	1	9905-		●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9902			●		●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9603-9604			●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9605-9606			●
159	BOLT; HEAT PROTECTOR (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9902			●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904			●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(CXZ5MC) WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-9904			●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9905-0003	●	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0004-	●	●	●	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9603-9606			●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9607-9902			●
225	PROTECTOR; HEAT LONG CHASSIS(CXZ5MF)	1-22119-352-0	01	1	9603-9606			●
225	PROTECTOR; HEAT	1-22119-352-0	01	1	9607-9904			●		●
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-352-0	01	1	9905-9910	●	●	●
225	PROTECTOR; HEAT	1-22119-352-0	01	1	9905-9910				●
225	PROTECTOR; HEAT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-352-0	01	1	9911-	●	●	●
225	PROTECTOR; HEAT	1-22119-352-0	01	1	9911-				●
225	PROTECTOR; HEAT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22159-260-0	01	1	9911-		●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9603-9604			●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9605-9606			●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9607-9904			●
281	NUT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-9904			●		●
281	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-366-0	01	1	9603-9606			●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-366-0	01	1	9607-9902			●		●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-427-0	01	1	9905-		●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9603-9604			●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9605-9904			●		●
334	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X70 FLANGE	0-28080-870-0	01	1	9905-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> OD=112	1-22119-294-0	01	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=112	1-22119-294-0	01	1	9909-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> OD=122	1-22119-297-0	02	1	9909-	●	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=122	1-22119-297-0	02	1	9909-		●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94141-851-0	02	1	9909-	●	●	●
476	SPRING; VIBNON,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9909-				●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-09583-298-0	04	1	9909-9910	●	●	●
476	SPRING; VIBNON,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (E)	1-09583-298-0	04	1	9909-9910				●
476	SPRING; VIBNON,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-09583-298-0	04	1	9911-	●	●	●
476	SPRING; VIBNON,EXH PIPE CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (E)	1-09583-298-0	04	1	9911-				●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9603-9606			●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9607-9904			●		●
483	BOLT; BRKT,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●	●

81 76 80 56 81 76 80 56 76 70 76 126 168 222 70 81 70 125 94 126 126 89 12 118 12 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	SILENCER ASM; EXH	1-22140-725-0	01	1	9603-9701			●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9702-9904			●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22140-845-0	01	1	9905-0001	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-845-0	01	1	0002-0003	●	●	●
12	SILENCER ASM; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22140-938-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0004-	●	●	●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9707-9904					●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-887-1	01	1	9911-		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-887-1	01	1	9911-				●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-910-1	01	1	9911-0003		●
12	SILENCER ASM; EXH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22140-940-0	01	1	0004-		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-763-0	01	1	9905-0003		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22140-936-0	01	1	0004-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-865-0	01	1	9910-0003				●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0004-				●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9603-9606			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709			●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9904			●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9904			●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9905-	●	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9603-9701			●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9702-9904			●		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER (C) M12X25 FLANGE	1-09000-604-0	04	1	9905-				●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	9905-	●	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	9905-	●	●	●	●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9603-9604			●
56	BRACKET; CLAMP,EXH PIPE	1-22131-769-0	01	1	9605-9706			●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-769-0	01	1	9707-9904			●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22131-769-0	01	1	9905-	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-800-0	01	1	9905-9905	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-824-0	01	1	9905-9912	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-851-0	01	1	0001-	●	●	●
56	BRACKET; CLAMP,EXH PIPE L=217	1-22131-126-2	01	1	9707-9904					●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> L=217	1-22131-126-2	01	1	9905-				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-841-0	01	1	9910-9912				●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-852-0	01	1	0001-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	03	1	9603-9603			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9604-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	9905-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9606			●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9607-9904			●		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-				●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28081-060-0	04	1	9905-	●	●	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9707-9904					●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-9910				●
70	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE	0-28681-035-0	02	1	9911-		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9702-9904			●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-			●
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) M10X70 FLANGE	0-28081-070-0	02	1	9905-	●	●
76	SUPPORT; BRKT LONG CHASSIS(CXZ5MF) OD=40	1-22159-193-0	02	1	9603-9603			●
76	SUPPORT; BRKT OD=40	1-22159-193-0	02	1	9604-9904			●		●
76	SUPPORT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-193-0	02	1	9905-	●	●	●
76	SUPPORT; BRKT OD=40	1-22159-193-0	02	1	9905-				●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9603-9603			●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9604-9904			●		●
80	COLLAR; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9905-	●	●	●	●
81	NUT; BRKT M10	9-09110-510-0	05	1	9603-9603			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10	9-09110-510-0	02	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9706			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9707-9904			●		●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	9905-	●	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	02	1	0001-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	NUT; BRKT M10	9-09110-510-0	01	1	9604-9606			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9904			●		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	9905-	●	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9905-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-9909	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12 FLANGE	0-91150-212-0	04	1	0001-		●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9701			●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9904					●
89	CLAMP; EXH SILENCER,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22133-276-0	01	1	9911-		●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9905-	●	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-214-1	01	1	9905-		●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9603-9603			●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606			●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606			●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701			●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9701			●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28080-840-0	02	1	9702-9904			●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	9905-	●	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9707-9904					●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9905-9910				●
94	BOLT; CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28680-840-0	04	1	9911-		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91150-210-0	02	1	9702-9904			●
118	NUT; SILENCER MTG BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
125	NUT; CLAMP M8	9-09110-408-0	02	1	9603-9603			●
125	NUT; CLAMP M8	9-09110-408-0	02	1	9604-9606			●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9904			●		●
125	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-			●
125	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9905-				●
126	PIPE; EXH,RR	1-22126-174-0	01	1	9603-9701			●
126	PIPE; EXH,RR	1-22126-226-0	01	1	9702-9904			●
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,CAB UP +110MM<TGG>	1-22126-226-0	01	1	9905-9910	●	●	●
126	PIPE; EXH,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22126-226-0	01	1	9911-	●	●	●
126	PIPE; EXH,RR	1-22126-144-0	01	1	9707-9904					●
126	PIPE; EXH,RR	1-22126-144-0	01	1	9905-				●
126	PIPE; EXH,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-22123-199-3	01	1	9911-		●
168	BRACKET; EXH PIPE,FRT	1-22131-363-0	01	1	9707-9904					●
168	BRACKET; EXH PIPE,FRT	1-22131-363-0	01	1	9905-				●
222	CLAMP; EXH PIPE	1-22133-172-2	01	1	9707-9904					●
222	CLAMP; EXH PIPE	1-22133-172-2	01	1	9905-9910				●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	9911-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
