◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#43029) — 191 parça

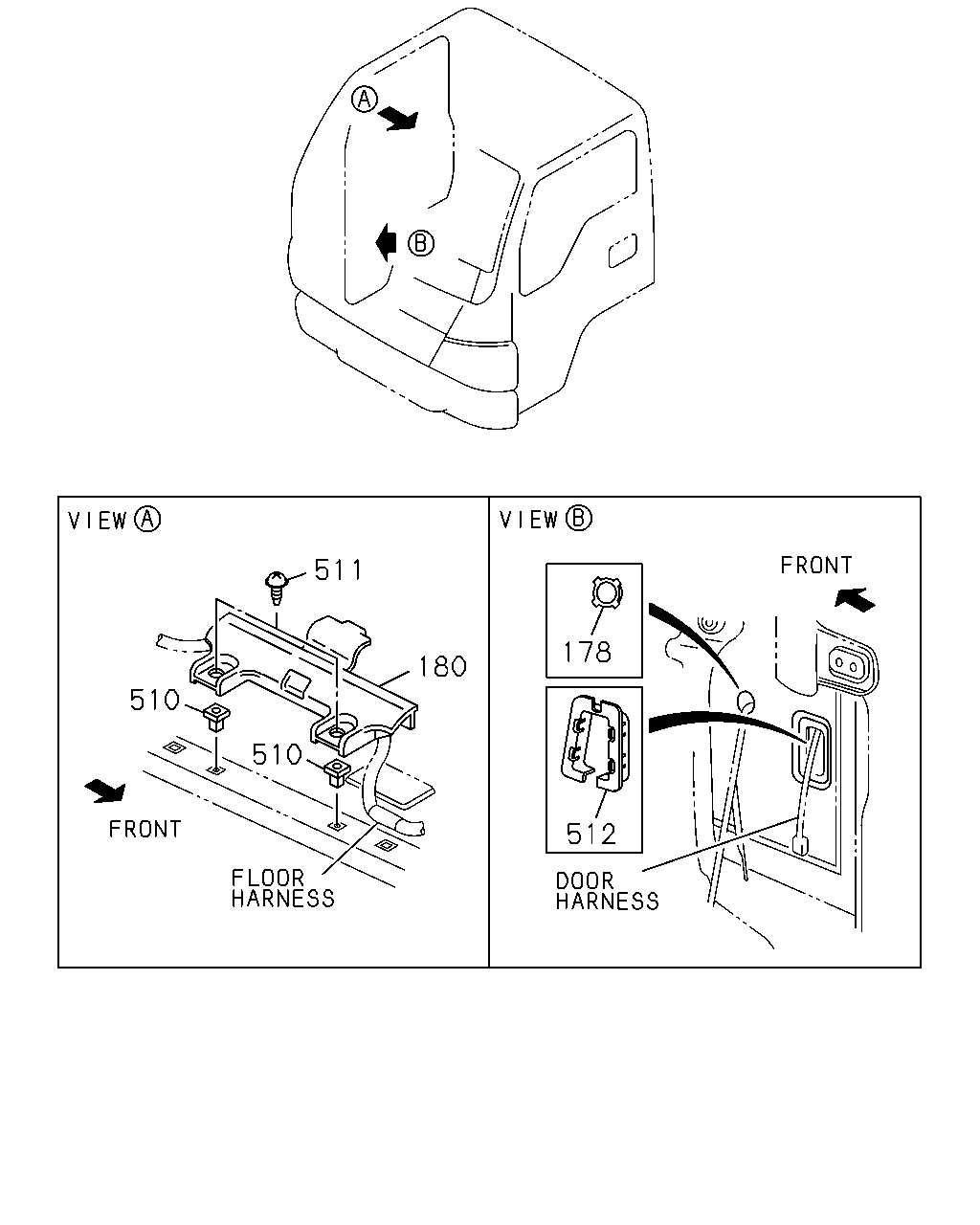

çizim 119035
511 178 180 510 510 512
BalonParca AdiParca NoAdetTipApplied Date A B C
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0508- ● ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 0508- ● ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0508- ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0508-0604 ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0605- ● ● ●
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0508- ● ● ●
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> 		8-97072-950-0 02 1 0508- ● ● ●
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0508- ● ● ●
çizim 119036
16 48 16 48 52 48 48 16 264 464 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 04 1 1011-1405 ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (H) L=155 THA 		8-97173-307-0 04 1 1011-1405 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (H) L=155 THA 		8-97173-307-0 04 1 1011-1405 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (E) L=100 THA 		8-94327-067-1 04 1 0508- ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (E) L=100 THA 		8-94327-067-1 04 1 0508- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 04 1 0508-1009 ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (H) L=155 THA 		8-97173-307-0 04 1 0508-1009 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1010-1010 ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (H) L=155 THA 		8-97173-307-0 05 1 1010-1010 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 06 1 1011-1405 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 04 1 1406- ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (H) L=155 THA 		8-97173-307-0 04 1 1406- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 10 1 0508-1009 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 11 1 1010-1010 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1011-1405 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1011-1405 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (H) L=155 THA 		8-97173-307-0 05 1 1011-1405 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1406- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1406- ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 		5-09700-319-0 07 1 0508- ●
16 CLIP; HARNESS
(A) L=135 		1-09987-143-1 02 1 0508- ● ● ●
16 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 02 1 0508- ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 02 1 0508- ● ● ●
16 CLIP; HARNESS
(G) ID=22 & 22 		8-94464-837-0 01 1 0508- ● ● ●
16 CLIP; HARNESS
(D) ID=15-32 		8-97174-404-0 04 1 0508- ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 		5-09700-319-0 06 1 0508- ●
16 CLIP; HARNESS
4HG1-T ENG<RDP> (C) ID=14 L=47 		5-09700-319-0 09 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (E) ID=14 L=47 		5-09700-319-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (B) ID=33 L=63 		1-09700-807-0 06 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (B) ID=33 L=63 		1-09700-807-0 06 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (E) ID=14 L=47 		5-09700-319-0 03 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (E) ID=14 L=47 		5-09700-319-0 03 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (G) L=140 		5-09707-031-1 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (G) L=140 		5-09707-031-1 01 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (I) T=5.5 		5-09709-047-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (I) T=5.5 		5-09709-047-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (L) ID=30 W/STUD 		8-97078-642-2 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (L) ID=30 W/STUD 		8-97078-642-2 01 1 0508- ●
48 CLIP; FRAME HARNESS
(C) ID=31 L=30 		1-09700-969-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (J) ID=24 		8-94149-610-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (E) ID=14 L=47 		5-09700-319-0 04 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (F) ID=20 		5-09700-321-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (H) T=4.5 & 9 		5-09709-023-0 01 1 0508- ●
52 CLIP; HARNESS TO BRKT
ID=14 L=47 		5-09700-319-0 01 1 0508- ● ●
264 CLIP; HARNESS,HEADLAMP
ID=10 & 16 		8-94413-325-0 01 1 0508- ● ● ●
464 CLIP; SEDIMENTER HARNESS
4JB1-TC ENG<RDT> ID=6.5 THA 		8-94257-639-0 01 1 0508- ● ●
464 CLIP; SEDIMENTER HARNESS
4HG1-T ENG<RDP> ID=6.5 THA 		8-94257-639-0 01 1 0508- ●
çizim 119037
14 48 162 483 488 14 16 205 142 16 16 16 483 16
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; BAND,HARNESS
(A) L=200 		8-94464-835-0 01 1 0508- ● ● ●
14 CLIP; BAND,HARNESS
4HG1-T ENG<RDP> (B) L=140 		5-09707-031-1 01 1 0508- ●
16 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 04 1 1011-1405 ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (H) L=155 THA 		8-97173-307-0 04 1 1011-1405 ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (H) L=155 THA 		8-97173-307-0 04 1 1011-1405 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (E) L=100 THA 		8-94327-067-1 04 1 0508- ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (E) L=100 THA 		8-94327-067-1 04 1 0508- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 04 1 0508-1009 ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (H) L=155 THA 		8-97173-307-0 04 1 0508-1009 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1010-1010 ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (H) L=155 THA 		8-97173-307-0 05 1 1010-1010 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 06 1 1011-1405 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 04 1 1406- ● ● ●
16 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> (H) L=155 THA 		8-97173-307-0 04 1 1406- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 10 1 0508-1009 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 11 1 1010-1010 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1011-1405 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1011-1405 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (H) L=155 THA 		8-97173-307-0 05 1 1011-1405 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1406- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (H) L=155 THA 		8-97173-307-0 05 1 1406- ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 		5-09700-319-0 07 1 0508- ●
16 CLIP; HARNESS
(A) L=135 		1-09987-143-1 02 1 0508- ● ● ●
16 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 02 1 0508- ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 02 1 0508- ● ● ●
16 CLIP; HARNESS
(G) ID=22 & 22 		8-94464-837-0 01 1 0508- ● ● ●
16 CLIP; HARNESS
(D) ID=15-32 		8-97174-404-0 04 1 0508- ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 		5-09700-319-0 06 1 0508- ●
16 CLIP; HARNESS
4HG1-T ENG<RDP> (C) ID=14 L=47 		5-09700-319-0 09 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (E) ID=14 L=47 		5-09700-319-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (B) ID=33 L=63 		1-09700-807-0 06 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (B) ID=33 L=63 		1-09700-807-0 06 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (E) ID=14 L=47 		5-09700-319-0 03 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (E) ID=14 L=47 		5-09700-319-0 03 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (G) L=140 		5-09707-031-1 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (G) L=140 		5-09707-031-1 01 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (I) T=5.5 		5-09709-047-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (I) T=5.5 		5-09709-047-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (L) ID=30 W/STUD 		8-97078-642-2 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (L) ID=30 W/STUD 		8-97078-642-2 01 1 0508- ●
48 CLIP; FRAME HARNESS
(C) ID=31 L=30 		1-09700-969-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (J) ID=24 		8-94149-610-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (E) ID=14 L=47 		5-09700-319-0 04 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (F) ID=20 		5-09700-321-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (H) T=4.5 & 9 		5-09709-023-0 01 1 0508- ●
142 CLIP; HARNESS,ENG
M/T MYY5T<RSM> L=170.3 THA 		1-09987-182-0 01 1 0508- ●
162 CLIP; SW HARNESS
4HG1-T ENG<RDP> L=140 		5-09707-031-1 01 1 0508- ●
205 CLIP; BACK LAMP HARNESS
M/T MYY5T<RSM> L=135 		1-09987-143-1 01 1 0508- ●
483 CLIP; ENG HARNESS
4JB1-TC ENG<RDT> (A) L=197 		1-83574-032-0 01 1 0508- ● ●
483 CLIP; ENG HARNESS
4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> (B) L=140 		5-09707-031-1 02 1 0508- ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0508- ● ● ●
çizim 119041
139 377 38 38 8 38 139 466 139 386 159 55 219 294 515 219 469 515 294 519
BalonParca AdiParca NoAdetTipApplied Date A B C
8 BOLT; BRKT,CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0508-1210 ● ● ●
8 BOLT; BRKT,CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X25 FLANGE THA 		0-28650-625-0 04 1 0612- ● ● ●
38 BOLT; CLIP,HARNESS
4JB1-TC ENG<RDT> (B) M6X20 FLANGE 		0-28680-620-0 01 1 0508-0512 ● ●
38 BOLT; CLIP,HARNESS
4JB1-TC ENG<RDT> (B) M6X20 FLANGE THA 		0-28650-620-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M6X25 FLANGE 		0-28680-625-0 02 1 0508-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M6X25 FLANGE THA 		0-28650-625-0 02 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X25 FLANGE 		0-28680-625-0 04 1 0511-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X25 FLANGE 		0-28680-625-0 02 1 0601-0611 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ● ● ●
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ● ●
55 WASHER; PL,CLIP
ID=6.4 OD=18 		9-09160-706-0 01 1 0508-0605 ● ● ●
55 WASHER; PL,CLIP
ID=6.4 OD=18 		0-91610-706-0 01 1 0606- ● ● ●
139 BOLT; BRKT
4HG1-T ENG<RDP> (C) 		8-97028-451-3 01 1 0508- ●
139 BOLT; BRKT
4JB1-TC ENG<RDT> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0508-0611 ● ●
139 BOLT; BRKT
4HG1-T ENG<RDP> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0508-0611 ●
139 BOLT; BRKT
4JB1-TC ENG<RDT> (A) M8X16 FLANGE THA 		0-28050-816-0 03 1 0612- ● ●
139 BOLT; BRKT
4HG1-T ENG<RDP> (A) M8X16 FLANGE THA 		0-28050-816-0 03 1 0612- ●
139 BOLT; BRKT
4JB1-TC ENG<RDT> (B) M6X35 FLANGE 		0-28680-635-0 01 1 0508- ●
159 BOLT; GRAND ENG ELEC
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0508- ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0508- ● ● ●
219 NUT
4JB1-TC ENG<RDT> (B) M8 FLANGE 		0-91150-108-0 01 1 0508- ●
219 NUT
4JB1-TC ENG<RDT> (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ● ●
219 NUT
4JB1-TC ENG<RDT> (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ● ●
219 NUT
4HG1-T ENG<RDP> (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
219 NUT
4JB1-TC ENG<RDT> (A) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●
219 NUT
4JB1-TC ENG<RDT> (A) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●
219 NUT
4HG1-T ENG<RDP> (A) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 02 1 0508-0605 ● ● ●
219 NUT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0606- ● ● ●
294 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 0508-0602 ● ● ●
294 NUT
4HG1-T ENG<RDP> (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0602 ●
294 NUT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0603- ● ● ●
294 NUT
4HG1-T ENG<RDP> (A) M6 FLANGE THA 		0-91180-106-0 01 1 0603- ●
294 NUT
M/T MYY5T<RSM> (B) M10 FLANGE 		0-91150-110-0 01 1 0508-0602 ●
294 NUT
M/T MYY5T<RSM> (B) M10 FLANGE THA 		0-91180-110-0 01 1 0603- ●
294 NUT
4HG1-T ENG<RDP> (A) M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ●
294 NUT
4HG1-T ENG<RDP> (A) M6 FLANGE THA 		0-91180-106-0 01 1 0606- ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0508- ● ● ●
386 BOLT; GRAND HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0508- ● ● ●
466 BOLT; HEAT PROTECTOR
4JB1-TC ENG<RDT> M8X35 FLANGE 		0-28680-835-0 01 1 0508-0611 ●
466 BOLT; HEAT PROTECTOR
4HG1-T ENG<RDP> M8X35 FLANGE 		0-28680-835-0 01 1 0508-0611 ●
466 BOLT; HEAT PROTECTOR
4JB1-TC ENG<RDT> M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ●
466 BOLT; HEAT PROTECTOR
4HG1-T ENG<RDP> M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ●
469 NUT; PROTECTOR
4JB1-TC ENG<RDT> M8 FLANGE 		0-91150-108-0 01 1 0508- ●
469 NUT; PROTECTOR
4HG1-T ENG<RDP> M8 FLANGE 		0-91150-108-0 01 1 0508- ●
515 NUT; BRKT
4JB1-TC ENG<RDT> (B) M8 FLANGE 		0-91150-108-0 01 1 0508- ●
515 NUT; BRKT
4HG1-T ENG<RDP> (A) M6 FLANGE 		0-91150-106-0 02 1 0508-0605 ●
515 NUT; BRKT
4HG1-T ENG<RDP> (A) M6 FLANGE THA 		0-91180-106-0 02 1 0606- ●
519 NUT; EARTH CABLE
4JB1-TC ENG<RDT> M12 FLANGE 		0-91150-112-0 01 1 0508- ● ●
çizim 119044
48 48 48 504 514 514 48 31 53 31 31 53 312 412
BalonParca AdiParca NoAdetTipApplied Date A B C
31 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG<RDT> (A) L=20 		8-94165-263-1 01 1 0508- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JB1-TC ENG<RDT> (B) 		8-97077-845-0 02 1 0508- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG<RDP> (C) 		8-97362-859-0 03 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (A) ID=19 H=70 L=25 		1-09700-773-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (E) ID=14 L=47 		5-09700-319-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (B) ID=33 L=63 		1-09700-807-0 06 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (B) ID=33 L=63 		1-09700-807-0 06 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (E) ID=14 L=47 		5-09700-319-0 03 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (E) ID=14 L=47 		5-09700-319-0 03 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (G) L=140 		5-09707-031-1 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (G) L=140 		5-09707-031-1 01 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (I) T=5.5 		5-09709-047-0 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (I) T=5.5 		5-09709-047-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (L) ID=30 W/STUD 		8-97078-642-2 01 1 0508- ● ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (L) ID=30 W/STUD 		8-97078-642-2 01 1 0508- ●
48 CLIP; FRAME HARNESS
(C) ID=31 L=30 		1-09700-969-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 01 1 0508- ● ● ●
48 CLIP; FRAME HARNESS
4JB1-TC ENG<RDT> (J) ID=24 		8-94149-610-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (E) ID=14 L=47 		5-09700-319-0 04 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (F) ID=20 		5-09700-321-0 01 1 0508- ●
48 CLIP; FRAME HARNESS
4HG1-T ENG<RDP> (H) T=4.5 & 9 		5-09709-023-0 01 1 0508- ●
53 BRACKET; HARNESS
4JB1-TC ENG<RDT> (A) 		8-97091-462-1 01 1 0508- ●
53 BRACKET; HARNESS
4HG1-T ENG<RDP> (B) 		8-97357-140-0 01 1 0508- ●
312 BRACKET; CLIP HARNESS
4HG1-T ENG<RDP> 		8-97018-095-3 01 1 0508- ●
412 BRACKET; HARNESS,TRANS
M/T MYY5T<RSM> 		8-97324-451-1 01 1 0508- ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0508- ● ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 03 1 0508- ● ● ●
514 FINISHER; HARNESS
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0508- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
