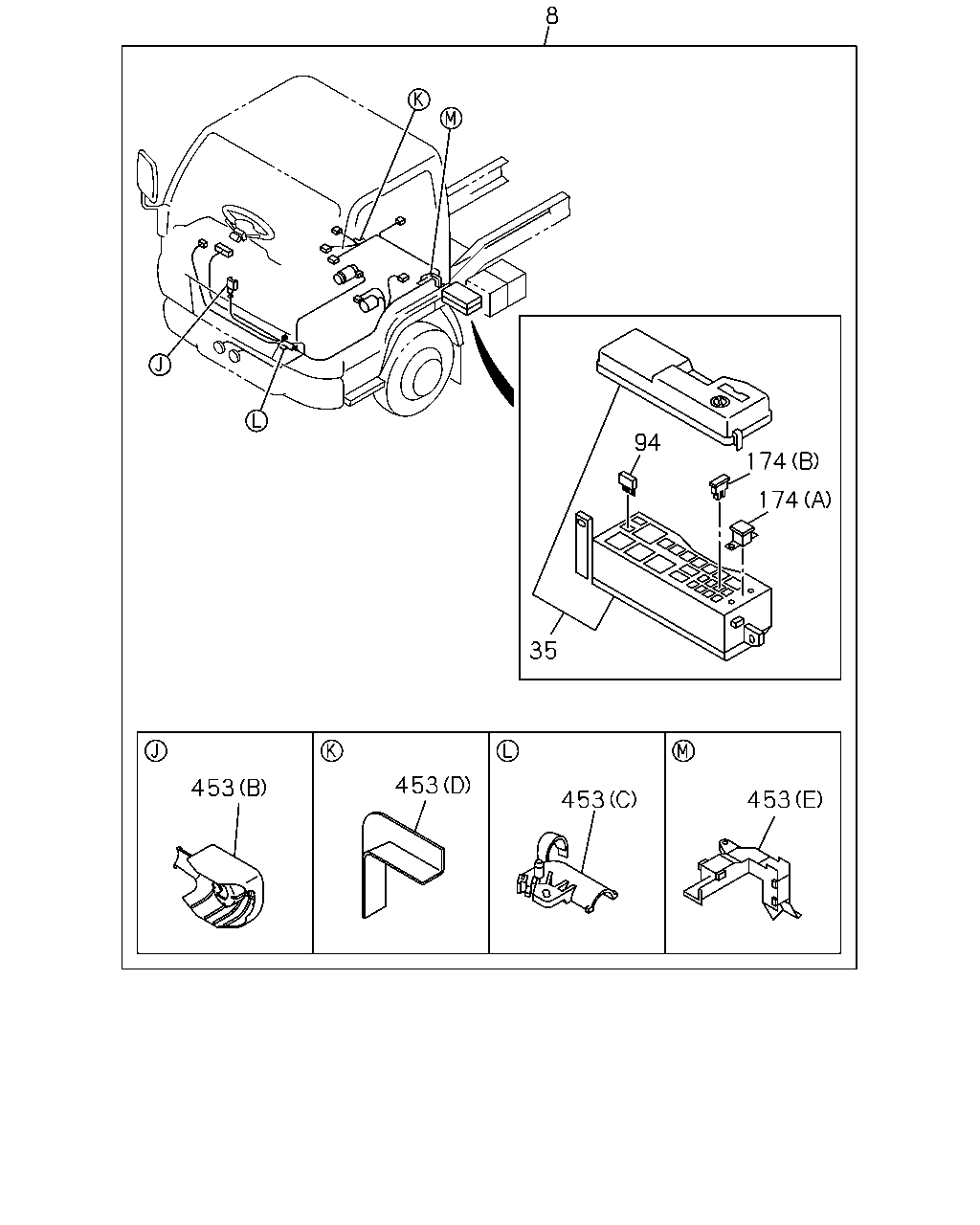

8-10 — WIRING HARNESS AND FUSE (#43028) — 117 parça

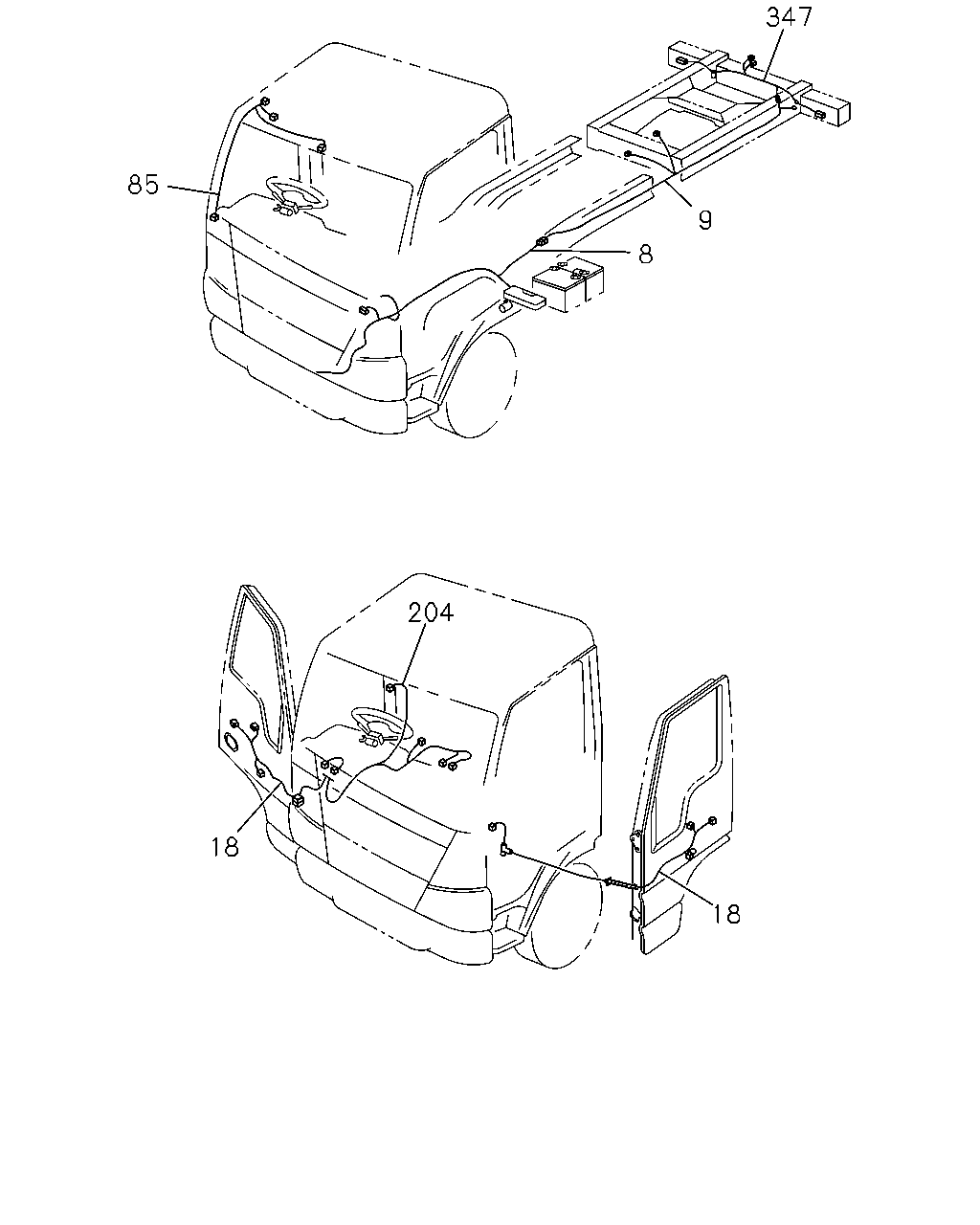

347 85 9 8 204 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97922-766-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97924-167-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97922-767-0	01	1	0508-0707		●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97924-168-0	01	1	0708-		●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97922-768-0	01	1	0508-0707			●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97924-169-0	01	1	0708-			●
9	HARNESS; FRAME,RR	8-97381-162-1	01	1	0508-	●	●
9	HARNESS; FRAME,RR	8-97381-164-1	01	1	0508-			●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>	8-97226-669-0	01	1	1011-1405	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	1406-	●	●	●
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1011-1405	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2>,RADIO AM/FM STEREO 2SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL>	8-97226-671-1	01	1	1011-1405	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL>	8-97226-671-1	01	1	1011-1405			●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1406-	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2>	8-97226-671-1	01	1	1406-	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2>	8-98166-819-0	01	1	1010-1010	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1011-1405	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0508-	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0508-1009	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1010-1010	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1011-1405	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> THA	8-97917-005-0	02	1	0508-	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER<RS2> THA	8-97917-005-0	02	1	0508-	●	●	●
85	HARNESS; ROOM LAMP THA	8-97917-003-1	01	1	0508-	●	●	●
184	COVER; RELAY & FUSE BOX 4JB1-TC ENG<RDT>	8-97377-741-0	01	1	0508-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>	8-97377-741-0	01	1	0508-			●
204	HARNESS; CABLE,FLOOR THA	8-97917-002-1	01	1	0508-	●	●	●
347	HARNESS; CABLE,RR BODY THA	8-97916-998-1	01	1	0508-	●	●	●

8 94 174 174 35 453 453 453 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97922-766-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97924-167-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97922-767-0	01	1	0508-0707		●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97924-168-0	01	1	0708-		●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97922-768-0	01	1	0508-0707			●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97924-169-0	01	1	0708-			●
35	BOX; RELAY & FUSE 4JB1-TC ENG<RDT>	8-97377-739-0	01	1	0508-	●	●
35	BOX; RELAY & FUSE 4HG1-T ENG<RDP>	8-97377-739-0	01	1	0508-			●
94	DIODE; FRAME HARNESS 4JB1-TC ENG<RDT> BLACK 3P-1.5A THA	8-94422-640-1	01	1	0508-	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP> (B) 40A GREEN THA	8-97183-644-0	01	1	0508-			●
174	FUSE; SLOW BLOW 4JB1-TC ENG<RDT> (A) 100A BLUE THA	8-94388-306-1	01	1	0508-	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP> (A) 100A BLUE THA	8-94388-306-1	01	1	0508-			●
174	FUSE; SLOW BLOW 4JB1-TC ENG<RDT> (B) 30A PINK THA	8-97183-643-0	01	1	0508-	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP> (B) 30A PINK THA	8-97183-643-0	01	1	0508-			●
174	FUSE; SLOW BLOW 4JB1-TC ENG<RDT> (B) 50A RED THA	8-97183-645-0	01	1	0508-	●	●
174	FUSE; SLOW BLOW 4JB1-TC ENG<RDT> (B) 60A YELLOW THA	8-97219-407-0	01	1	0508-	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP> (B) 60A YELLOW THA	8-97219-407-0	01	1	0508-			●
184	COVER; RELAY & FUSE BOX 4JB1-TC ENG<RDT>	8-97377-741-0	01	1	0508-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>	8-97377-741-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4JB1-TC ENG<RDT> (A) THA	8-94452-553-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (A) THA	8-94452-553-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (D) THA	8-94417-716-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (B) THA	8-94482-169-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (C) THA	8-97093-668-1	01	1	0508-			●
453	PROTECTOR; HARNESS 4JB1-TC ENG<RDT> (E) THA	8-97120-589-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (E) THA	8-97120-589-0	01	1	0508-			●

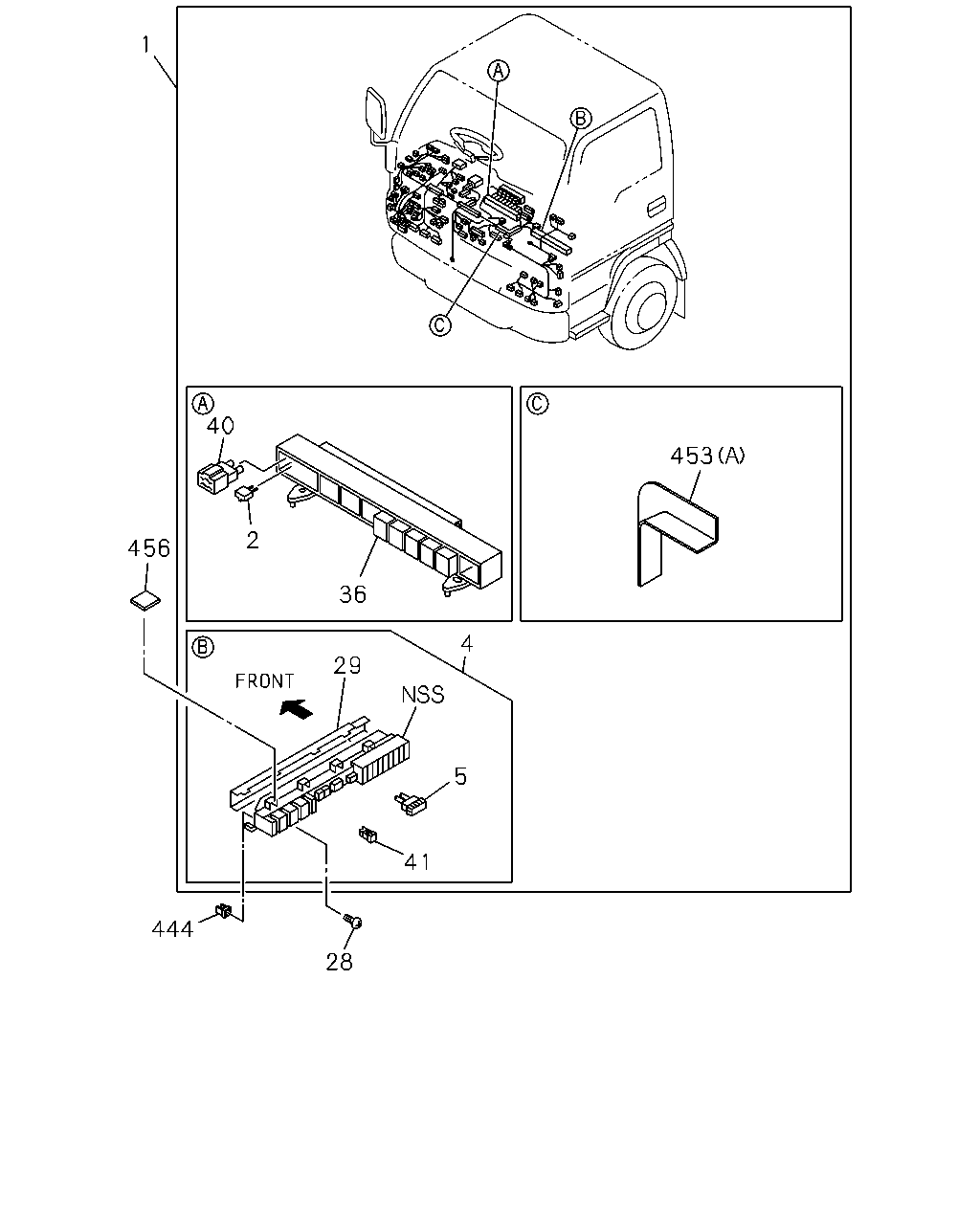

1 40 453 2 456 36 4 29 5 41 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4JB1-TC ENG<RDT> THA	8-97922-774-1	01	1	0508-	●	●
1	HARNESS; CAB 4HG1-T ENG<RDP> THA	8-97922-776-1	01	1	0508-			●
2	DIODE; CABLE HARNESS 4JB1-TC ENG<RDT> BLACK 3P-1.5A THA	8-94422-640-1	01	1	0508-	●	●
2	DIODE; CABLE HARNESS 4HG1-T ENG<RDP> BLACK 3P-1.5A THA	8-94422-640-1	01	1	0508-			●
4	BOX ASM; FUSE,HARNESS 4JB1-TC ENG<RDT>	8-97187-921-1	01	1	0508-	●	●
4	BOX ASM; FUSE,HARNESS 4HG1-T ENG<RDP>	8-97187-921-1	01	1	0508-			●
5	FUSE; FACIA HARNESS 4HG1-T ENG<RDP> 20A MINI YELLOW	8-97062-024-0	01	1	0508-			●
5	FUSE; FACIA HARNESS 4JB1-TC ENG<RDT> 10A MINI RED	8-97062-022-0	08	1	0508-	●	●
5	FUSE; FACIA HARNESS 4JB1-TC ENG<RDT> 15A MINI BLUE	8-97062-023-0	09	1	0508-	●	●
5	FUSE; FACIA HARNESS 4JB1-TC ENG<RDT> 30A PINK THA	8-97183-643-0	01	1	0508-	●	●
5	FUSE; FACIA HARNESS 4HG1-T ENG<RDP> 10A MINI RED	8-97062-022-0	12	1	0508-			●
5	FUSE; FACIA HARNESS 4HG1-T ENG<RDP> 15A MINI BLUE	8-97062-023-0	07	1	0508-			●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0508-0604	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●	●	●
28	SCREW; FUSE BOX T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-	●	●	●
29	COVER; FUSE BOX 4HG1-T ENG<RDP> THA	8-97074-955-0	01	1	0508-			●
36	BOX; RELAY 4JB1-TC ENG<RDT>	8-97187-918-1	01	1	0508-	●	●
36	BOX; RELAY 4HG1-T ENG<RDP>	8-97187-918-1	01	1	0508-			●
40	BOX; DIODE 4JB1-TC ENG<RDT> BLACK 8P THA	8-97078-064-1	01	1	0508-	●	●
40	BOX; DIODE 4HG1-T ENG<RDP> BLACK 8P THA	8-97078-064-1	01	1	0508-			●
41	PULLER; FUSE 4JB1-TC ENG<RDT>	8-97103-388-0	01	1	0508-	●	●
41	PULLER; FUSE 4HG1-T ENG<RDP>	8-97103-388-0	01	1	0508-			●
184	COVER; RELAY & FUSE BOX 4JB1-TC ENG<RDT>	8-97377-741-0	01	1	0508-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>	8-97377-741-0	01	1	0508-			●
444	GROMMET; SCREW,FUSE BOX D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0508-	●	●	●
453	PROTECTOR; HARNESS 4JB1-TC ENG<RDT> (A) THA	8-94452-553-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (A) THA	8-94452-553-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (D) THA	8-94417-716-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (B) THA	8-94482-169-0	01	1	0508-			●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (C) THA	8-97093-668-1	01	1	0508-			●
453	PROTECTOR; HARNESS 4JB1-TC ENG<RDT> (E) THA	8-97120-589-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (E) THA	8-97120-589-0	01	1	0508-			●
456	CUSHION; FUSE BOX 15X30 T=5	8-94270-366-2	01	1	0508-	●	●	●

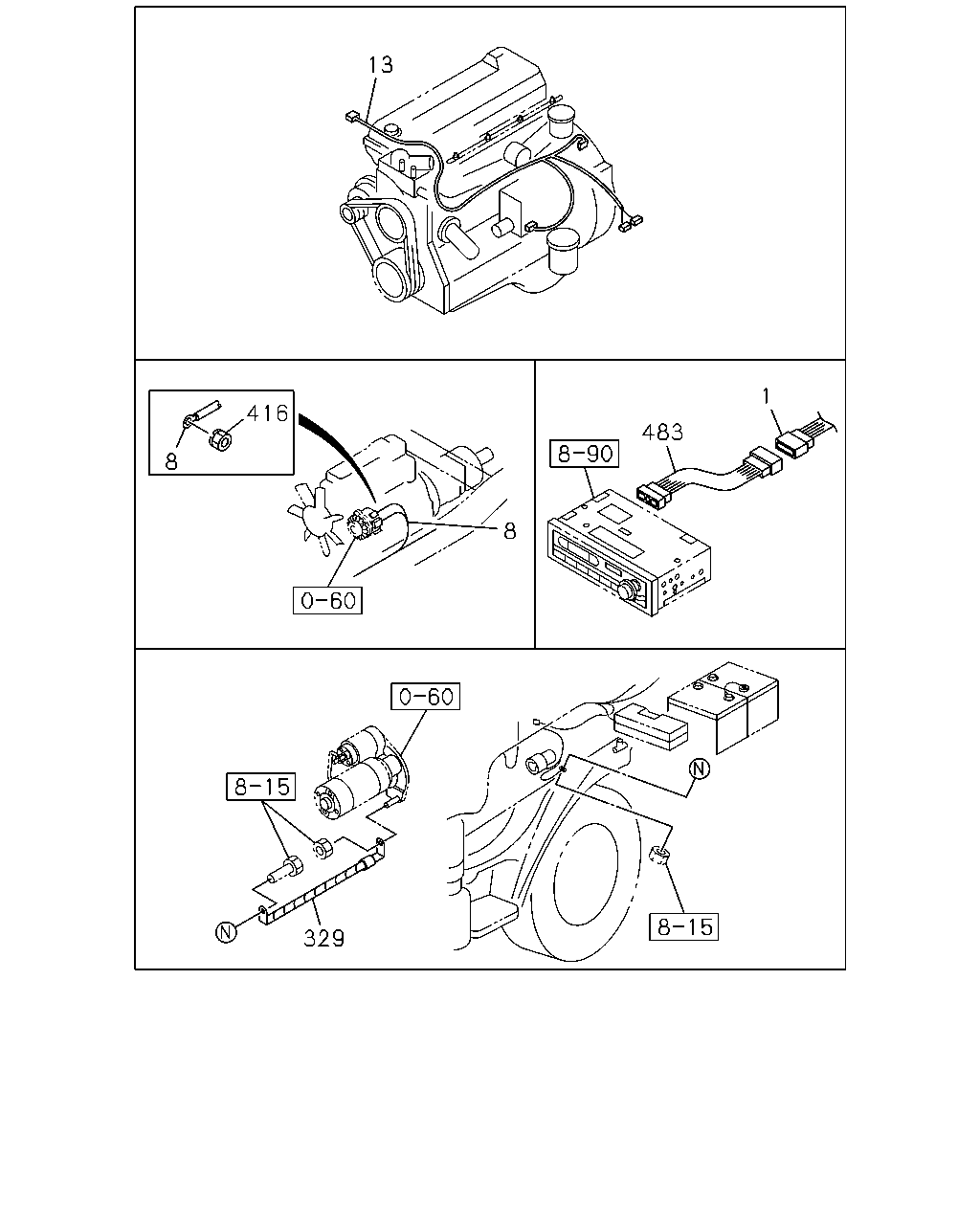

13 1 416 483 8 8 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4JB1-TC ENG<RDT> THA	8-97922-774-1	01	1	0508-	●	●
1	HARNESS; CAB 4HG1-T ENG<RDP> THA	8-97922-776-1	01	1	0508-			●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97922-766-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97924-167-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97922-767-0	01	1	0508-0707		●
8	HARNESS; FRAME,FRT 4JB1-TC ENG<RDT> THA	8-97924-168-0	01	1	0708-		●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97922-768-0	01	1	0508-0707			●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97924-169-0	01	1	0708-			●
13	HARNESS; ENG 4JB1-TC ENG<RDT>	8-97214-265-1	01	1	0508-	●	●
13	HARNESS; ENG 4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60>	8-97360-784-1	01	1	0508-			●
184	COVER; RELAY & FUSE BOX 4JB1-TC ENG<RDT>	8-97377-741-0	01	1	0508-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>	8-97377-741-0	01	1	0508-			●
329	CABLE; ENG TO FRAME 4JB1-TC ENG<RDT> THA	8-97922-391-0	01	1	0508-	●	●
329	CABLE; ENG TO FRAME 4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60>	8-97177-383-0	01	1	0508-			●
416	NUT; TERMINAL 4HG1-T ENG<RDP> M6 W/LK WASHER	8-94424-179-0	01	1	0508-			●
483	HARNESS; EXT,RADIO RADIO AM W/AMPLIFIER<RS2> TUNER BAND ASIA<7DN>	8-97373-419-0	01	1	0508-	●	●

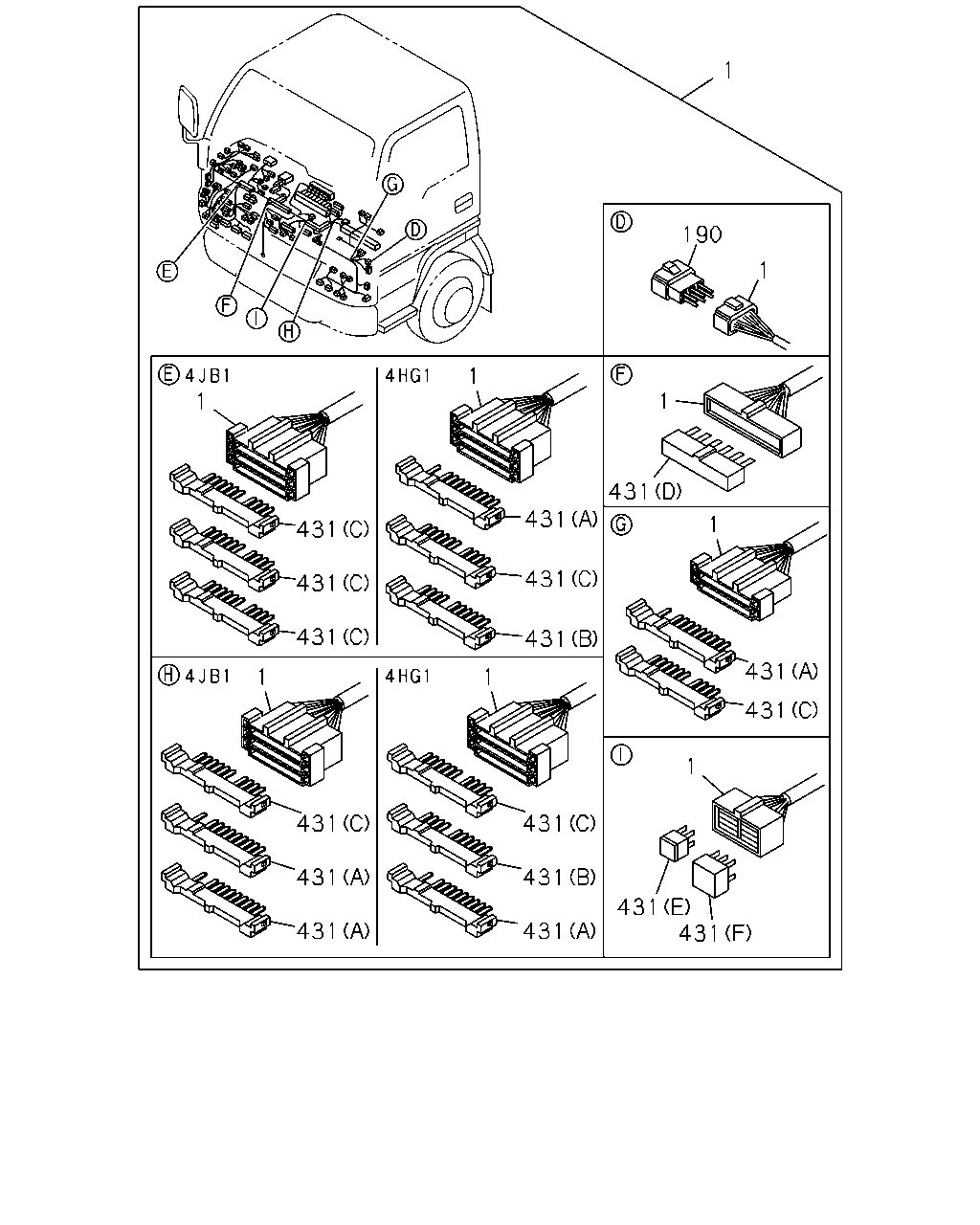

1 190 1 1 1 1 431 431 1 431 431 431 431 431 431 1 1 431 1 431 431 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4JB1-TC ENG<RDT> THA	8-97922-774-1	01	1	0508-	●	●
1	HARNESS; CAB 4HG1-T ENG<RDP> THA	8-97922-776-1	01	1	0508-			●
184	COVER; RELAY & FUSE BOX 4JB1-TC ENG<RDT>	8-97377-741-0	01	1	0508-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>	8-97377-741-0	01	1	0508-			●
431	CONNECTOR; JOINT 4JB1-TC ENG<RDT> (D) 6P	1-82691-206-0	01	1	0508-	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (D) 6P	1-82691-206-0	01	1	0508-			●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (B) 10P BLUE THA	1-82699-598-0	01	1	0508-			●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (C) 10P GREEN THA	1-82699-599-0	02	1	0508-			●
431	CONNECTOR; JOINT 4JB1-TC ENG<RDT> (E) 4P	8-97077-939-0	02	1	0508-	●	●
431	CONNECTOR; JOINT 4JB1-TC ENG<RDT> (F) 6P	8-97077-941-0	02	1	0508-	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (A) 10P BROWN THA	1-82699-601-0	03	1	0508-			●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (E) 4P	8-97077-939-0	01	1	0508-			●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (F) 6P	8-97077-941-0	01	1	0508-			●
