8-01 — LAMP; FRONT AND FRONT SIDE (#43026) — 80 parça

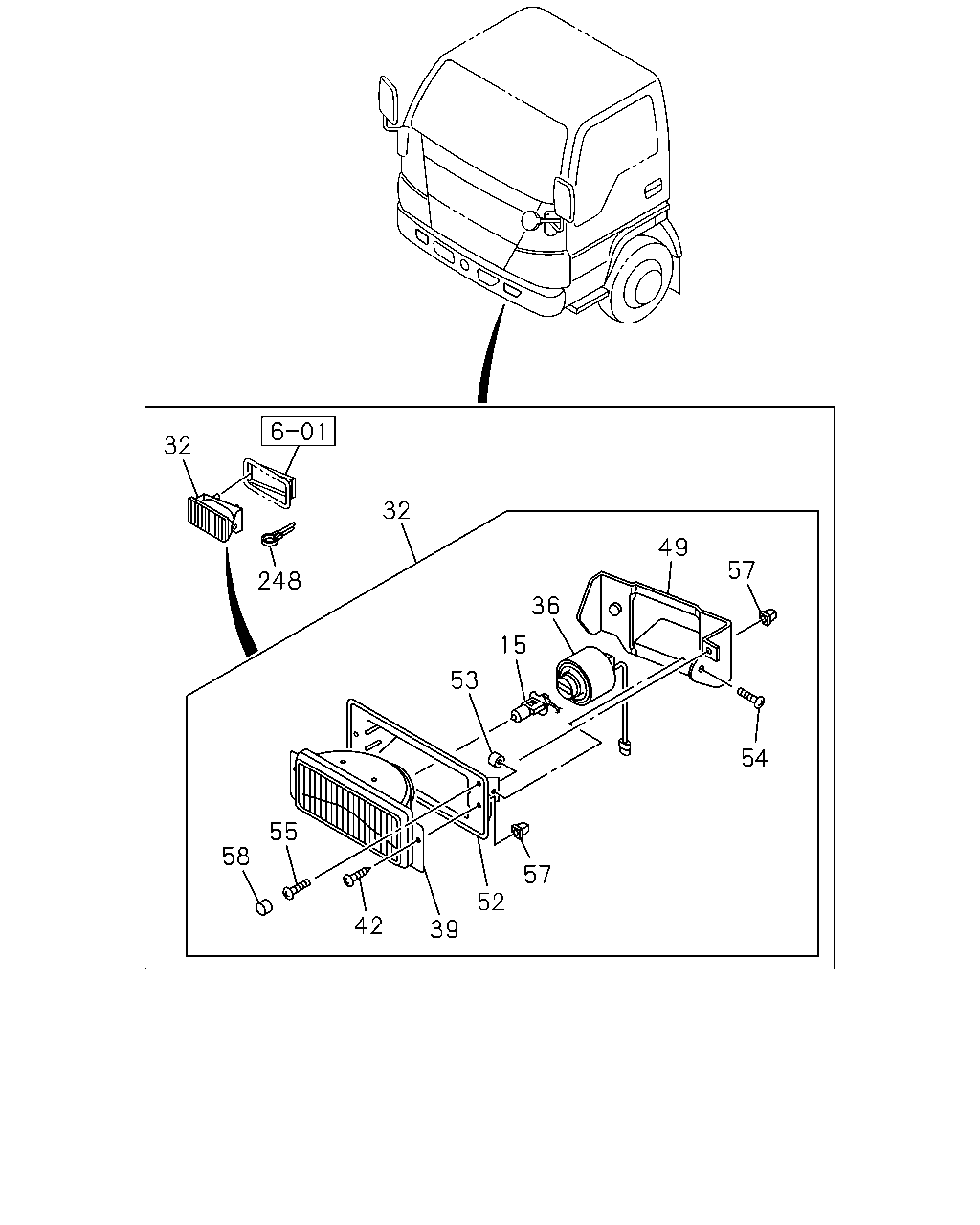

çizim 119042
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C
15 BULB; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 12V 55W 		8-97093-859-0 02 1 0508- ● ●
15 BULB; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 24V 55W 		8-97093-860-0 02 1 0508-0612 ●
15 BULB; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 24V 55W 		1-82194-095-0 02 1 0701-1401 ●
15 BULB; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 24V 55W 		8-98230-031-0 02 1 1402- ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97248-539-0 01 1 0508-0612 ● ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98054-093-0 01 1 0701- ● ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97248-540-0 01 1 0508-0612 ● ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98054-094-0 01 1 0701- ● ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97248-541-0 01 1 0508-0612 ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98054-095-1 01 1 0701- ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97248-542-0 01 1 0508-0612 ●
32 LAMP ASM; FOG
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98054-096-1 01 1 0701- ●
36 CORD; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97095-518-0 02 1 0508- ● ● ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-060-0 01 1 0508-0612 ● ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98063-678-0 01 1 0701- ● ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97119-300-0 01 1 0508-0612 ● ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98063-679-0 01 1 0701- ● ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-061-0 01 1 0508-0612 ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98063-680-0 01 1 0701- ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97119-301-0 01 1 0508-0612 ●
39 UNIT; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-98063-681-0 01 1 0701- ●
42 SCREW; LENS,FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-089-0 04 1 0508- ● ● ●
49 BRACKET; LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-090-0 01 1 0508- ● ● ●
49 BRACKET; LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-091-0 01 1 0508- ● ● ●
52 RING; MTG,FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-062-0 02 1 0508- ● ● ●
53 NUT; MTG RING,FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-94379-802-0 04 1 0508- ● ● ●
54 BOLT; MTG RING,FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> M5X12 		8-94379-803-0 04 1 0508- ● ● ●
55 SCREW; ADJ,FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-087-0 02 1 0508- ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-94379-806-0 06 1 0508- ● ● ●
58 HOLDER; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> 		8-97104-088-0 02 1 0508- ● ● ●
248 CLIP; HARNESS
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> ID=20 		5-09700-321-0 02 1 0508- ● ● ●
çizim 119046
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B C
60 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0508- ● ●
60 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0508- ● ●
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0508- ●
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0508- ●
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0508- ● ● ●
68 BULB; FRT COMB LAMP
(A) 12V 21/5W 		8-94125-959-0 02 1 0508- ● ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-97304-590-0 02 1 0508- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 21/5W THA 		8-94125-957-0 02 1 0508- ●
68 BULB; FRT COMB LAMP
(B) 24V 21W AMBER THA 		8-97323-806-0 02 1 0508- ●
75 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0508- ● ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0508- ● ● ●
76 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0508- ● ● ●
76 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0508- ● ● ●
93 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0508- ● ● ●
93 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0508- ● ● ●
315 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0508- ● ● ●
419 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0508- ● ● ●
419 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0508- ● ● ●

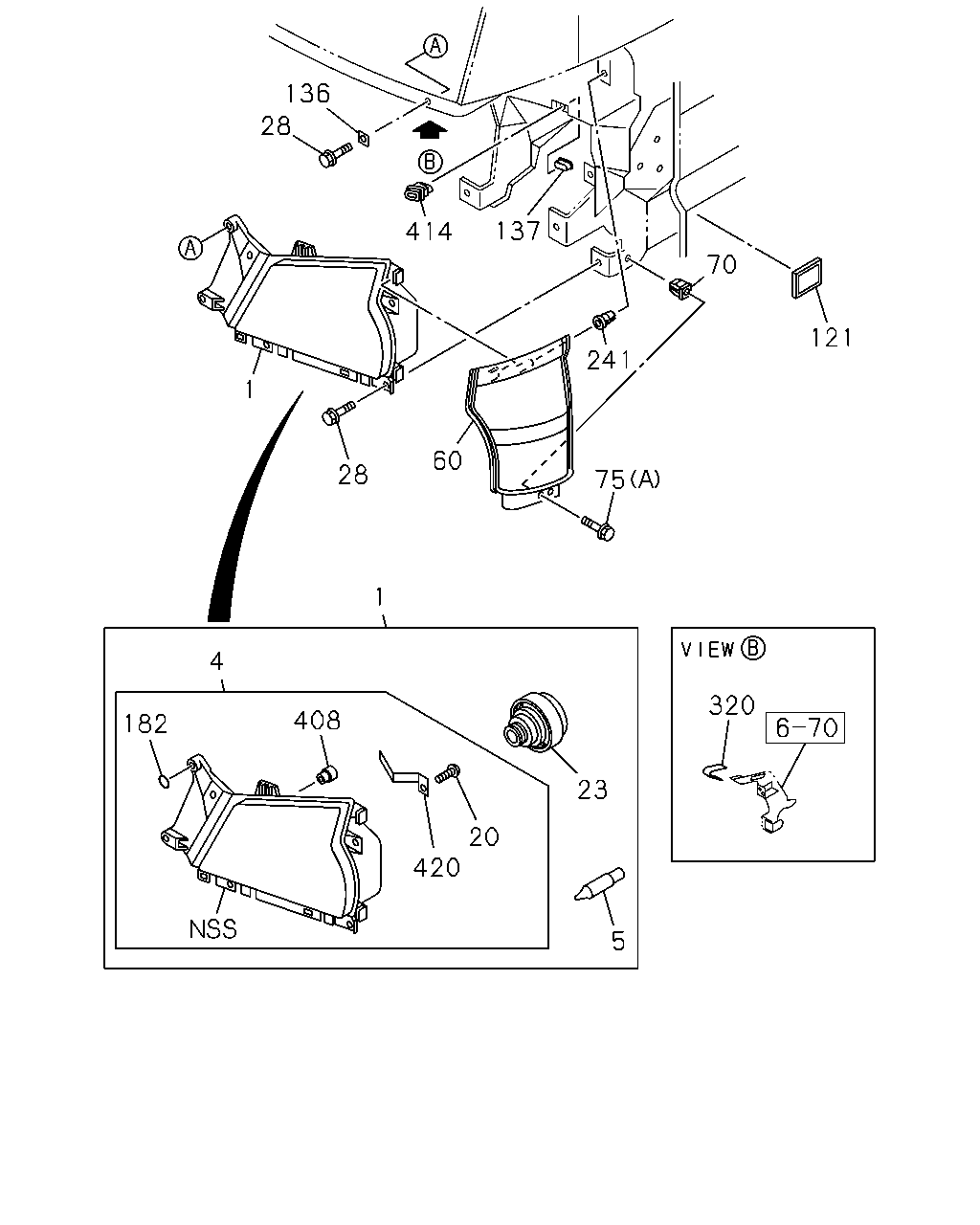

çizim 119063
136 28 137 414 70 121 241 1 60 28 75 1 4 320 408 182 23 20 420 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
12V 60/55W 		8-97372-526-5 01 1 0508- ● ●
1 LAMP ASM; HEAD
12V 60/55W 		8-97372-527-5 01 1 0508- ● ●
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0508- ●
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0508- ●
4 HEADLAMP UNIT 8-98009-820-0 01 1 0508- ● ●
4 HEADLAMP UNIT 8-98009-821-0 01 1 0508- ● ●
4 HEADLAMP UNIT 8-98009-818-0 01 1 0508- ●
4 HEADLAMP UNIT 8-98009-819-0 01 1 0508- ●
5 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 0508- ● ●
5 BULB; HEADLAMP
24V 75/70W THA 		1-82194-063-0 02 1 0508- ●
20 SCREW; HEADLAMP
THA 		8-97378-871-0 02 1 0508- ● ● ●
23 COVER; BULB,HEADLAMP
THA 		8-97232-491-0 02 1 0508- ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0508-0607 ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401 ● ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ● ●
60 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0508- ● ●
60 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0508- ● ●
60 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0508- ●
60 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0508- ●
70 GROMMET; SCREW,FRT COMB LAMP 1-09983-081-0 02 1 0508- ● ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0508- ● ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0508- ● ● ●
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0508- ● ● ●
136 SEAL; HEADLAMP
25X25 		8-94272-533-0 02 1 0508- ● ● ●
137 GROMMET; HEADLAMP 8-97581-666-0 02 1 0508- ● ● ●
182 GASKET; HEADLAMP 8-97378-869-0 02 1 0508- ● ● ●
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0508- ● ● ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0508- ● ● ●
408 CAP; BREATHER,HEADLAMP
THA 		8-97378-874-0 02 1 0508- ● ● ●
414 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0508- ● ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0508- ● ● ●
