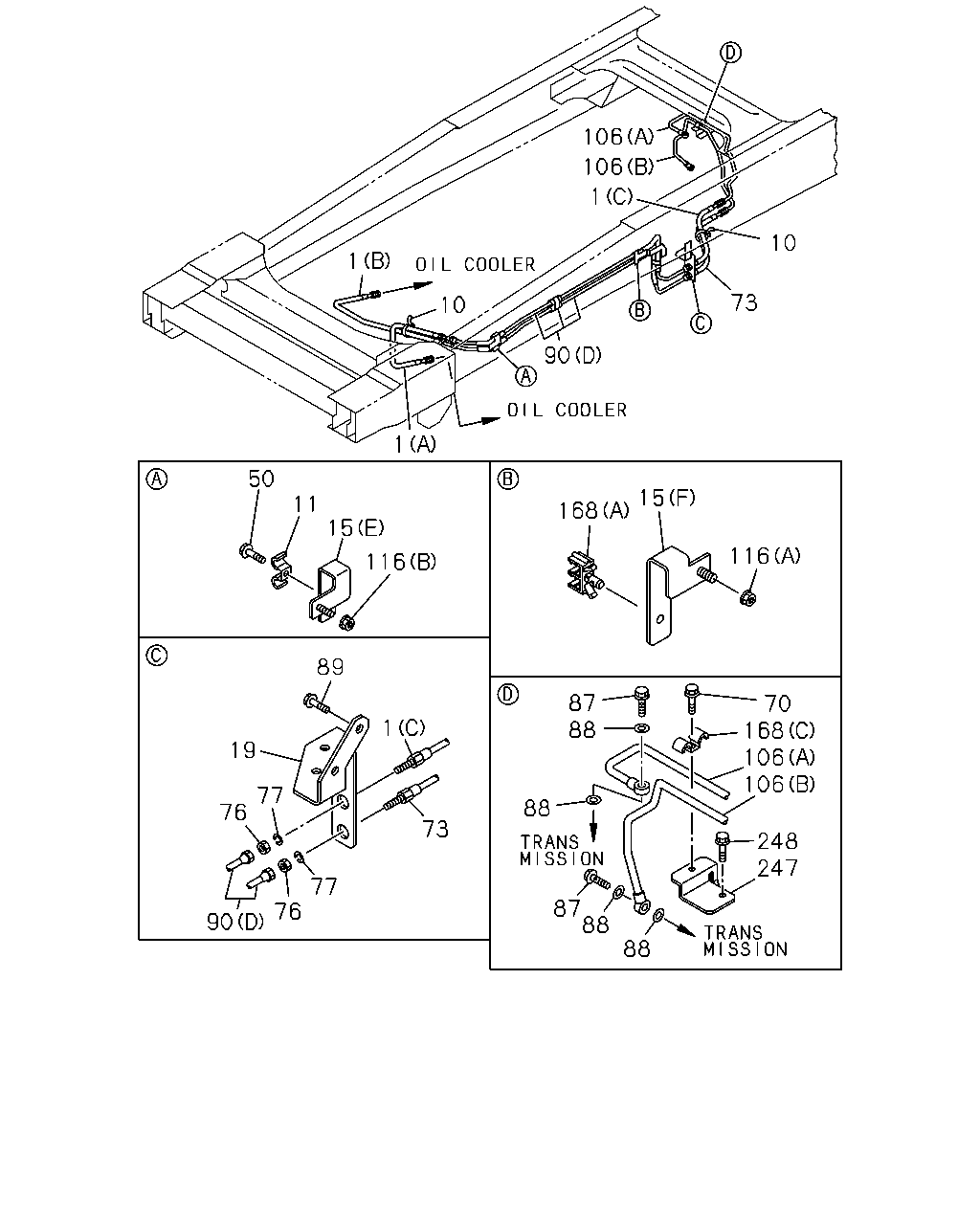

2-53 — TRANSMISSION OIL COOLER SYSTEM (#43020) — 84 parça

106 106 1 10 1 73 10 90 1 50 15 11 168 15 16 116 89 87 88 70 168 106 106 1 19 77 88 76 73 248 247 77 76 87 88 90 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=420	8-97012-838-1	01	1	0507-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=630	8-97180-927-0	01	1	0507-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0507-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	0211-0501			●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	0211-0501			●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0507-	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0507-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98010-982-0	01	1	0507-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98010-983-0	01	1	0507-	●	●
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	0211-0501			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	0211-0501			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> (A)	8-97174-637-0	01	1	0211-0212			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (D)	8-97330-274-1	01	1	0301-0501			●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501			●
19	04.128 BRACKET; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0507-	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0211-0501			●
73	04.128 HOSE; FLEX,TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0507-	●	●
76	04.128 NUT; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0507-	●	●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0507-0603	●	●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0507-0805	●	●		●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) M14X30 EYE-BOLT	8-98037-827-0	02	1	0806-	●	●		●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0507-	●	●		●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0507-0512	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98010-974-1	01	1	0507-	●	●
90	04.128 PIPE ASM; ATF (A)	8-97220-025-0	01	1	0211-0501			●
90	04.128 PIPE ASM; ATF (B)	8-97220-027-0	01	1	0211-0501			●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (C)	8-97349-888-0	01	1	0211-0501			●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97366-998-1	01	1	0507-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97367-001-1	01	1	0507-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0507-	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0507-	●	●
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0211-0501			●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0211-0501			●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0507-	●	●		●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●		●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●		●

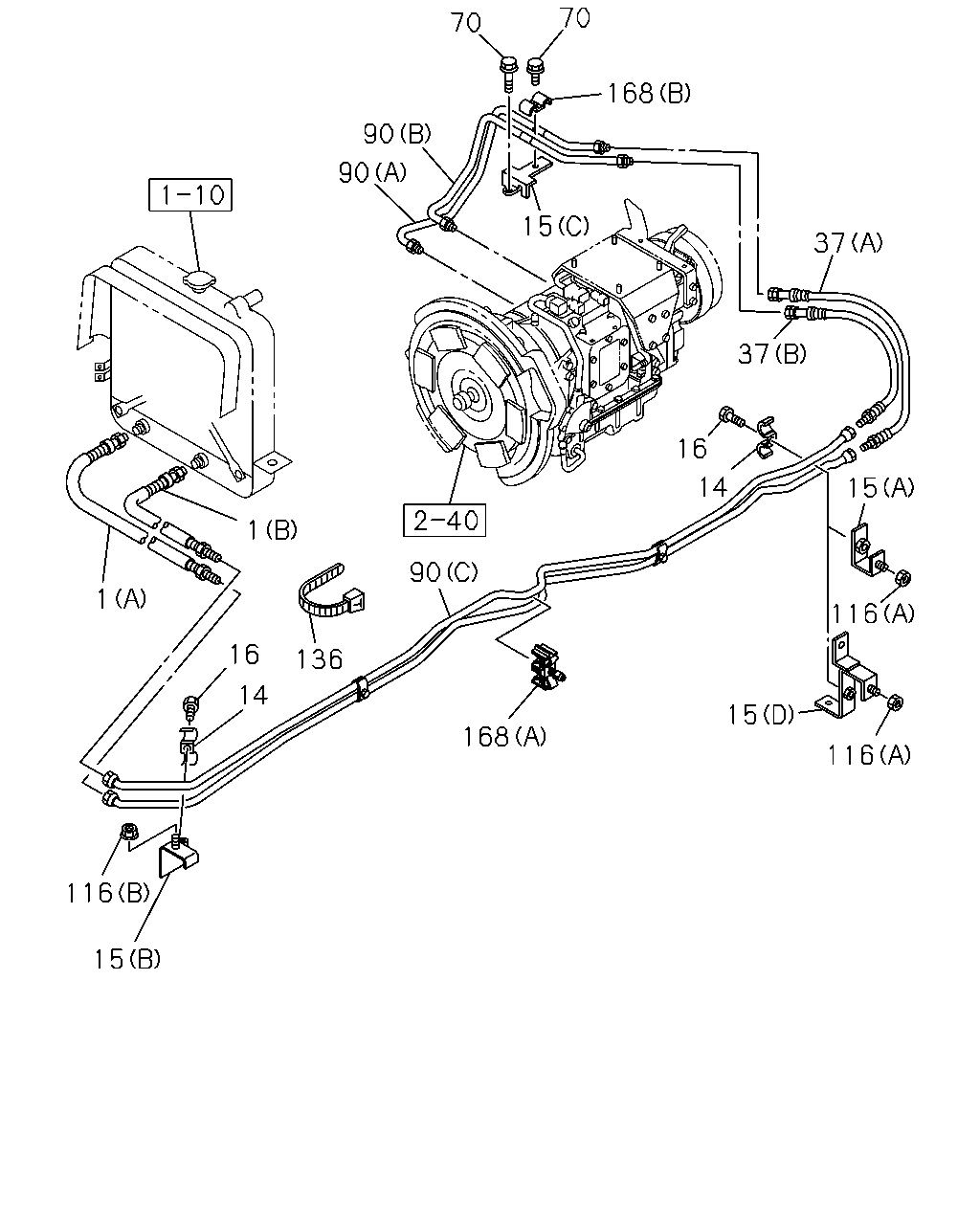

70 70 168 90 90 15 37 37 16 14 15 1 90 1 116 16 136 14 15 168 116 116 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=420	8-97012-838-1	01	1	0507-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=630	8-97180-927-0	01	1	0507-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0507-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	0211-0501			●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	0211-0501			●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	0211-0501			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98010-982-0	01	1	0507-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98010-983-0	01	1	0507-	●	●
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	0211-0501			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	0211-0501			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> (A)	8-97174-637-0	01	1	0211-0212			●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (D)	8-97330-274-1	01	1	0301-0501			●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501			●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> (A) L=480	8-97209-154-0	01	1	0211-0501			●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> (B) L=480	8-97209-155-0	01	1	0211-0501			●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0211-0501			●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98010-974-1	01	1	0507-	●	●
90	04.128 PIPE ASM; ATF (A)	8-97220-025-0	01	1	0211-0501			●
90	04.128 PIPE ASM; ATF (B)	8-97220-027-0	01	1	0211-0501			●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (C)	8-97349-888-0	01	1	0211-0501			●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501			●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501			●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0507-	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0507-	●	●
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0211-0501			●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0211-0501			●
