◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#43017) — 48 parça

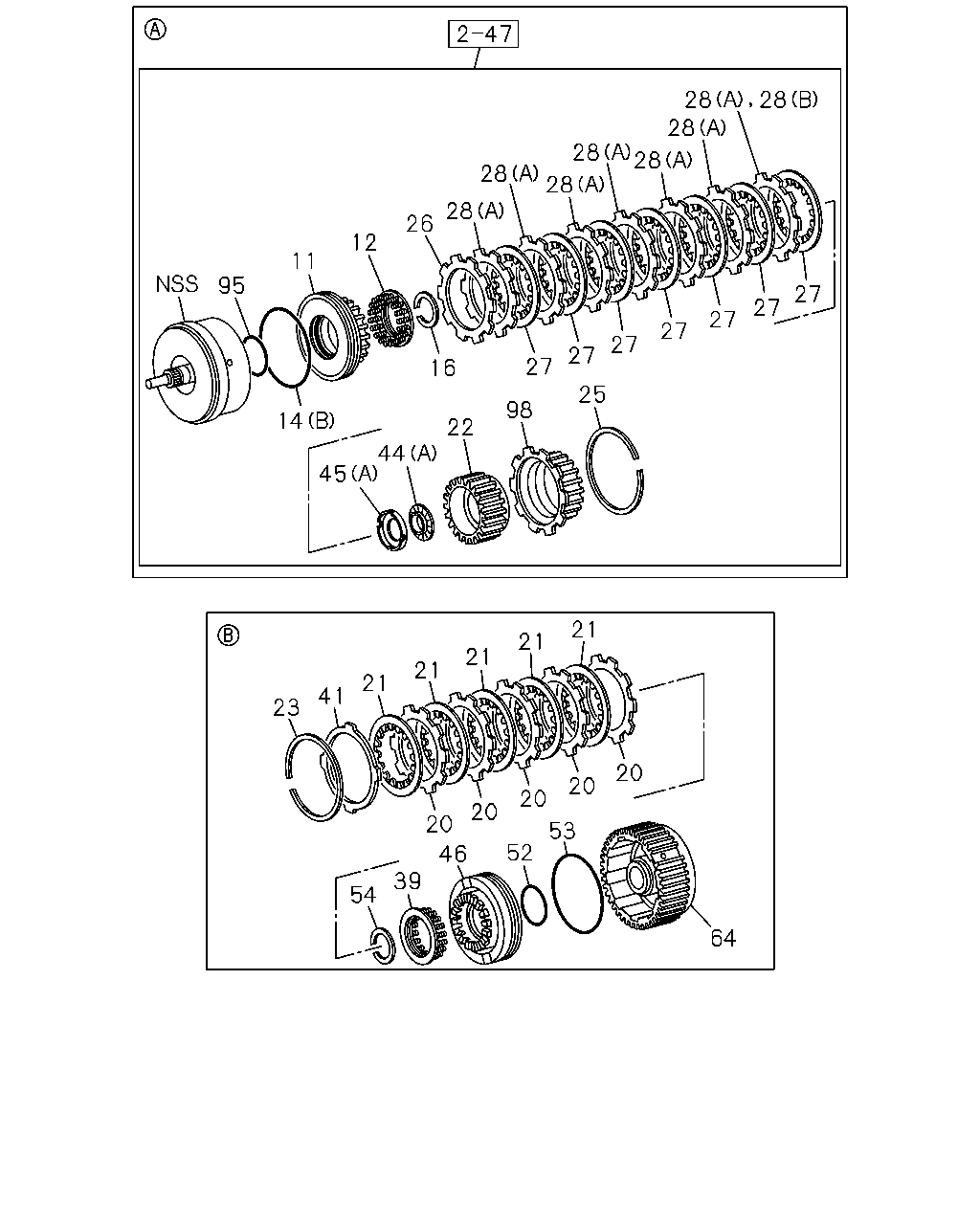

çizim 12867
28 28 28 28 28 28 28 28 26 12 11 95 27 27 27 27 27 27 27 16 25 98 14 22 44 45 21 21 21 21 21 41 23 20 20 20 20 20 53 52 46 39 54 64
BalonParca AdiParca NoAdetTipApplied Date
11 04.166 PISTON ASM; CLU,A/T 8-97256-961-0 01 1 0211-0501
12 04.164 SPRING; CLU RETURN,A/T 8-97256-964-0 01 1 0211-0501
14 04.166 GASKET; OUTER,CLU,A/T
(A) 		8-97256-927-0 03 1 0211-0501
14 04.166 GASKET; OUTER,CLU,A/T
04.460 (B) 		8-97256-963-0 01 1 0211-0501
16 04.166 RING; SNAP,CLU,A/T
04.472 		8-97256-966-0 01 1 0211-0501
20 04.163 DISC; CLU,A/T 8-97256-972-0 05 1 0211-0501
21 04.163 DISC ASM; CLU & FACING,A/T 8-97256-973-0 05 1 0211-0501
22 04.164 HUB; FWD CLU,A/T 8-97256-977-0 01 1 0211-0501
23 04.164 RING; RET,CLU,A/T 8-97256-979-0 01 1 0211-0501
25 04.164 RING; RET,BACKING PLATE,A/T 8-97256-979-0 01 1 0211-0501
26 04.163 PLATE; CLU,BACKING,A/T 8-97256-968-0 01 1 0211-0501
27 04.163 DISC ASM; CLU & FACING,A/T 8-97256-973-0 07 1 0211-0501
28 04.163 DISC; CLU,A/T
(A) T=1.8 		8-97256-967-0 07 1 0211-0501
28 04.163 DISC; CLU,A/T
(B) T=2.0 		8-97256-970-0 01 1 0211-0501
28 04.163 DISC; CLU,A/T
(B) T=2.2 		8-97256-971-0 01 1 0211-0501
28 04.163 DISC; CLU,A/T
(B) T=2.4 		8-97256-972-0 01 1 0211-0501
39 04.164 SPRING; DIRECT CLU RETURN 8-97257-149-0 01 1 0211-0501
41 04.164 FLANGE; DIRECT CLU
T=5.0 		8-97257-145-0 01 1 0211-0501
41 04.164 FLANGE; DIRECT CLU
T=5.2 		8-97257-146-0 01 1 0211-0501
41 04.164 FLANGE; DIRECT CLU
T=4.6 		8-97257-147-0 01 1 0211-0501
41 04.164 FLANGE; DIRECT CLU
T=4.8 		8-97257-148-0 01 1 0211-0501
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(A) 		8-97256-976-0 01 1 0211-0501
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(B) 		8-97257-049-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-97256-975-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=0.8 		8-97257-050-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.0 		8-97257-051-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.4 		8-97257-052-0 01 1 0211-0501
46 04.166 PISTON; DIRECT CLU,A/T 8-97257-144-0 01 1 0211-0501
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
04.166 		8-97256-962-0 01 1 0211-0501
53 04.167 GASKET; PISTON OUTER,DIRECT CLU, 8-97256-948-0 01 1 0211-0501
54 04.166 RING; SNAP,PISTON RETURN SPRING
04.472 		8-97256-966-0 01 1 0211-0501
64 04.169 DRUM ASM; DIRECT CLU,A/T 8-97257-143-0 01 1 0211-0501
95 04.166 GASKET; CLU HUB 8-97256-962-0 01 1 0211-0501
98 04.166 HOUSING; CLU 8-97256-978-0 01 1 0211-0501

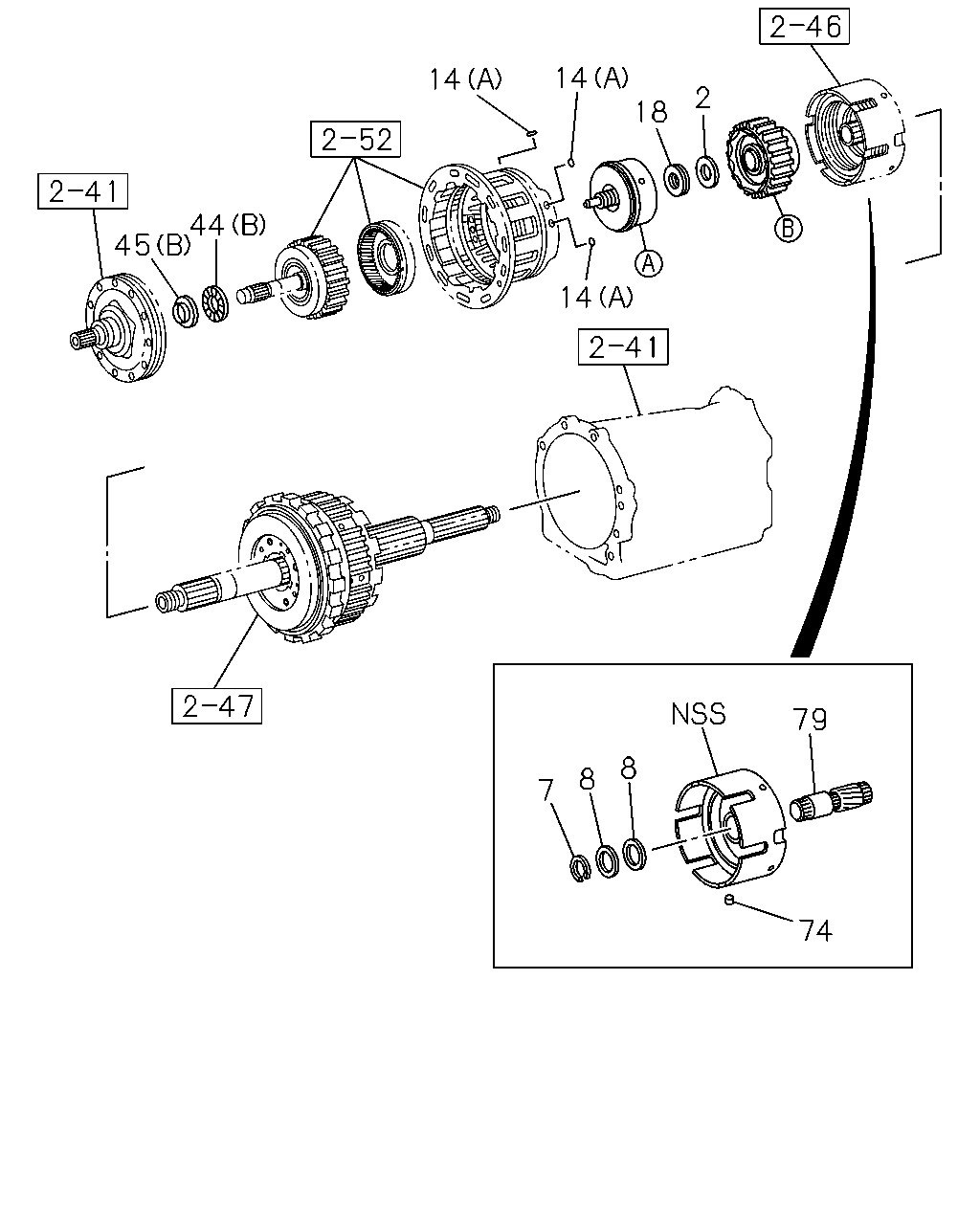

çizim 13419
14 18 14 2 44 45 14 79 8 8 7 74
BalonParca AdiParca NoAdetTipApplied Date
2 04.164 RACE; THRUST BRG,A/T 8-97256-975-0 01 1 0211-0501
7 04.159 RING; RET,PLANETARY GEAR,A/T 8-97257-017-0 01 1 0211-0501
8 04.169 RING; SEAL,PLANETARY GEAR,A/T
04.472 		8-97256-928-0 02 1 0211-0501
14 04.166 GASKET; OUTER,CLU,A/T
(A) 		8-97256-927-0 03 1 0211-0501
14 04.166 GASKET; OUTER,CLU,A/T
04.460 (B) 		8-97256-963-0 01 1 0211-0501
18 04.164 BEARING; THRUST,CLU,A/T 8-97256-976-0 01 1 0211-0501
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(A) 		8-97256-976-0 01 1 0211-0501
44 04.164 BEARING; THRUST,INPUT SHAFT RR
(B) 		8-97257-049-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-97256-975-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=0.8 		8-97257-050-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.0 		8-97257-051-0 01 1 0211-0501
45 04.164 RACE; THRUST BRG,INPUT SHAFT
(B) T=1.4 		8-97257-052-0 01 1 0211-0501
74 04.262 RING; RET
04.472 		8-97256-926-0 03 1 0211-0501
79 04.262 GEAR ASM; INPUT SUN 8-97257-016-0 01 1 0211-0501
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
