2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#43016) — 39 parça

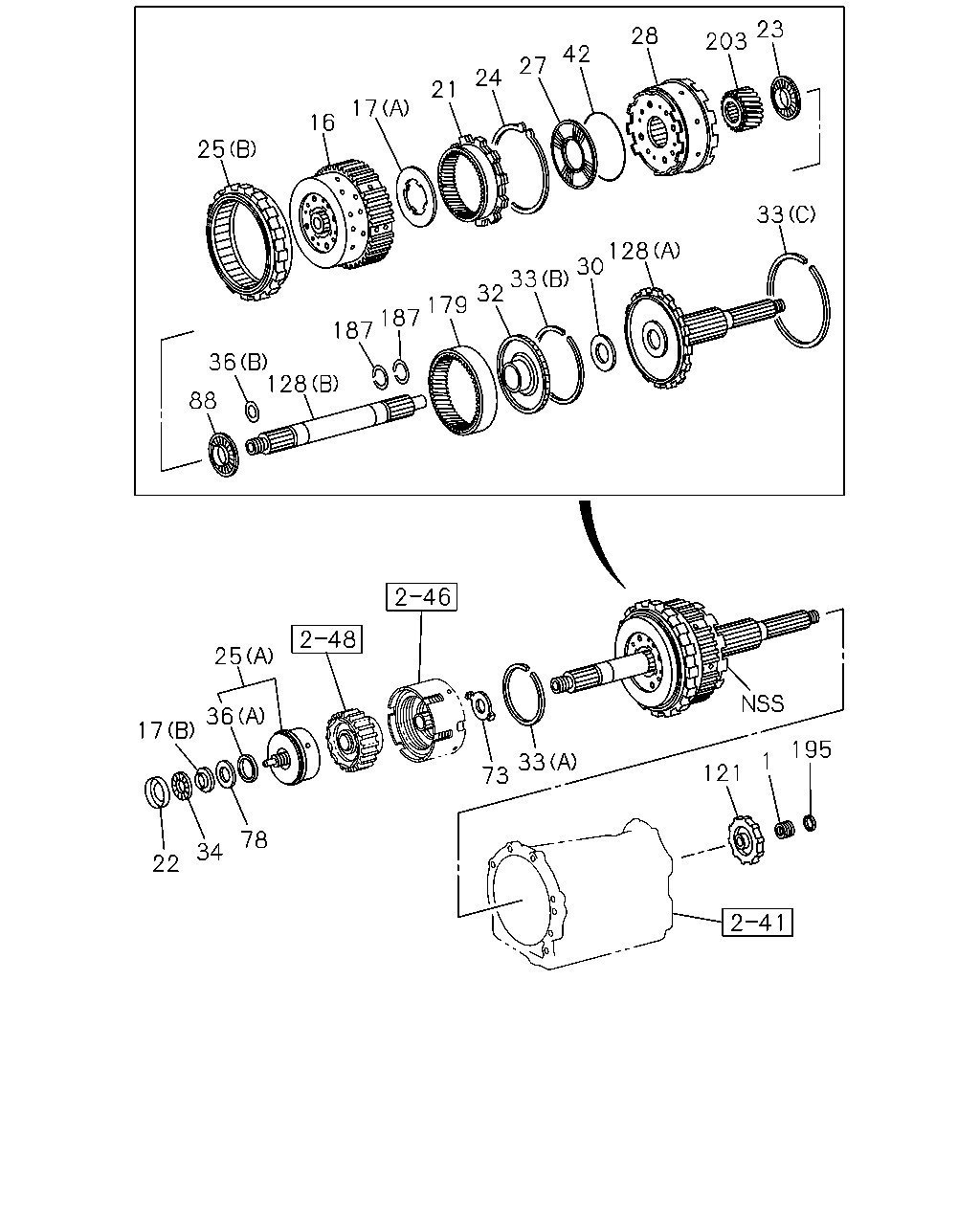

çizim 55537
23 203 28 42 27 24 21 17 16 25 33 128 30 33 32 179 187 187 36 128 88 25 36 17 195 1 33 73 121 78 34 22
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T 8-97311-618-0 01 1 0211-0501
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-97257-013-0 01 1 0211-0501
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
(A) 		8-97256-995-0 01 1 0211-0501
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
(B) 		8-97257-015-0 02 1 0211-0501
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-97257-012-0 01 1 0211-0501
22 04.167 RACE; THRUST BRG,FRT PLANETARY S
04.164 		8-97256-975-0 01 1 0211-0501
23 04.164 BEARING; THRUST,PLANETARY SHAFT,
04.180 		8-97257-002-0 01 1 0211-0501
24 04.164 RING; RET,FRT PLANETARY,A/T 8-97256-940-0 01 1 0211-0501
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY
(A) 		8-97256-959-0 01 1 0211-0501
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY
(B) 		8-97257-014-0 01 1 0211-0501
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-97257-009-0 01 1 0211-0501
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-97257-008-0 01 1 0211-0501
30 04.180 RACE; THRUST BRG,RR PLANETARY FL 8-97257-002-0 01 1 0211-0501
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A 8-97257-001-0 01 1 0211-0501
33 04.166 RING; RET,PLANETARY GEAR,A/T
04.485 (A) 		8-97256-933-0 01 1 0211-0501
33 04.166 RING; RET,PLANETARY GEAR,A/T
(B) 		8-97256-958-0 01 1 0211-0501
33 04.166 RING; RET,PLANETARY GEAR,A/T
(C) 		8-97256-999-0 01 1 0211-0501
34 04.164 BEARING; THRUST,FRT PLANETARY SH 8-97256-996-0 01 1 0211-0501
36 04.164 RING; SEALING,FRT PLANETARY SHAF
04.472 (A) 		8-97256-960-0 01 1 0211-0501
36 04.164 RING; SEALING,FRT PLANETARY SHAF
(B) 		8-97257-005-0 01 1 0211-0501
42 04.166 GASKET; PARKING GEAR,A/T 8-97257-010-0 01 1 0211-0501
73 04.164 WASHER; THRUST,CARRIER
T=1.5 		8-97256-941-0 01 1 0211-0501
73 04.164 WASHER; THRUST,CARRIER
T=1.8 		8-97256-942-0 01 1 0211-0501
73 04.164 WASHER; THRUST,CARRIER
T=2.1 		8-97256-943-0 01 1 0211-0501
73 04.164 WASHER; THRUST,CARRIER
T=2.4 		8-97256-944-0 01 1 0211-0501
73 04.164 WASHER; THRUST,CARRIER
T=2.7 		8-97256-945-0 01 1 0211-0501
78 04.164 SPACER; FINAL DRIVE GEAR
T=0.9 		8-97256-980-0 01 1 0211-0501
78 04.164 SPACER; FINAL DRIVE GEAR
T=1.2 		8-97256-991-0 01 1 0211-0501
78 04.164 SPACER; FINAL DRIVE GEAR
T=1.5 		8-97256-992-0 01 1 0211-0501
78 04.164 SPACER; FINAL DRIVE GEAR
T=1.8 		8-97256-993-0 01 1 0211-0501
78 04.164 SPACER; FINAL DRIVE GEAR
T=2.1 		8-97256-994-0 01 1 0211-0501
88 04.166 BEARING; SUN GEAR
04.180 		8-97257-002-0 01 1 0211-0501
121 04.162 GEAR; PARKING LK,A/T 8-97257-078-0 01 1 0211-0501
128 04.175 SHAFT; OUTPUT,A/T
(A) 		8-97256-997-0 01 1 0211-0501
128 04.175 SHAFT; OUTPUT,A/T
(B) 		8-97257-003-0 01 1 0211-0501
179 04.190 GEAR; RING 8-97257-000-0 01 1 0211-0501
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR 8-97257-004-0 02 1 0211-0501
195 04.337 SPACER; SPEEDMETER,DRIVE 8-97256-998-0 01 1 0211-0501
203 04.166 GEAR; SUN 8-97257-007-0 01 1 0211-0501
