2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#43014) — 58 parça

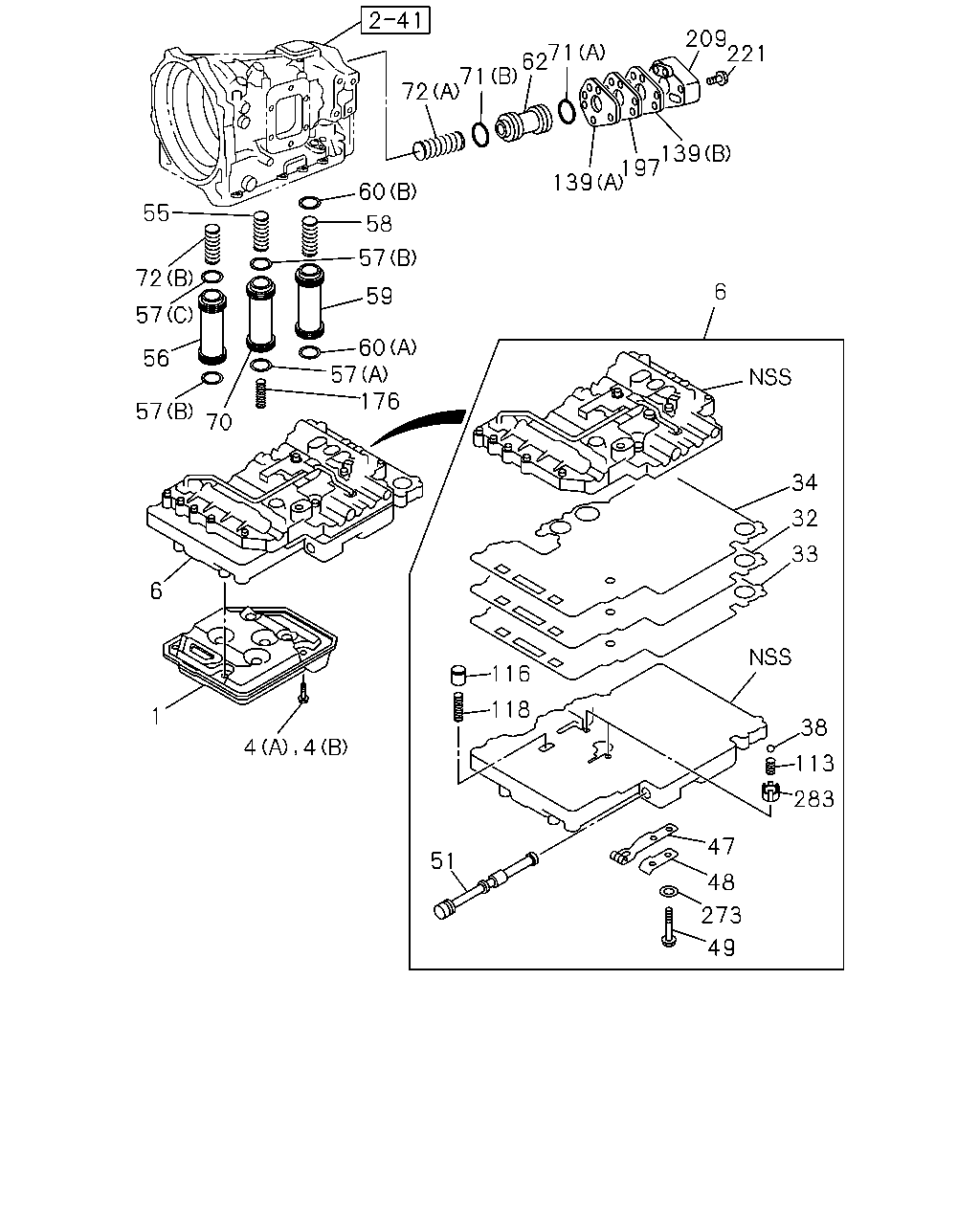

çizim 13420
209 221 71 62 71 72 139 197 139 60 55 58 57 72 6 59 57 60 57 176 56 57 70 34 32 33 6 116 118 1 38 4 4 113 283 47 51 48 273 49
BalonParca AdiParca NoAdetTipApplied Date
1 04.197 STRAINER ASM; OIL,A/T 8-97202-067-0 01 1 0211-0501
4 04.197 BOLT; OIL STRAINER,A/T
(A) 		8-97202-079-0 02 1 0211-0501
4 04.197 BOLT; OIL STRAINER,A/T
(B) 		8-97202-081-0 02 1 0211-0501
6 04.265 BODY ASM; VLV LWR,A/T 8-97257-086-0 01 1 0211-0501
32 04.265 PLATE; SEPARATOR,VLV BODY,A/T 8-97257-117-0 01 1 0211-0501
33 04.265 GASKET; LWR,VLV BODY,A/T 8-97257-119-0 01 1 0211-0501
34 04.265 GASKET; UPR,VLV BODY,A/T 8-97257-118-0 01 1 0211-0501
38 04.265 BALL; BALL VALVE 8-97257-110-0 02 1 0211-0501
47 04.050 SPRING; DETENT,A/T 8-97257-122-0 01 1 0211-0501
48 04.052 PLATE; DETENT SPR,A/T 8-97257-123-0 01 1 0211-0501
49 04.052 BOLT; DETENT SPR PLATE,A/T 8-97257-128-0 01 1 0211-0501
51 04.265 VALVE; MANUAL,A/T 8-97257-115-0 01 1 0211-0501
55 04.246 SPRING; ACCUMLATOR PISTON 8-97257-084-0 01 1 0211-0501
56 04.241 PISTON; ACCUMLATOR 8-97257-087-0 01 1 0211-0501
57 04.241 GASKET; 2ND SPD PISTON,A/T
(A) 		8-97257-095-0 01 1 0211-0501
57 04.241 GASKET; 2ND SPD PISTON,A/T
(B) 		8-97257-096-0 02 1 0211-0501
57 04.241 GASKET; 2ND SPD PISTON,A/T
(C) 		8-97257-097-0 01 1 0211-0501
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 8-97257-082-0 01 1 0211-0501
59 04.166 PISTON; DIRECT CLU,A/T 8-97257-090-0 01 1 0211-0501
60 04.169 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97257-093-0 01 1 0211-0501
60 04.169 GASKET; DIRECT CLU PISTON,A/T
(B) 		8-97257-094-0 01 1 0211-0501
62 04.166 PISTON; FWD CLU,A/T 8-97257-089-0 01 1 0211-0501
70 04.241 PISTON; ACCUMLATOR 8-97257-088-0 01 1 0211-0501
71 04.241 GASKET; ACCUMLATOR PISTON
(A) 		8-97257-091-0 01 1 0211-0501
71 04.241 GASKET; ACCUMLATOR PISTON
(B) 		8-97257-092-0 01 1 0211-0501
72 04.233 SPRING; ACCUMLATOR PISTON
(A) 		8-97256-866-0 01 1 0211-0501
72 04.233 SPRING; ACCUMLATOR PISTON
(B) M12X45 		8-97257-083-0 01 1 0211-0501
113 04.164 SPRING; CHECK BALL 8-97257-109-0 02 1 0211-0501
116 04.265 VALVE; PRESSURE RELIEF 8-97257-111-0 01 1 0211-0501
118 04.265 SPRING; PRESSURE RELIEF VALVE 8-97257-112-0 01 1 0211-0501
139 04.241 GASKET; ACCUMLATOR PISTON
(A) 		8-97256-862-0 01 1 0211-0501
139 04.241 GASKET; ACCUMLATOR PISTON
(B) 		8-97256-863-0 01 1 0211-0501
176 04.265 SPRING; ACCUM INNER 8-97257-085-0 01 1 0211-0501
197 04.241 PLATE; ACCUMLATOR CONT VLV 8-97256-864-0 01 1 0211-0501
209 04.105 COVER; ACCUMURATOR 8-97256-861-0 01 1 0211-0501
221 04.265 BOLT; COVER,ACCUM PISTON 8-97256-867-0 04 1 0211-0501
273 04.265 WASHER; COVER,VLV BODY,A/T 8-97257-138-0 05 1 0211-0501
283 04.265 CASE; VALVE,PRESSURE RELIEF 8-97257-108-0 02 1 0211-0501

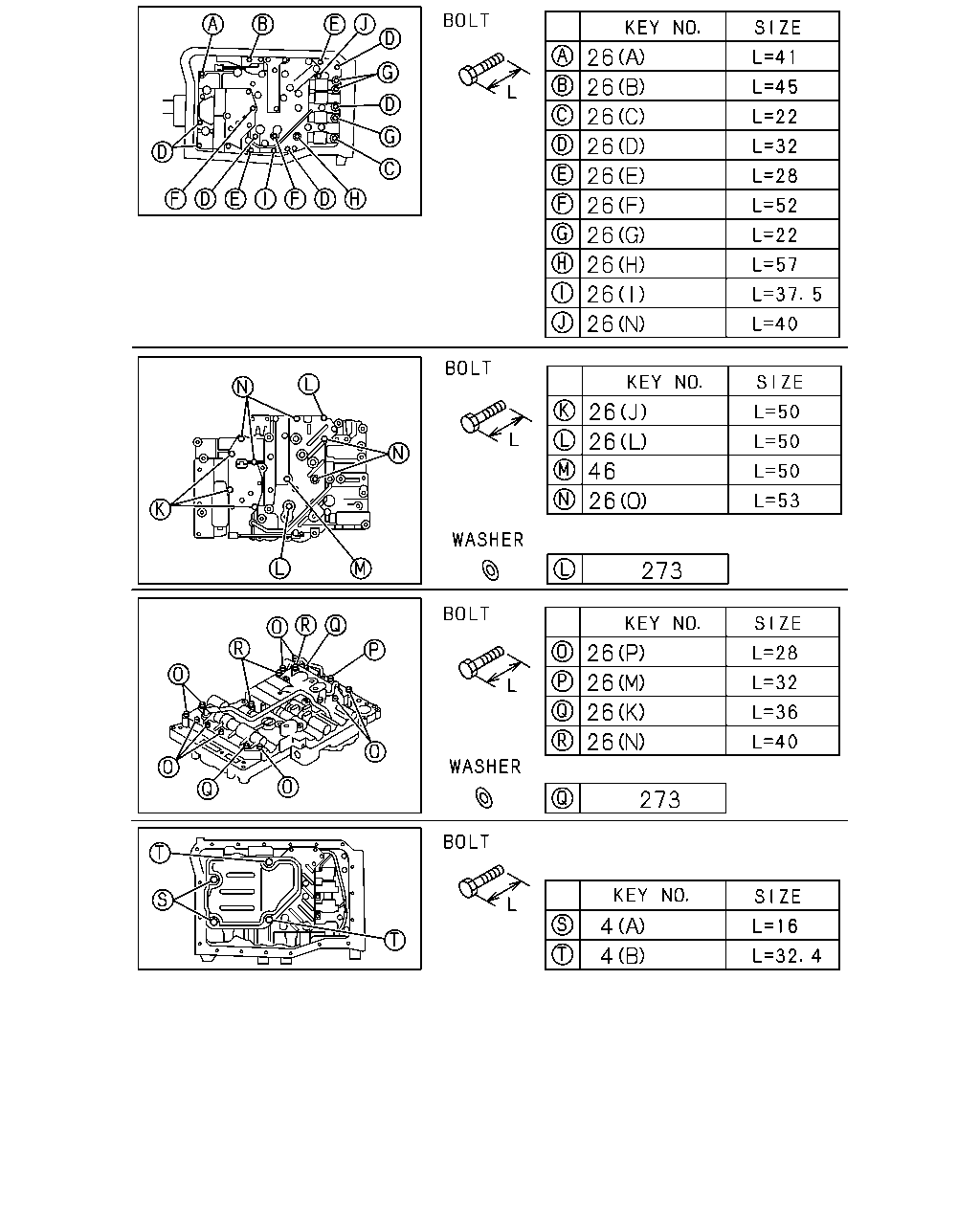

çizim 54875
26 26 26 26 26 26 26 26 26 26 26 26 46 26 273 26 26 26 26 273 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 04.197 BOLT; OIL STRAINER,A/T
(A) 		8-97202-079-0 02 1 0211-0501
4 04.197 BOLT; OIL STRAINER,A/T
(B) 		8-97202-081-0 02 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) L=41 		8-97257-098-0 01 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) L=45 		8-97257-099-0 01 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) L=22 		8-97257-100-0 01 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) L=32 		8-97257-101-0 07 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) L=28 		8-97257-102-0 02 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) L=52 		8-97257-103-0 02 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(G) L=22 		8-97257-104-0 03 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(H) L=57 		8-97257-105-0 01 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(I) L=37.5 		8-97257-106-0 01 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(J) L=50 		8-97257-127-0 02 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(K) L=36 		8-97257-129-0 02 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(L) L=50 		8-97257-130-0 02 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(M) L=32 		8-97257-131-0 01 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(N) L=40 		8-97257-132-0 04 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(O) L=53 		8-97257-133-0 06 1 0211-0501
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(P) L=28 		8-97257-134-0 10 1 0211-0501
46 04.265 BOLT; COVER TO BODY,LWR VLV,A/T 8-97257-137-0 01 1 0211-0501
273 04.265 WASHER; COVER,VLV BODY,A/T 8-97257-138-0 05 1 0211-0501
