2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#43008) — 155 parça

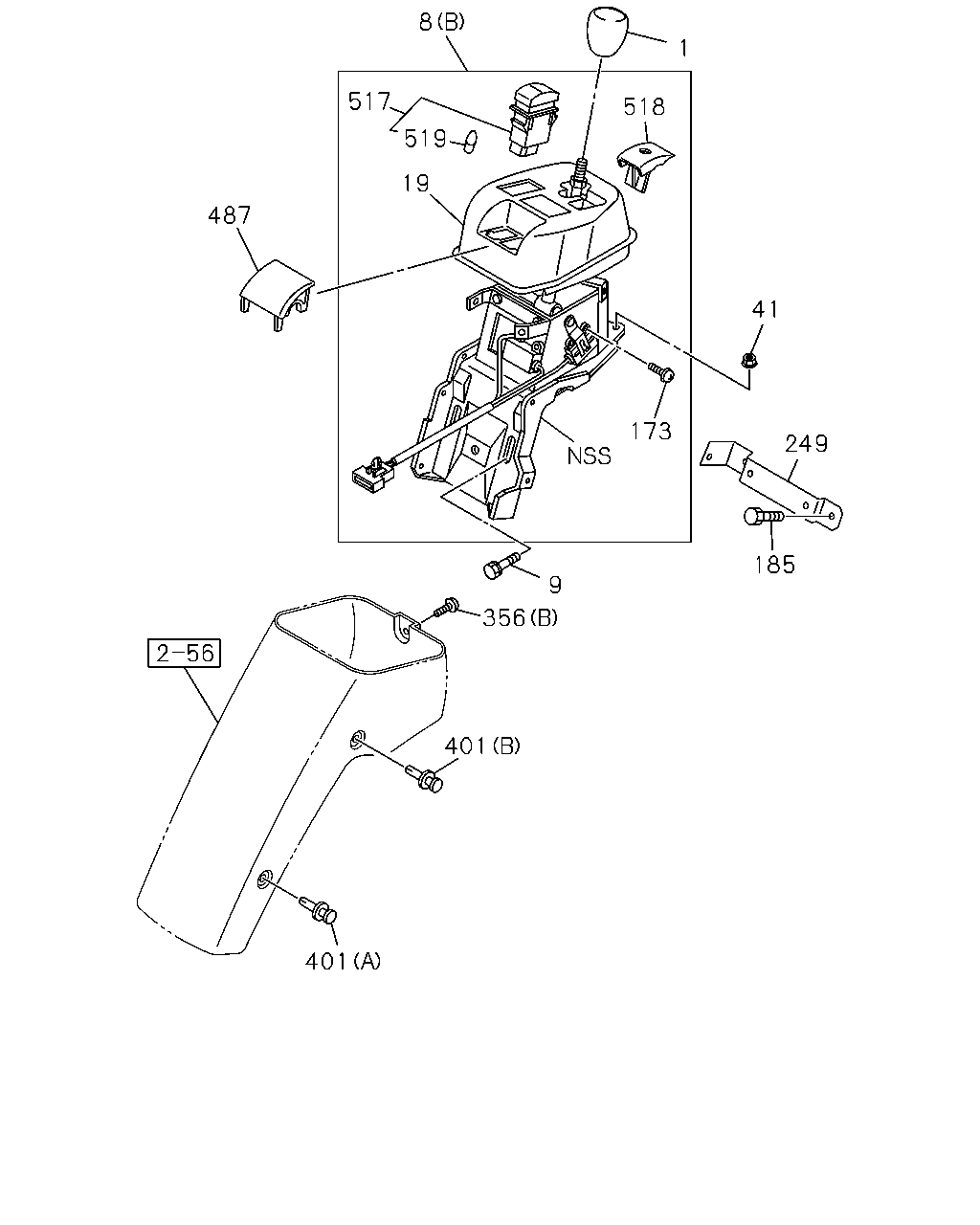

8 1 517 518 519 19 487 41 173 249 185 9 356 401 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.006 KNOB; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY	8-97398-495-2	01	1	0507-	●	●	●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-97196-287-1	01	1	0507-	●	●
1	04.006 KNOB; CHANGE LEVER BLACK	8-97196-287-0	01	1	0211-0501	●	●
1	04.006 KNOB; CHANGE LEVER BLACK	8-97196-286-1	01	1	0211-0506			●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-97196-286-1	01	1	0507-			●
8	04.006 LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97400-772-0	01	1	0507-	●	●	●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97204-507-0	01	1	0507-	●	●
8	04.006 LEVER; CHANGE (A)	8-97204-507-0	01	1	0211-0501	●	●
8	04.006 LEVER; CHANGE (A)	8-97204-506-0	01	1	0211-0506			●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97204-506-0	01	1	0507-			●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0211-0501	●	●	●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0502-0506			●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0507-	●	●	●
19	04.010 COVER; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY	8-97397-324-1	01	1	0507-	●	●	●
41	04.012 NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
41	04.012 NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0211-0501	●	●	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0502-0506			●
41	04.012 NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0610	●	●	●
41	04.012 NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●	●	●
173	04.105 SCREW; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 09.277 M5X10 W/PL WASHER	9-03900-510-0	04	1	0507-	●	●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0506			●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●	●
185	04.012 BOLT; BRKT,COVER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0211-0501	●	●	●	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0502-0506			●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0507-	●	●	●
356	04.012 SCREW; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0510-0604	●	●	●
356	04.012 SCREW; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-	●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0211-0501	●	●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0502-0506			●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0507-0612	●	●	●
356	04.012 SCREW; COVER 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-	●	●	●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0211-0501	●	●	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	0211-0501	●	●	●	●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0502-0506			●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0507-0602	●	●	●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	03	1	0603-	●	●	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	0211-0501	●	●	●	●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0502-0506			●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0507-0602	●	●	●
487	04.307 COVER; SWITCH TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY	8-97399-499-2	01	1	0507-	●	●	●
517	04.054 SWITCH; ECONOMY & 1ST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-148-0	01	1	0507-	●	●	●
518	04.015 COVER; CHANGE LEVER INNER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97373-100-0	01	1	0507-	●	●	●
519	04.010 BULB ASM TRANSMISSION CONTROL-SMOOTHER(8GF) 08.991 28V 40MA	8-97116-331-0	02	1	0507-	●	●	●
525	04.040 LABEL; SHIFT POSITION TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98056-775-0	01	1	0507-	●	●	●

356 401 401 401 249 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0506			●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●	●
185	04.012 BOLT; BRKT,COVER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0211-0501	●	●	●	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0502-0506			●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0507-	●	●	●
356	04.012 SCREW; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0510-0604	●	●	●
356	04.012 SCREW; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-	●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0211-0501	●	●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0502-0506			●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0507-0612	●	●	●
356	04.012 SCREW; COVER 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-	●	●	●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0211-0501	●	●	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	0211-0501	●	●	●	●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0502-0506			●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0507-0602	●	●	●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	03	1	0603-	●	●	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	0211-0501	●	●	●	●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0502-0506			●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0507-0602	●	●	●
525	04.040 LABEL; SHIFT POSITION TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98056-775-0	01	1	0507-	●	●	●

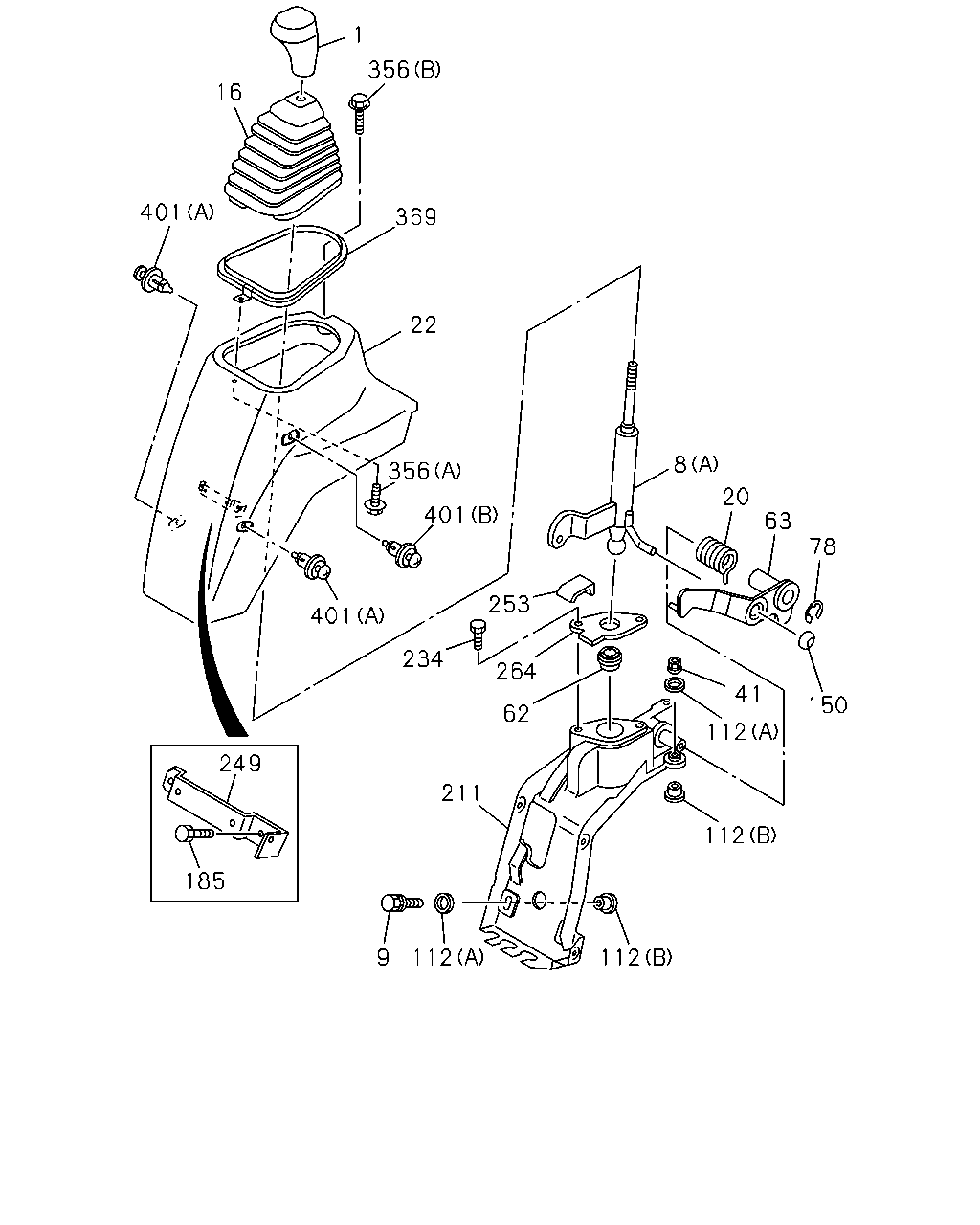

1 356 16 401 369 22 8 356 20 401 63 78 253 401 234 264 41 150 62 112 249 211 112 185 9 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.006 KNOB; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY	8-97398-495-2	01	1	0507-	●	●	●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-97196-287-1	01	1	0507-	●	●
1	04.006 KNOB; CHANGE LEVER BLACK	8-97196-287-0	01	1	0211-0501	●	●
1	04.006 KNOB; CHANGE LEVER BLACK	8-97196-286-1	01	1	0211-0506			●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-97196-286-1	01	1	0507-			●
8	04.006 LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97400-772-0	01	1	0507-	●	●	●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97204-507-0	01	1	0507-	●	●
8	04.006 LEVER; CHANGE (A)	8-97204-507-0	01	1	0211-0501	●	●
8	04.006 LEVER; CHANGE (A)	8-97204-506-0	01	1	0211-0506			●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97204-506-0	01	1	0507-			●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0211-0501	●	●	●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0502-0506			●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0507-	●	●	●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-1	01	1	0211-0501	●	●	●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-2	01	1	0502-0506			●
16	04.015 BOOT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97066-287-2	01	1	0507-	●	●	●
20	04.012 SPRING; CHANGE LEVER	8-97204-514-1	01	1	0211-0501	●	●	●
20	04.012 SPRING; CHANGE LEVER	8-97204-514-1	01	1	0502-0506			●
20	04.012 SPRING; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97204-514-1	01	1	0507-	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER DARK GRAY	8-97867-625-3	01	1	0211-0501	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER GRAY	8-97582-878-3	01	1	0502-0506			●
22	04.015 COVER; DUST,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97582-878-3	01	1	0507-	●	●	●
41	04.012 NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
41	04.012 NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0211-0501	●	●	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0502-0506			●
41	04.012 NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0610	●	●	●
41	04.012 NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●	●	●
62	04.012 SEAT; BALL,CHANGE LEVER	8-97011-895-1	01	1	0211-0501	●	●	●
62	04.012 SEAT; BALL,CHANGE LEVER	8-97011-895-1	01	1	0502-0506			●
62	04.012 SEAT; BALL,CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97011-895-1	01	1	0507-	●	●	●
63	04.006 LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97163-768-0	01	1	0507-	●	●
63	04.006 LEVER; RELAY,SELECT	8-97163-768-0	01	1	0211-0501	●	●
63	04.006 LEVER; RELAY,SELECT	8-97143-199-0	01	1	0211-0506			●
63	04.006 LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97143-199-0	01	1	0507-			●
78	04.008 RING; SNAP,CHANGE LEVER 08.934 ID=10	9-09185-410-0	01	1	0211-0501	●	●	●
78	04.008 RING; SNAP,CHANGE LEVER 08.934 ID=10	9-09185-410-0	01	1	0502-0506			●
78	04.008 RING; SNAP,CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.934 ID=10	9-09185-410-0	01	1	0507-0604	●	●	●
78	04.008 RING; SNAP,CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10	0-91805-510-0	01	1	0605-	●	●	●
112	04.012 RUBBER; CUSHION (A)	8-97091-426-0	04	1	0211-0501	●	●	●
112	04.012 RUBBER; CUSHION (A)	8-97091-426-0	04	1	0502-0506			●
112	04.012 RUBBER; CUSHION FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97091-426-0	04	1	0507-	●	●	●
112	04.012 RUBBER; CUSHION (B)	8-97091-427-0	04	1	0211-0501	●	●	●
112	04.012 RUBBER; CUSHION (B)	8-97091-427-0	04	1	0502-0506			●
112	04.012 RUBBER; CUSHION FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97091-427-0	04	1	0507-	●	●	●
150	04.008 BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	0211-0501	●	●	●
150	04.008 BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	0502-0506			●
150	04.008 BALL; DETENT,CONT LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97049-147-0	01	1	0507-	●	●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0506			●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●	●
185	04.012 BOLT; BRKT,COVER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
211	04.010 BRACKET; CHANGE LEVER	8-97204-505-1	01	1	0211-0501	●	●	●
211	04.010 BRACKET; CHANGE LEVER	8-97204-505-1	01	1	0502-0506			●
211	04.010 BRACKET; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97204-505-1	01	1	0507-	●	●	●
234	04.010 BOLT; BRKT	8-97204-512-0	02	1	0211-0310	●	●	●
234	04.010 BOLT; BRKT M6X12 FLANGE	1-33739-842-0	02	1	0311-0501	●	●	●
234	04.010 BOLT; BRKT M6X12 FLANGE	1-33739-842-0	02	1	0502-0506			●
234	04.010 BOLT; BRKT FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	02	1	0507-	●	●	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0211-0501	●	●	●	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0502-0506			●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0507-	●	●	●
253	04.012 STOPPER; CHANGE LEVER	8-97204-510-0	01	1	0211-0501	●	●	●
253	04.012 STOPPER; CHANGE LEVER	8-97204-510-0	01	1	0502-0506			●
253	04.012 STOPPER; CHANGE LEVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97204-510-0	01	1	0507-	●	●	●
264	04.015 PLATE; COVER	8-97204-511-0	01	1	0211-0501	●	●	●
264	04.015 PLATE; COVER	8-97204-511-0	01	1	0502-0506			●
264	04.015 PLATE; COVER FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97204-511-0	01	1	0507-	●	●	●
356	04.012 SCREW; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0510-0604	●	●	●
356	04.012 SCREW; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-	●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0211-0501	●	●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0502-0506			●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0507-0612	●	●	●
356	04.012 SCREW; COVER 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-	●	●	●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0211-0501	●	●	●
369	04.012 RETAINER; REINF	8-97066-288-1	01	1	0211-0501	●	●	●
369	04.012 RETAINER; REINF	8-97066-288-1	01	1	0502-0506			●
369	04.012 RETAINER; REINF EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97066-288-1	01	1	0507-	●	●	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	0211-0501	●	●	●	●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0502-0506			●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0507-0602	●	●	●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	03	1	0603-	●	●	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	0211-0501	●	●	●	●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0502-0506			●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0507-0602	●	●	●
525	04.040 LABEL; SHIFT POSITION TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98056-775-0	01	1	0507-	●	●	●
