◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#43003) — 40 parça

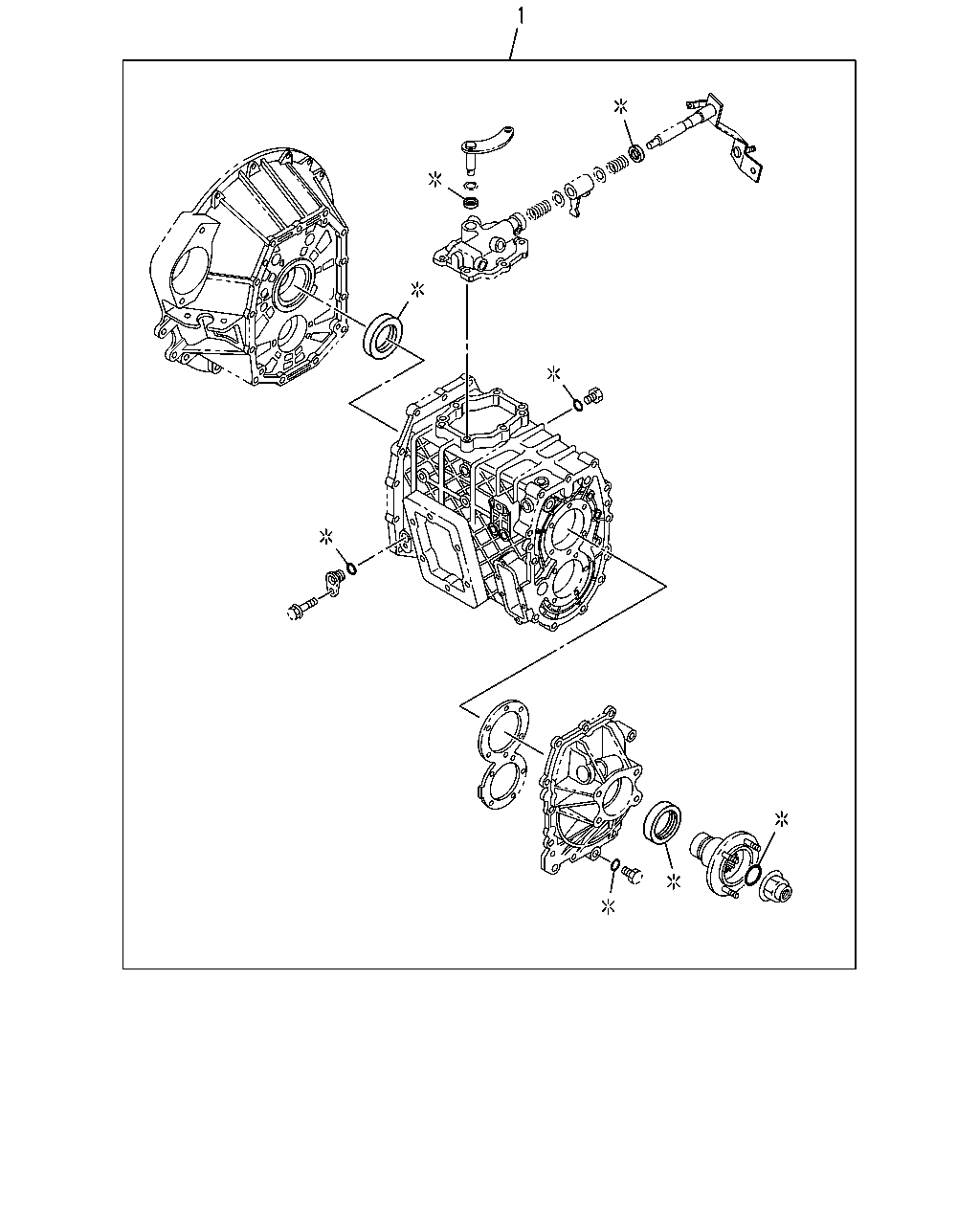

çizim 12624
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0507- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-127-0 01 1 0507-0507 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0508- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-126-1 01 1 0507- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0211-0303 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-126-0 01 1 0304-0501 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-033-0 01 1 0211-0303 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-0 01 1 0304-0501 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-0 01 1 0502-0506 ●
1 04.005 GASKET SET; TRANS OVERHAUL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-128-2 01 1 0507- ● ●

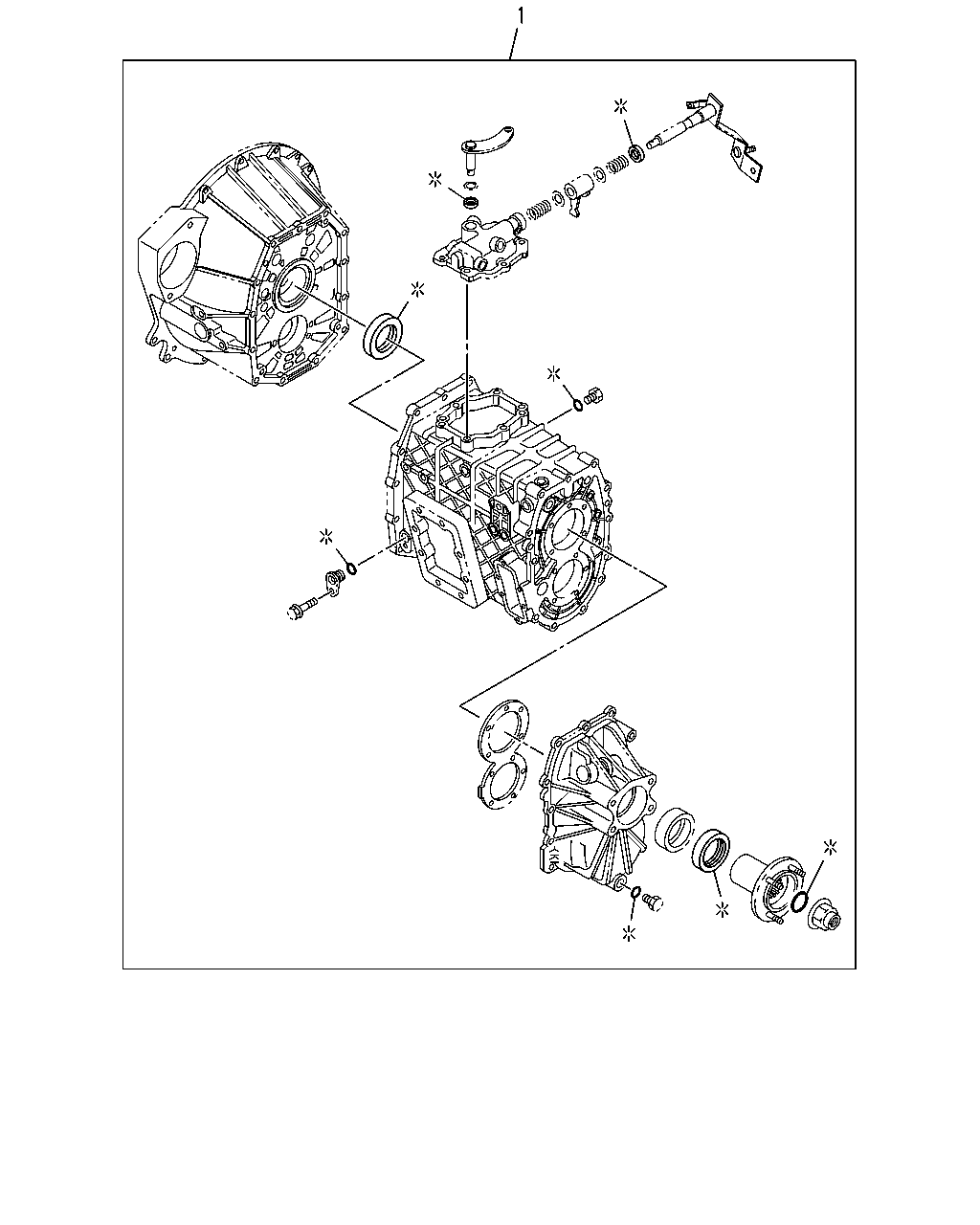

çizim 13075
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0507- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-127-0 01 1 0507-0507 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0508- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-126-1 01 1 0507- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0211-0303 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-126-0 01 1 0304-0501 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-033-0 01 1 0211-0303 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-0 01 1 0304-0501 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-0 01 1 0502-0506 ●
1 04.005 GASKET SET; TRANS OVERHAUL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-128-2 01 1 0507- ● ●

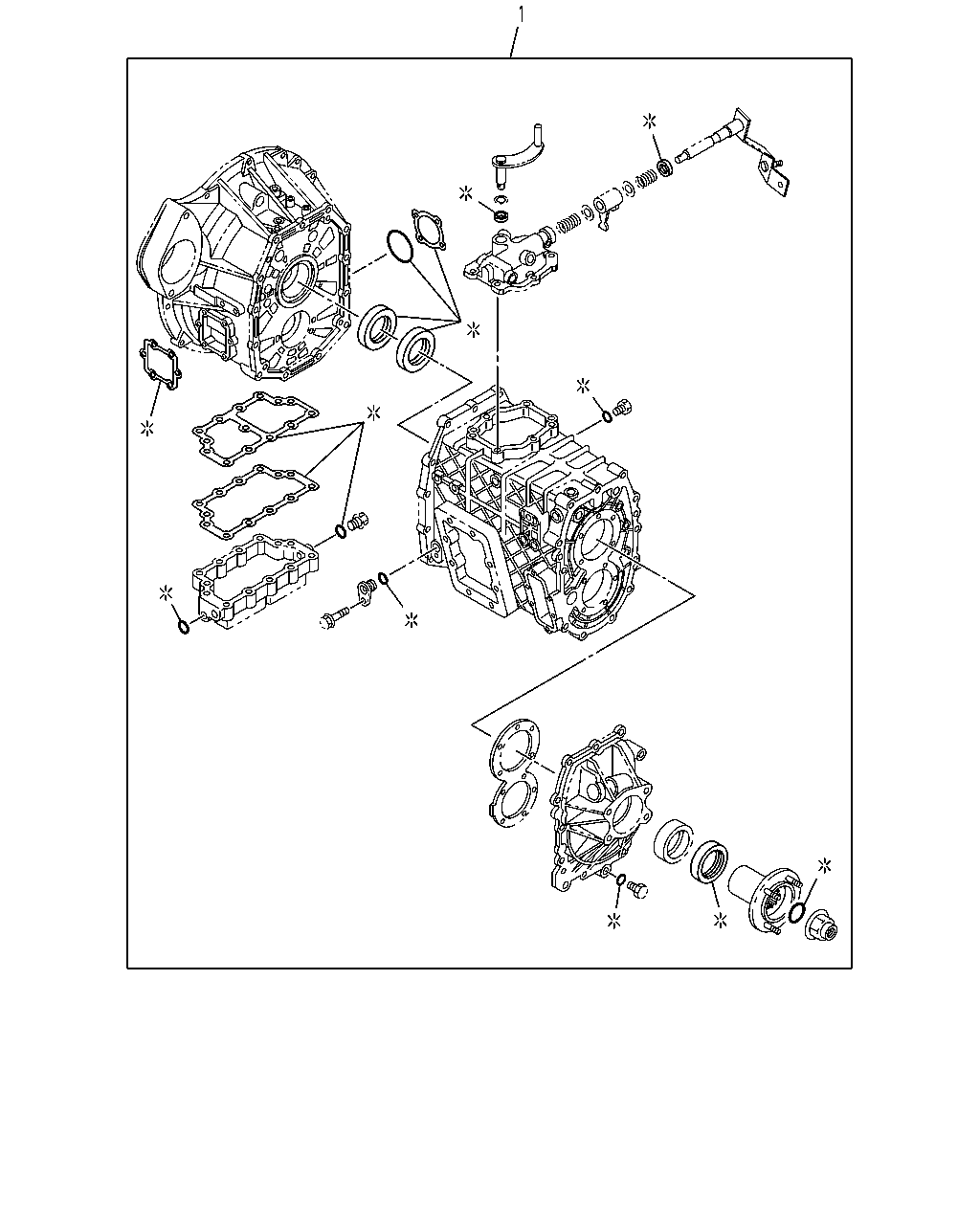

çizim 13093
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0507- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-127-0 01 1 0507-0507 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0508- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-126-1 01 1 0507- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0211-0303 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-126-0 01 1 0304-0501 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-033-0 01 1 0211-0303 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-0 01 1 0304-0501 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-0 01 1 0502-0506 ●
1 04.005 GASKET SET; TRANS OVERHAUL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-128-2 01 1 0507- ● ●

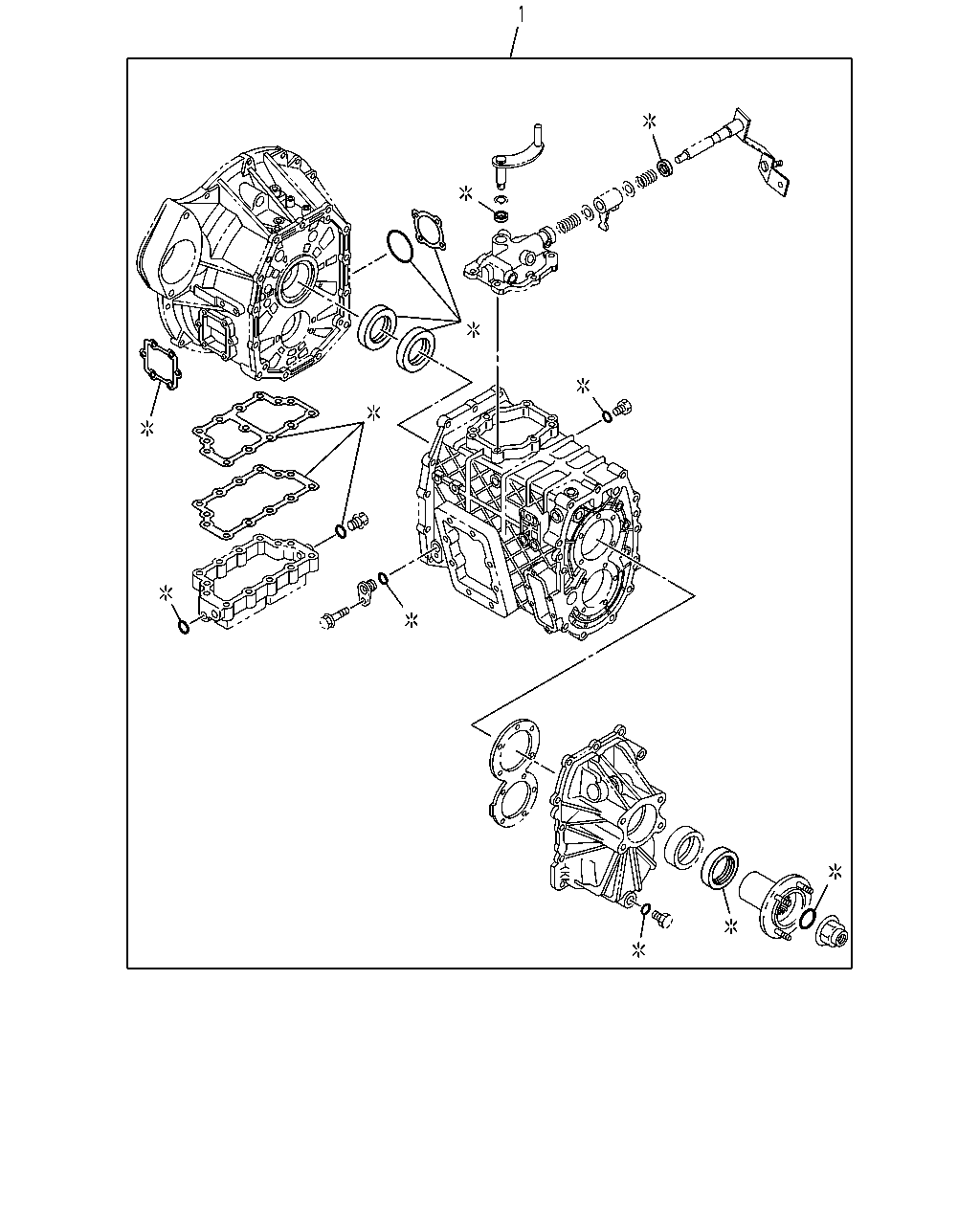

çizim 53221
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0507- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-127-0 01 1 0507-0507 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-191-1 01 1 0508- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-126-1 01 1 0507- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0211-0303 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-126-0 01 1 0304-0501 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-033-0 01 1 0211-0303 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-0 01 1 0304-0501 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-0 01 1 0502-0506 ●
1 04.005 GASKET SET; TRANS OVERHAUL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-128-2 01 1 0507- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
