◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#43001) — 12 parça

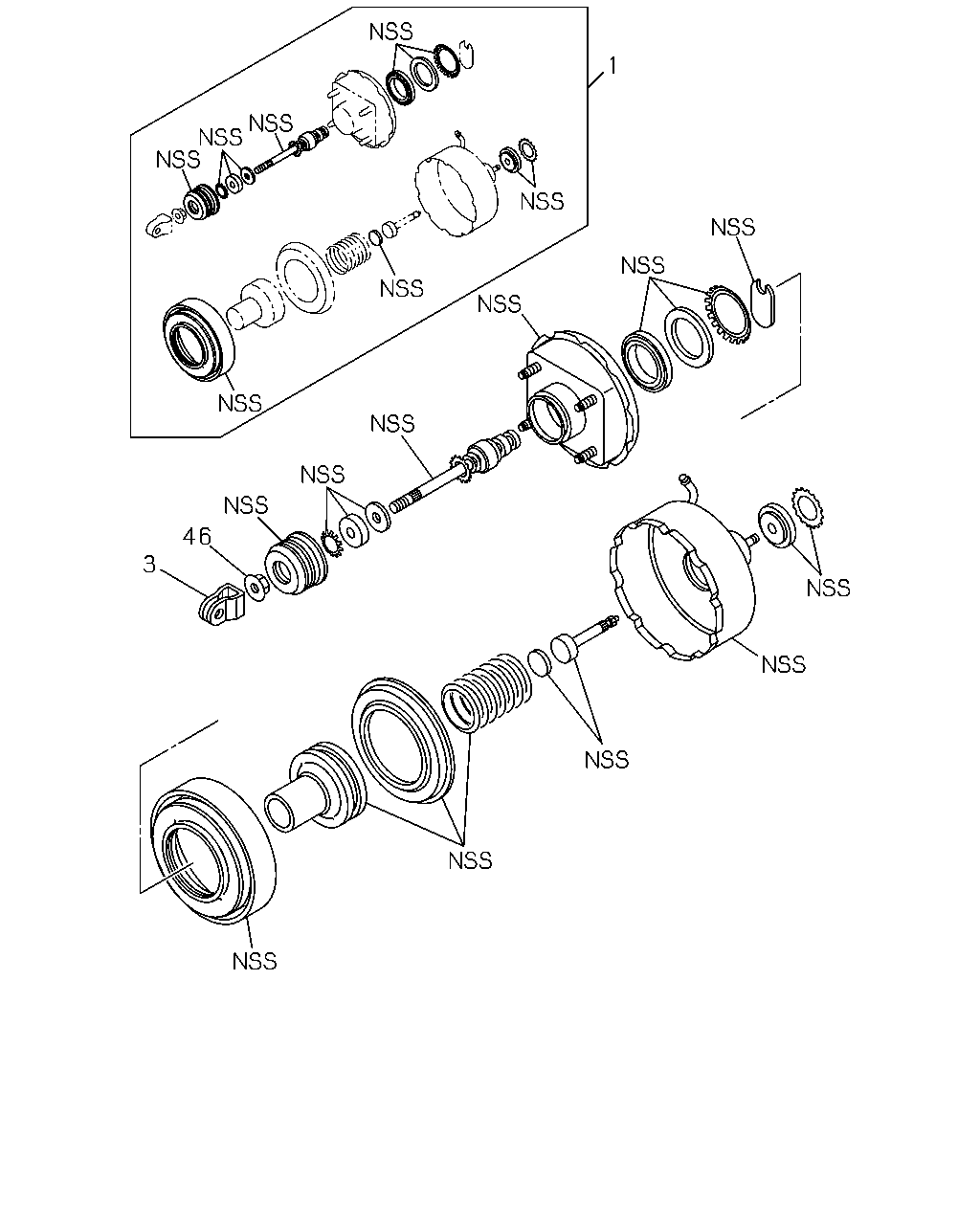

çizim 55670
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-151-0 01 1 0507- ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0211-0501 ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0211-0501 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97174-145-0 01 1 0211-0501 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0502-0506 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-145-0 01 1 0507- ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0211-0501 ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0502-0506 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-147-0 01 1 0507- ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0211-0501 ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0502-0506 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-148-0 01 1 0507- ● ● ●
