1-41B — FUEL PIPING; CHASSIS (#4300) — 229 parça

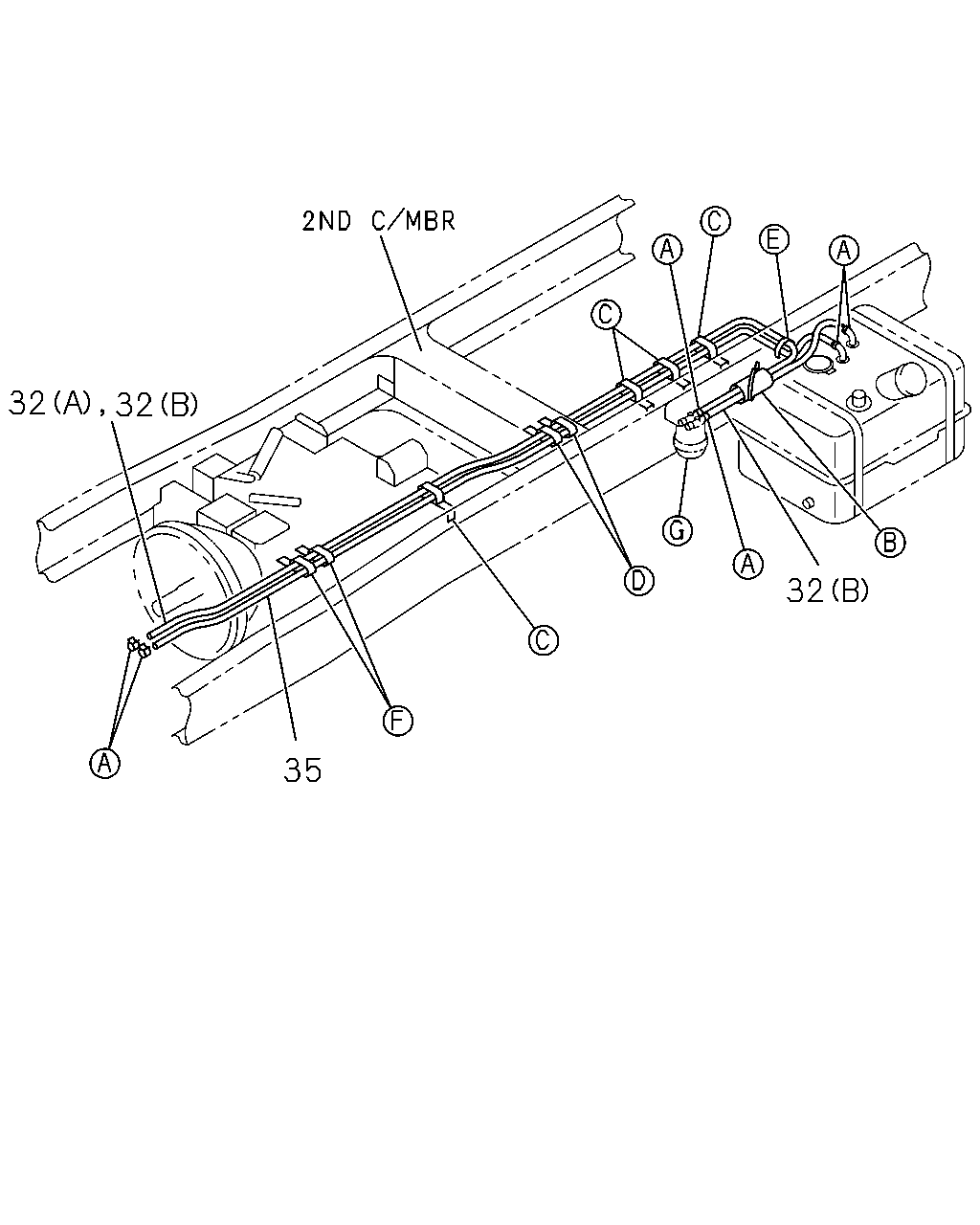

çizim 6487
32 32 35 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 PIPE; DELIVERY,FUEL TANK
BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> (A) L=1600 SERVICED BY L=3000 		0-01260-300-0 01 1 9909- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) (A) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9603-9603 ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> (A) L=2150 SERVICED BY L=3000 		0-01260-300-0 01 1 9909-0012 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> (A) L=2150 SERVICED BY L=3000 		0-01260-300-0 01 1 0101- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
MUFFLER TWIN VERTICAL<NBS> (B) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> (B) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> (B) L=1300 SERVICED BY L=3000 		0-01260-300-0 02 1 9909- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) (B) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 9604-9904 ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) EXC. THAILAND EQUIPMENT(PM9) (B) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 9604-9904 ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) (B) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> (B) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 9909- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) (B) L=600 SERVICED BY L=3000 		0-01260-300-0 01 1 9603-9605 ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) (B) L=700 SERVICED BY L=3000 		0-01260-300-0 01 1 9606-9904 ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=700 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=700 SERVICED BY L=3000 		0-01260-300-0 01 1 9909-0012 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> (B) L=700 SERVICED BY L=3000 		0-01260-300-0 01 1 0101- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) FUEL SEDIMENTER<PS9> EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1850 SERVICED BY L=3000 		0-01260-300-0 01 1 0101- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 9603-9603 ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) EXC. THAILAND EQUIPMENT(PM9) (A) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 9604-9904 ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) (A) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 9604-9904 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 9909-0012 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 0101- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) (A) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9605-9904 ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9909-0101 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0102- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
LONG CHASSIS(CXZ5MF) FUEL SEDIMENTER<PS9> EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0102- ● ● ● ●
35 PIPE; FUEL TANK,RETURN
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> L=2000 SERVICED BY L=3000 		0-01260-300-0 01 1 9909- ● ● ●
35 PIPE; FUEL TANK,RETURN
BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9909- ● ● ● ●
35 PIPE; FUEL TANK,RETURN
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> L=2150 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ●
35 PIPE; FUEL TANK,RETURN
L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 9603-9604 ● ●
35 PIPE; FUEL TANK,RETURN
SHORT CHASSIS(CXZ5MC) EXC. THAILAND EQUIPMENT(PM9) L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 9605-9904 ● ●
35 PIPE; FUEL TANK,RETURN
LONG CHASSIS(CXZ5MF) L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 9605-9904 ● ●
35 PIPE; FUEL TANK,RETURN
L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 9905- ●
35 PIPE; FUEL TANK,RETURN
EXC. MUFFLER TWIN VERTICAL<NBS> L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 9905- ● ● ●
35 PIPE; FUEL TANK,RETURN
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-9908 ● ● ●
35 PIPE; FUEL TANK,RETURN
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9909- ● ● ●

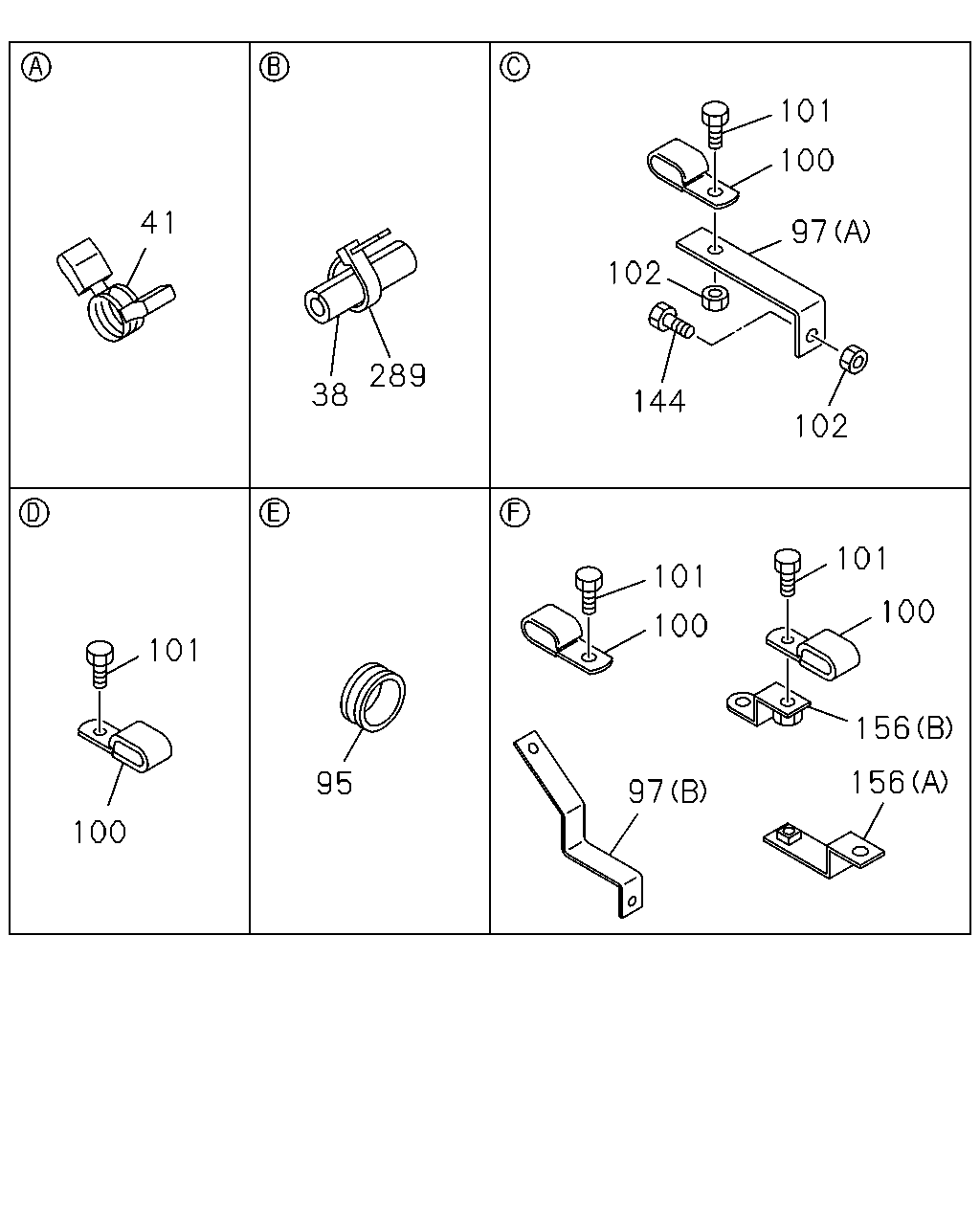

çizim 40220
101 100 41 97 102 289 38 144 102 101 101 100 100 101 156 156 95 97 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9603-9904 ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9905-0101 ● ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0102-0104 ● ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
EXC. MUFFLER TWIN VERTICAL<NBS> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0102-0104 ● ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0105- ● ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
EXC. MUFFLER TWIN VERTICAL<NBS> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0105- ● ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0009-0104 ● ● ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0105- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 9603-9904 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 9905- ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
SHORT CHASSIS(CXZ5MC) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9603-9904 ● ●
95 BUSHING; PIPE,FUEL TANK
SHORT CHASSIS(CXZ5MC) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9905-9908 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9909- ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
SHORT CHASSIS(CXZ5MC) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9909- ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> ID=28 OD=35 T=25 		1-09332-011-1 01 1 9909- ● ● ●
95 BUSHING; PIPE,FUEL TANK
LONG CHASSIS(CXZ5MF) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9603-9904 ● ●
95 BUSHING; PIPE,FUEL TANK
LONG CHASSIS(CXZ5MF) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905-9908 ● ● ● ●
97 BRACKET; CLIP
EXC. ZF M/T<X9E> (A) L=115 		1-47475-305-0 01 1 9603-9603 ● ●
97 BRACKET; CLIP
ZF M/T<X9E> (B) 		1-47478-442-0 01 1 9905-9908 ● ● ●
97 BRACKET; CLIP
ZF M/T<X9E> (B) 		1-47478-442-0 01 1 9909- ● ● ●
97 BRACKET; CLIP
ZF M/T<X9E> (A) L=115 		1-47475-305-0 02 1 9603-9605 ● ●
97 BRACKET; CLIP
(A) L=115 		1-47475-305-0 01 1 9606-9904 ● ●
97 BRACKET; CLIP
MUFFLER TWIN VERTICAL<NBS> (A) L=115 		1-47475-305-0 02 1 9905-9908 ● ● ●
97 BRACKET; CLIP
ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115 		1-47475-305-0 02 1 9909-0008 ● ● ● ●
97 BRACKET; CLIP
ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115 		1-47475-305-0 01 1 0009- ● ● ● ●
97 BRACKET; CLIP
(A) L=115 		1-47475-305-0 01 1 9905-9908 ●
97 BRACKET; CLIP
EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115 		1-47475-305-0 01 1 9905-9908 ● ● ●
97 BRACKET; CLIP
(A) L=115 		1-47475-305-0 01 1 9909-0008 ●
97 BRACKET; CLIP
ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115 		1-47475-305-0 01 1 9909-0008 ● ● ●
97 BRACKET; CLIP
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> (A) L=115 		1-47475-305-0 02 1 0009- ● ● ●
97 BRACKET; CLIP
ZF M/T<X9E> (A) L=120 		1-82699-465-0 01 1 9909-0008 ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> ID=16X2 L=20 		9-09535-536-0 01 1 9909-0008 ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 01 1 9909-0008 ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 04 1 0009- ● ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ID=16X2 L=20 		9-09535-536-0 03 1 9603-9604 ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ID=16X2 L=20 		9-09535-536-0 04 1 9605-9608 ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 05 1 9609-9805 ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ID=16X2 L=20 		9-09535-536-0 04 1 9806-9904 ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=20 		9-09535-536-0 04 1 9603-9604 ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=20 		9-09535-536-0 03 1 9605-9608 ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 04 1 9609-9805 ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 04 1 9609-9805 ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=20 		9-09535-536-0 03 1 9806-9904 ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 05 1 9905-9908 ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 03 1 9909-0008 ● ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 03 1 9909-0008 ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 05 1 0009- ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 05 1 0009- ● ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ID=16X2 L=20 		9-09535-536-0 04 1 9905-9908 ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> ID=16X2 L=20 		9-09535-536-0 04 1 9905-9908 ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 04 1 9905-9908 ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 04 1 9905-9908 ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 02 1 9909-0008 ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=50 		9-09535-586-0 01 1 9603-9904 ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=50 		9-09535-586-0 01 1 9905-9908 ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=50 		9-09535-586-0 01 1 9909- ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=50 		9-09535-586-0 01 1 9909- ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 03 1 9609-9805 ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 02 1 0009-0009 ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 05 1 9909-0008 ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> ID=16X2 L=20 		9-09535-536-0 01 1 0009-0009 ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> ID=16X2 L=20 		9-09535-536-0 01 1 0009-0009 ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ID=16X2 L=20 		9-09535-536-0 03 1 9905-9908 ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 03 1 9905-9908 ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 04 1 9909-0008 ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20 		9-09535-536-0 04 1 9909-0008 ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 03 1 0009-0009 ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 03 1 0009-0009 ● ● ● ●
100 CLIP; FUEL PIPE
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 03 1 0010- ● ● ● ●
100 CLIP; FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20 		9-09535-536-0 03 1 0010- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 01 1 9909-0008 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 01 1 9909-0008 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 04 1 0009- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8X20 FLANGE 		0-28080-820-0 03 1 9603-9604 ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8X20 FLANGE 		0-28080-820-0 04 1 9605-9606 ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8X25 FLANGE 		0-28680-825-0 04 1 9607-9608 ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 05 1 9609-9805 ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8X25 FLANGE 		0-28680-825-0 04 1 9806-9904 ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X20 FLANGE 		0-28080-820-0 03 1 9605-9606 ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X25 FLANGE 		0-28680-825-0 03 1 9607-9608 ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8X25 FLANGE 		0-28680-825-0 04 1 9905-9908 ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 04 1 9905-9908 ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 04 1 9905-9908 ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 04 1 9905-9908 ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 02 1 9909-0008 ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 04 1 9609-9805 ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 04 1 9609-9805 ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X25 FLANGE 		0-28680-825-0 03 1 9806-9904 ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 05 1 9905-9908 ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 03 1 9909-0008 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 03 1 9909-0008 ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 05 1 0009- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 05 1 0009- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 03 1 9609-9805 ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9904 ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X25 FLANGE 		0-28680-825-0 01 1 9905-9908 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 05 1 9909-0008 ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 01 1 0009-0012 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 01 1 0009-0012 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 01 1 0009-0012 ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 01 1 0101- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8X25 FLANGE 		0-28680-825-0 03 1 9905-9908 ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 03 1 9905-9908 ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 04 1 9909-0008 ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 04 1 9909-0008 ● ● ●
101 BOLT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 03 1 0009- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE 		0-28680-825-0 03 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
ZF M/T<X9E> M8 		9-09110-508-0 02 1 9604-9605 ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 		9-09110-508-0 02 1 9606-9606 ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9905-9908 ● ● ●
102 NUT; CLIP,FUEL PIPE
MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 02 1 9905-9908 ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 01 1 9909-0008 ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 9909-0008 ● ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 9909-0008 ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 01 1 9909-0008 ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 01 1 9909-0008 ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDERHEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 02 1 0009- ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8 		9-09110-508-0 01 1 9603-9603 ● ●
102 NUT; CLIP,FUEL PIPE
EXC. ZF M/T<X9E> M8 		9-09110-508-0 01 1 9603-9603 ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8 		9-09110-508-0 01 1 9604-9605 ● ●
102 NUT; CLIP,FUEL PIPE
EXC. ZF M/T<X9E> M8 		9-09110-508-0 01 1 9604-9605 ● ●
102 NUT; CLIP,FUEL PIPE
M8 		9-09110-508-0 01 1 9606-9606 ● ●
102 NUT; CLIP,FUEL PIPE
ZF M/T<X9E> M8 		9-09110-508-0 01 1 9606-9606 ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
102 NUT; CLIP,FUEL PIPE
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ● ● ● ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 01 1 9905-9908 ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 03 1 9909-0008 ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 03 1 9909-0008 ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9909-0008 ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9909-0008 ● ● ●
102 NUT; CLIP,FUEL PIPE
LONG CHASSIS(CXZ5MF) MUFFLER TWIN VERTICAL<NBS> M8 FLANGE 		0-91150-108-0 02 1 9909-0008 ● ● ●
102 NUT; CLIP,FUEL PIPE
ZF M/T<X9E> M8 		9-09110-508-0 02 1 9603-9603 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X35 FLANGE 		0-28680-835-0 01 1 9909-0008 ● ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE 		0-28680-835-0 01 1 9909-0008 ● ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X35 FLANGE 		0-28680-835-0 01 1 9909-0008 ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
ZF M/T<X9E> M8X30 FLANGE 		0-28080-830-0 02 1 9604-9605 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
M8X30 FLANGE 		0-28080-830-0 01 1 9606-9606 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
M8X35 FLANGE 		0-28680-835-0 01 1 9607-9904 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE 		0-28680-835-0 02 1 9905-9908 ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X35 FLANGE 		0-28680-835-0 03 1 9909-0008 ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
ISUZU M/T<X9A> M8X35 FLANGE 		0-28680-835-0 01 1 0009- ● ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
EXC. ZF M/T<X9E> M8X30 FLANGE 		0-28080-830-0 01 1 9603-9605 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
M8X35 FLANGE 		0-28680-835-0 01 1 9905-9908 ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
SHORT CHASSIS(CXZ5MC) M8X35 FLANGE 		0-28680-835-0 01 1 9905-9908 ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE 		0-28680-835-0 01 1 9905-9908 ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE 		0-28680-835-0 02 1 9909- ● ● ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
ZF M/T<X9E> M8X20 FLANGE 		0-28080-820-0 02 1 9603-9604 ● ●
156 BRACKET; FUEL HOSE
FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (A) 		1-47477-330-0 01 1 9603-9606 ● ●
156 BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-47477-330-0 01 1 9607-9608 ●
156 BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-47477-330-0 02 1 9609-9805 ●
156 BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=80 H=20 		1-82699-304-0 01 1 9806-9904 ●
156 BRACKET; FUEL HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) 		1-47478-306-0 02 1 9905- ● ● ●
289 CLIP; BAND,HOSE
LONG CHASSIS(CXZ5MF) L=250 		5-09707-030-0 02 1 9603-9605 ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 9606-9904 ● ●
289 CLIP; BAND,HOSE
LONG CHASSIS(CXZ5MF) L=250 		5-09707-030-1 02 1 9905-9908 ● ● ● ●
289 CLIP; BAND,HOSE
ZF M/T<X9E> L=250 		5-09707-030-1 02 1 9905-9908 ● ● ●
289 CLIP; BAND,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> L=250 		5-09707-030-1 04 1 0009-0104 ● ● ● ●
289 CLIP; BAND,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> L=250 		5-09707-030-1 02 1 0105- ● ● ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 9909-0008 ● ● ● ●
289 CLIP; BAND,HOSE
SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> L=250 		5-09707-030-1 02 1 0009-0101 ● ● ● ●
289 CLIP; BAND,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> L=250 		5-09707-030-1 02 1 0102-0104 ● ● ● ●
289 CLIP; BAND,HOSE
EXC. MUFFLER TWIN VERTICAL<NBS> L=250 		5-09707-030-1 02 1 0102-0104 ● ● ● ●
289 CLIP; BAND,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> L=250 		5-09707-030-1 04 1 0105- ● ● ● ●
289 CLIP; BAND,HOSE
EXC. MUFFLER TWIN VERTICAL<NBS> L=250 		5-09707-030-1 04 1 0105- ● ● ● ●

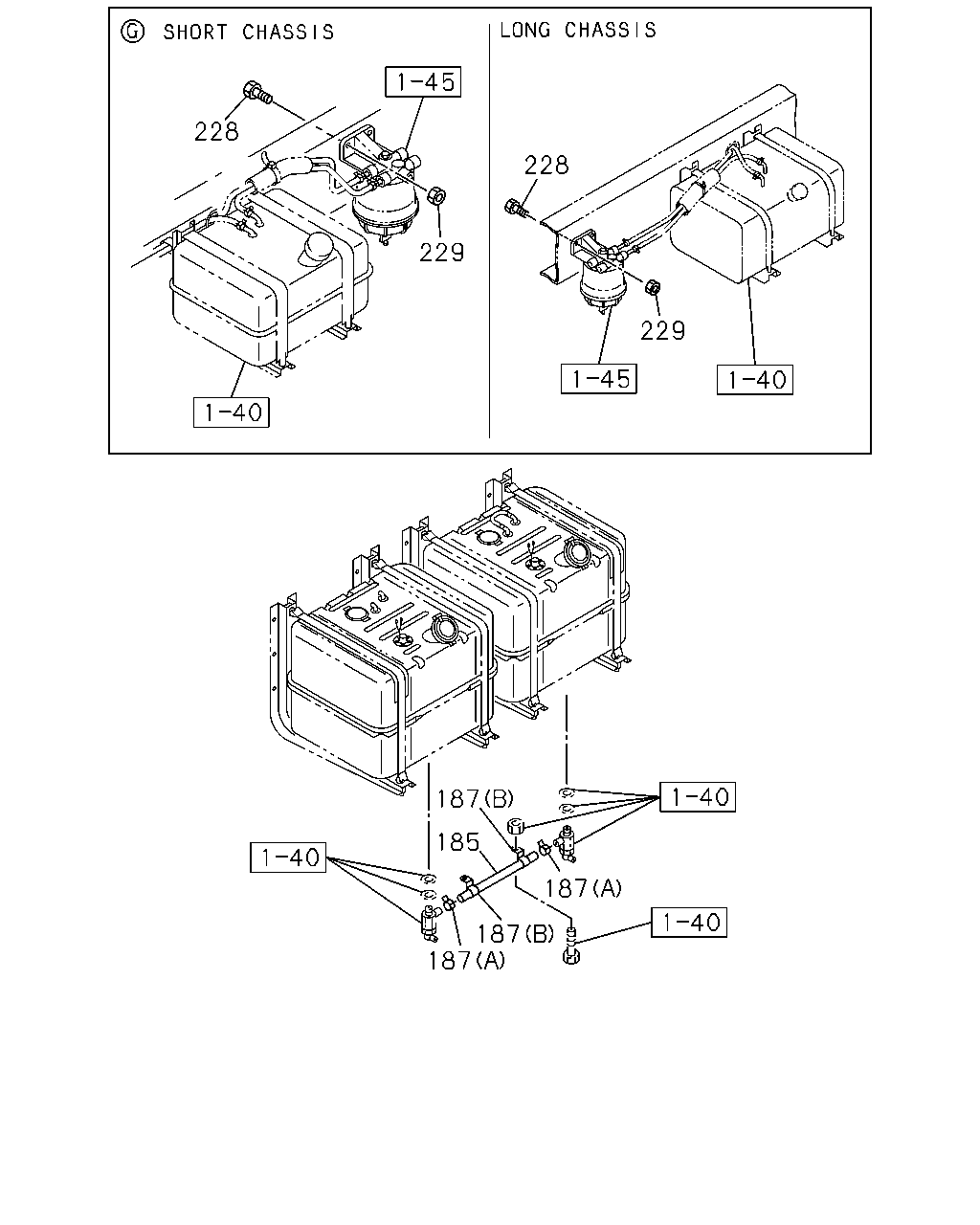

çizim 40429
228 228 229 229 187 185 187 187 187
BalonParca AdiParca NoAdetTipApplied Date A B C D
185 PIPE; FUEL TANK TO TANK
LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000 		0-01262-300-0 01 1 9603-9904 ● ●
185 PIPE; FUEL TANK TO TANK
LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000 		0-01262-300-0 01 1 9905- ● ● ● ●
187 CLIP; FUEL PIPE TANK TO TANK
LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (A) ID=17.1 		8-94122-679-0 02 1 9603-9904 ● ●
187 CLIP; FUEL PIPE TANK TO TANK
LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (A) ID=17.1 		8-94122-679-0 02 1 9905- ● ● ● ●
187 CLIP; FUEL PIPE TANK TO TANK
LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25 		9-09917-035-0 02 1 9603-9904 ● ●
187 CLIP; FUEL PIPE TANK TO TANK
LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25 		9-09917-035-0 02 1 9905- ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9904 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28081-040-0 02 1 9905-0012 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28081-040-0 02 1 0101- ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9603-9606 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9905-0012 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0101- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
