◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#43) — 8 parça

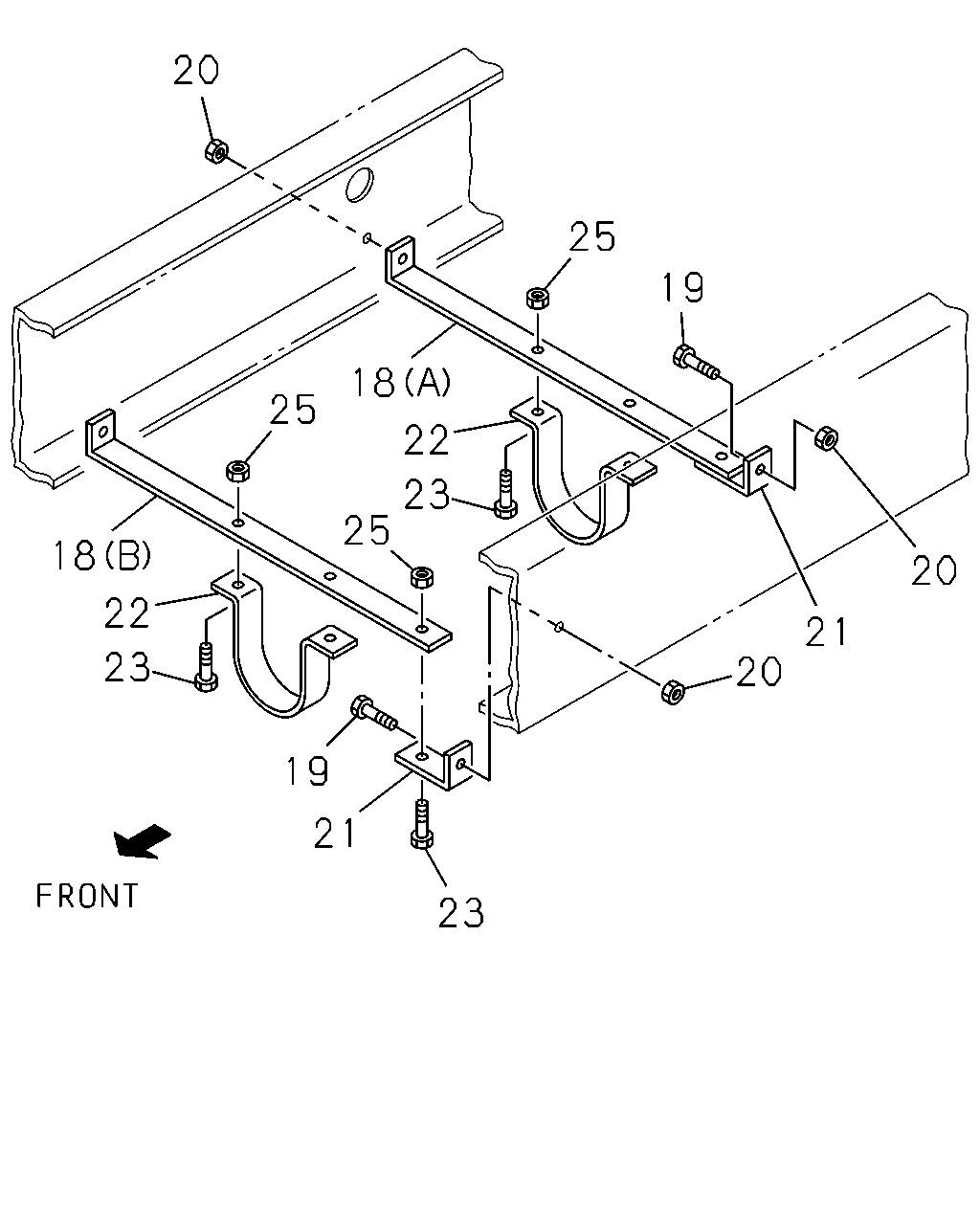

çizim 92476
20 25 19 18 25 22 23 25 18 20 22 21 23 20 19 21 23
BalonParca AdiParca NoAdetTipApplied Date
18 BRACKET; PROP SHAFT GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-53279-122-0 01 1 9202-9210
18 BRACKET; PROP SHAFT GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-53279-136-0 01 1 9202-9210
19 BOLT; BRKT,PROP SHAFT GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X30 W/LK&PL WASHER 		0-50141-030-0 04 1 9202-9210
20 NUT; BRKT,PROP SHAFT GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 		9-09110-410-0 04 1 9202-9210
21 BRACKET; PROP GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-53279-123-0 02 1 9202-9210
22 GUARD; PROP SHAFT
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-53279-152-0 02 1 9202-9210
23 BOLT; GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X30 W/LK WASHER 		0-50041-030-0 06 1 9202-9210
25 NUT; GUARD
WHEEL BASE 4200MM(42W) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 		9-09110-410-0 06 1 9202-9210
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
