3 |
00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
|
9-09920-873-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
3 |
00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
9-09920-873-1 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
3 |
00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
9-09920-873-1 |
01 |
1 |
0507- |
● |
● |
● |
|
| |
4 |
00.785 CLIP; FLEX HOSE,CLU CONT
|
8-94167-006-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
| |
4 |
00.785 CLIP; FLEX HOSE,CLU CONT
|
8-94167-006-0 |
02 |
1 |
0502-0506 |
|
|
● |
|
| |
4 |
00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-94167-006-0 |
02 |
1 |
0507-0610 |
● |
● |
● |
|
| |
4 |
00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
04.681
|
8-97365-304-0 |
02 |
1 |
0611- |
● |
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS)
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98020-158-0 |
01 |
1 |
0507- |
● |
|
|
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ)
CLUTCH SYSTEM AUTO ADJUSTER<8BG>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97047-058-1 |
01 |
1 |
0507- |
|
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ)
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97148-640-0 |
01 |
1 |
0507- |
|
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
CLUTCH SYSTEM AUTO ADJUSTER<8BG>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-94248-703-2 |
01 |
1 |
0507- |
|
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS)
CLUTCH SYSTEM AUTO ADJUSTER<8BG>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98013-965-0 |
01 |
1 |
0507- |
● |
|
|
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
CLUTCH SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-97148-640-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-97148-640-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. ENGINE POWER N-SPEC(7QV),CLUTCH
SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-94377-793-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
(B)
|
8-94248-702-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
(B)
|
8-94248-702-2 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-94248-702-2 |
01 |
1 |
0507-0609 |
● |
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98004-775-0 |
01 |
1 |
0610-0706 |
● |
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98090-655-0 |
01 |
1 |
0707- |
● |
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-94108-360-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
CLUTCH SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-97047-058-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
CLUTCH SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-94248-703-2 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-97064-108-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>
(A)
|
8-97064-108-1 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
5 |
00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97064-108-1 |
01 |
1 |
0507- |
|
● |
● |
|
| |
6 |
00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
| |
6 |
00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
6 |
00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0507-0512 |
● |
● |
● |
|
| |
6 |
00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
● |
|
| |
7 |
00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
| |
7 |
00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
7 |
00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0507-0602 |
● |
● |
● |
|
| |
7 |
00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
● |
|
| |
11 |
00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
|
8-97126-875-0 |
01 |
1 |
0211-0305 |
● |
● |
● |
● |
| |
11 |
00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
|
8-97365-305-0 |
01 |
1 |
0306-0501 |
● |
● |
● |
● |
| |
11 |
00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
8-94366-288-0 |
01 |
1 |
0502-0502 |
|
|
● |
|
| |
11 |
00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
8-97365-305-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
11 |
00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97365-305-0 |
01 |
1 |
0507- |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
(A)
|
8-97177-305-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
(A)
|
8-97177-305-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97177-305-0 |
01 |
1 |
0507- |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97187-578-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97187-578-1 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-97187-578-1 |
01 |
1 |
0507- |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97325-816-2 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97365-467-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97365-467-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-97365-467-0 |
01 |
1 |
0507-0507 |
● |
● |
● |
|
| |
15 |
00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11>
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-97365-467-0 |
01 |
1 |
0507- |
● |
● |
● |
|
| |
16 |
00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
|
8-94167-006-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
16 |
00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
8-94167-006-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
16 |
00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-94167-006-0 |
01 |
1 |
0507-0610 |
● |
● |
● |
|
| |
16 |
00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1
ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
04.681
|
8-97365-304-0 |
01 |
1 |
0611- |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97207-635-0 |
01 |
1 |
0507-1303 |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97207-635-0 |
01 |
1 |
1304- |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FLOOR REMOTE SHIFT<M11>
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98011-703-0 |
01 |
1 |
0507-1303 |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11>
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98011-703-0 |
01 |
1 |
1304- |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
|
8-97177-034-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
|
8-97177-034-0 |
01 |
1 |
0502-0502 |
|
|
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97177-034-0 |
01 |
1 |
0502-1303 |
|
|
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11>
EXC. POWER ASSIST CLUTCH(S2T)
|
8-97149-835-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T)
|
8-97149-835-0 |
01 |
1 |
0502-0502 |
|
|
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. POWER ASSIST CLUTCH(S2T)
|
8-97149-835-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
24 |
00.785 PIPE ASM; CLU,M/CYL TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97149-835-0 |
01 |
1 |
0507-1303 |
|
|
● |
|
| |
87 |
00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11>
M12 STRAIGHT
|
9-99227-006-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
87 |
00.785 UNION; OIL PIPE
M12 STRAIGHT
|
9-99227-006-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
87 |

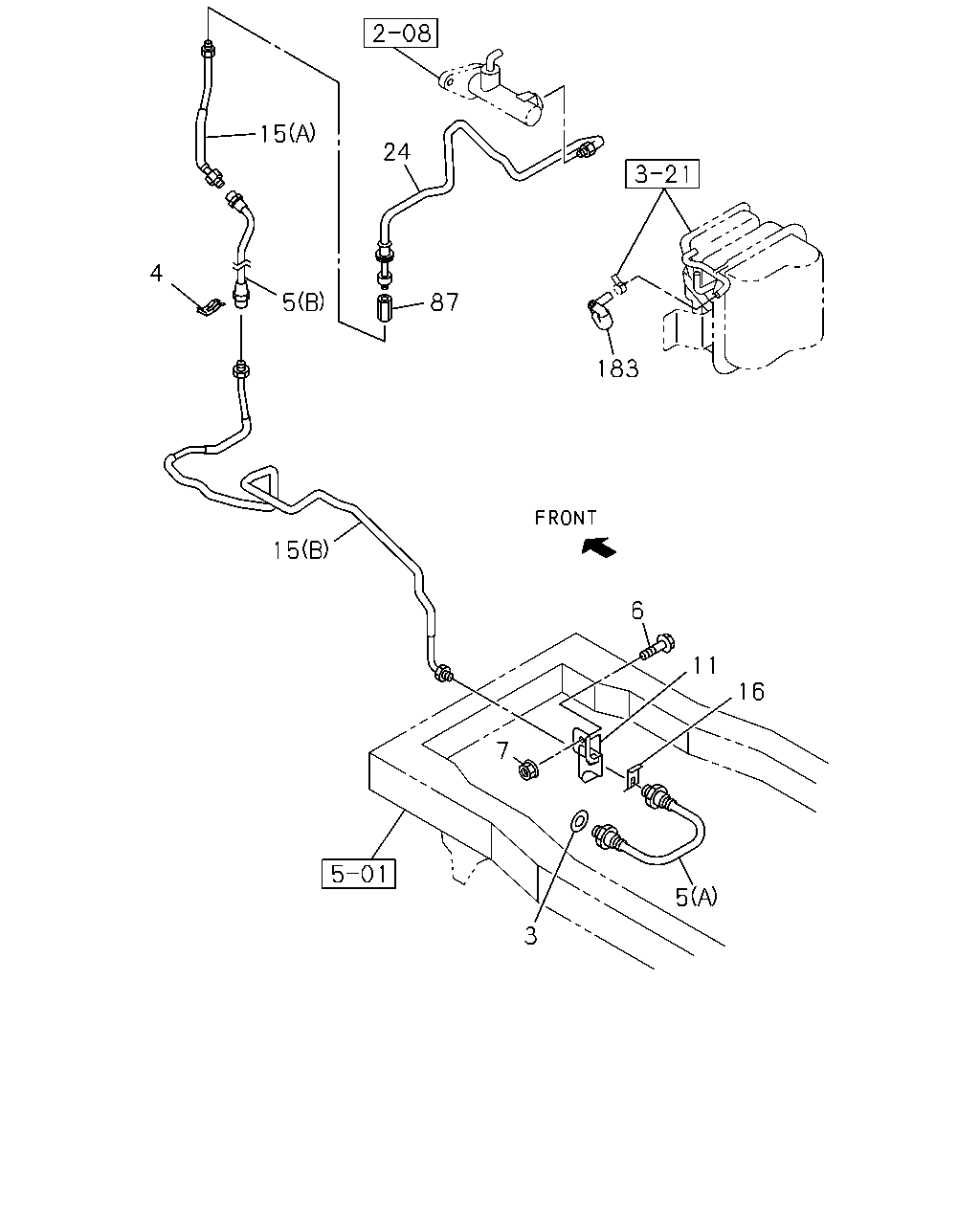

00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
M12 STRAIGHT
|
9-99227-006-0 |
01 |
1 |
0507-0607 |
● |
● |
● |
|
| |
87 |
00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
M12 STRAIGHT
|
0-92107-006-0 |
01 |
1 |
0608- |
● |
● |
● |
|
| |
183 |
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97129-874-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
183 |
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER<7QQ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97129-874-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
183 |
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER<7QQ>
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97129-874-0 |
01 |
1 |
0507- |
● |
● |
● |
|
| |
183 |
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97129-873-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
| |
183 |
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97129-873-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
| |
183 |
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97129-873-0 |
01 |
1 |
0507- |
● |
● |
● |
|
