2-03 — CLUTCH PEDAL AND CONTROL (#42998) — 176 parça

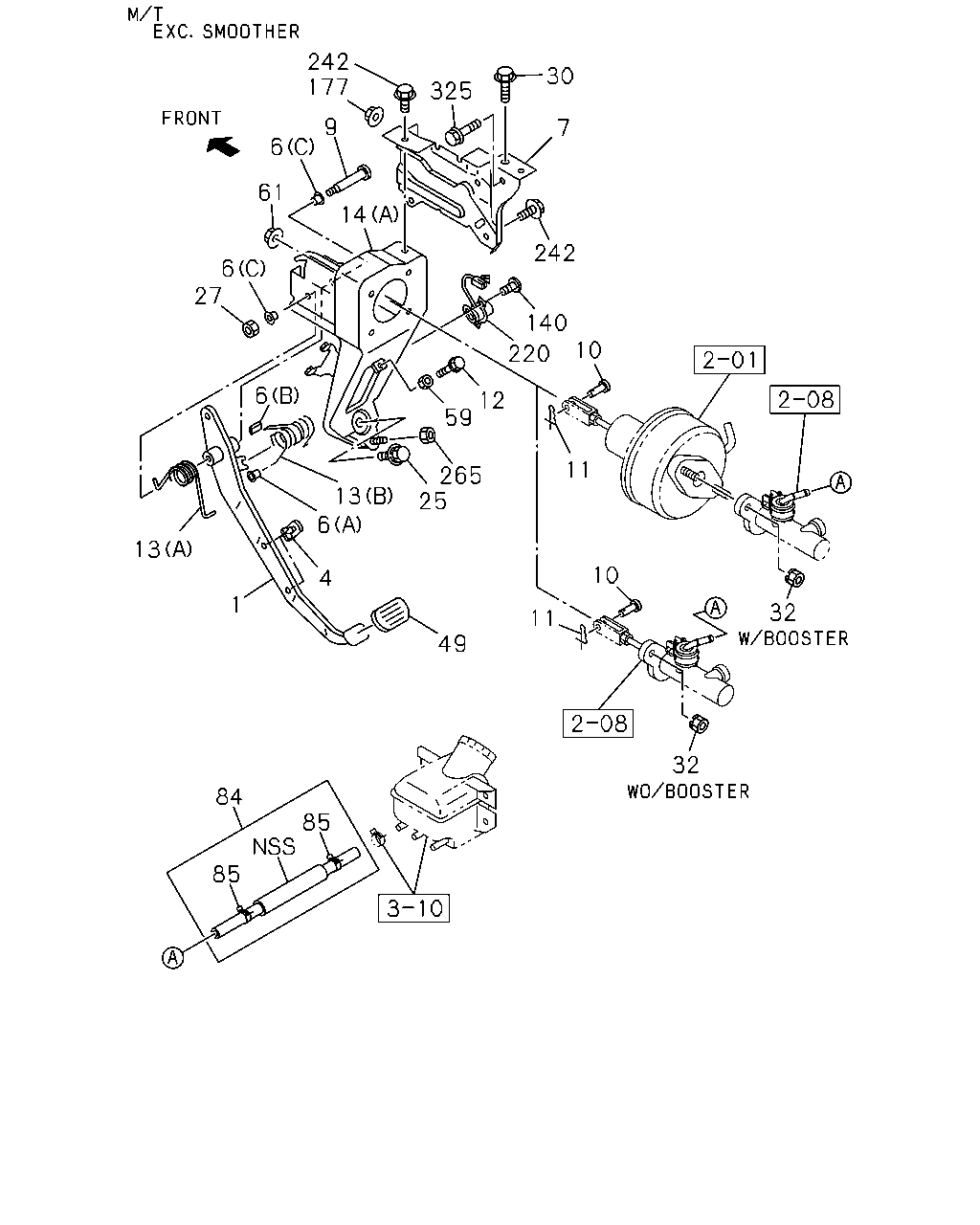

çizim 52686
242 177 30 325 9 6 7 61 14 242 6 27 140 10 220 6 12 59 11 265 25 13 6 13 10 4 1 11 32 49 32 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU
AIR BAG DRIVER<AJ3> FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) 		8-97853-219-2 01 1 0507- ● ● ● ●
1 00.830 PEDAL; CLU
AIR BAG DRIVER<AJ3> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) 		8-97853-219-2 01 1 0507- ●
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97856-115-2 01 1 0507- ● ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0211-0501 ● ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0211-0501 ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0502-0506 ● ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-220-2 01 1 0507- ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-220-2 01 1 0507- ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0507- ●
1 00.830 PEDAL; CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0211-0501 ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0502-0506 ● ● ● ● ●
1 00.830 PEDAL; CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER<AJ3>,POWER ASSISTCLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSM ISSION CONTROL-SMOOTHER(8GF) 		8-97857-984-2 01 1 0507- ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-534-1 02 1 0211-0501 ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0502-0506 ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-534-1 02 1 0507- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.792 (C) 		8-94238-596-0 02 1 0211-0501 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0502-0506 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.792 (C) 		8-94238-596-0 02 1 0507- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0211-0501 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0502-0506 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (A) 		8-97853-619-0 02 1 0507- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0211-0501 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0502-0506 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (B) 		8-97853-620-0 01 1 0507- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0211-0501 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0502-0506 ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0507- ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-97866-667-0 01 1 0211-0501 ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0502-0506 ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-97866-667-0 01 1 0507- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 0211-0501 ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0211-0501 ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0502-0506 ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94410-276-0 01 1 0507-1406 ● ● ● ●
10 00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94410-276-0 01 1 0507-1406 ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0507-1406 ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97359-812-0 01 1 1407- ● ● ● ●
10 00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97359-812-0 01 1 1407- ●
10 00.833 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 0211-0501 ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0211-0501 ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0502-0506 ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94279-912-0 01 1 0507- ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94279-912-0 01 1 0507- ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0507- ●
12 00.841 BOLT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 0211-0501 ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 0502-0506 ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8>,TRANSMISSION CONTROL-SMOOTHER(8GF) 00.805 M10X35 		0-20801-035-0 01 1 0507-0512 ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8>,TRANSMISSION CONTROL-SMOOTHER(8GF) M10X35 		0-20851-035-0 01 1 0601- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0211-0501 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0211-0501 ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0502-0506 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0507- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0507- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-535-1 01 1 0507- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0507- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0211-0501 ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0502-0506 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (B) 		8-97853-221-1 01 1 0507- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-854-3 01 1 0507- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-854-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (A) 		8-97892-853-3 01 1 0507- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (A) 		8-97892-853-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-855-3 01 1 0507- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-97892-850-3 01 1 0507- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> (B) 		8-97898-055-1 01 1 0507- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0211-0501 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0211-0501 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0502-0506 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. AIR BAG DRIVER<AJ3>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-849-3 01 1 0507- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) EXC. AIR BAG DRIVER<AJ3>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-849-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97892-848-3 01 1 0211-0501 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97892-848-3 01 1 0502-0506 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER<AJ3>,POWER ASSISTCLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSM ISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-848-3 01 1 0507- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-AISIN(RNJ) (C) 		8-97898-055-1 01 1 0211-0501 ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0211-0501 ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0502-0506 ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0507- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 FLANGE 		1-09440-022-0 01 1 0211-0501 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0502-0506 ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		1-09440-022-0 01 1 0507- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0211-0501 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0502-0506 ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0507-0512 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 0211-0501 ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0502-0506 ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-413-2 01 1 0211-0501 ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0502-0506 ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-413-2 01 1 0507- ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 0211-0501 ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 0502-0506 ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.011 M10 		9-09110-410-0 01 1 0507-0512 ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8>,TRANSMISSION CONTROL-SMOOTHER(8GF) M10 		0-91110-510-0 01 1 0601- ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0211-0501 ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0502-0506 ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 04 1 0507- ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0507- ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-97135-025-0 01 1 0211-0501 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0211-0501 ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0502-0506 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-025-0 01 1 0507-1405 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0507-1405 ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98193-435-0 01 1 1406- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-98193-435-0 01 1 1406- ●
85 00.785 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 04.681 		8-97130-480-0 02 1 0211-0501 ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0211-0501 ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0502-0506 ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97130-480-0 02 1 0507-1405 ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0507-1405 ●
85 00.785 CLIP; HOSE TO M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98168-080-0 02 1 1406- ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1406- ●
140 04.054 BOLT; BRKT
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0507- ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0211-0501 ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0502-0506 ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ● ● ● ● ● ●
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97166-388-0 01 1 0507- ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0211-0501 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0502-0506 ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0507-0512 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0211-0501 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0502-0506 ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0507-0610 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0506 ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ● ● ●
çizim 55040
242 30 325 177 7 14 25 265 242 242 30 177 7 325 14 25 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0211-0501 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0502-0506 ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0507- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-854-3 01 1 0507- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-854-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (A) 		8-97892-853-3 01 1 0507- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
AIR BAG DRIVER<AJ3> EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOT HER(8GF) (A) 		8-97892-853-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-855-3 01 1 0507- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-97892-850-3 01 1 0507- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> (B) 		8-97898-055-1 01 1 0507- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0211-0501 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0211-0501 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0502-0506 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. AIR BAG DRIVER<AJ3>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-849-3 01 1 0507- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) EXC. AIR BAG DRIVER<AJ3>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-849-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) (A) 		8-97892-849-3 01 1 0507- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97892-848-3 01 1 0211-0501 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97892-848-3 01 1 0502-0506 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER<AJ3>,POWER ASSISTCLUTCH(S2T),H.S.A SYSTEM<6EP>,TRANSM ISSION CONTROL-SMOOTHER(8GF) (A) 		8-97892-848-3 01 1 0507- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-AISIN(RNJ) (C) 		8-97898-055-1 01 1 0211-0501 ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0211-0501 ● ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0502-0506 ● ● ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0507- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0211-0501 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0502-0506 ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0507-0512 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0211-0501 ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0502-0506 ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0507- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0211-0501 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0502-0506 ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0507-0512 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0211-0501 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0502-0506 ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0507-0610 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0506 ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
