Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#42993) — 248 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

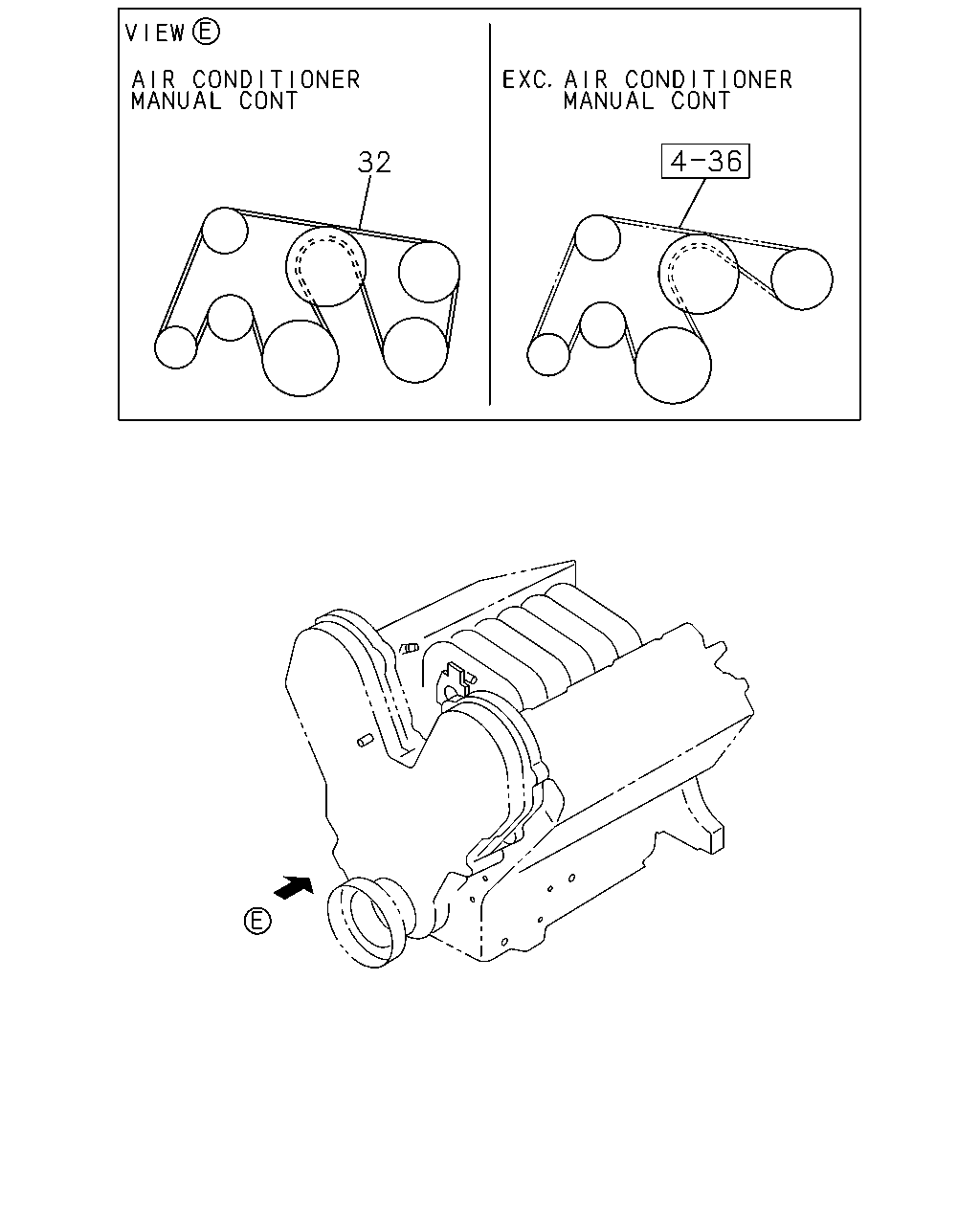

32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0307-0609	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0701-0711	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0307-0508	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=2288	8-97130-560-0	01	1	0509-0609								●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0701-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0307-			●	●	●		●	●

47 47 25 14 14 32 37 37 46 47 47 46 32 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

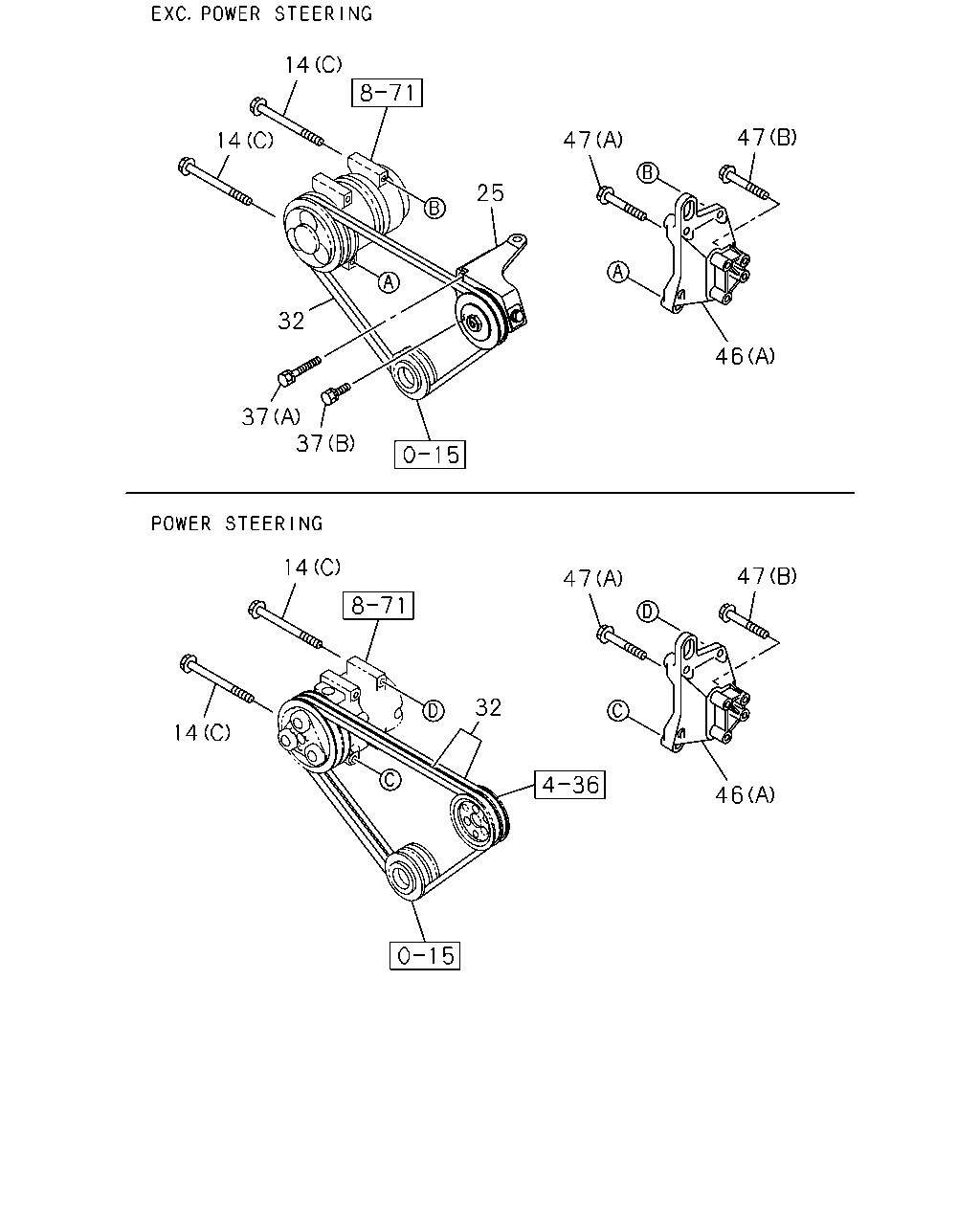

14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0307-0601	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-0612	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0701-0912	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1001-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0509-0609								●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0509-0609								●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M10X100 FLANGE	0-28181-000-0	04	1	0307-0601			●	●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40>	8-97943-806-0	01	1	0307-0609	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40>	8-97943-806-0	01	1	0610-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	0610-0612	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	0701-0912	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	1001-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-142-0	01	1	0307-			●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0307-0609	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0701-0711	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0307-0508	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=2288	8-97130-560-0	01	1	0509-0609								●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0701-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0307-			●	●	●		●	●

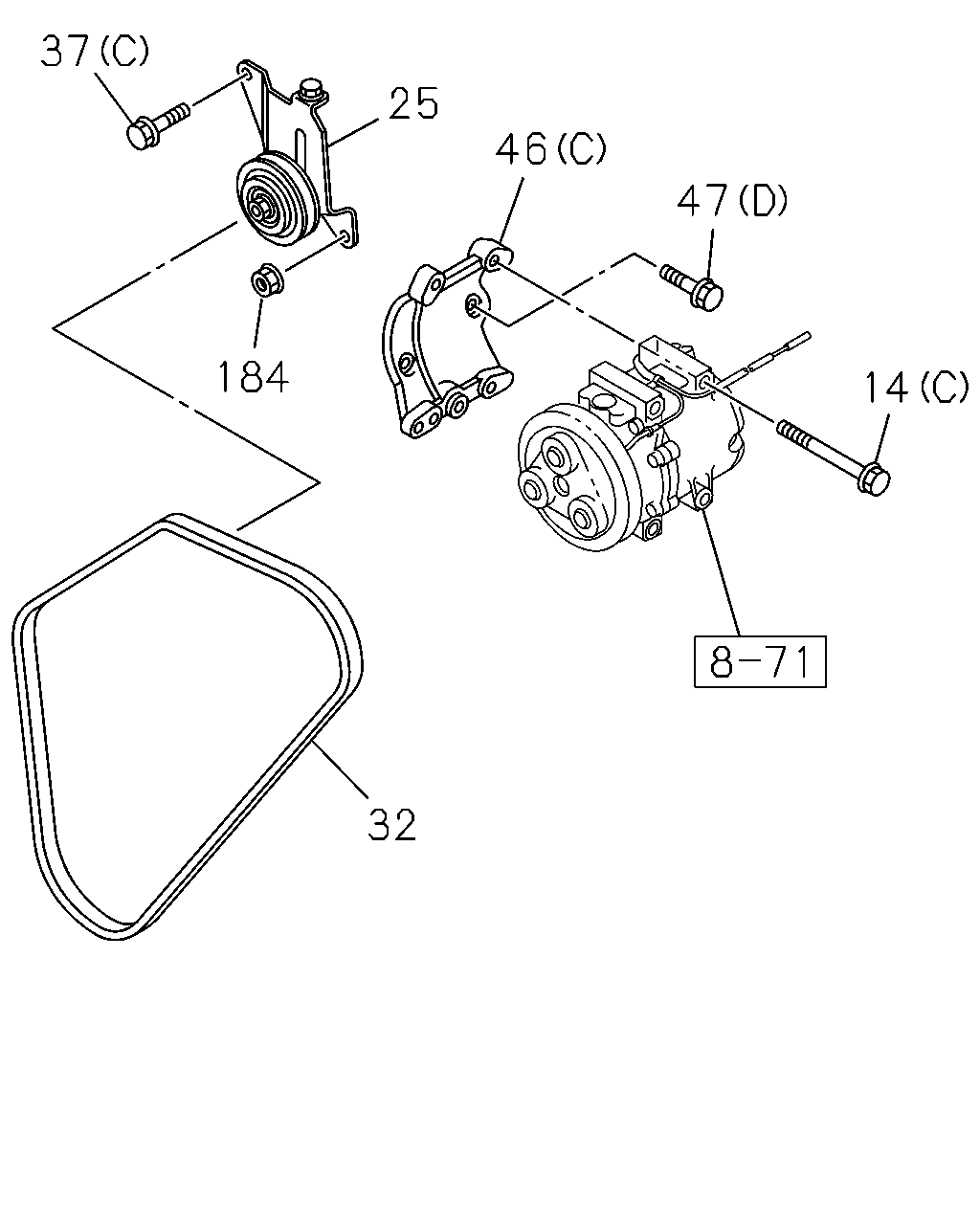

37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0307-0609	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0610-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER	8-97919-730-1	01	1	0307-0609	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER	8-97919-730-1	01	1	0610-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0610-0612	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0701-0912	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-564-0	01	1	0307-0609	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0610-0612	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0701-0912	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	1001-	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	0610-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0307-0609	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0610-	●		●		●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B)	8-92065-518-0	01	1	0307-			●	●	●		●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) M8X45 FLANGE	0-28050-845-0	02	1	0307-0609	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	0610-0612	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	0701-0912	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	1001-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X50 FLANGE	0-28051-050-0	02	1	0307-0609	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0610-0612	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0701-0912	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	1001-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0307-0609	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0610-	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0307-0609	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0610-	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0307-			●	●	●		●	●

210 46 47 25 30 29 41 44 27 29 33 14 12 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

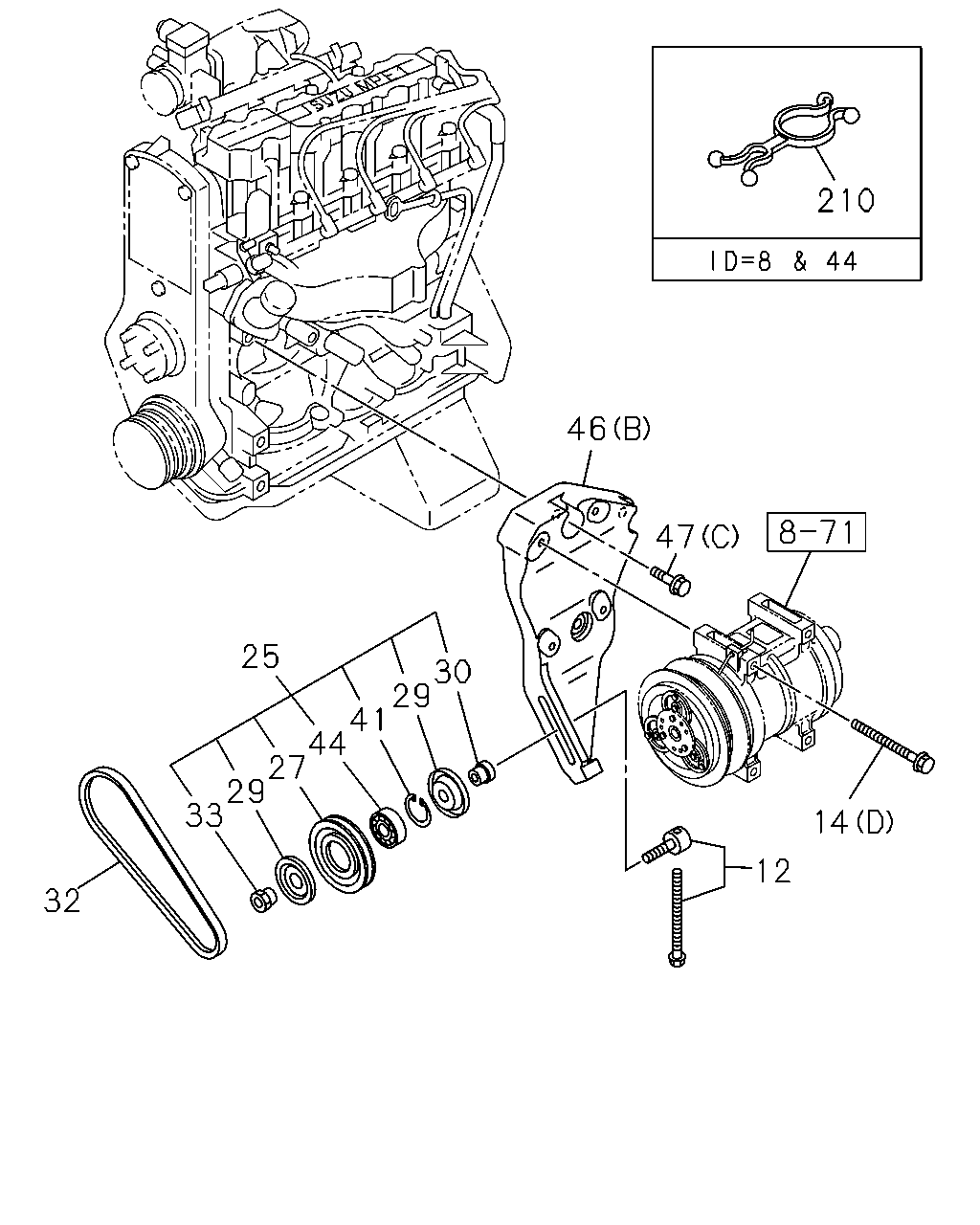

12	09.181 BOLT; ADJ,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-139-0	01	1	0307-			●	●	●		●	●
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0307-0601	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-0612	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0701-0912	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1001-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0509-0609								●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0509-0609								●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M10X100 FLANGE	0-28181-000-0	04	1	0307-0601			●	●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40>	8-97943-806-0	01	1	0307-0609	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40>	8-97943-806-0	01	1	0610-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	0610-0612	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	0701-0912	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	1001-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-142-0	01	1	0307-			●	●	●		●	●

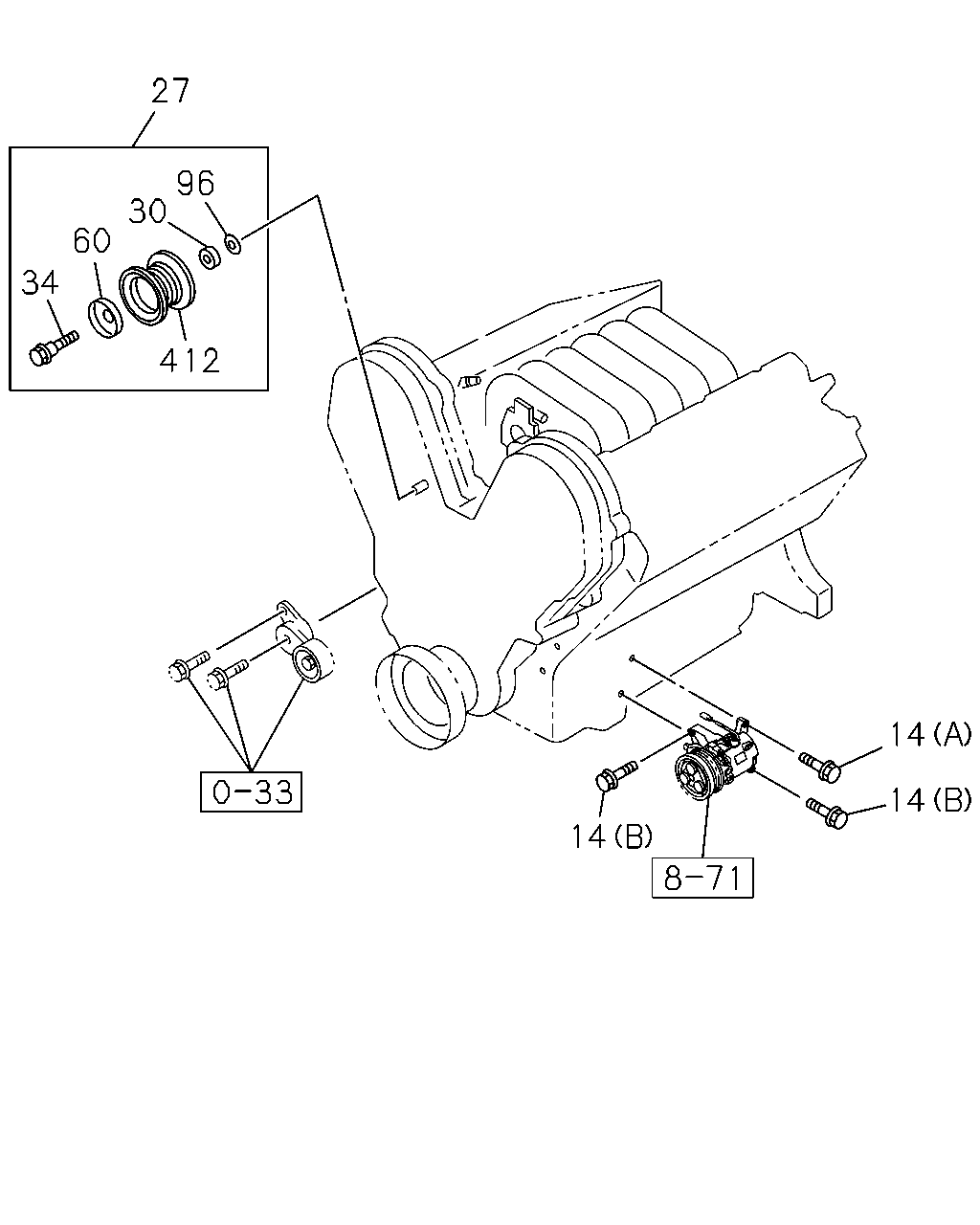

27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0307-0508	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0509-0609								●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-145-0	01	1	0307-0402			●	●	●		●	●
29	09.181 COVER; DUST,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92064-070-0	02	1	0307-0402			●	●	●		●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0307-0508	●	●	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0509-0609								●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-143-0	01	1	0307-0402			●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0307-0609	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0701-0711	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0307-0508	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=2288	8-97130-560-0	01	1	0509-0609								●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0701-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0307-			●	●	●		●	●
33	09.181 NUT; IDLER PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-146-0	01	1	0307-0402			●	●	●		●	●
41	09.181 RING; SNAP,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-234-0	01	1	0307-0402			●	●	●		●	●
44	09.180 BEARING; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-233-0	01	1	0307-0402			●	●	●		●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-564-0	01	1	0307-0609	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0610-0612	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0701-0912	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	1001-	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	0610-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0307-0609	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0610-	●		●		●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B)	8-92065-518-0	01	1	0307-			●	●	●		●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) M8X45 FLANGE	0-28050-845-0	02	1	0307-0609	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	0610-0612	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	0701-0912	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	1001-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X50 FLANGE	0-28051-050-0	02	1	0307-0609	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0610-0612	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0701-0912	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	1001-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0307-0609	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0610-	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0307-0609	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0610-	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0307-			●	●	●		●	●
210	09.242 CLIP; HARNESS C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.559	8-94109-862-0	01	1	0307-			●	●	●		●	●

27 96 30 60 34 412 14 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0307-0601	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-0612	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0701-0912	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1001-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0509-0609								●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0509-0609								●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M10X100 FLANGE	0-28181-000-0	04	1	0307-0601			●	●	●		●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0307-0508	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(LX5)	8-97178-354-0	01	1	0509-0609								●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-145-0	01	1	0307-0402			●	●	●		●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0307-0508	●	●	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-854-0	01	1	0509-0609								●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-143-0	01	1	0307-0402			●	●	●		●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-858-0	01	1	0307-0508	●	●	●	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(LX5)	8-97185-858-0	01	1	0509-0609								●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(LX5)	8-97185-857-0	01	1	0307-0508	●	●	●	●	●	●	●	●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(LX5)	8-97185-857-0	01	1	0509-0609								●
96	08.929 WASHER; LK 6VE1 ENG(LX5)	8-97185-853-0	01	1	0307-0508	●	●	●	●	●	●	●	●
96	08.929 WASHER; LK 6VE1 ENG(LX5)	8-97185-853-0	01	1	0509-0609								●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(LX5)	8-97185-859-0	01	1	0307-0508	●	●	●	●	●	●	●	●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(LX5)	8-97185-859-0	01	1	0509-0609								●

37 25 46 47 184 14 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	09.171 BOLT; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0307-0601	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0602-0609	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0610-0612	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	0701-0912	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) M10X100 FLANGE	0-28151-000-0	04	1	1001-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X100 FLANGE	0-28151-000-0	01	1	0509-0609								●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0307-0508	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0509-0609								●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M10X100 FLANGE	0-28181-000-0	04	1	0307-0601			●	●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40>	8-97943-806-0	01	1	0307-0609	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40>	8-97943-806-0	01	1	0610-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	0610-0612	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	0701-0912	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE	8-98051-011-0	01	1	1001-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-92066-142-0	01	1	0307-			●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI	1-13671-301-0	01	1	0307-0609	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 MITSUBOSHI	8-97944-104-0	01	1	0701-0711	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	0712-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI	8-98088-385-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0307-0609	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=2288	8-97130-560-0	01	1	0307-0508	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=2288	8-97130-560-0	01	1	0509-0609								●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0610-0612	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	0701-0912	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO	8-97944-138-0	01	1	1001-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI	8-97942-722-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0307-0709	●		●		●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO	8-97942-723-0	01	1	0710-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO	8-97942-726-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0307-0609	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSH I	8-97942-728-0	01	1	0610-	●		●		●	●	●	●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918	8-92063-696-0	01	1	0307-			●	●	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0307-0609	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0610-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER	8-97919-730-1	01	1	0307-0609	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER	8-97919-730-1	01	1	0610-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0610-0612	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0701-0912	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-564-0	01	1	0307-0609	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0610-0612	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	0701-0912	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97371-258-0	01	1	1001-	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98039-618-0	01	1	0610-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0307-0609	●		●		●	●	●	●
46	09.171 BRACKET; CMPR 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97358-563-0	01	1	0610-	●		●		●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B)	8-92065-518-0	01	1	0307-			●	●	●		●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B) M8X45 FLANGE	0-28050-845-0	02	1	0307-0609	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	0610-0612	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	0701-0912	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D) M8X35 FLANGE	8-98049-562-0	01	1	1001-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M10X50 FLANGE	0-28051-050-0	02	1	0307-0609	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0610-0612	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	0701-0912	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (D) M8X25 FLANGE	0-28650-825-0	03	1	1001-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0307-0609	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE	0-28050-840-0	02	1	0610-	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0307-0609	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (A) M10X45 FLANGE	0-28051-045-0	02	1	0610-	●		●		●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0307-			●	●	●		●	●
184	09.242 NUT; A/C PIPE BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE	0-91180-208-0	01	1	0610-0612	●	●	●	●	●	●	●	●
184	09.242 NUT; A/C PIPE BRKT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE	0-91180-208-0	01	1	0701-0912	●	●	●	●	●	●	●	●
184	09.242 NUT; A/C PIPE BRKT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE	0-91180-208-0	01	1	1001-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
