Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#42992) — 400 parça

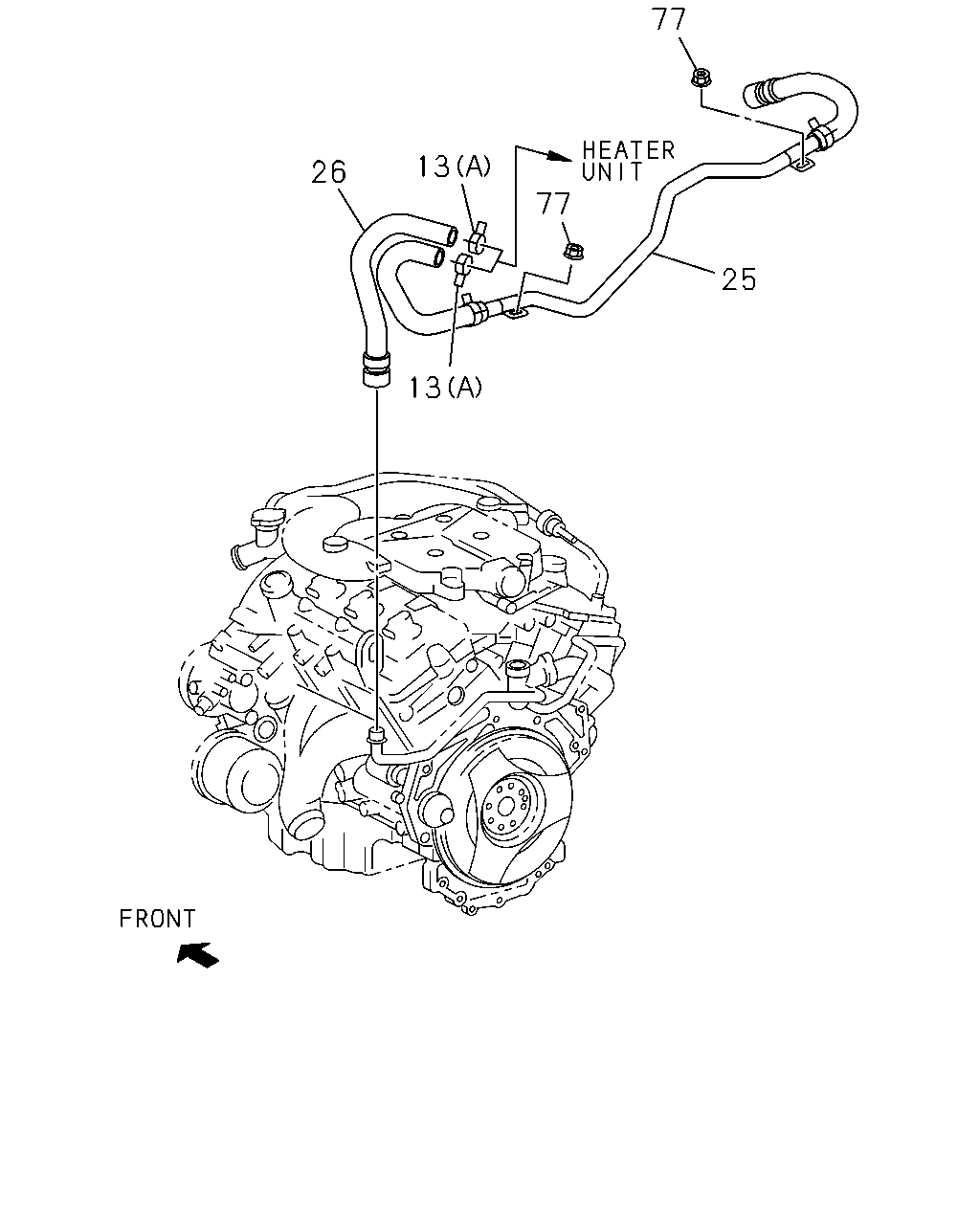

25 77 13 26 77 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (C) ID=22	8-94382-401-0	01	1	0307-0609		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-0612		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0701-0912		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	1001-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=45X22 L=46	9-09917-380-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98063-683-0	01	1	0701-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0307-0508		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0509-0609		●	●		●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0610-0612	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0701-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0307-0908		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●		●	●		●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	0307-		●	●		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-92211-154-0	01	1	0509-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-494-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0501-0609	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0610-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-97236-491-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-98002-544-0	01	1	0501-0508	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-544-0	01	1	0509-0609						●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0610-0709	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0710-0912	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	1001-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-492-1	01	1	0307-0412		●	●		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-546-0	01	1	0501-		●	●		●	●		●
26	08.846 HOSE; HTR HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-92211-152-0	01	1	0509-	●	●	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98011-630-0	01	1	0610-0611	●	●	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98011-630-0	01	1	0612-	●	●	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 04.594 M6 FLANGE	0-91150-106-0	02	1	0509-0603	●	●	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0604-0609	●	●	●	●	●	●	●	●

13 25 27 13 13 13 13 13 27 25 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (C) ID=22	8-94382-401-0	01	1	0307-0609		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-0612		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0701-0912		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	1001-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=45X22 L=46	9-09917-380-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98063-683-0	01	1	0701-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0307-0508		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0509-0609		●	●		●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0610-0612	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0701-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0307-0908		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●		●	●		●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	0307-		●	●		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-92211-154-0	01	1	0509-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-494-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0501-0609	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0610-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-97236-491-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-98002-544-0	01	1	0501-0508	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-544-0	01	1	0509-0609						●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0610-0709	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0710-0912	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	1001-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-492-1	01	1	0307-0412		●	●		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-546-0	01	1	0501-		●	●		●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-490-1	01	1	0307-0412	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-541-0	01	1	0501-0609	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-541-0	01	1	0610-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(LX5)	8-97236-487-0	01	1	0307-0412	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(LX5)	8-98002-538-0	01	1	0501-0508	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-538-0	01	1	0509-0609						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	0610-0709	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	0710-0912	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	1001-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-488-1	01	1	0307-0412		●	●		●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-539-0	01	1	0501-		●	●		●	●		●

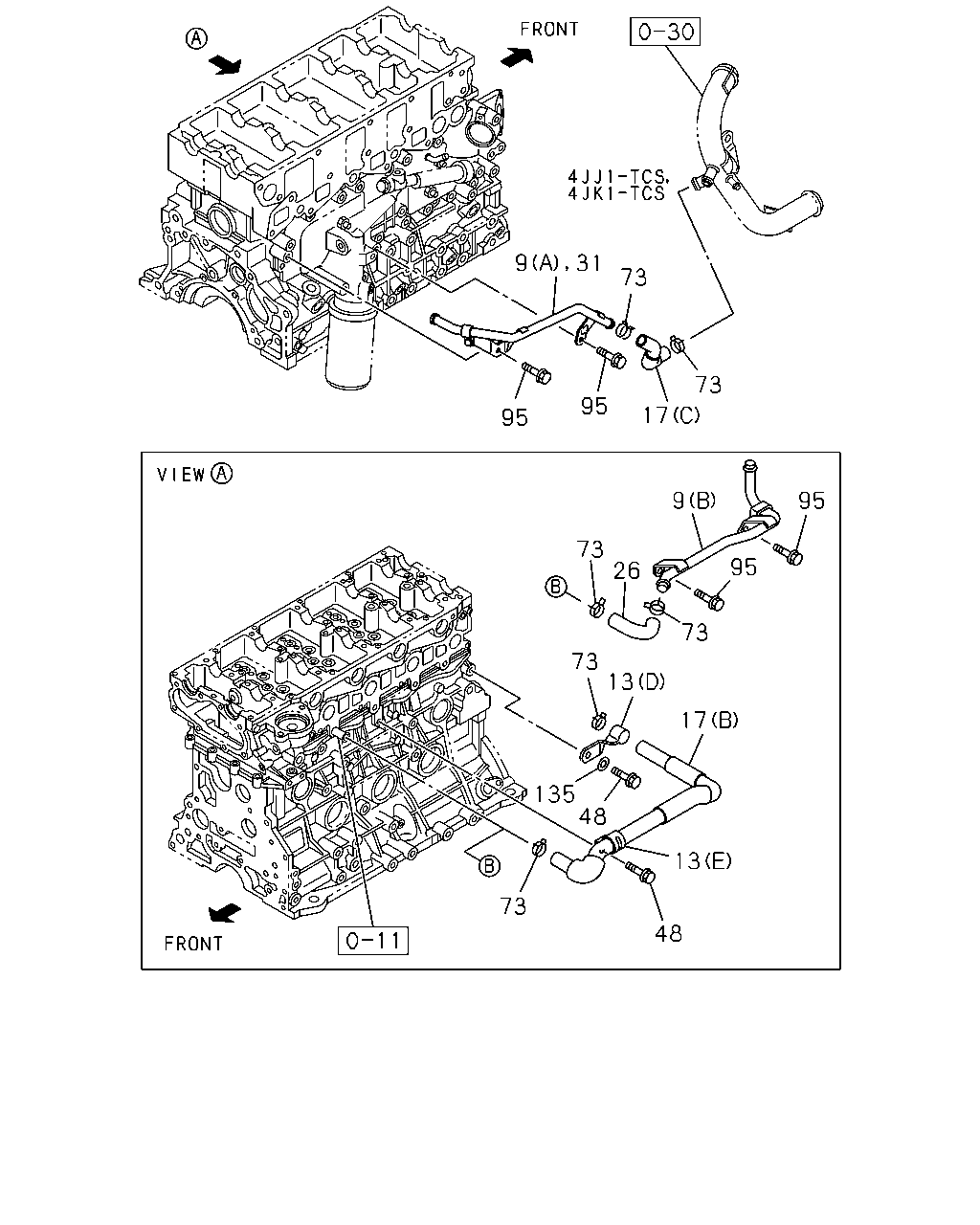

18 13 25 13 13 27 13 13 73 17 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (C) ID=22	8-94382-401-0	01	1	0307-0609		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-0612		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0701-0912		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	1001-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=45X22 L=46	9-09917-380-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98063-683-0	01	1	0701-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0307-0508		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0509-0609		●	●		●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0610-0612	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0701-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0307-0908		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●		●	●		●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	0307-		●	●		●	●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0610-0612	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0701-0912	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	1001-	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0612	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0612				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0701-0912	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0701-0912				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1001-	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1001-				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0610-	●	●	●			●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0307-0609		●	●		●	●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0610-		●	●		●
18	08.866 BOLT; WATER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-0709	●	●	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0912	●	●	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-92211-154-0	01	1	0509-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-494-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0501-0609	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0610-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-97236-491-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-98002-544-0	01	1	0501-0508	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-544-0	01	1	0509-0609						●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0610-0709	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0710-0912	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	1001-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-492-1	01	1	0307-0412		●	●		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-546-0	01	1	0501-		●	●		●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-490-1	01	1	0307-0412	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-541-0	01	1	0501-0609	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-541-0	01	1	0610-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(LX5)	8-97236-487-0	01	1	0307-0412	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(LX5)	8-98002-538-0	01	1	0501-0508	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-538-0	01	1	0509-0609						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	0610-0709	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	0710-0912	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	1001-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-488-1	01	1	0307-0412		●	●		●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-539-0	01	1	0501-		●	●		●	●		●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	0610-0612	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	0701-0912	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	1001-	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 01.166 ID=20.8	8-94125-862-1	04	1	0610-	●	●	●	●	●	●

13 25 13 27 13 13 107 13 74 30 13 121 13 13 17 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (C) ID=22	8-94382-401-0	01	1	0307-0609		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-0612		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0701-0912		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	1001-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=45X22 L=46	9-09917-380-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98063-683-0	01	1	0701-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0307-0508		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0509-0609		●	●		●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0610-0612	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0701-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0307-0908		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●		●	●		●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	0307-		●	●		●	●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0610-0612	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0701-0912	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	1001-	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0612	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0612				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0701-0912	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0701-0912				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1001-	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1001-				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0610-	●	●	●			●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0307-0609		●	●		●	●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0610-		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-92211-154-0	01	1	0509-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-494-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0501-0609	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-547-0	01	1	0610-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-97236-491-1	01	1	0307-0412	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(LX5)	8-98002-544-0	01	1	0501-0508	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-544-0	01	1	0509-0609						●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0610-0709	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	0710-0912	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-112-2	01	1	1001-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-492-1	01	1	0307-0412		●	●		●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-546-0	01	1	0501-		●	●		●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-490-1	01	1	0307-0412	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-541-0	01	1	0501-0609	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-541-0	01	1	0610-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(LX5)	8-97236-487-0	01	1	0307-0412	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(LX5)	8-98002-538-0	01	1	0501-0508	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-538-0	01	1	0509-0609						●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	0610-0709	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	0710-0912	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98007-110-2	01	1	1001-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97236-488-1	01	1	0307-0412		●	●		●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98002-539-0	01	1	0501-		●	●		●	●		●
30	08.846 HOSE; WATER,CONN TO ENG C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-673-0	01	1	0307-		●	●		●	●		●
74	08.866 HOSE; WATER,ENG TO PIPE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-672-0	01	1	0307-		●	●		●	●		●
107	08.864 HOSE; WATER,HTR C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-652-0	01	1	0307-0609		●	●		●	●		●
107	08.864 HOSE; WATER,HTR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-652-0	01	1	0610-		●	●		●	●		●
121	08.845 NUT; PIPE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 06.672 M10 FLANGE	0-91280-210-0	01	1	0307-		●	●		●	●		●

73 31 9 73 17 95 95 9 95 95 73 26 73 73 13 17 13 48 135 73 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98011-513-1	01	1	0610-0611	●	●	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98011-513-1	01	1	0612-	●	●	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98011-492-1	01	1	0610-0611	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98011-492-1	01	1	0612-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HF V6 ENG(LCA),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (C) ID=22	8-94382-401-0	01	1	0307-0609		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-0612		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0701-0912	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0701-0912		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	1001-1004	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	1001-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=45X22 L=46	9-09917-380-0	01	1	0610-0612	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98063-683-0	01	1	0701-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0307-0508	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0307-0508		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0509-0609		●	●		●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(LX5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	01	1	0509-0609						●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-		●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0610-0612	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	0701-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (F)	8-98035-284-0	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-0	01	1	0610-0612				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0701-0709				●		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0710-0912	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1001-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0307-0908		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●		●	●		●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●		●	●		●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	0307-		●	●		●	●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0610-0612	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0701-0912	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	1001-	●	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0612	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0612				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0701-0912	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0701-0912				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1001-	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1001-				●		●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0610-	●	●	●			●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0307-0609		●	●		●	●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0610-		●	●		●
26	08.846 HOSE; HTR HF V6 ENG(LCA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-92211-152-0	01	1	0509-	●	●	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98011-630-0	01	1	0610-0611	●	●	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98011-630-0	01	1	0612-	●	●	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65)	8-98025-351-0	01	1	0610-0612	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB) COOLER WO/HEATER(C65)	8-98025-351-0	01	1	0701-0912	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65)	8-98025-351-0	01	1	1001-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-0612	●	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0701-0912	●	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1001-	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	0610-0612	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	0701-0912	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	1001-	●	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 01.166 ID=20.8	8-94125-862-1	04	1	0610-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0612	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0701-0912	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1001-	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0610-0612	●	●	●		●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0610-0612				●		●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0701-0709	●	●	●		●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0701-0709				●		●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0710-0912	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1001-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
