Sayfa 1-41A - Isuzu EPC

1-41A — FUEL PIPING; CHASSIS (#4299) — 284 parça

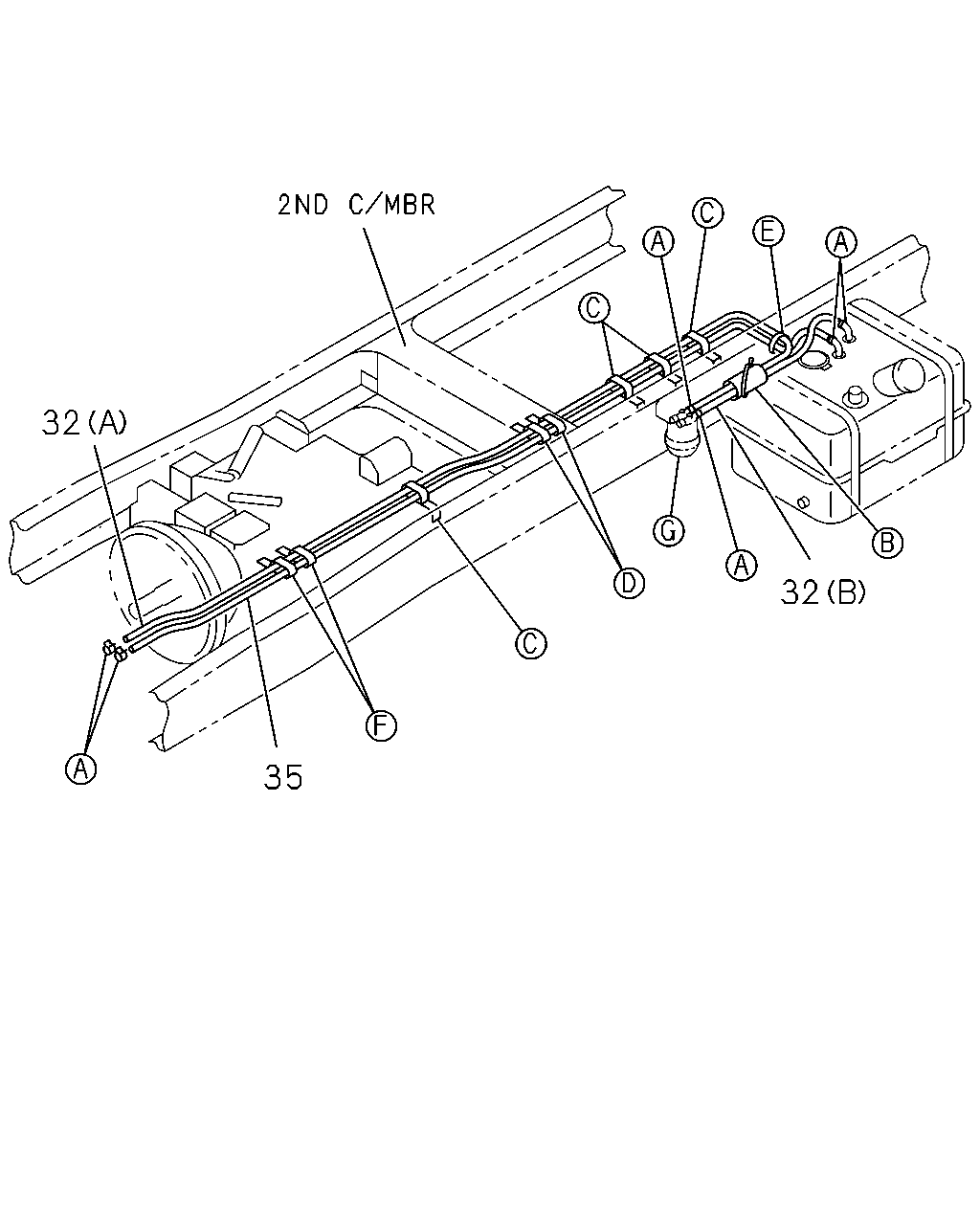

32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) FUEL SEDIMENTER<PS9> (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK SILENCER SINGLE VERTICAL<N28> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908			●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9604-9904			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> (A) L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) FUEL SEDIMENTER<PS9> (A) L=2150 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) (A) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9603			●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) (B) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9604-9904			●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (B) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9605			●
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9605					●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9904			●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9904					●
32	PIPE; DELIVERY,FUEL TANK EXC. SILENCER SINGLE VERTICAL<N28> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908			●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. SILENCER SINGLE VERTICAL<N28> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908				●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9909-0012	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9909-0012				●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0101-				●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9904			●
32	PIPE; DELIVERY,FUEL TANK (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9904					●
32	PIPE; DELIVERY,FUEL TANK EXC. SILENCER SINGLE VERTICAL<N28> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908			●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. SILENCER SINGLE VERTICAL<N28> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908				●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9909-0012	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9909-0012				●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. FUEL SEDIMENTER<PS9>,BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9>,BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0101-				●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) FUEL SEDIMENTER<PS9> EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	0101-				●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> (A) L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9909-0012	●	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) EXC. FUEL SEDIMENTER<PS9> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9909-0012	●	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) EXC. FUEL SEDIMENTER<PS9> (A) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CXZ5MF) FUEL SEDIMENTER<PS9> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0102-	●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0102-				●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9606			●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9904			●		●
35	PIPE; FUEL TANK,RETURN EXC. SILENCER SINGLE VERTICAL<N28> L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●	●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908				●
35	PIPE; FUEL TANK,RETURN LONG CHASSIS(CXZ5MF) EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●
35	PIPE; FUEL TANK,RETURN EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9909-				●
35	PIPE; FUEL TANK,RETURN SILENCER SINGLE VERTICAL<N28> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908			●
35	PIPE; FUEL TANK,RETURN LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> L=2150 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9908	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CXZ5MC) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	9909-	●	●	●

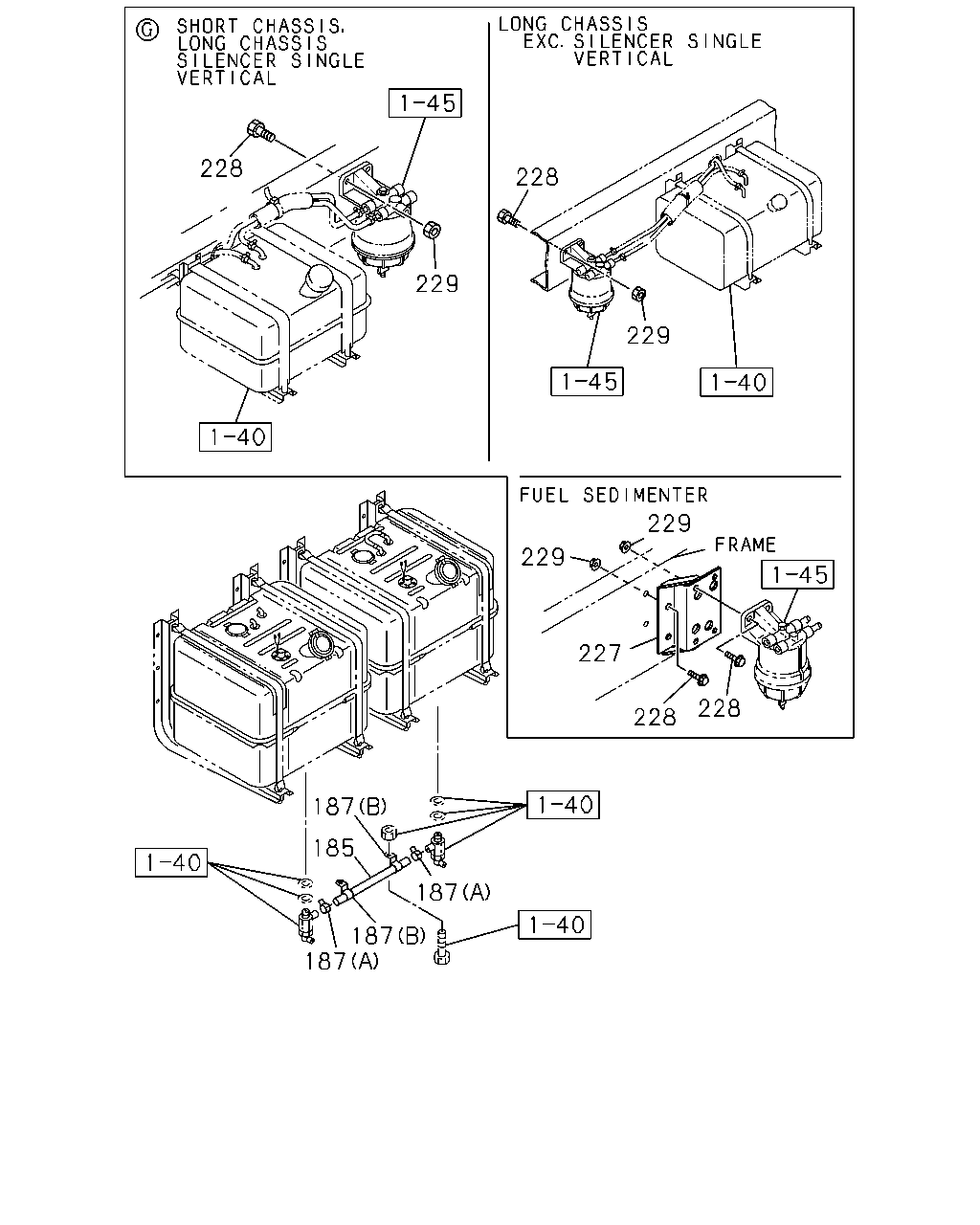

228 228 229 229 229 229 227 228 228 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9603-9904			●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9603-9904					●
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9905-	●	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9905-				●
187	CLIP; FUEL PIPE TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9603-9904			●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9603-9904					●
187	CLIP; FUEL PIPE TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9905-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	9905-				●
187	CLIP; FUEL PIPE TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9603-9904			●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9603-9904					●
187	CLIP; FUEL PIPE TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9905-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9905-				●
227	BRACKET; FUEL SEDIMENTER FUEL SEDIMENTER<PS9>	1-22518-178-1	01	1	0101-0104		●
227	BRACKET; FUEL SEDIMENTER FUEL SEDIMENTER<PS9>	1-22518-183-0	01	1	0105-		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9603-9904			●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9905-0012	●	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	0101-	●		●	●
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9> M10X40 FLANGE	0-28081-040-0	02	1	0101-		●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M14X45	0-20801-445-0	02	1	0101-		●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M12X30	9-92061-230-0	04	1	0101-0102		●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M12X35	9-92061-235-0	04	1	0103-		●
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> WHEEL BASE 5900MM(59W) M12 FLANGE	0-91150-212-0	02	1	0104-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606			●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9904			●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-0012	●	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0101-	●		●	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0101-		●
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> M14	9-99110-414-0	02	1	0101-		●

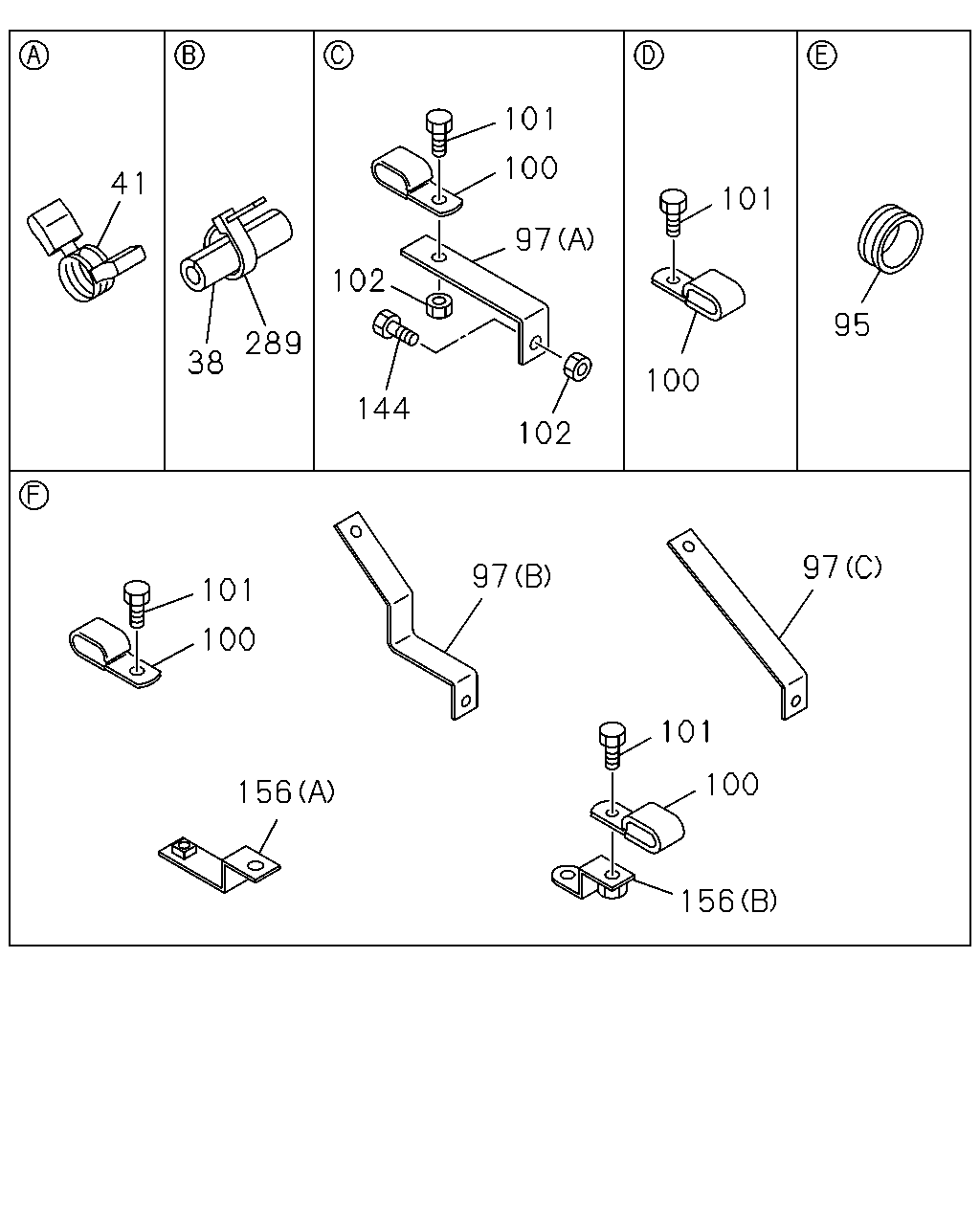

101 100 41 101 97 102 95 289 38 100 144 102 97 97 101 100 101 100 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0009-	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9603-9904			●		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9905-0101	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0102-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0102-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0009-0104	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-	●	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9904			●		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) ID=28 OD=35 T=25	1-09332-011-1	02	1	9603-9904			●
95	BUSHING; PIPE,FUEL TANK LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	02	1	9905-9908	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) ID=28 OD=35 T=25	1-09332-011-1	02	1	9905-9908	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9909-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) ID=28 OD=35 T=25	1-09332-011-1	01	1	9909-	●	●	●
95	BUSHING; PIPE,FUEL TANK LONG CHASSIS(CXZ5MF) ID=28 OD=35 T=25	1-09332-011-1	01	1	9603-9904			●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9603-9904					●
95	BUSHING; PIPE,FUEL TANK EXC. SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9908			●
95	BUSHING; PIPE,FUEL TANK LONG CHASSIS(CXZ5MF) EXC. SILENCER SINGLE VERTICAL<N28> ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9908	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9908				●
97	BRACKET; CLIP LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> (B)	1-47477-677-0	01	1	9604-9711			●
97	BRACKET; CLIP LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9712-9904			●
97	BRACKET; CLIP LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9905-			●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9905-				●
97	BRACKET; CLIP LONG CHASSIS(CXZ5MF) ZF M/T<X9E> (A) L=115	1-47475-305-0	01	1	9603-9603			●
97	BRACKET; CLIP LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> (A) L=115	1-47475-305-0	01	1	9604-9605			●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	9905-9908	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (B)	1-47478-442-0	01	1	9909-	●	●	●	●
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (A) L=135	1-22518-099-0	01	1	0101-		●
97	BRACKET; CLIP SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A>,FULLER M/T<X9B> (A) L=115	1-47475-305-0	01	1	9606-9904			●
97	BRACKET; CLIP LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> (A) L=115	1-47475-305-0	01	1	9606-9904			●
97	BRACKET; CLIP FULLER M/T<X9B> (A) L=115	1-47475-305-0	01	1	9606-9904					●
97	BRACKET; CLIP SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> (A) L=115	1-47475-305-0	02	1	9905-9908	●	●
97	BRACKET; CLIP SHORT CHASSIS(CXZ5MC) (A) L=115	1-47475-305-0	02	1	9909-0008	●	●	●
97	BRACKET; CLIP SHORT CHASSIS(CXZ5MC) (A) L=115	1-47475-305-0	01	1	0009-	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9905-9908			●	●
97	BRACKET; CLIP SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (A) L=115	1-47475-305-0	01	1	9905-9908	●	●
100	CLIP; FUEL PIPE EXC. SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	02	1	9905-9908			●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	02	1	9905-9908	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9905-9908				●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16X2 L=20	9-09535-536-0	01	1	9909-0008	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	01	1	9909-0008	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	01	1	9909-0008	●	●
100	CLIP; FUEL PIPE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16X2 L=20	9-09535-536-0	01	1	9909-0008				●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ID=16X2 L=20	9-09535-536-0	03	1	9603-9604			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9605-9608			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	04	1	9806-9904			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	04	1	9603-9604			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9605-9608			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ID=16X2 L=20	9-09535-536-0	04	1	9609-9805			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9806-9904			●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	05	1	9905-9908	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	05	1	0009-	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	04	1	9905-9908	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	04	1	9905-9908	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=20	9-09535-536-0	02	1	9909-0008	●	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	02	1	9909-0008	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9909-0008				●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	06	1	0009-	●	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=50	9-09535-586-0	01	1	9603-9904			●
100	CLIP; FUEL PIPE ID=16X2 L=50	9-09535-586-0	01	1	9603-9904					●
100	CLIP; FUEL PIPE ID=16X2 L=50	9-09535-586-0	01	1	9905-9908			●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=50	9-09535-586-0	01	1	9905-9908	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=50	9-09535-586-0	01	1	9909-	●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=50	9-09535-586-0	01	1	9909-				●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	02	1	9603-9604			●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=20	9-09535-536-0	02	1	9605-9608			●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	03	1	9609-9805			●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=20	9-09535-536-0	02	1	9806-9904			●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) EXC. ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	02	1	9609-9805			●
100	CLIP; FUEL PIPE FUEL SEDIMENTER<PS9> ID=16X2 L=20	9-09535-536-0	01	1	0101-		●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16X2 L=20	9-09535-536-0	01	1	0009-0009	●	●	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16X2 L=20	9-09535-536-0	01	1	0009-0009				●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> ID=16X2 L=20	9-09535-536-0	02	1	0010-	●	●	●
100	CLIP; FUEL PIPE FULLER M/T<X9B> ID=16X2 L=20	9-09535-536-0	02	1	0010-				●	●
100	CLIP; FUEL PIPE SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	03	1	9905-9908			●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	03	1	9905-9908	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> ID=16X2 L=20	9-09535-536-0	03	1	9905-9908	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(CXZ5MC) ID=16X2 L=20	9-09535-536-0	04	1	9909-0008	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	0009-0009	●	●	●	●
100	CLIP; FUEL PIPE LONG CHASSIS(CXZ5MF) ID=16X2 L=20	9-09535-536-0	03	1	0010-	●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	0010-				●
101	BOLT; CLIP,FUEL PIPE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9905-9908			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9908				●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	9909-0008	●	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	01	1	9909-0008	●	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	01	1	9909-0008	●	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9909-0008	●	●
101	BOLT; CLIP,FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	01	1	9909-0008				●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	01	1	9909-0008				●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) M8X20 FLANGE	0-28080-820-0	03	1	9603-9604			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	04	1	9806-9904			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	03	1	9605-9606			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9607-9608			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X25 FLANGE	0-28680-825-0	02	1	9909-0008	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9909-0008	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9909-0008				●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	06	1	0009-	●	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) M8X25 FLANGE	0-28680-825-0	04	1	9609-9805			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9806-9904			●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	05	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	05	1	0009-	●	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X20 FLANGE	0-28080-820-0	04	1	9603-9604			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X20 FLANGE	0-28080-820-0	02	1	9605-9606			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	9609-9805			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X25 FLANGE	0-28680-825-0	02	1	9806-9904			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904			●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9904					●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-9908			●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) M8X25 FLANGE	0-28680-825-0	01	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	01	1	0009-0012	●	●	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	01	1	0009-0012				●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	0101-	●	●	●
101	BOLT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8X25 FLANGE	0-28680-825-0	01	1	0101-		●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	0101-				●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) EXC. ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9609-9805			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	02	1	0009-				●
101	BOLT; CLIP,FUEL PIPE SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	03	1	9905-9908			●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A> SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	03	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	03	1	9905-9908	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) M8X25 FLANGE	0-28680-825-0	04	1	9909-0008	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0009-	●	●	●	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8	9-09110-508-0	02	1	9604-9605			●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8	9-09110-508-0	02	1	9606-9606			●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	9607-9904			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-9908			●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9908	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9908	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9908	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	01	1	9909-0008				●
102	NUT; CLIP,FUEL PIPE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9909-0008				●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	0009-				●
102	NUT; CLIP,FUEL PIPE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0009-				●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8	9-09110-508-0	01	1	9603-9603			●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B>,ZF M/T<X9E> M8	9-09110-508-0	01	1	9604-9605			●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B>,ZF M/T<X9E> M8	9-09110-508-0	01	1	9606-9606			●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9904			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-9908			●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	03	1	9905-9908	●	●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	9909-0008			●
102	NUT; CLIP,FUEL PIPE LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	9909-0008			●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9909-0008	●	●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9909-0008	●	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	9909-0008				●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	9909-0008				●
102	NUT; CLIP,FUEL PIPE SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0009-	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9909-0008	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8X30 FLANGE	0-28080-830-0	02	1	9604-9605			●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X30 FLANGE	0-28080-830-0	01	1	9606-9606			●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	9607-9904			●
144	BOLT; CLIP,FUEL PIPE,C/MBR LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8X30 FLANGE	0-28080-830-0	02	1	9606-9606			●
144	BOLT; CLIP,FUEL PIPE,C/MBR LONG CHASSIS(CXZ5MF) FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	9607-9904			●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	02	1	9905-9908			●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CXZ5MC) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	03	1	9909-0008	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0009-	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR LONG CHASSIS(CXZ5MF) ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	01	1	9603-9605			●
144	BOLT; CLIP,FUEL PIPE,C/MBR SHORT CHASSIS(CXZ5MC) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	9905-9908	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	9909-			●	●
156	BRACKET; FUEL HOSE FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (A)	1-47477-330-0	01	1	9603-9606			●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-330-0	01	1	9607-9608			●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-47477-330-0	02	1	9609-9805			●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=80 H=20	1-82699-304-0	01	1	9806-9904			●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B)	1-47478-306-0	02	1	9905-	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CXZ5MC) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 300L<RF5> L=250	5-09707-030-1	06	1	0105-	●	●	●
289	CLIP; BAND,HOSE LONG CHASSIS(CXZ5MF) L=250	5-09707-030-0	02	1	9603-9605			●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9606-9904			●		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-9908			●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-9908			●	●
289	CLIP; BAND,HOSE ZF M/T<X9E> L=250	5-09707-030-1	02	1	9905-9908	●	●
289	CLIP; BAND,HOSE LONG CHASSIS(CXZ5MF) L=250	5-09707-030-1	02	1	9905-9908	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> L=250	5-09707-030-1	04	1	0009-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FUEL TANK 300L<RF5> L=250	5-09707-030-1	02	1	0105-	●	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CXZ5MC) SILENCER SINGLE VERTICAL<N28> L=250	5-09707-030-1	03	1	9905-9908	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9909-0008	●	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CXZ5MC) L=250	5-09707-030-1	02	1	0009-0101	●	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(CXZ5MC) MUFFLER TWIN VERTICAL<NBS> L=250	5-09707-030-1	02	1	0009-0101	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 300L<RF5> L=250	5-09707-030-1	02	1	0102-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 300L<RF5> L=250	5-09707-030-1	02	1	0102-0104	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FUEL TANK 300L<RF5> L=250	5-09707-030-1	04	1	0105-	●	●	●	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 300L<RF5> L=250	5-09707-030-1	04	1	0105-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
